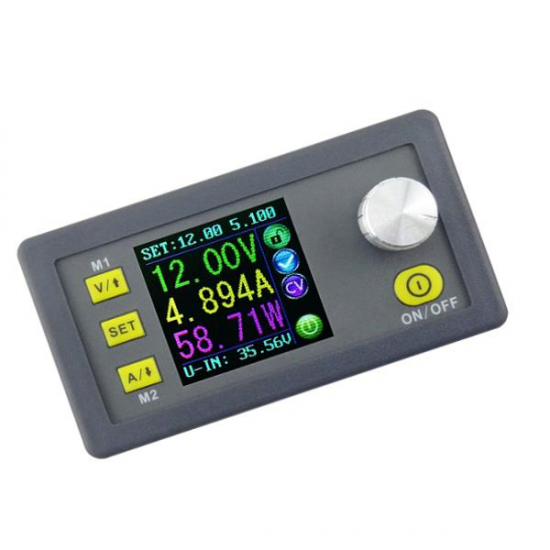

DPS3005 32V 5A Communication Function Constant Voltage Current Step Down Power Supply Module Buck Voltage Converter LCD Voltmeter

Information:

Note: This DPS3005 have communication version and No communication Version, for communication version, there is a communication interface on the back. The old version do not have communication function, So it can not use with USB communication board and the bluetooth communication Board.
This is file for upper computer installation and software, you can download at this link https://www.mediafire.com/folder/3iogirsx1s0vp/DPS_communication_upper_computer: https://www.mediafire.com/folder/3iogirsx1s0vp/DPS_communication_upper_computer
1.Before buying this product, please download the upper computer software and test, if it fits your computer, then you can buy.
2. the upper computer only support For Win7 and above

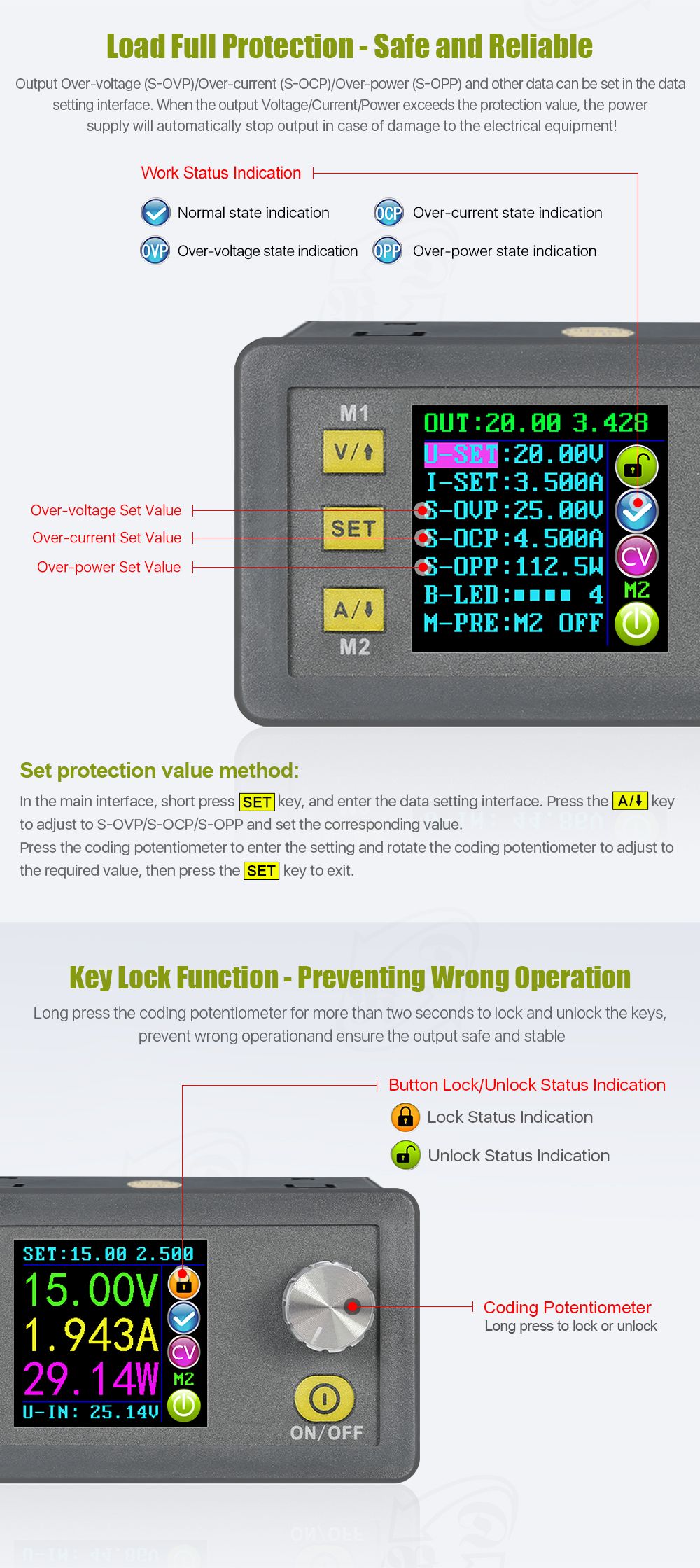

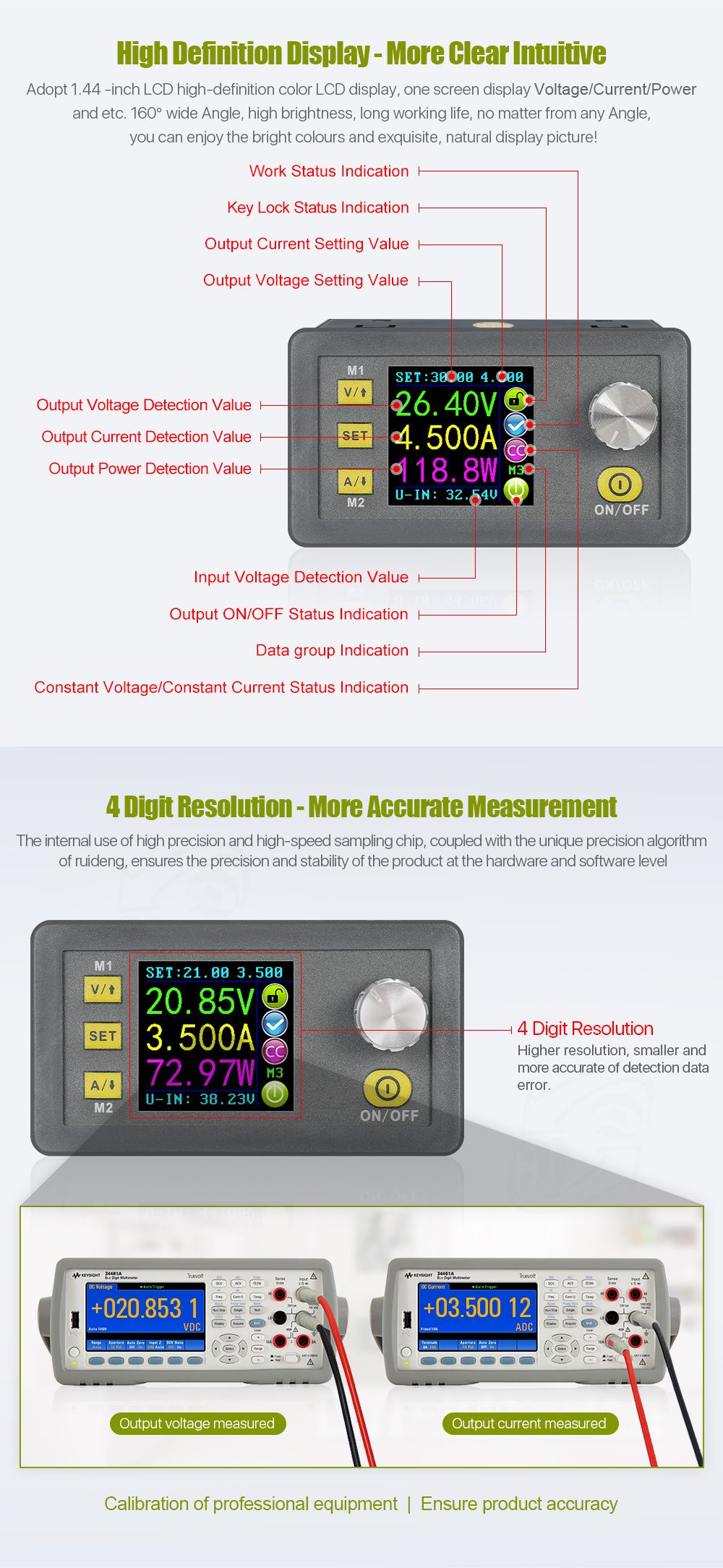

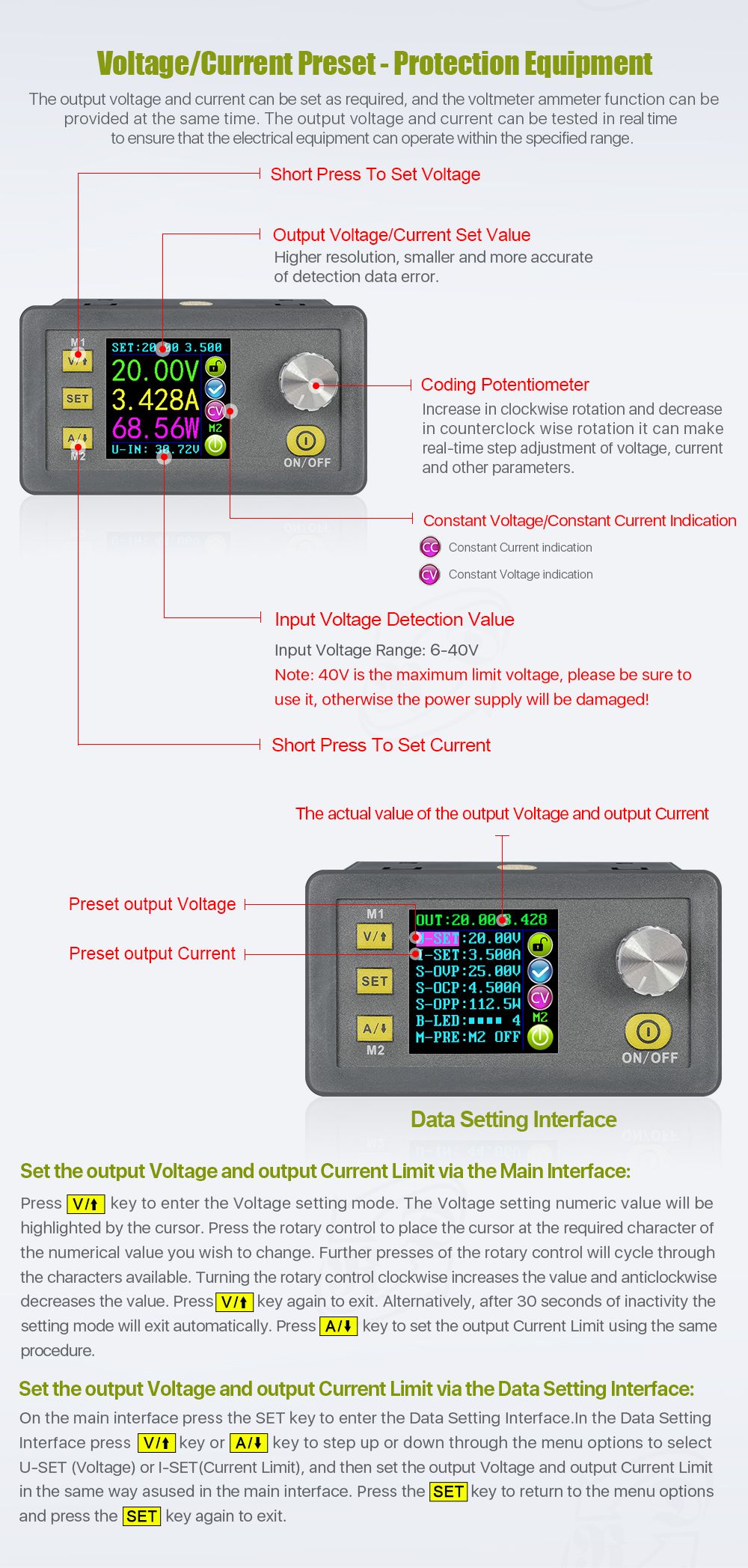

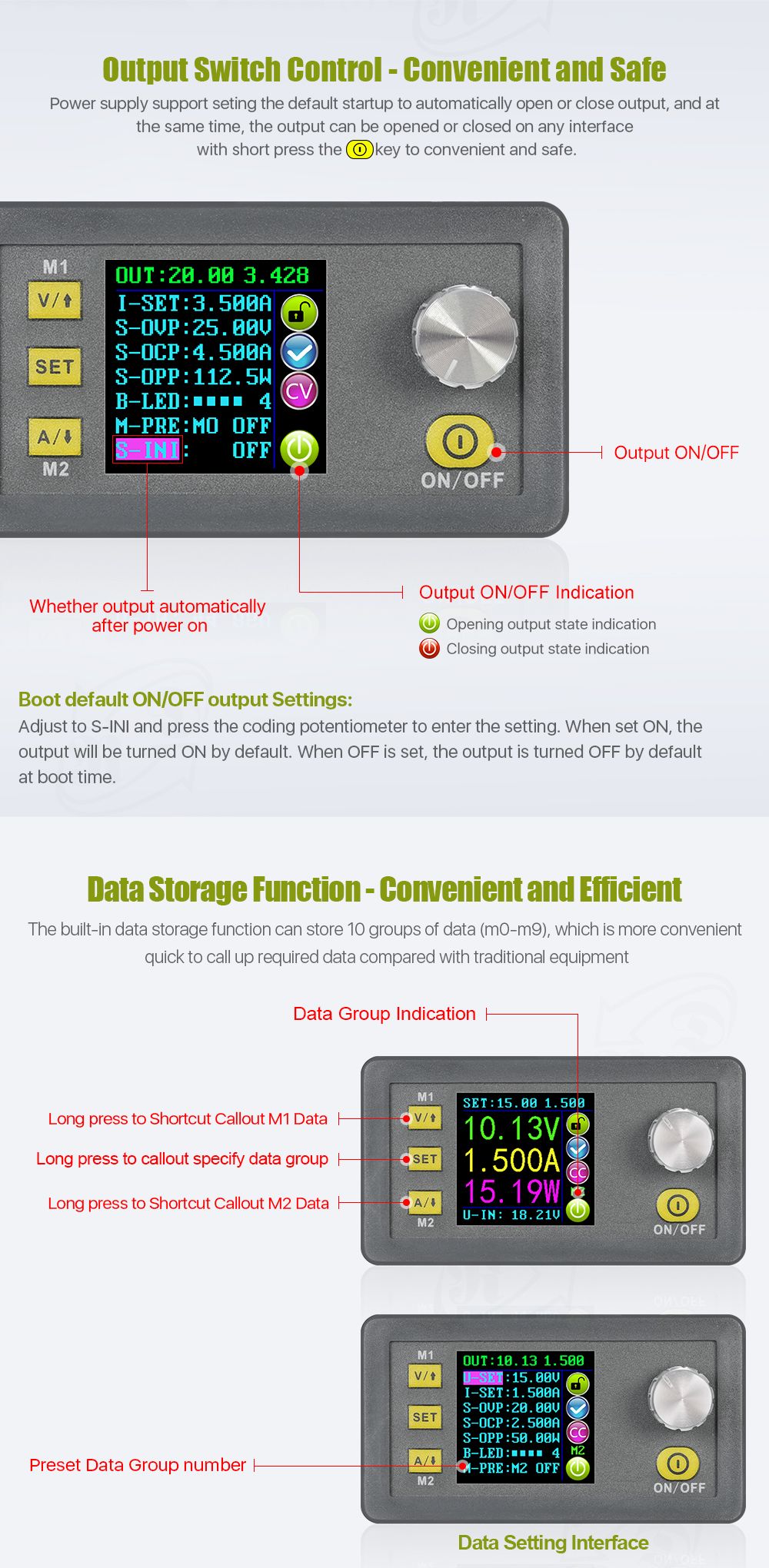

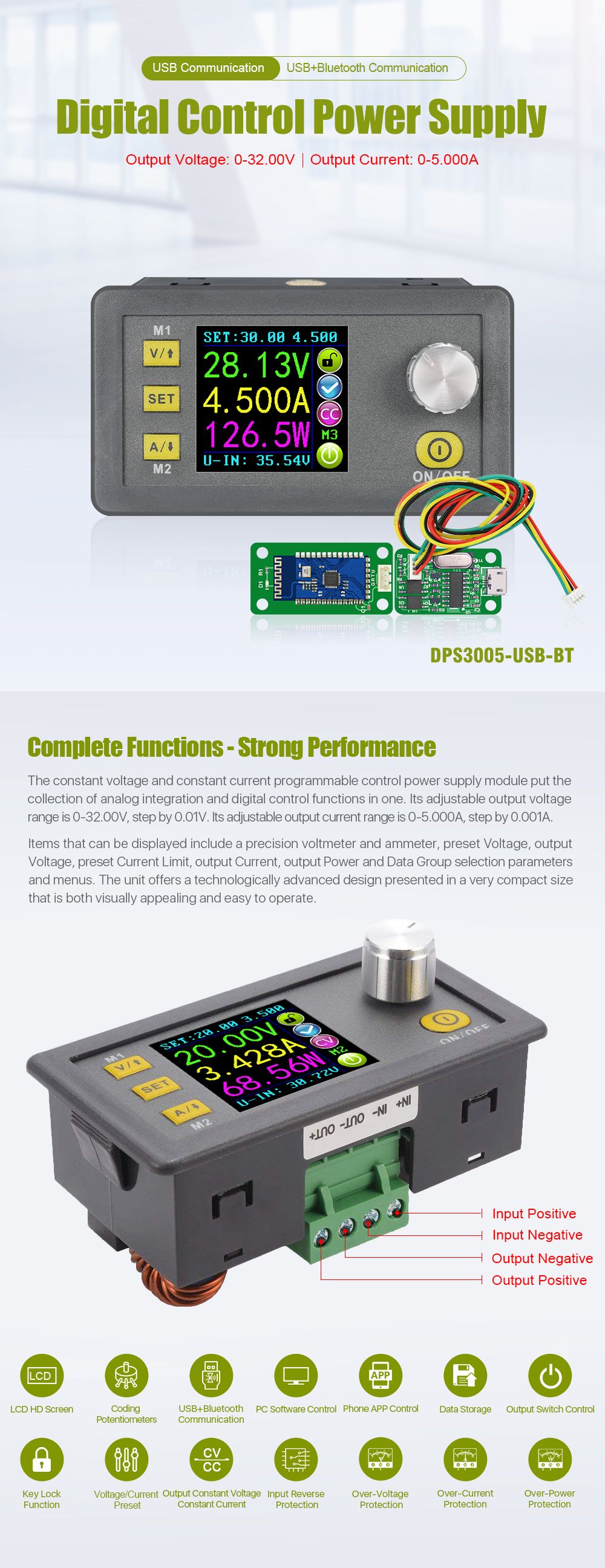

The constant voltage and constant current programmable control power supply module put the collection of analog integration and digital control functions in one. Its adjustable output voltage range is 0-32.00V, step by 0.01V. Its adjustable output current range is 0-5.000A, step by 0.001A. This module has power-down stored function and can store 10 groups preset value. And it also has the function of extracting quickly two groups stored value. Compared with the traditional analog power supply, it is more convenient to quickly extract the voltage or current required. LCD display on the module has the function digital voltmeter and ammeter. You can view the preset voltage, input voltage, output voltage, the preset current, output current, output power, etc. on the output state remind area, you can see that output opens or not, the state of constant voltage and constant current, output is normal or not, the key is locked or not, and the current data groups that is being used. On the setting data interface, you can adjust overvoltage value, overcurrent value, over-power value, data set and LCD brightness. This module has many advantages, small size, advanced function, good visual effect, high operability, high-precision, being used independently, being inset into the device and been widely applied.

Package included:

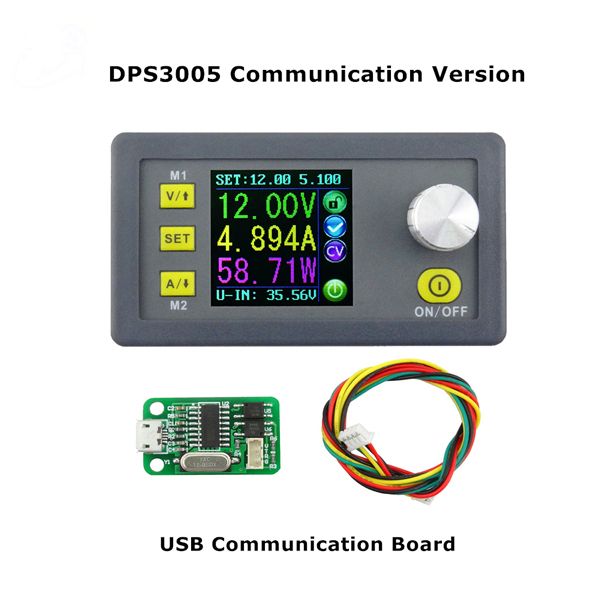

Type A (DPS3005 + USB communication board)

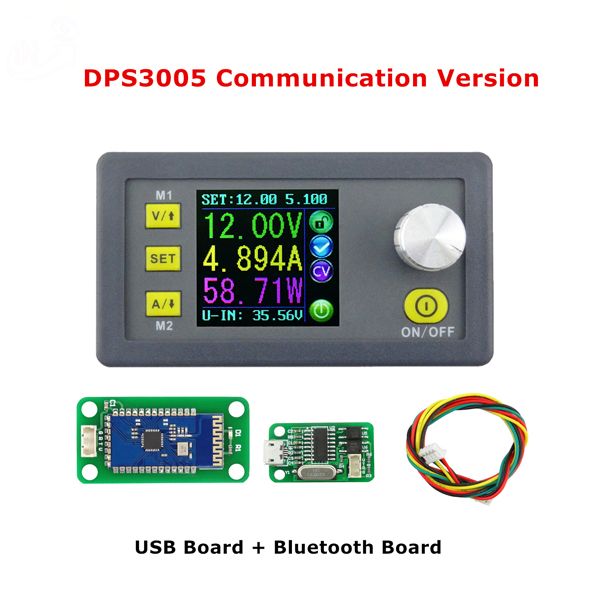

Type B (DPS3005 + USB communication board + bluetooth communication Board)
Type C (DPS3005 No communication Version)

Technical parameters:

Input voltage range:  6.00-40.00V

Output voltage range:  0V-32.00V
Output current: 0-5.000A

Output power range: 0-160.0W
Product Weight: about 113g

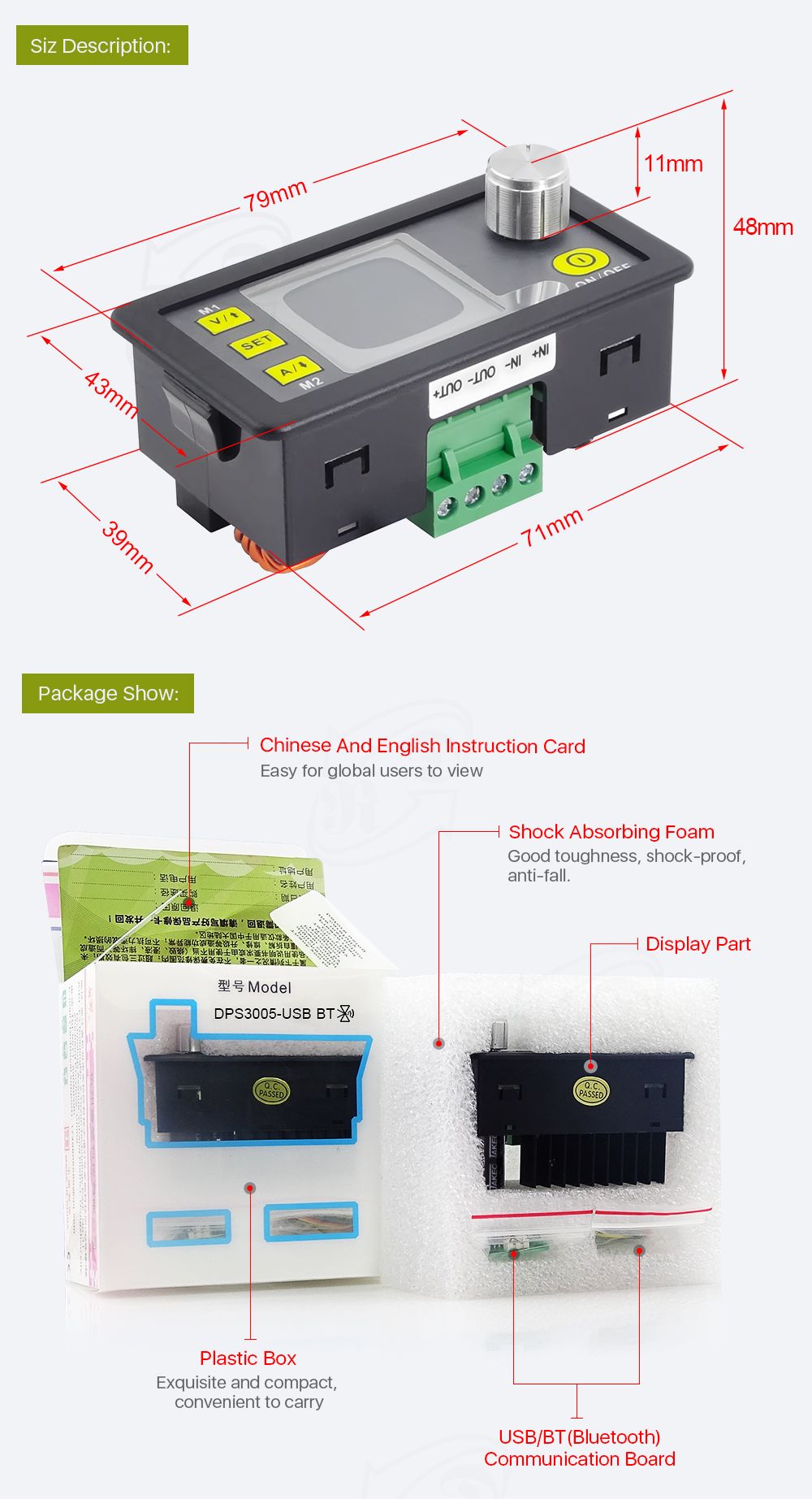

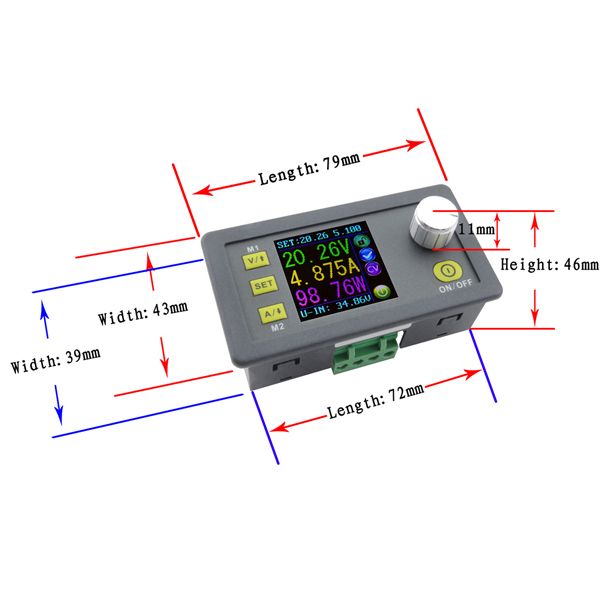

Product Dimension: 79*43*48(mm) (L*W*H)
Open size:  71mm*39mm

Output voltage resolution: 0.01V
Output current resolution: 0.001A

Output Voltage accuracy: ± (0.5% + 1 digits)
Output Current accuracy: ± (0.5% + 2 digit)
NOTE: You must make sure that the input voltage is 1.1 times higher than output voltage. Under large current circumstances, pay attention to heat elimination.

File download:

1. DPS3005 operation instruction, PC software, and PC software instuction, android phone APP

Ａ: Main download link: http://www.mediafire.com/folder/1qtg8k2c03llj/DPS3005_file: http://www.mediafire.com/folder/1qtg8k2c03llj/DPS3005_file

B: Backup download link: https://drive.google.com/open?id=1VywytIUjvWwLPKbkM0VF_jbBFb9QYeyN: https://drive.google.com/open?id=1VywytIUjvWwLPKbkM0VF_jbBFb9QYeyN

2. PC software (only support For Win7 and above) download link: http://www.mediafire.com/folder/1qtg8k2c03llj/DPS3005_file: http://www.mediafire.com/folder/1qtg8k2c03llj/DPS3005_file, or https://drive.google.com/open?id=1salzBnCkcFdfsSrefUb-8cQiKOmYXZm7: https://drive.google.com/open?id=1salzBnCkcFdfsSrefUb-8cQiKOmYXZm7

3. APP download link :

Android phone APP (support android 5.0 and above): http://www.mediafire.com/folder/1qtg8k2c03llj/DPS3005_file: http://www.mediafire.com/folder/1qtg8k2c03llj/DPS3005_file

4. For 3005 USB BT case-C1, that is DPS5020 USB BT and case suitable for DPS5020 USB BT

The installation instruction:  (suitable for no power module product): https://drive.google.com/open?id=16SfU1ulXqVTfGpWazRgzPMxUCVauc1Rv: https://drive.google.com/open?id=16SfU1ulXqVTfGpWazRgzPMxUCVauc1Rv

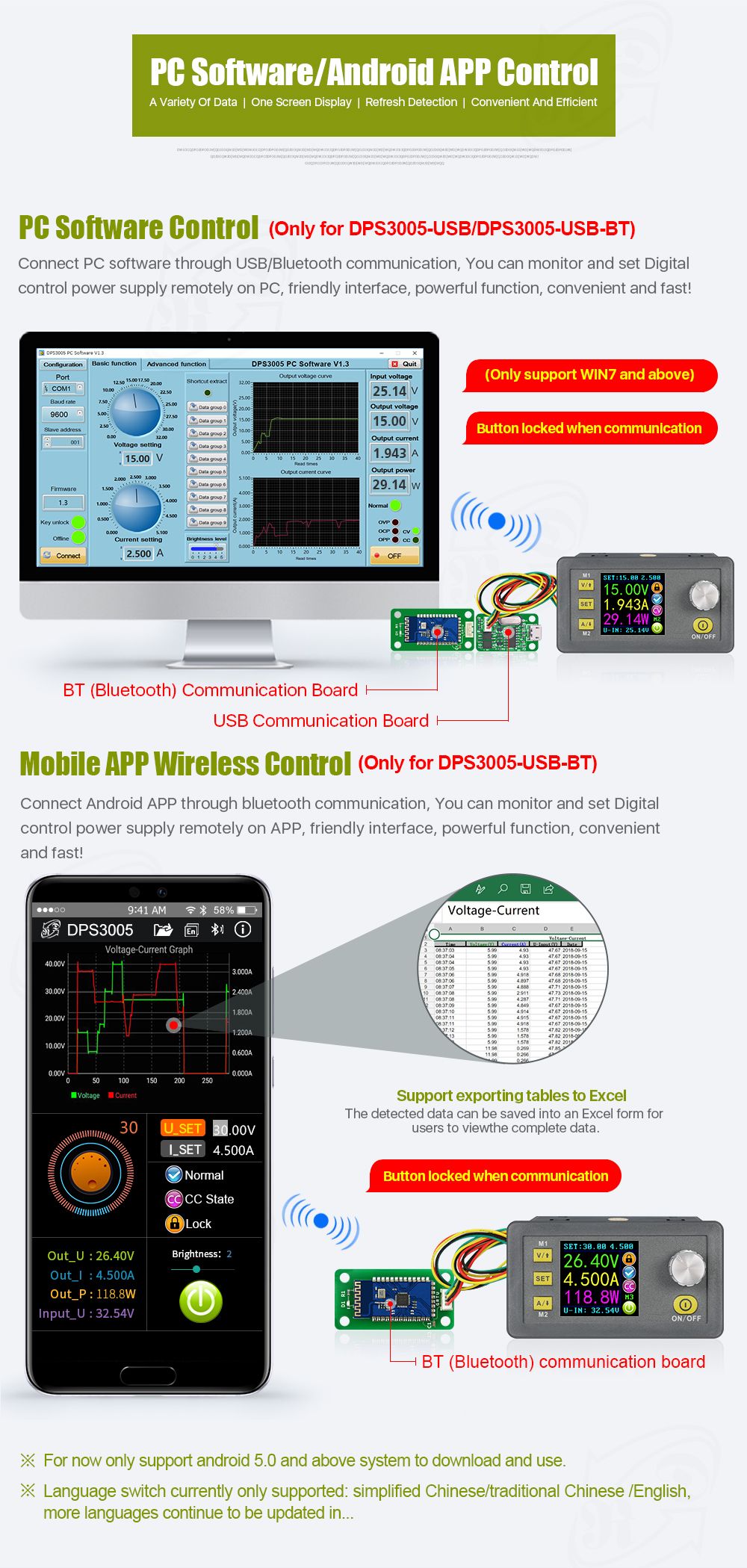

5. Upper computer installation, connection by USB and Bluetooth video: https://img.renhotecic.com/ic/download/video/7BL6KmY4x-A.mp4: https://img.renhotecic.com/ic/download/video/7BL6KmY4x-A.mp4

Android phone APP video show: https://img.renhotecic.com/ic/download/video/mX1oO1a1nGs.mp4: https://img.renhotecic.com/ic/download/video/mX1oO1a1nGs.mp4

,,,
