DMR828 2W High Power Wireless Digital Walkie Talkie Interphone Module 400-470 MHZ
- Stock: In Stock
- Model: EB0042502
- SKU: EB0042502
| Parameter | Test Conditions | MIN. | Typical | MAX. | Unit |
| Operating voltage | 3 | 4 | 5 | V | |
| Working temperature | -20 | 25 | 60 | ℃ | |
| Operating frequency | 400 | 470 | MHZ | ||
| Serial port baud rate | 9600 | bps | |||
| Current consumption | |||||
| Sleep current | 75 | uA | |||
| Receiving current | < 135 | mA | |||
| Emission current (high power) | @VCC=5.0V,2W | < 1.1 | A | ||
| Emission current (high power) | @VCC=4.0V, 1.5W | < 950 | mA | ||
| Emission current (low power) | @VCC=4.0V,27dBm | < 500 | mA | ||
| Transmit power (high power) | @VCC=4.0V | 1.5 | W | ||
| Transmit power (low power) | 500 | mW | |||
| Mike input voltage | 0.1 | 1.6 | Vpp | ||
| Receiving sensitivity | -124 | dBm | |||
| Receive error rate (DMR system) | @ -121dBm | 1 | % | ||
| Audio output power | 2 | W | |||
| Audio output impedance | 8 | Ohm | |||

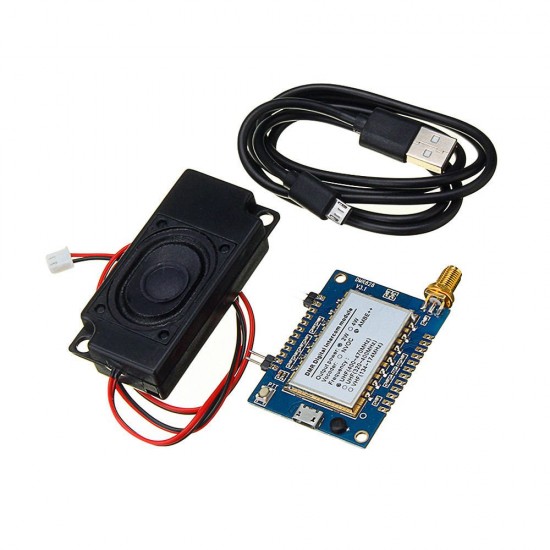

Package includes:
1 x Module
1 x USB cable

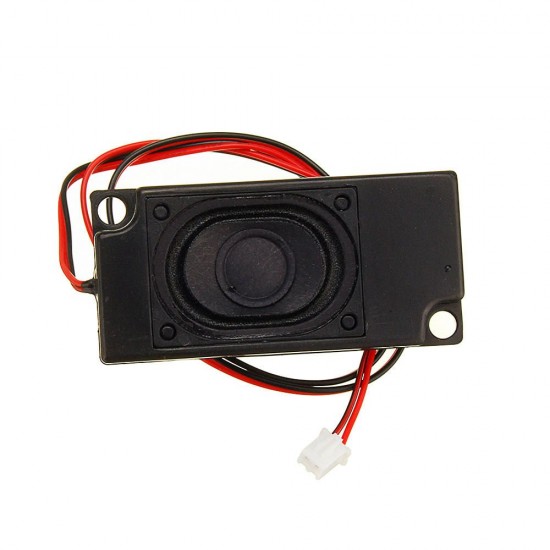

1 x Speaker

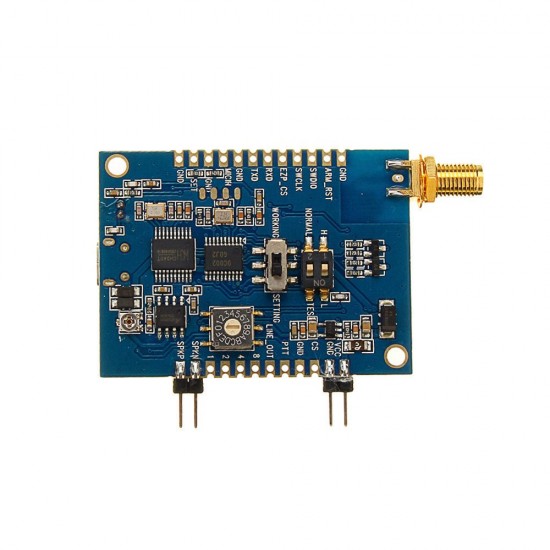

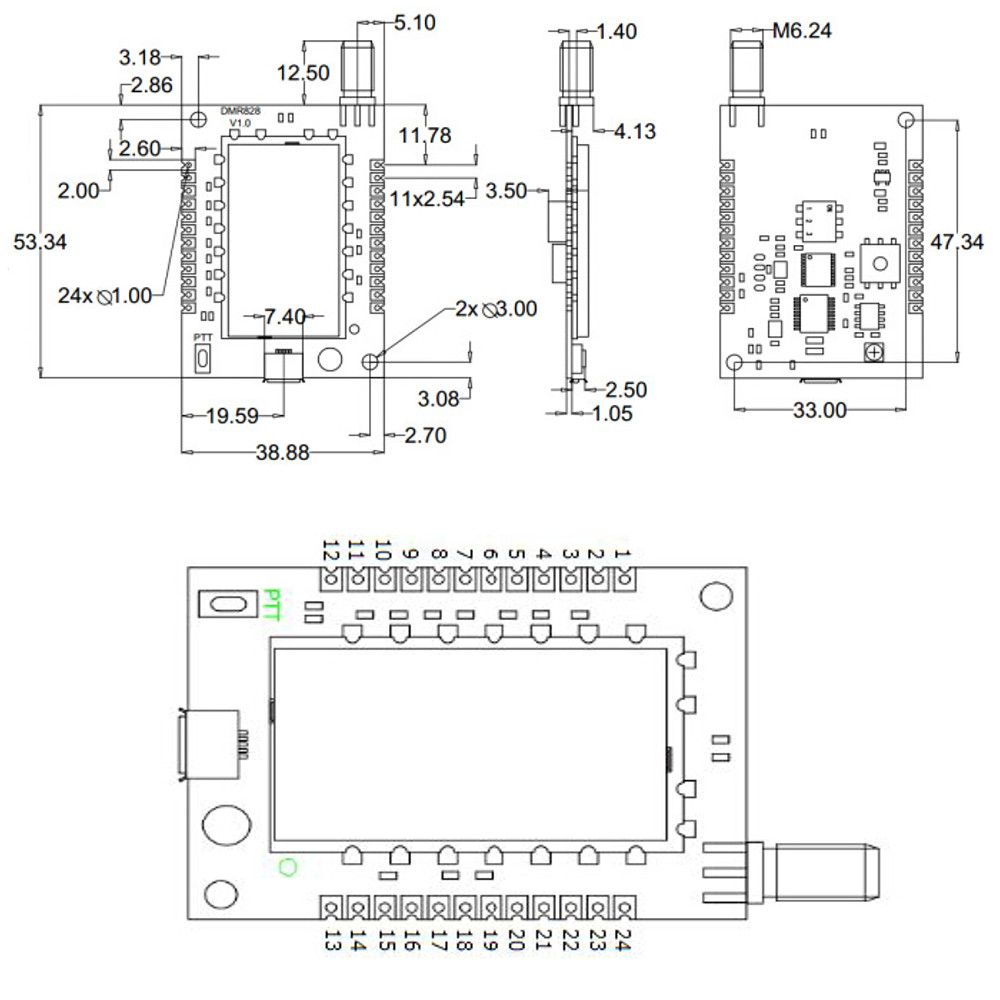

| Pin NO. | Pin Name | Description |
| 1 | VCC | Positive supply |
| 2,4 | GND | Ground |
| 3 | CS | Leave Open or high level for normal working, pull low to enter sleeping mode |
| 5 | PTT | Module Input. Transinitting/receiving control, pull low to force the module to enter TX state: pull high for Rx state |
| 6 | LINE_OUT | Audio output without amplified |
| 7 | 8 | 16 Channels. Code 8421. 8th, default output "1" |
| 8 | 4 | 16 Channels. Code 8421. 2th, default output "1" |
| 9 | 2 | 16 Channels. Code 8421. 2nd, default output "1" |
| 10 | 1 | 16 Channels. Code 8421. 1st, default output "1" |
| 11 | SPKN | Audio output, connect to speaker 8ohm 2W |
| 12 | SPKP | Audio output, connect to speaker 8ohm 2W |
| 13,15,17,24 | GND | Ground |
| 14 | SET | Configuration mode enable (low to enter into tlie setting mode, leave open or connect high leel to exit setting mode) Valid when CS Pin is high or leave open |
| 16 | MIC_IN | Microphone or line in |
| 18 | UART-TX | TXD of the module aad connect to external RXD |
| 19 | UART-RX | RXD of the module and connect to external TXD |
| 20 | EZP_CS | Reserved |
| 21 | SWCLK | Reserved |
| 22 | SWDIO | Reserved |
| 23 |
