DM8145 4 7/8 Bench top Multimeter 1000V 20A 80000 Counts Digital Multimeter tester Auto Range Multimetro Digital Voltmeter Ohm

Description:

• The Professional Bench Top Multimeter is a unique multi-functional device that has 4 7/8 digits Dual Display with 80,000 counts and Analog Bar Graph with 23 segments. This precision LCR meter is a cost-effective solution for component and material measurement. Measure speed is about 3 per second and with more than 50 measuring functions including DC/AC Voltage, DC/AC Currents, Resistance (Ω), Capacitance, Frequency (Hz), Rotational Speed, Square Waveform, Temperature (C/F), Duty Cycle, Diode and Continuity Check. Moreover, you can connect it to your computer through RS-232 Cable. The meter can provide functions including analog bar and unit symbol display, data holding, relative value measuring and maximal/minimal value measuring. This multimeter is most suitable for use on production lines, laboratories, factories, radio-technology, R & D, maintenance and repairing work. The meter can provide functions including analog bar and unit symbol display, data holding, relative value measuring and maximal/minimal value measuring.

Features:

• High contrast and Wide visual angle LCD display with backlight

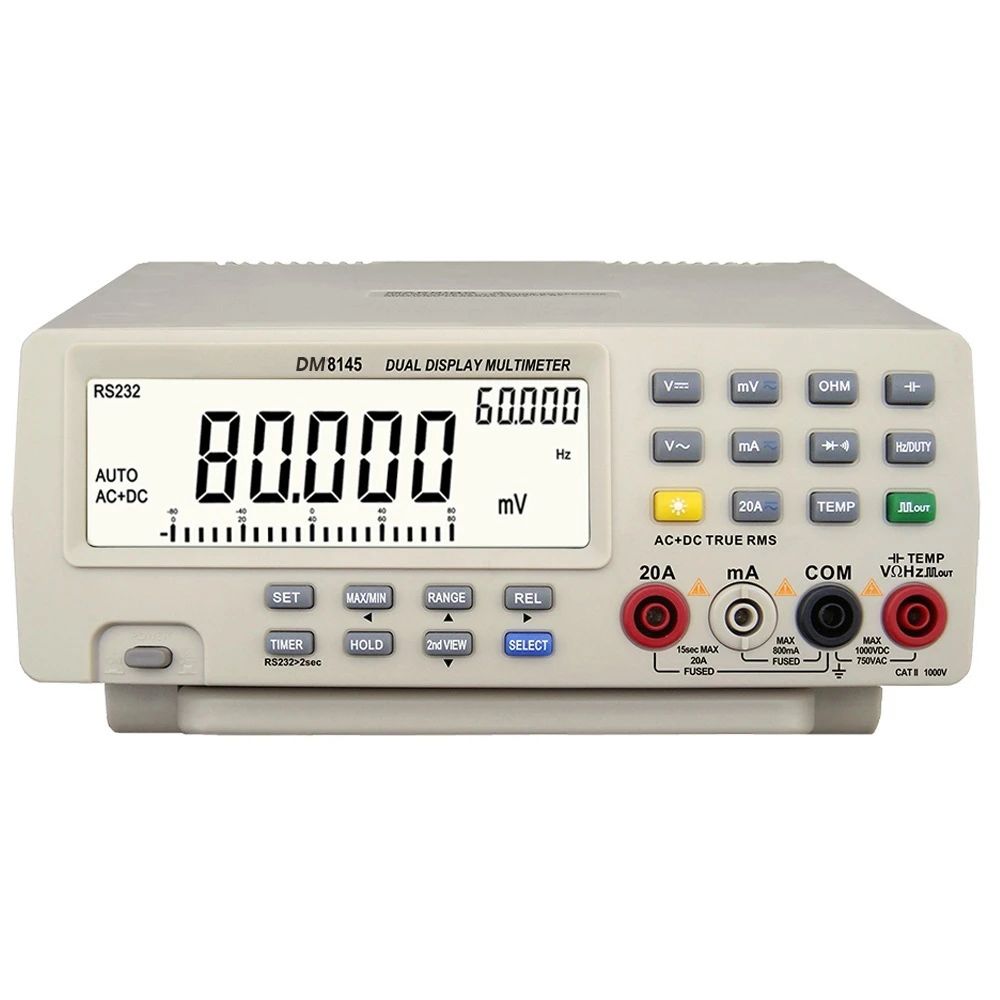

• Dual Display:
  • Main Display: 80000
  • Secondary Display: 80000
  • Analog Bar Graph: 23 segments, update 40 time/sec
• More than 50 measuring functions including DC/AC Voltage, DC/AC Currents, Resistance (Ω), Capacitance, Frequency (Hz), Temperature (°C/°F), Duty Cycle, Diode & Continuity Check
• Single Analyzed:
• (AC+DC) measuring synchronous
• (AC+Hz) measuring synchronous
• (DC+dBm) measuring synchronous
• (dBm+Hz) measuring synchronous
• (Hz+Duty) measuring synchronous
• (°C+°F) displaying synchronous
• Frequency measurement : 0.5Hz -1000.000000MHz
• Basic DC Accuracy : 0.05 %
• mV Impedance : >1000MΩ
• 16 Frequency points, 1% to 99% duty selectable square wave output
• Analyzing component of current or voltage signal
• Resistance Measuring : 0.1Ω to 80MΩ,10MΩ to 8000MΩ
• Capacitance Measuring : 1nF to 100µF
• Temperature Measuring : -50°C to 1372°C, -58°F to 2502°F
• dBm 20 types of reference impedance
• Auto data hold/ peak hold
• Relative measuring : REL, Relative percent : REL%
• 36 hours dynamic recording : MAX / MIN / average/ MAX-MIN

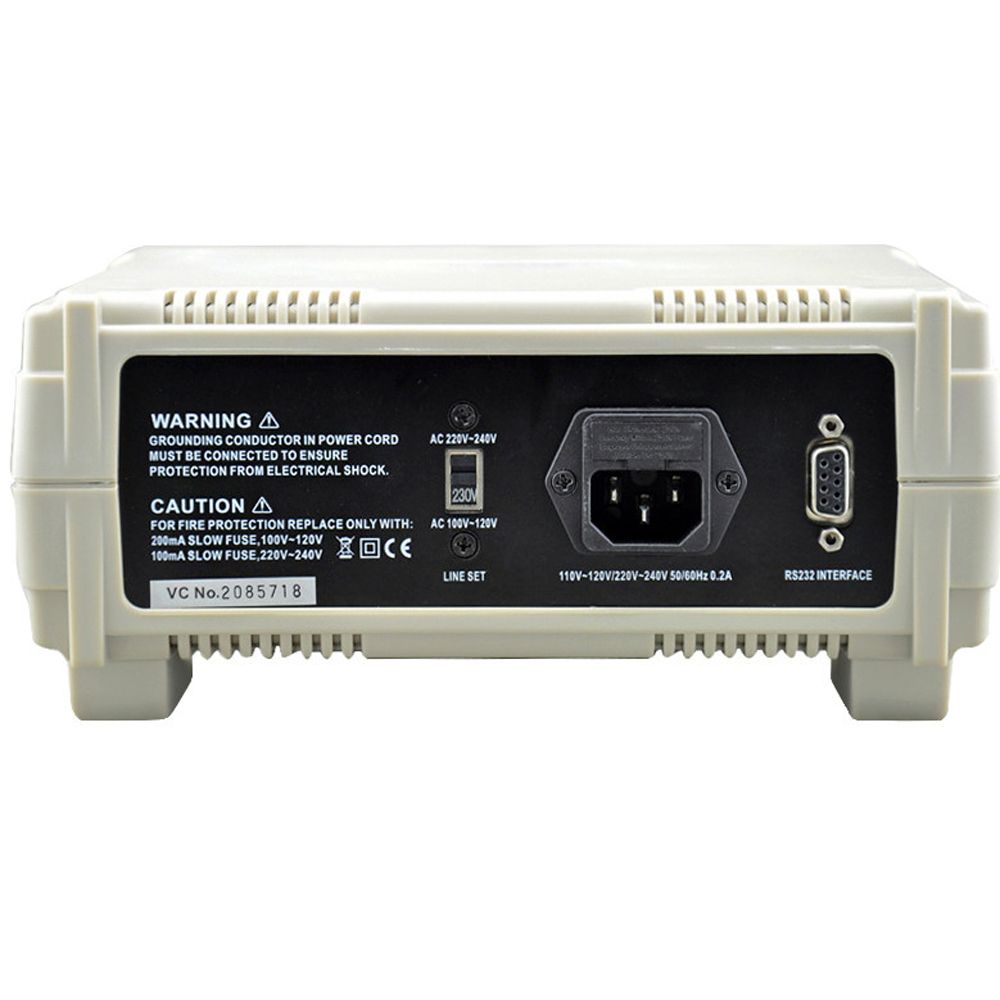

• Communication : 9-pin isolated optical RS232 cable
• Measure speed is about 3 per second
• Timer for measurement
• Safety/Compliance : IEC 61010 CAT II 1000V ; CAT III 600V
• Auto power off
• 0.1 ~ 99.9% pulse duty cycle measuring
• Set upper and lower limit area measuring
• Photoelectricity insulation RS-232 computer interface
• Timing measuring function
• AC measuring adopt High accuracy RMS, Widely measuring and AC+DC function, can measure the accuracy virtual value of AC by any wave

Specifications:

• Maximum voltage between any terminal and earth ground: 1000V RMS
• Continuity Beeper: 3kHz Approx.
• Operating Temperature: 0°C to +50°C
  • Storage Temperature : -20°C to +60°C
• Operating Altitude: under 2000m
• Storage Altitude : under 10,000m
• Relative Humidity :  ≤75% at 0°C to +40°C
• Electromagnetic Compatibility : in a RF field or 1 V/m on all ranges and function except Capacitance
• Total Accuracy : specified +5% of range Capacitance not specified in RF fields performance above 1 V/m is not specified
• PC Interface : RS-232
• Compatible with Windows 2000 & XP only
• AC Power : 110~220 V ( EU Power adapter plug)

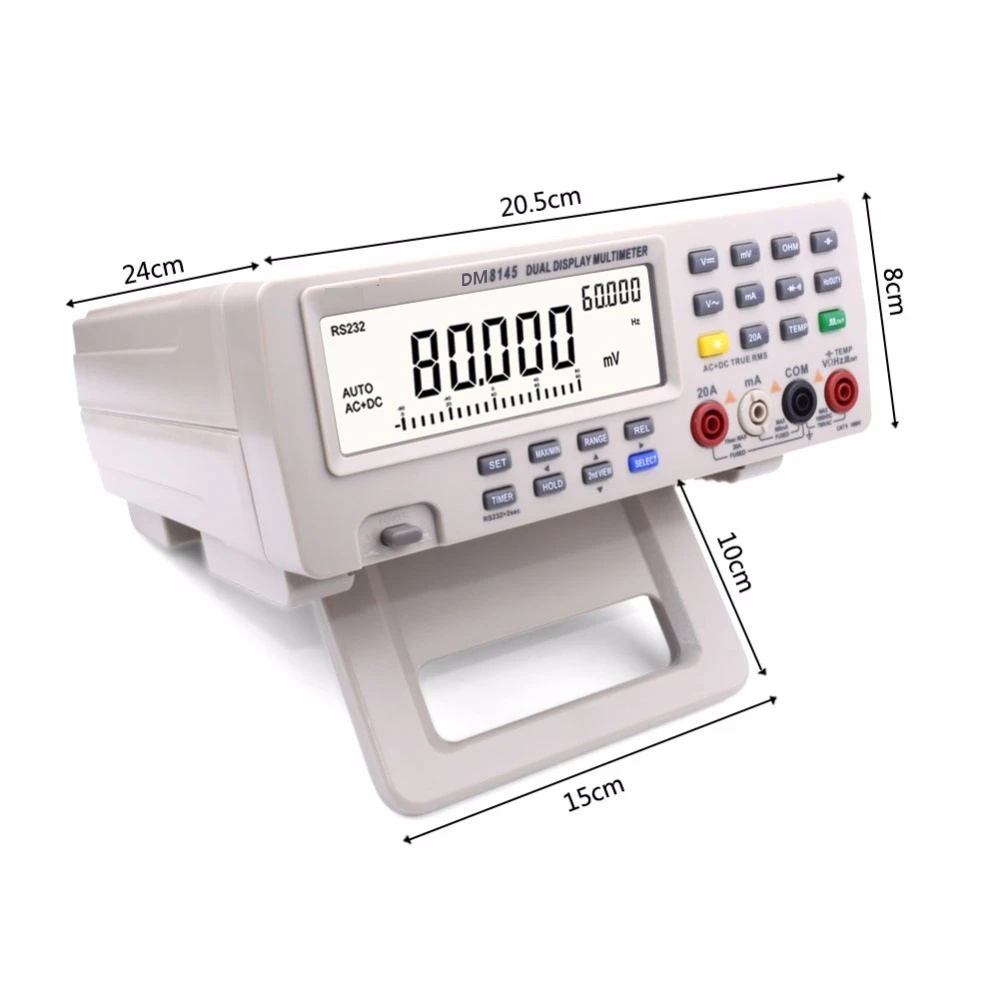

• Size : approx. 242 x 212 x 98 mm
• Weight : approx.1388g (accessories not included)

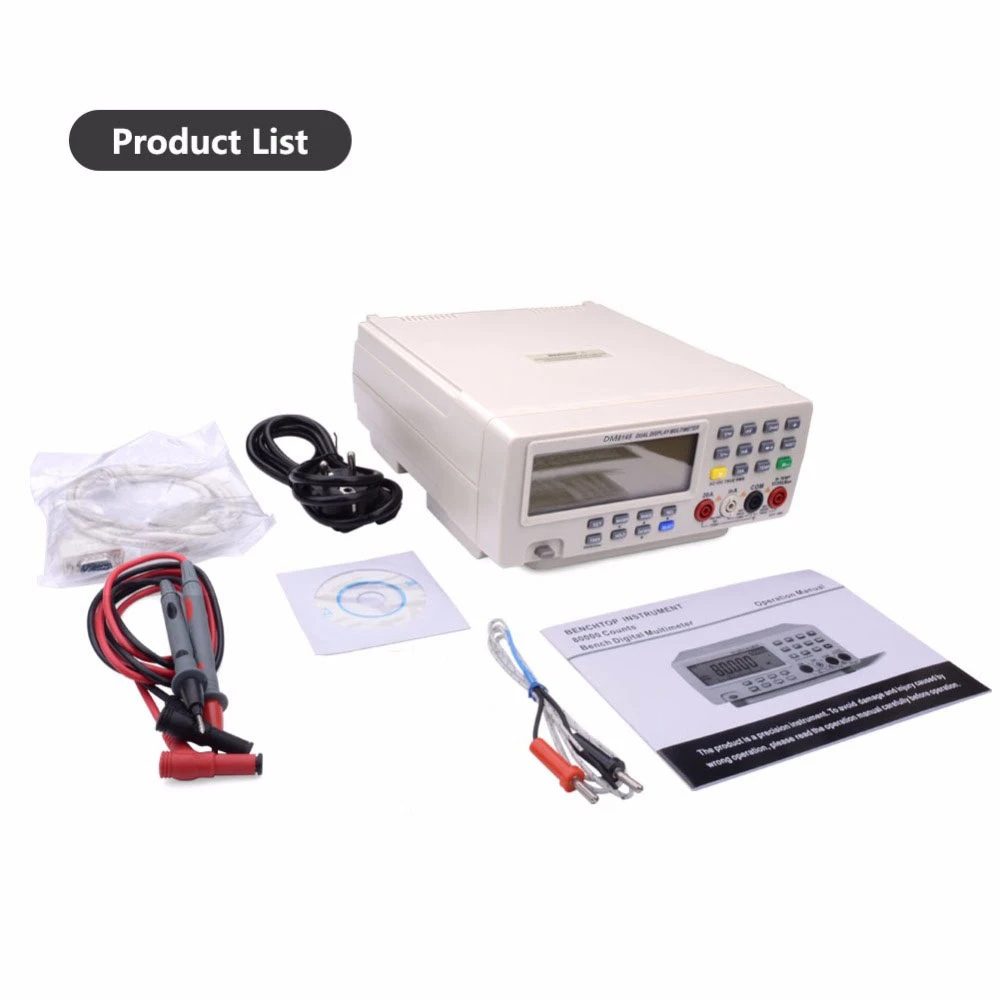

Package Includes:

1 x Digital Bench Top Multimeter

1 x Pair of Test Leads

1 x Type K Thermocouple

1 x RS-232 Software CD

1 x 9-pin Cable Adapter

1 x AC Power Cord (EU Plug)

1 x English Instruction Manual

1 x Standard Packaging Box

Note:

We will send you a plug adapter according to your country.

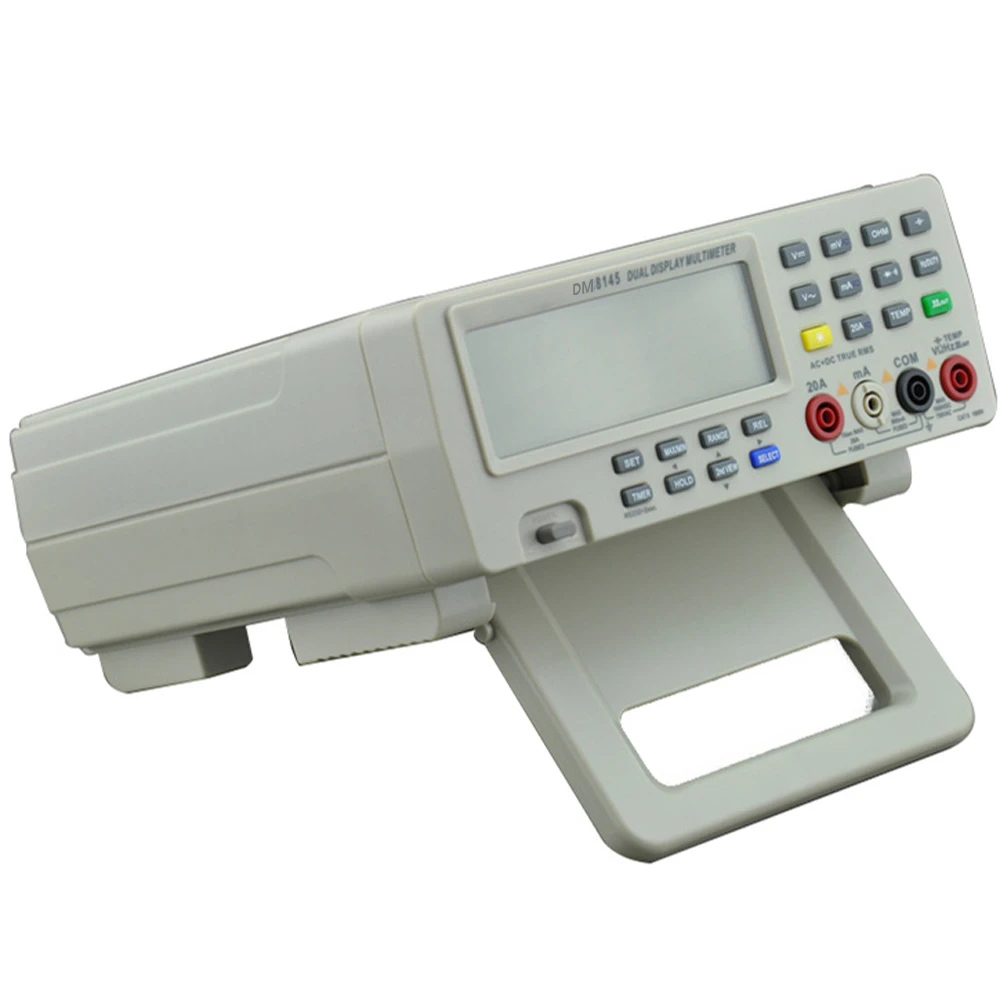

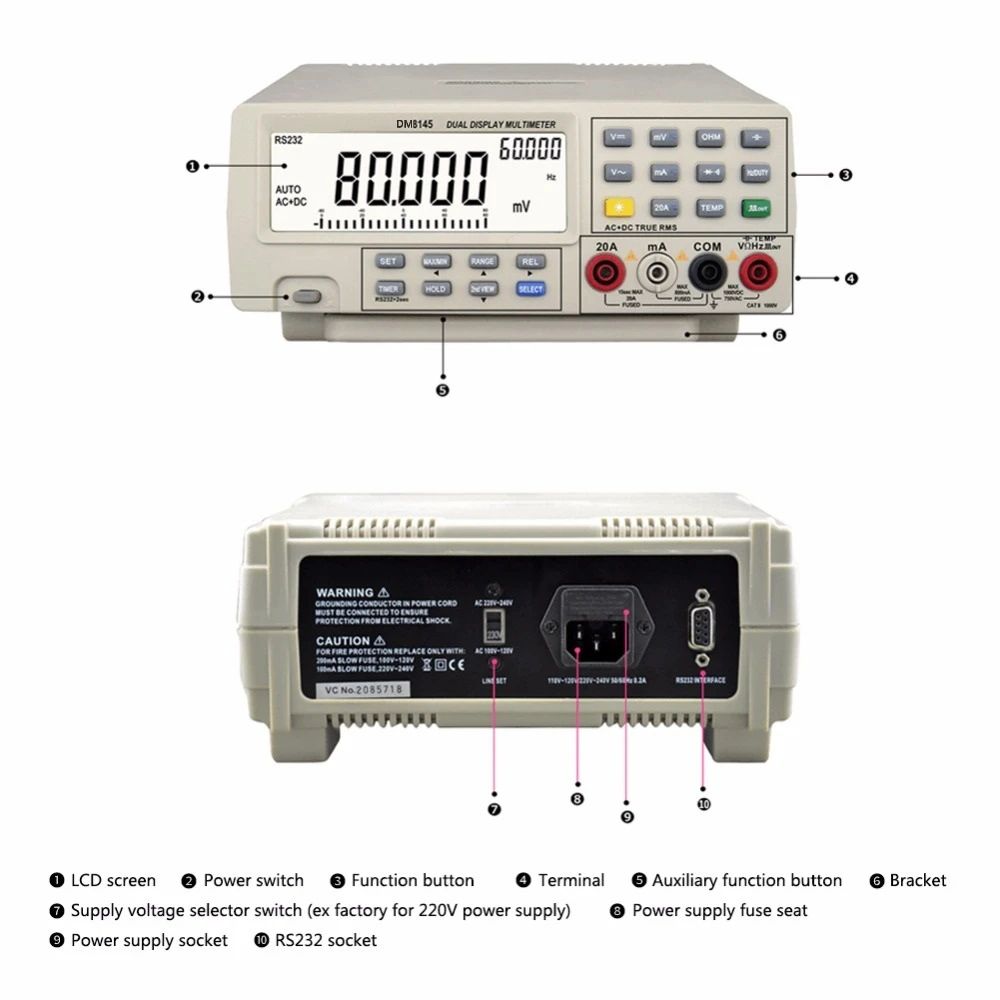

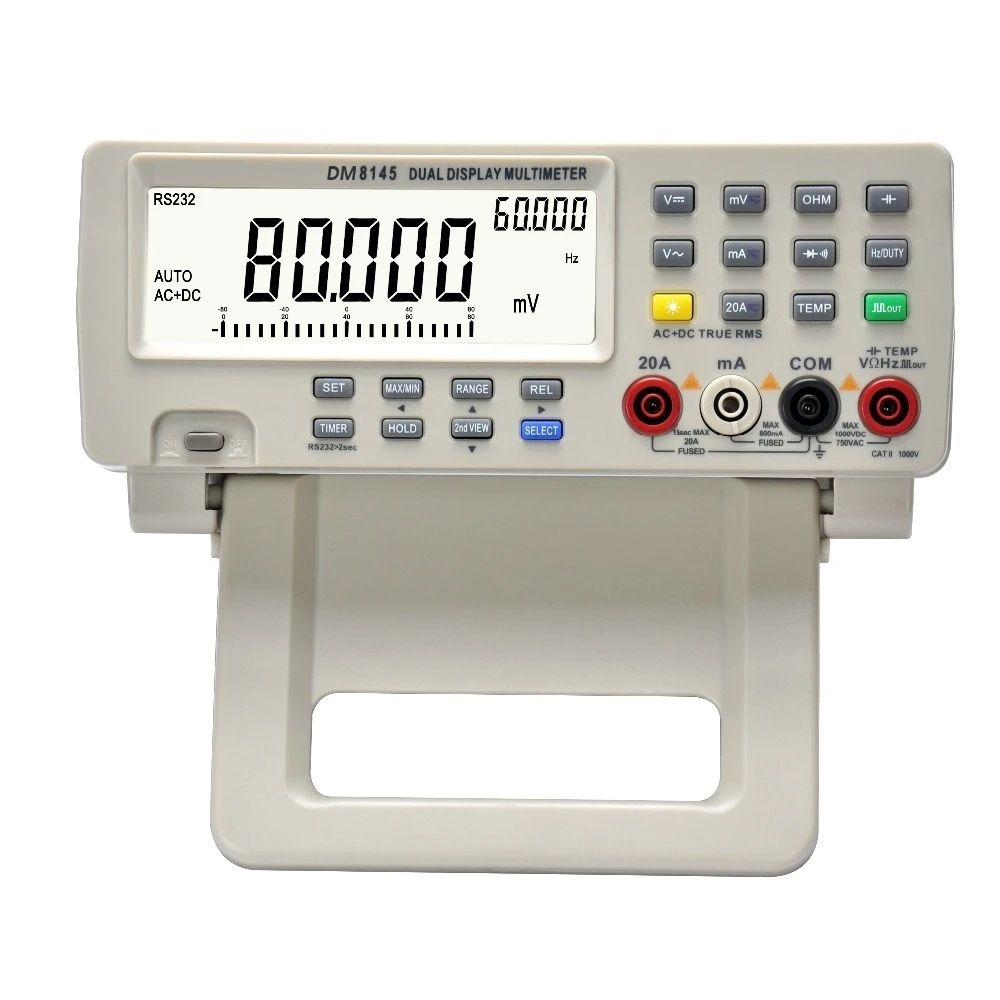

Details Pictures:
