DDS Function Signal Generator Module Sine Sawtooth Wave Signal

DDS Function Signal Generator Module Sine Sawtooth Wave Signal
DDS Function Signal Generator Module Sine Sawtooth Wave Signal
DDS Function Signal Generator Module Sine Sawtooth Wave Signal
DDS Function Signal Generator Module Sine Sawtooth Wave Signal
DDS Function Signal Generator Module Sine Sawtooth Wave Signal
DDS Function Signal Generator Module Sine Sawtooth Wave Signal
DDS Function Signal Generator Module Sine Sawtooth Wave Signal
DDS Function Signal Generator Module Sine Sawtooth Wave Signal
DDS Function Signal Generator Module Sine Sawtooth Wave Signal
DDS Function Signal Generator Module Sine Sawtooth Wave Signal
DDS Function Signal Generator Module Sine Sawtooth Wave Signal
DDS Function Signal Generator Module Sine Sawtooth Wave Signal
DDS Function Signal Generator Module Sine Sawtooth Wave Signal
DDS Function Signal Generator Module Sine Sawtooth Wave Signal
DDS Function Signal Generator Module Sine Sawtooth Wave Signal
$18.99
Ex Tax: $18.99
  • Stock: In Stock
  • Model: EB0047313
  • SKU: EB0047313
>
Feature:

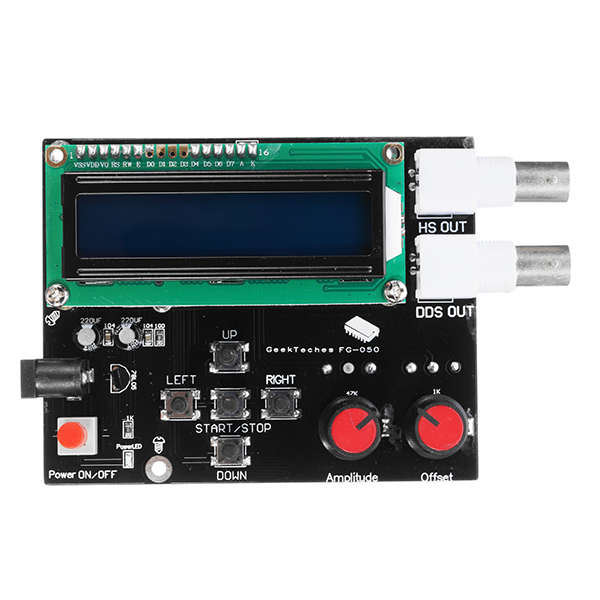

This is a function (waveform) signal generator designed with1602 LCD screen and intuitive 5 buttons
It can produce some specific periodic time function waveform (sine, square, triangle, sawtooth, and pulse wave, etc.) signal
The frequency range from a few Hz to tens of MHz micro-function signal generator circuit experiments and equipment detection of a very wide range of applications
DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers
The power automatically restores the last used configuration

Specification:

Operating voltage: DC7V-9V
Size: Approx. 100*80mm (Length*width)
Template thickness: 2mm
DDS frequency range: 1HZ-65534Hz.
High-speed frequency (HS) Square Wave: 1MHz/2MHz/4MHz/8MHz
DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, ECG wave and noise wave
Section into the Value: 1,10,100,1000,10000 Hz
Offset: 0.5pp-5Vpp
Amplitude amount: 0.5Vpp-14Vpp
Output impedance: 20-200 ohms
Color of PCB: black and blue random delivery

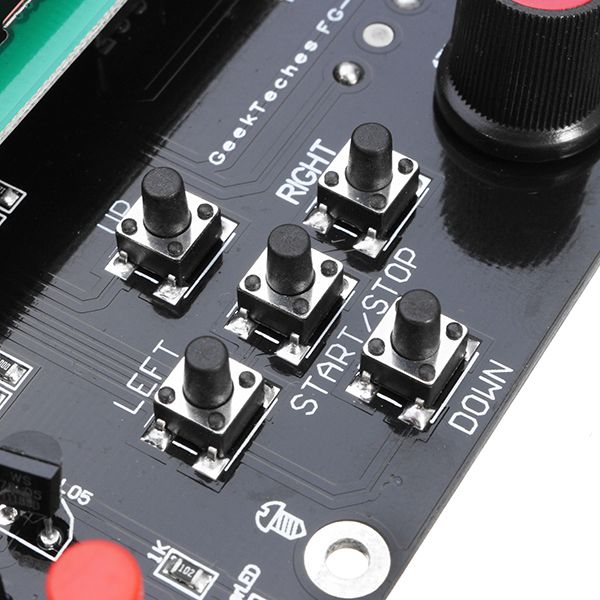

Buttons Functions:

UP: Output waveform select
DOWN: Output waveform select
LEFT: Output frequency -
RIGHT: Output frequency +
START/STOP: Output stop / start

Package Includes:

1 x Signal Generator Module
