$11.99
Ex Tax: $11.99
  • Stock: In Stock
  • Model: EB0047491
  • SKU: EB0047491
Feature:

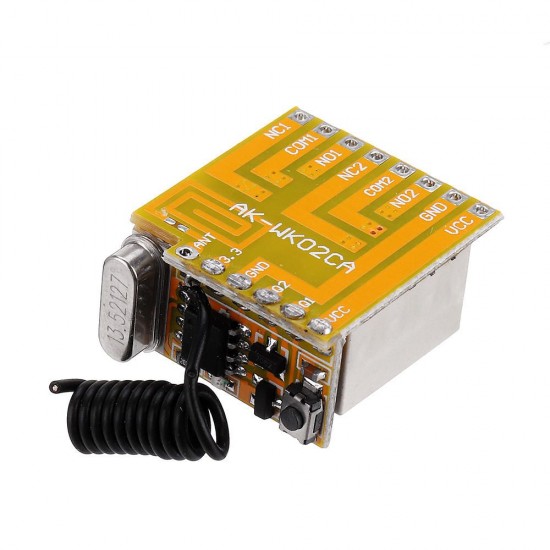

Product model: AK-WK02CA
Product Name: Two micro controller
Working voltage: 3.7V-12V (minimum 4V required for jog mode)
Power consumption situation: Standby current is only 7MA, working is 30MA current
Coding method: learn code pairing, can learn fixed code and learning code chip remote control
Working frequency: 433MHz
Working mode: Jog (default), self-locking, interlocking
Load size: <= 1A (equipment within 12W for safe use)
Product size: 20 x 22 x 12mm

How to use:


Learning method and step description:

1. Jog mode: Hold down the learning button, press the button once when the indicator light, short press A button, the indicator light flashes twice, then short press B button, the indicator light flashes twice, it is “jog mode'' Learning success.
2. Self-locking mode: Hold down the learning button, press the button once when the indicator light, press and hold the A button until the indicator light flashes twice, then immediately press and hold the B button, the indicator light flashes twice, then the "self-locking mode" learning success .
3. Interlock mode: Hold down the learning button, press the button twice when the indicator light, then press the A button until the indicator flashes twice, then immediately press and hold the B button, and the indicator flashes twice. Mode "learning success.

Code clearing method:

Press and hold the learning button for about 8 seconds. The indicator light turns on (blinks 3 times) to off, that is, the code is successfully cleared.
Tips: You must clear the code before you can switch to any work mode to learn

Package includes:

1 x Receiver board
1 x Remote control
