DC3.7V/5V/12V 315MHz Wide Voltage 2 Way Remote Control Switch Miniature Universal Learning Code

Based on 0 reviews. - Write a review

$11.99

Ex Tax: $11.99

Stock: In Stock
Model: EB0045360
SKU: EB0045360

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Feature:

Product model: AK-WK02CA

Product Name: Two micro controller

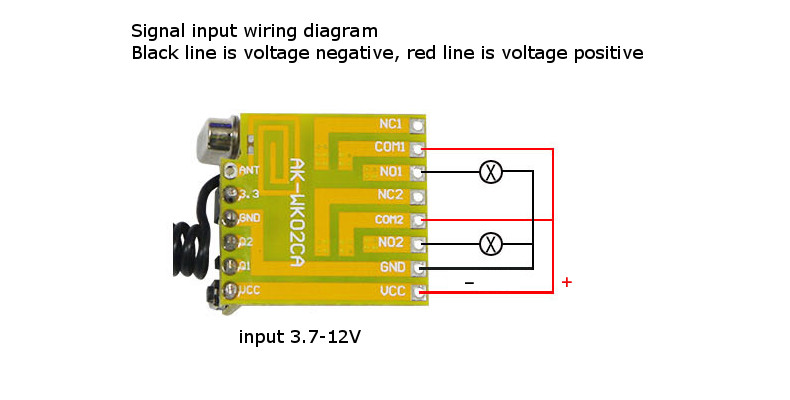

Working voltage: 3.7V-12V (minimum 4V required for jog mode)

Power consumption situation: Standby current is only 7MA, working is 30MA current

Coding method: learn code pairing, can learn fixed code and learning code chip remote control

Working frequency: 315MHz

Working mode: Jog (default), self-locking, interlocking

Load size: <= 1A (equipment within 12W for safe use)

Product size: 20 x 22 x 12mm

How to use:

Learning method and step description:

1. Jog mode: Hold down the learning button, press the button once when the indicator light, short press A button, the indicator light flashes twice, then short press B button, the indicator light flashes twice, it is “jog mode'' Learning success.

2. Self-locking mode: Hold down the learning button, press the button once when the indicator light, press and hold the A button until the indicator light flashes twice, then immediately press and hold the B button, the indicator light flashes twice, then the "self-locking mode" learning success .

3. Interlock mode: Hold down the learning button, press the button twice when the indicator light, then press the A button until the indicator flashes twice, then immediately press and hold the B button, and the indicator flashes twice. Mode "learning success.

Code clearing method:

Press and hold the learning button for about 8 seconds. The indicator light turns on (blinks 3 times) to off, that is, the code is successfully cleared.

Tips: You must clear the code before you can switch to any work mode to learn

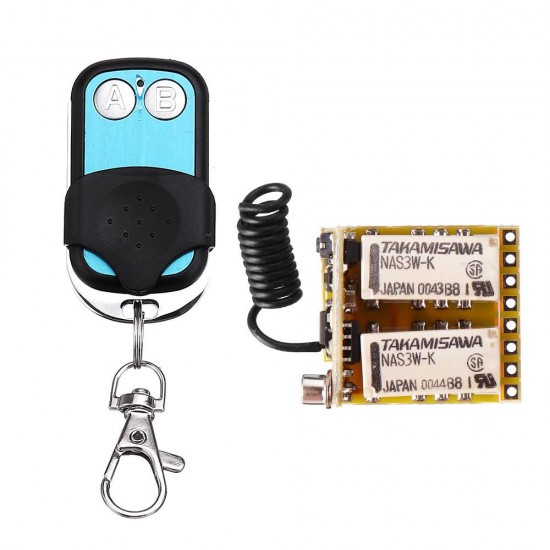

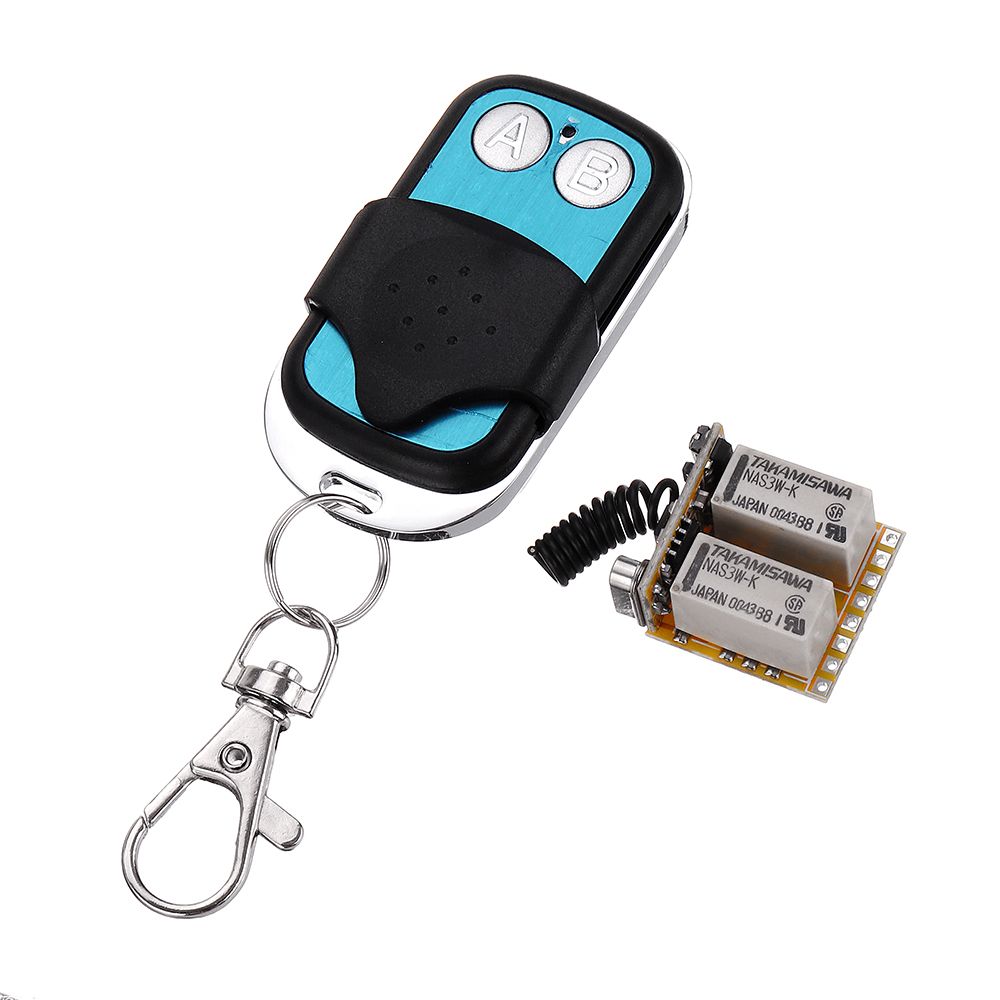

Package includes:

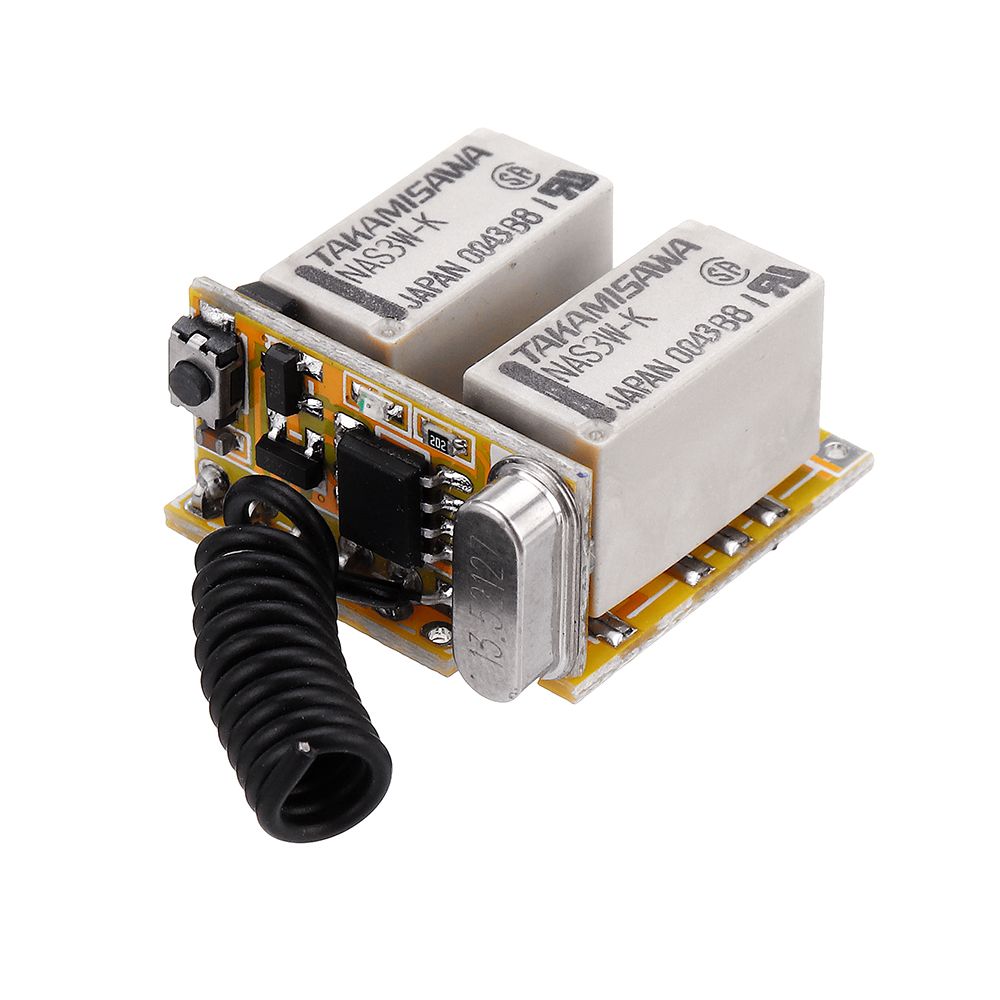

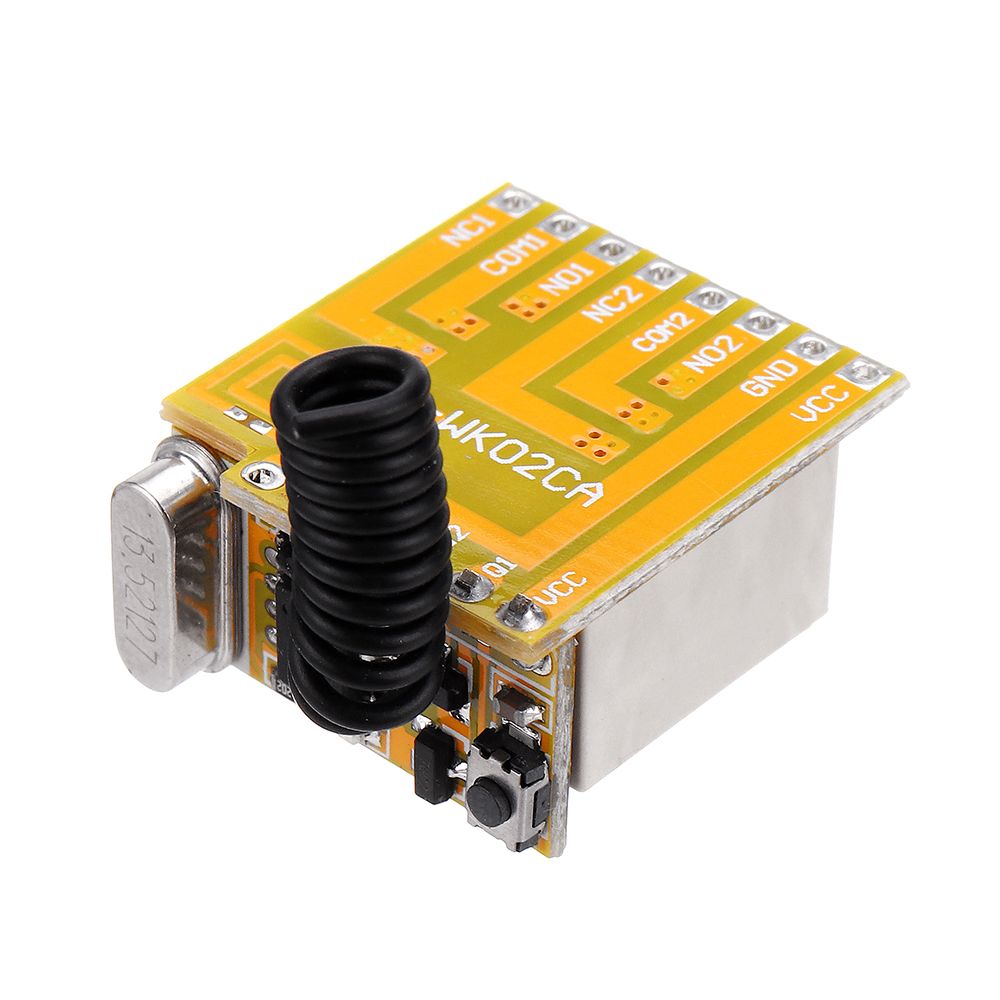

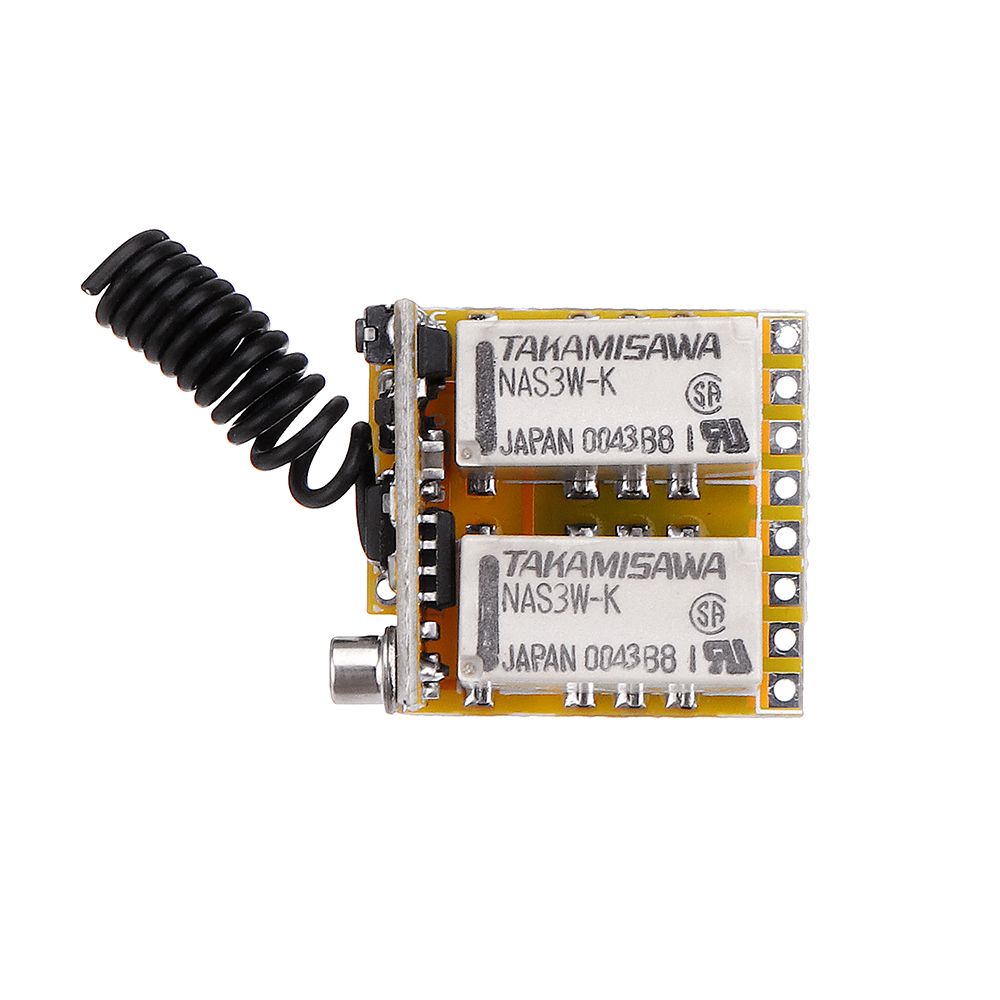

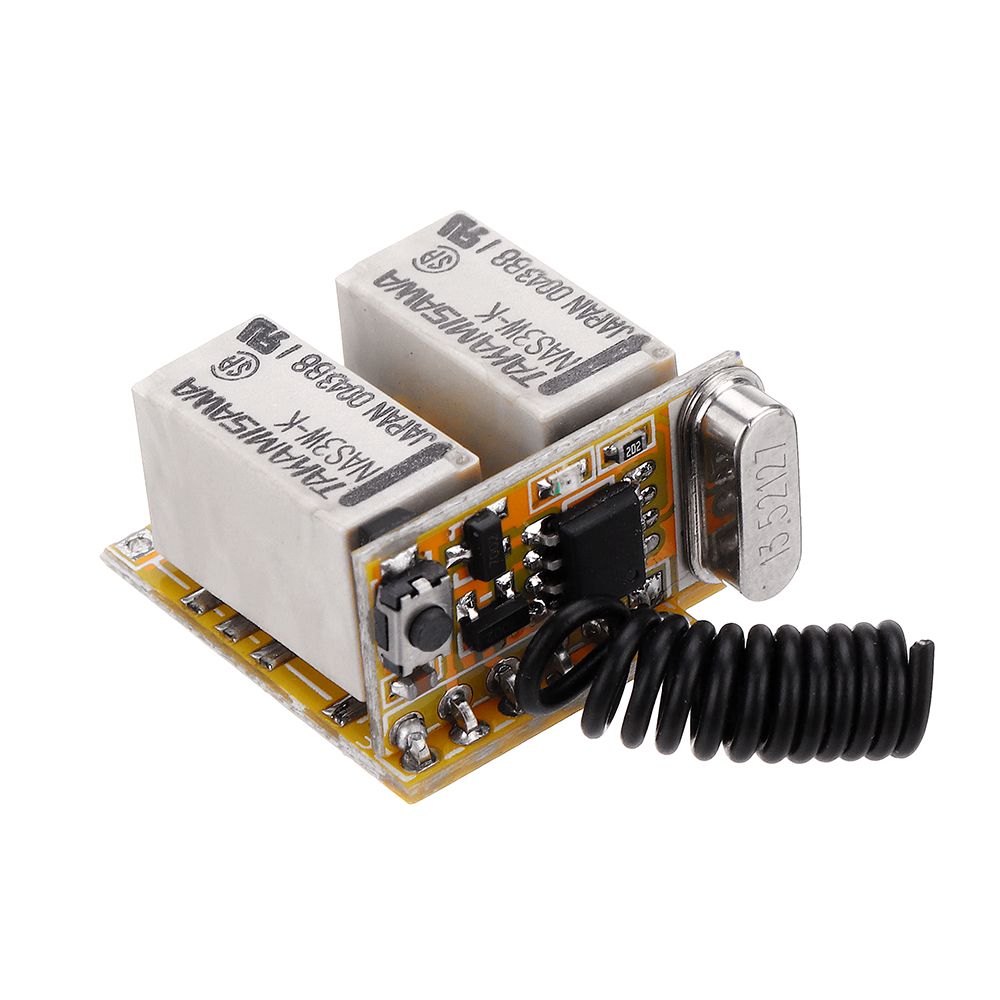

1 x Receiver board

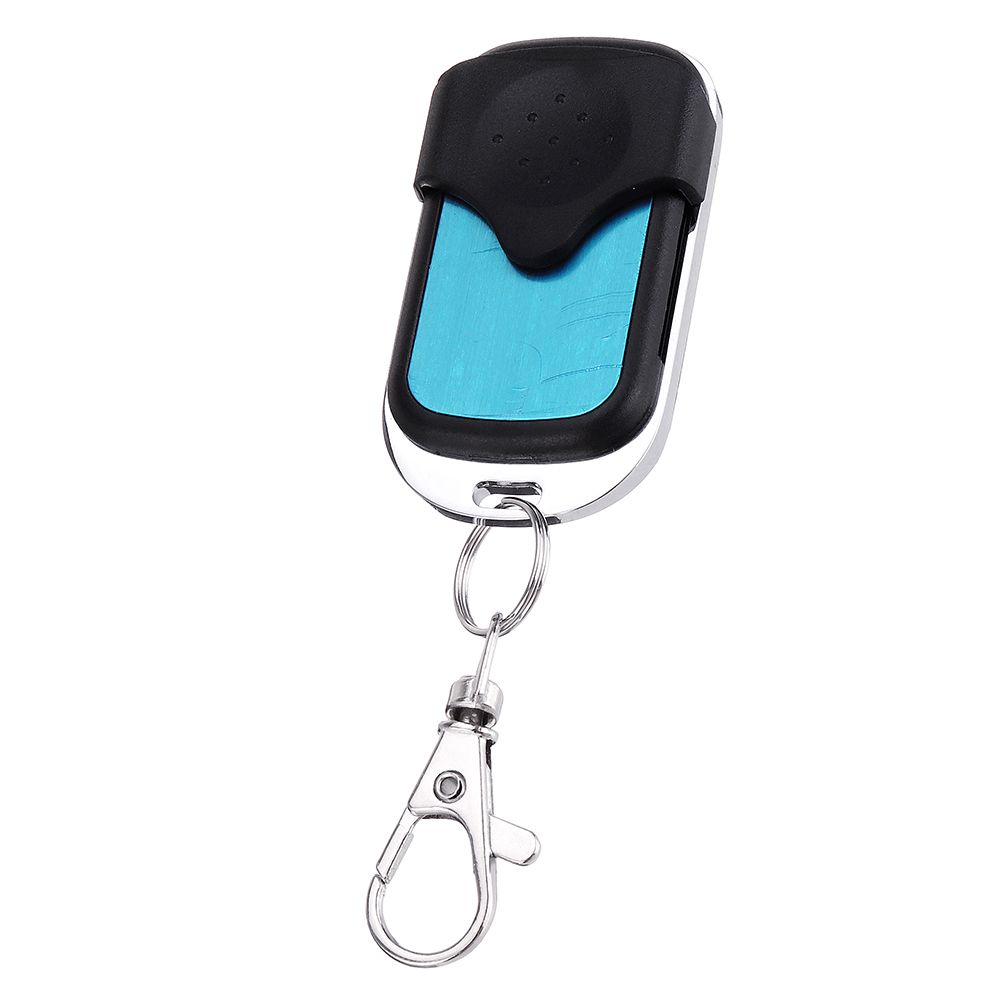

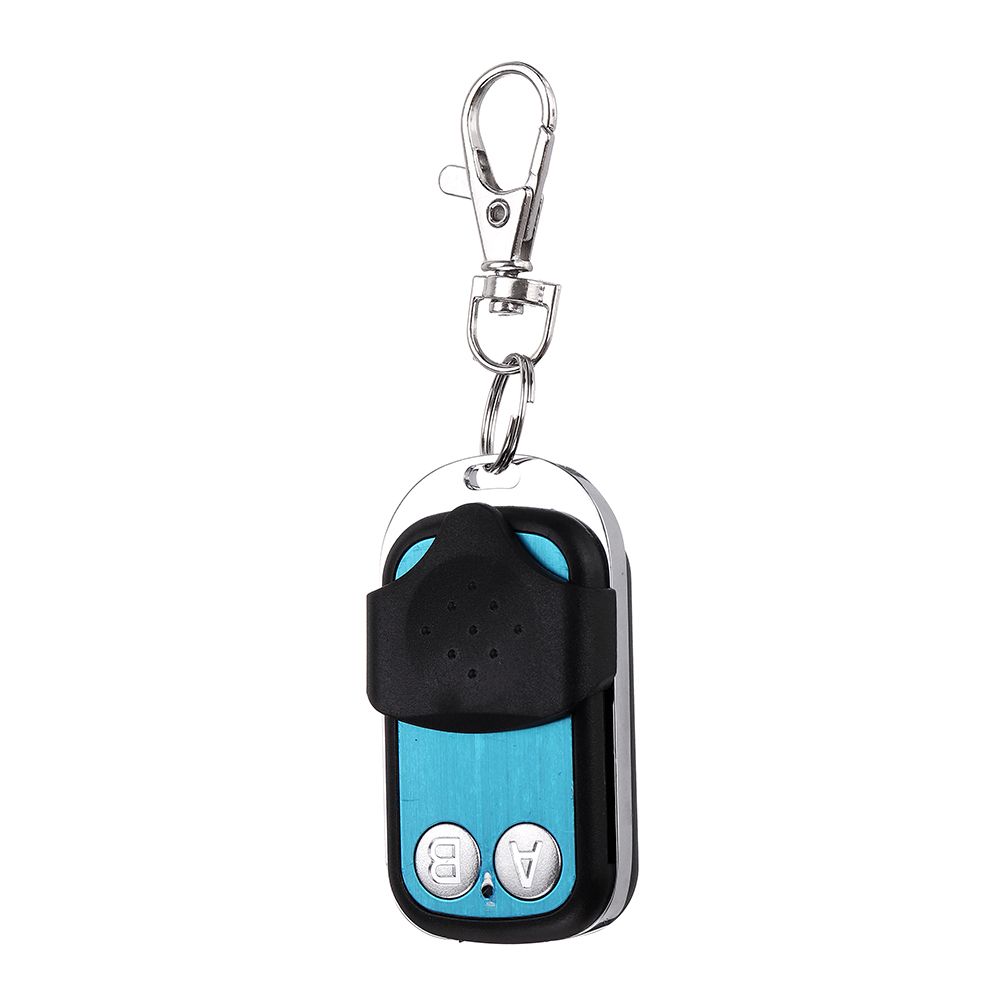

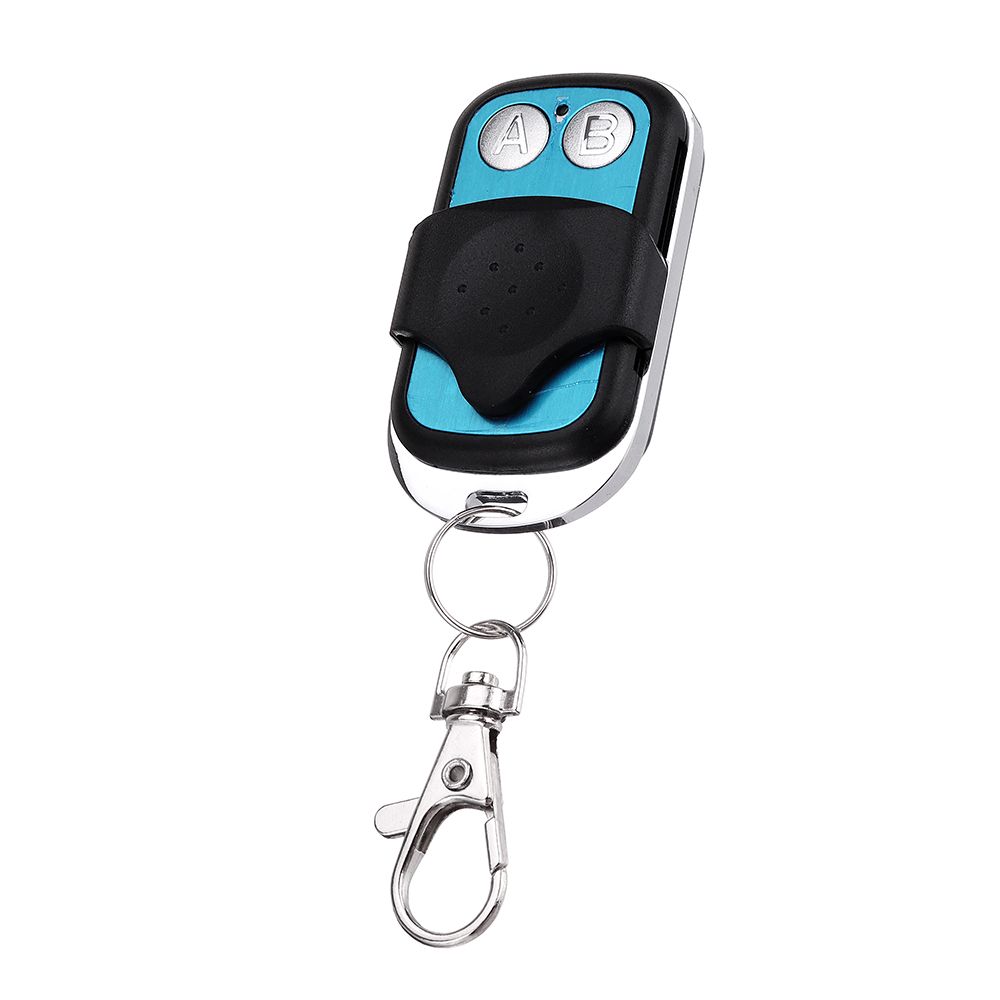

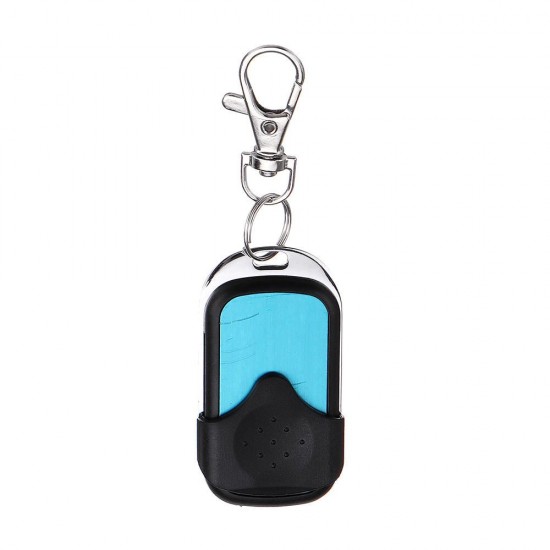

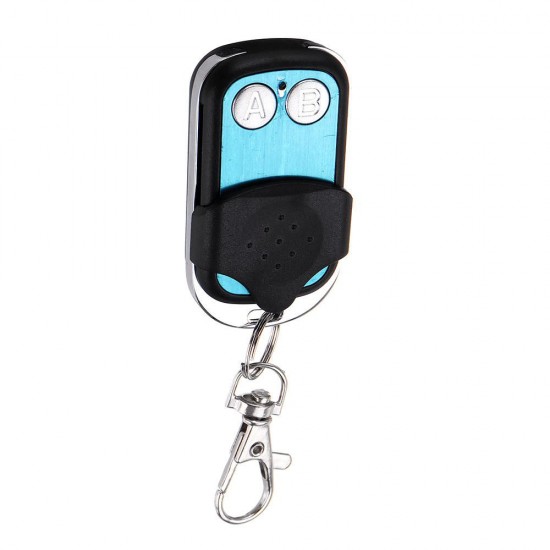

1 x Remote control

DC37V5V12V-315MHz-Wide-Voltage-2-Way-Remote-Control-Switch-Miniature-Universal-Learning-Code-1627196
