DC12V/24V/AC220V 8CH Channel Wireless Remote Control Switch Receiving Module With Industrial Remote Control

Based on 0 reviews. - Write a review

$50.99

Ex Tax: $50.99

Stock: In Stock
Model: EB0042660
SKU: EB0042660

Available Options

frequency

Voltage

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Overview:

The wireless receiver controller has the characteristics of high confidentiality, large storage capacity, stable performance and low power consumption, and is easy to use. It does not need to adopt traditional jumper or dial-code switch encoding. It only needs to receive and store the wireless signals transmitted by the remote control to realize the supporting use. If the learned remote control is lost in the process of use, the information stored in the receiving controller should be cleaned up. The lost remote control will not be able to remote control the receiving controller. In order to regain the right of use, the user must learn again before using it.

It is mainly used in the fields of electric door, window, lifting equipment, gate, elevator, industrial control and security.

Way of working:

CNSDC-8L has four working modes: signal self-locking, signal interlocking, signal non-locking, signal self-locking and non-locking coexistence.

1. Signal self-locking -- press the remote control number 1 button

2. Signal is not locked -- press the remote control number 2 button

3. Signal interlock - press the remote control button 4

4. Signal 1~4 way self-locking and 5~8 way non-locking coexistence - press remote control 8 key

Output method:

1. Signal self-locking: press the remote control button 1

Press the remote control No. 1 button, the relay corresponding to the No. 1 button is pulled in and held, and then press the No. 1 button again, the No. 1 relay is disconnected; Press the No. 2 button of the remote control, the No. 2 button corresponds to the relay is pulled in and hold, and then press No. 2 key again, the 2nd relay is disconnected; the 3~8 key works according to this cycle.

2. Signal is not locked: press the remote control button 2

Press and hold the remote control No. 1 button, and the relay corresponding to the No. 1 button is pulled in. After the hand is released, the relay is disconnected. Press the No. 2 button, and the relay corresponding to the No. 2 button is pulled in, and disconnected after being released; 3~8 button Work as usual.

3. Signal interlock: press the remote control button 4

Press the remote control No. 1 button, the corresponding No. 1 relay is pull in and held, press the No. 2 button, the No. 1 relay is disconnected, and the relay corresponding to the No. 2 button is pulled in and held; the 3~8 button works according to this cycle.

4. Signal 1~4 way self-locking and 2~8 way non-locking coexistence: press remote control button 8

Among the 8 relays corresponding to the remote control, 1 to 4 are self-locking functions, and 5 to 8 are non-locking functions.

Note: If the learned receiver need to change to other functions, please clear the receiver and select the required button to re-code the code.

Learn method:

When the receiver is powered on, press the learning button on the receiver to light up and release, enter the learning state; according to the function you need to select a key to learn by the remote control, the receiver flashes one time (the buzzer sounds once) means that the study is successful.

Clear method:

When the receiver is powered on, press and hold the learning button on the receiver for about 8 seconds until the indicator light goes out (the buzzer sounds for about 3 seconds), indicating that the code has been successfully cleared. This receiver can store about 30 different remote control codes.

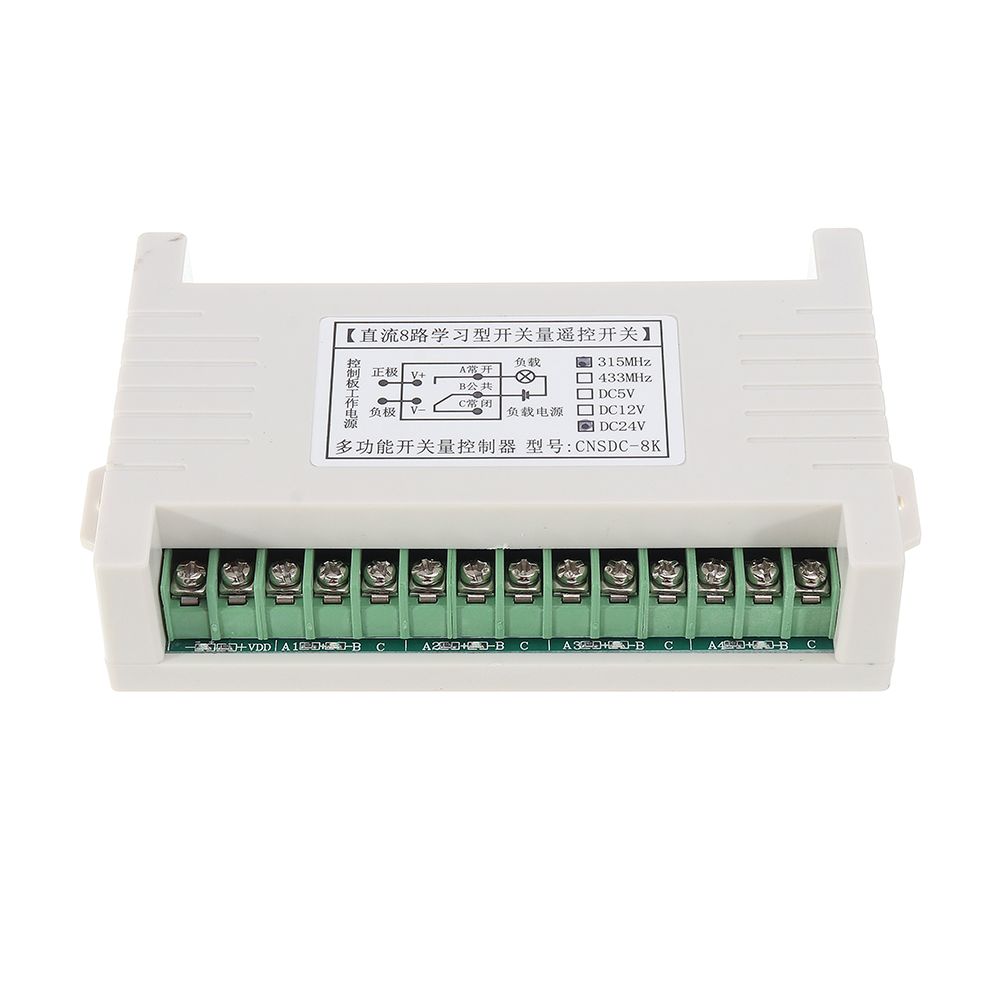

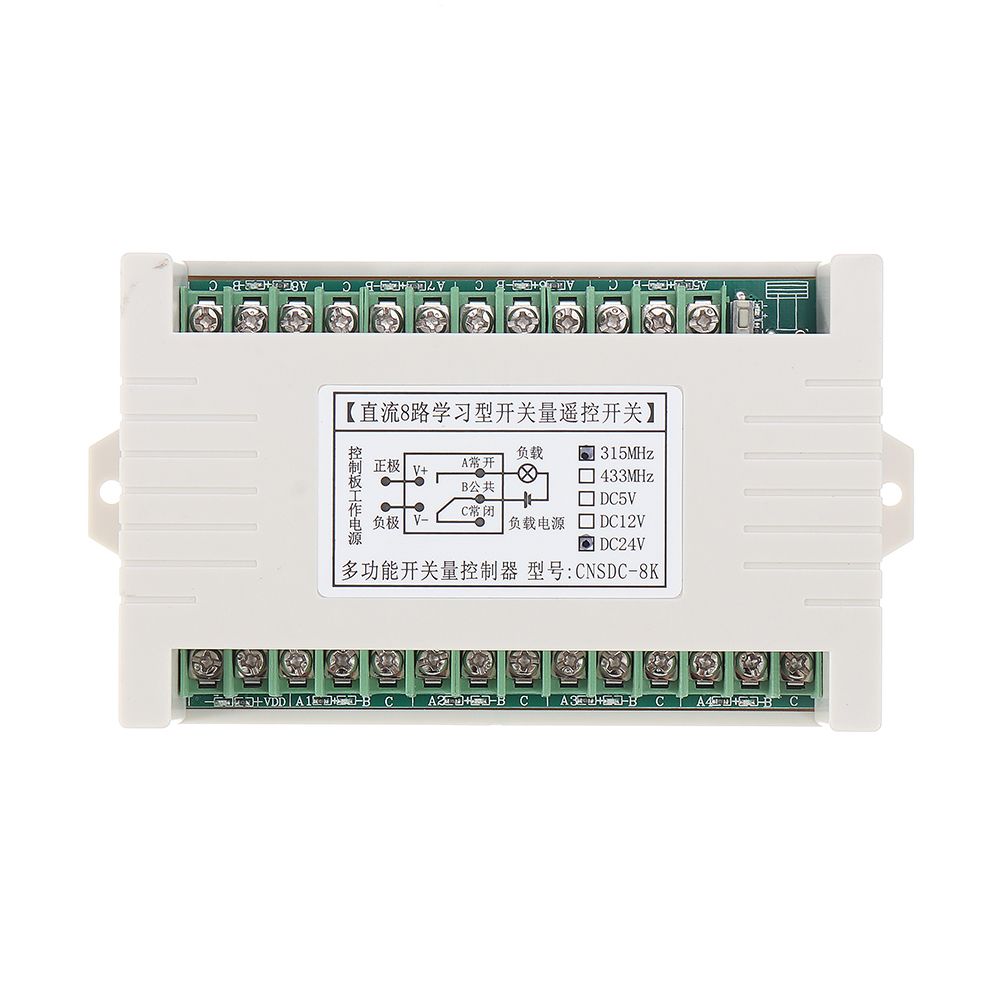

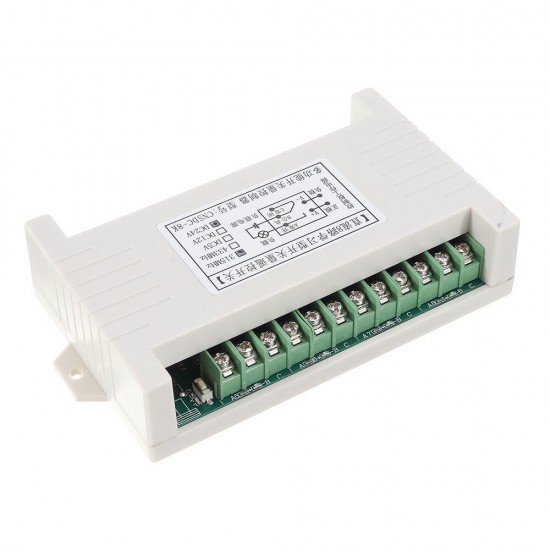

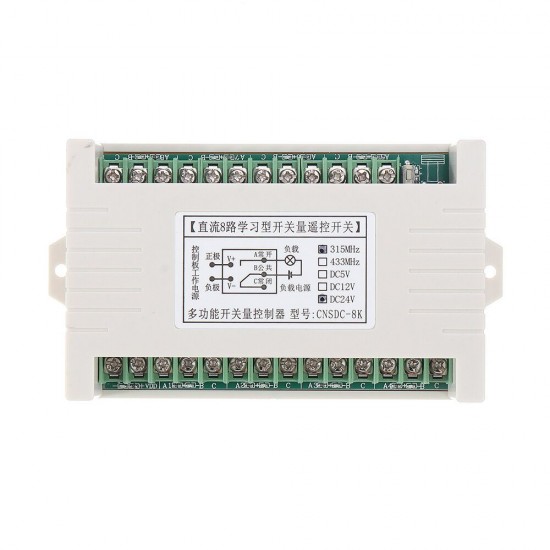

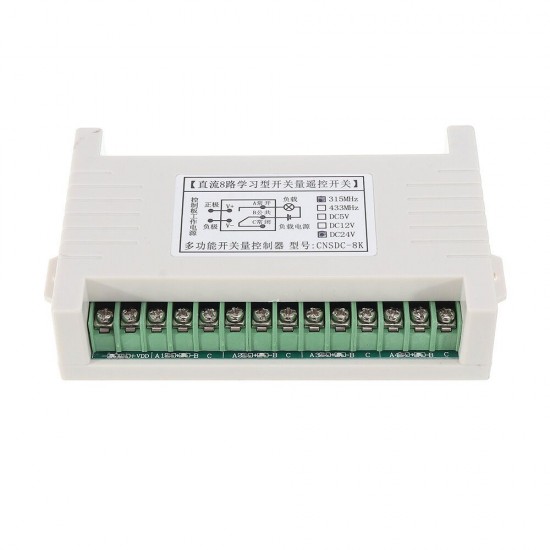

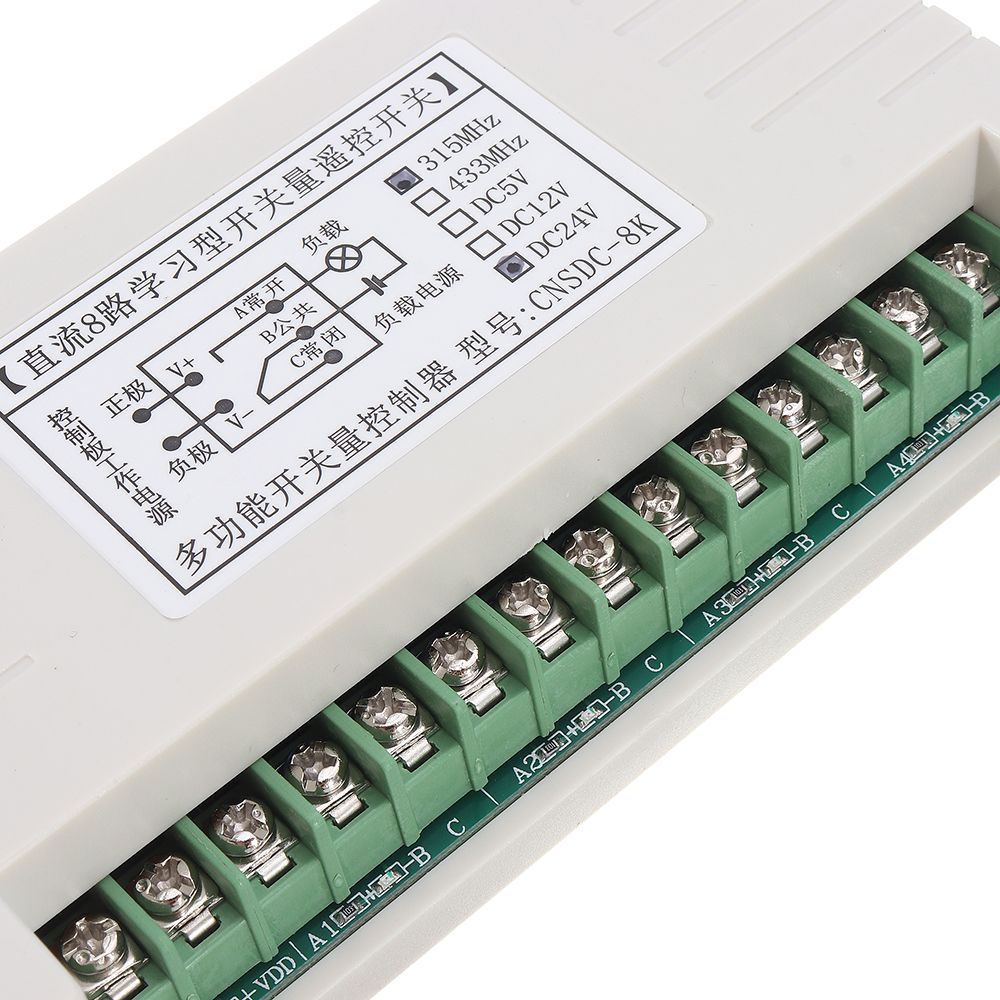

Technical parameter:

Working voltage: DC12V/DC24V/AC220V (Optional)

Quiescent current: ≤7mA

Working temperature: -20 ° C - +70 ° C

Receive sensitivity: ≥-107dBm

Operating frequency: 315MHz to 433MHz

Control voltage: AC, DC optional

Output current: ≤5A

Board size: 120mmx73mmx18mm

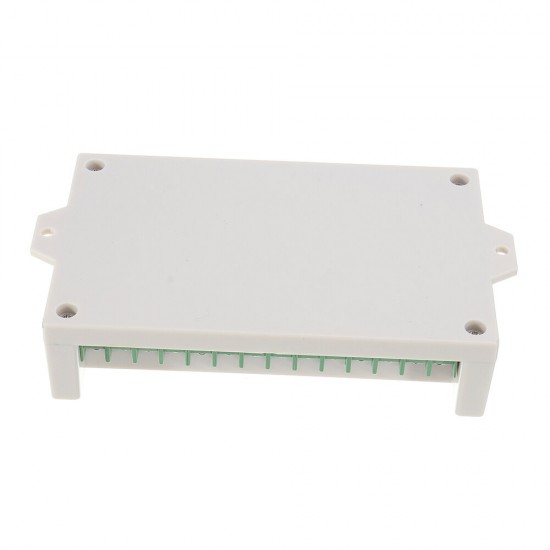

Shell size: 125mmx78mmx30mm

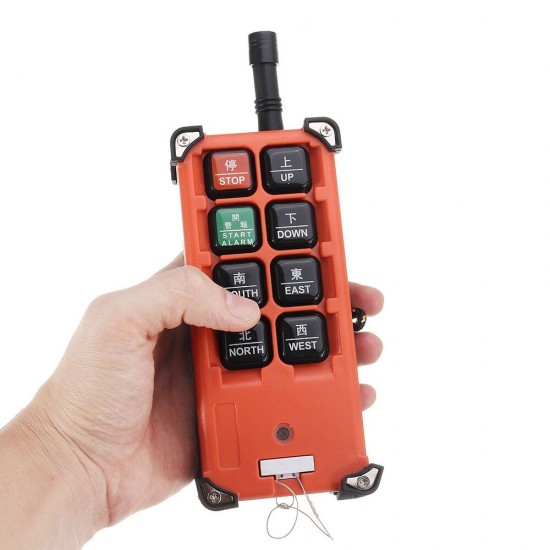

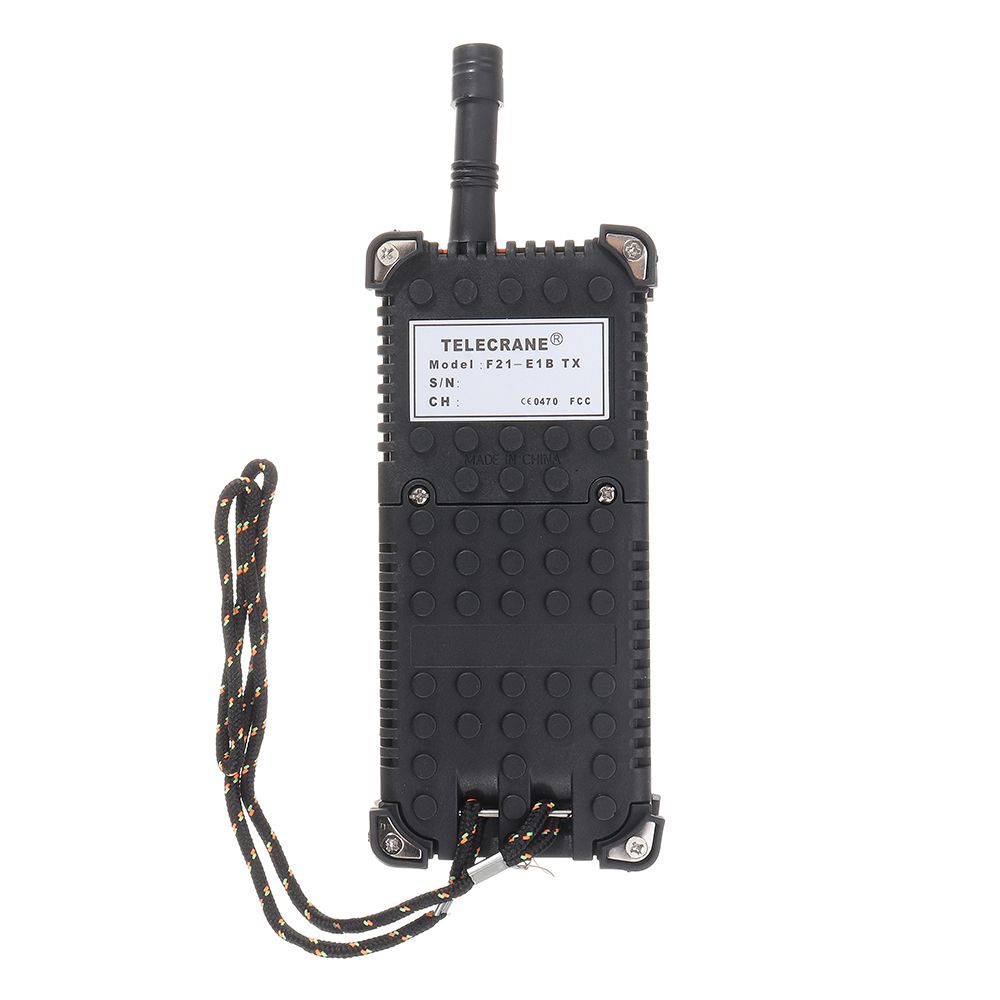

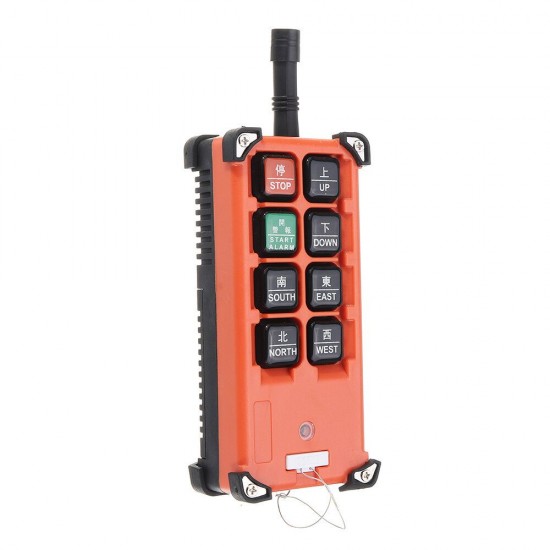

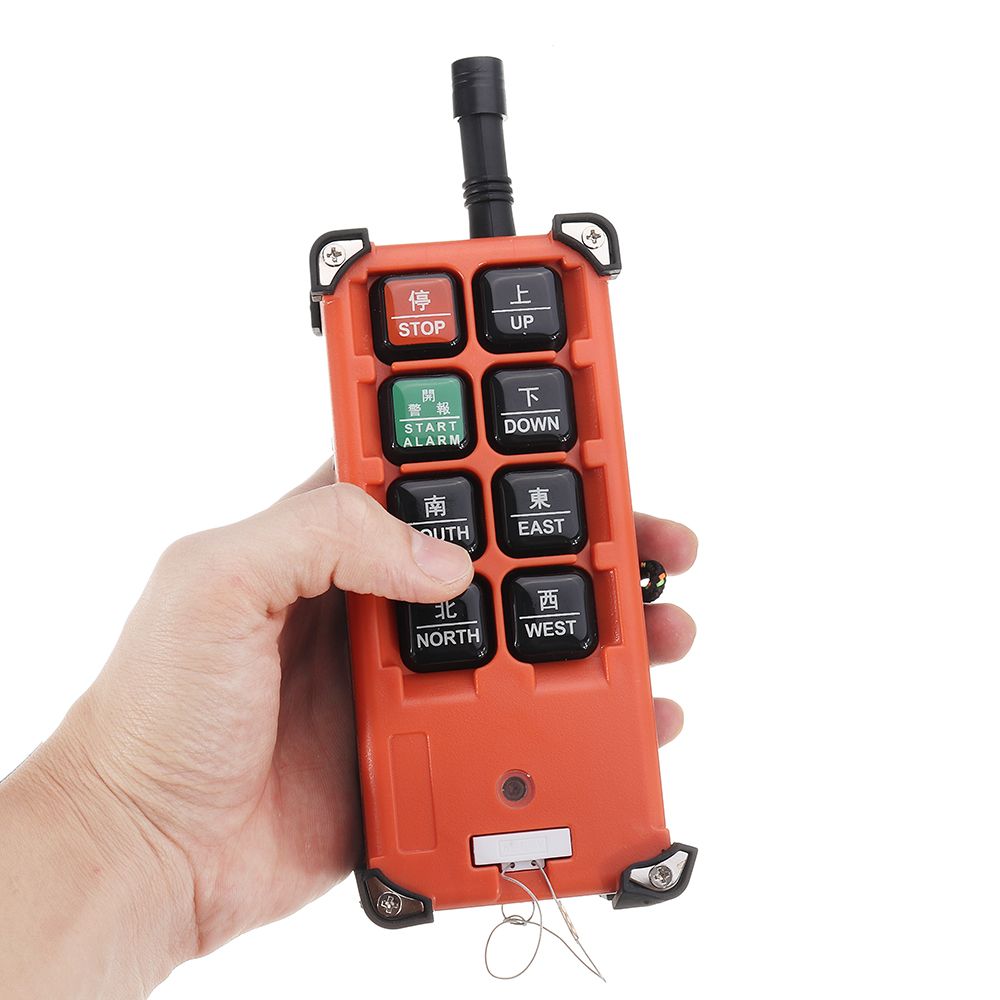

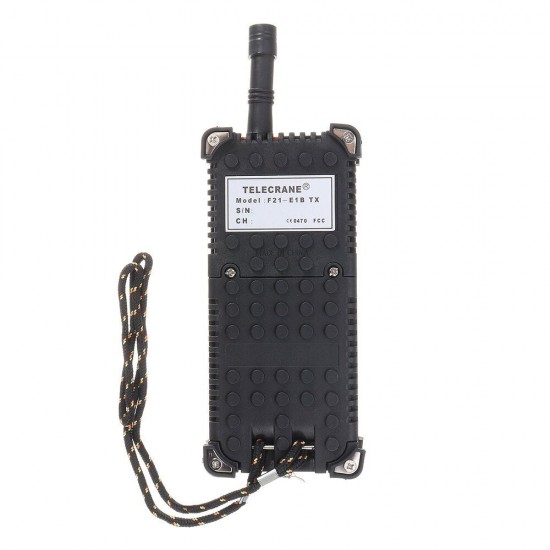

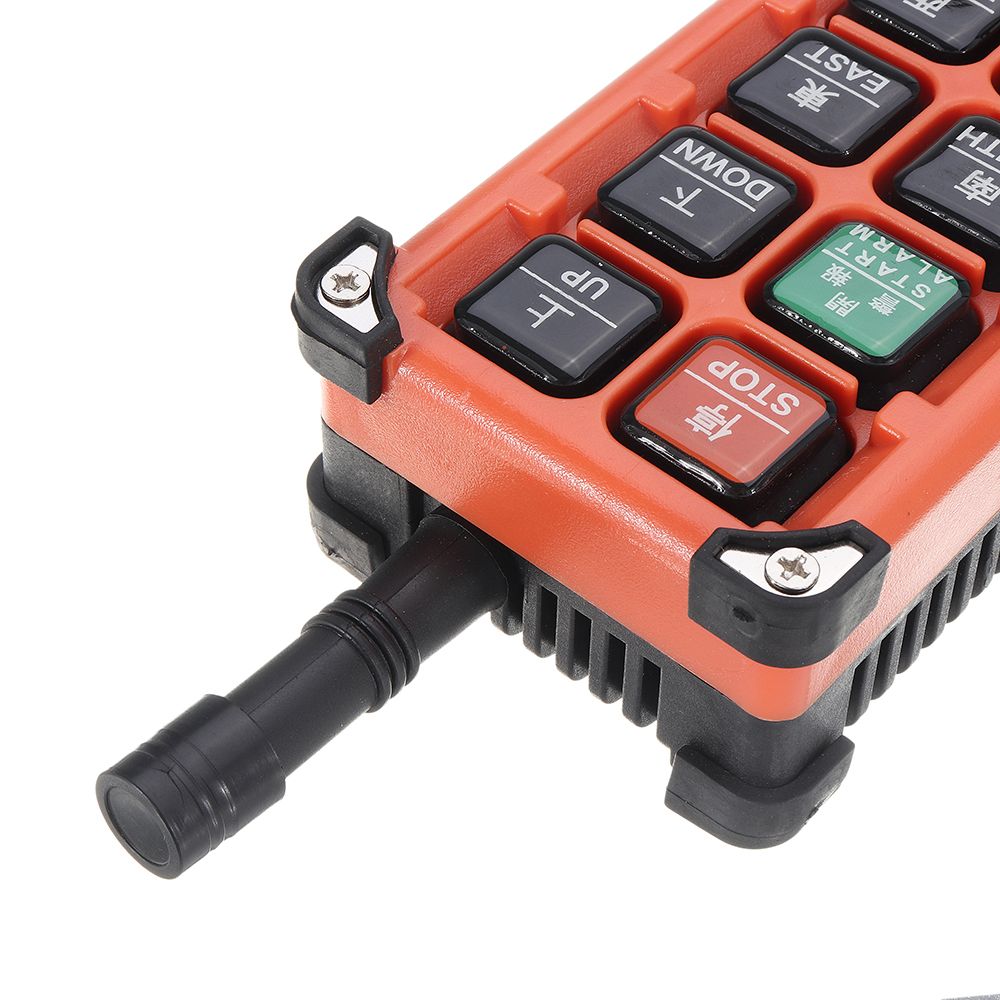

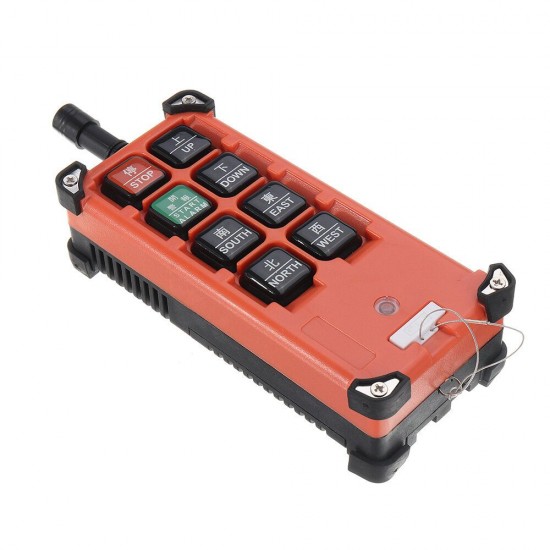

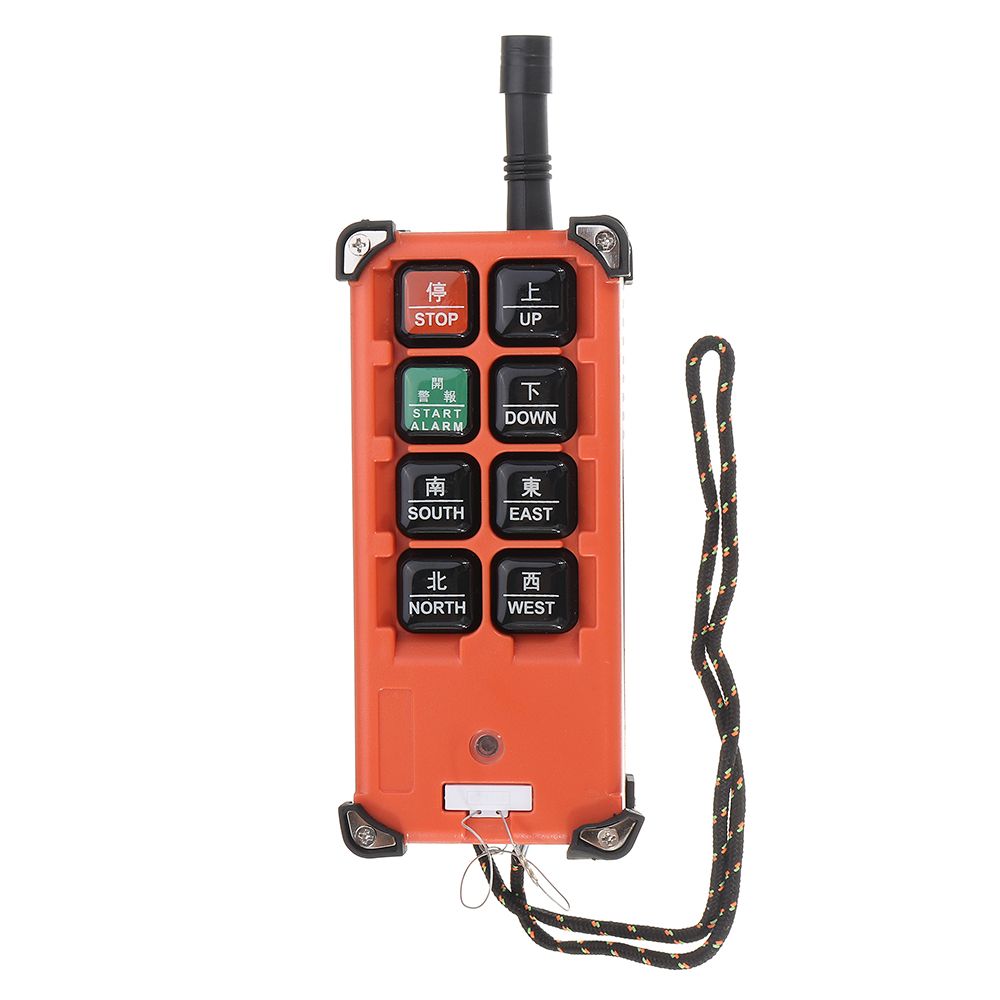

Industrial 8-key remote control parameters:

Working voltage: DC6V (4 batteries on the 5th, the battery is not included)

Quiescent current: 0mA

Working frequency: 315MHZ/433MHZ (Optional)

Chip Type: Fixed Code (2264)

Oscillation resistance: Default 475

Launch distance: 200-500M (open environment)

Modulation method: ASK amplitude modulation

Size: 70 x 158 x 38mm

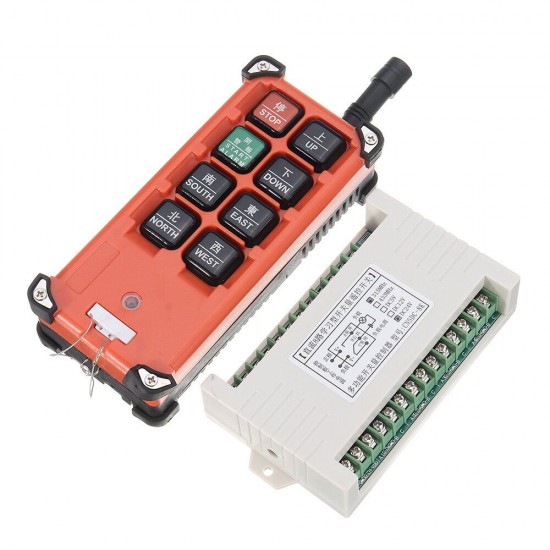

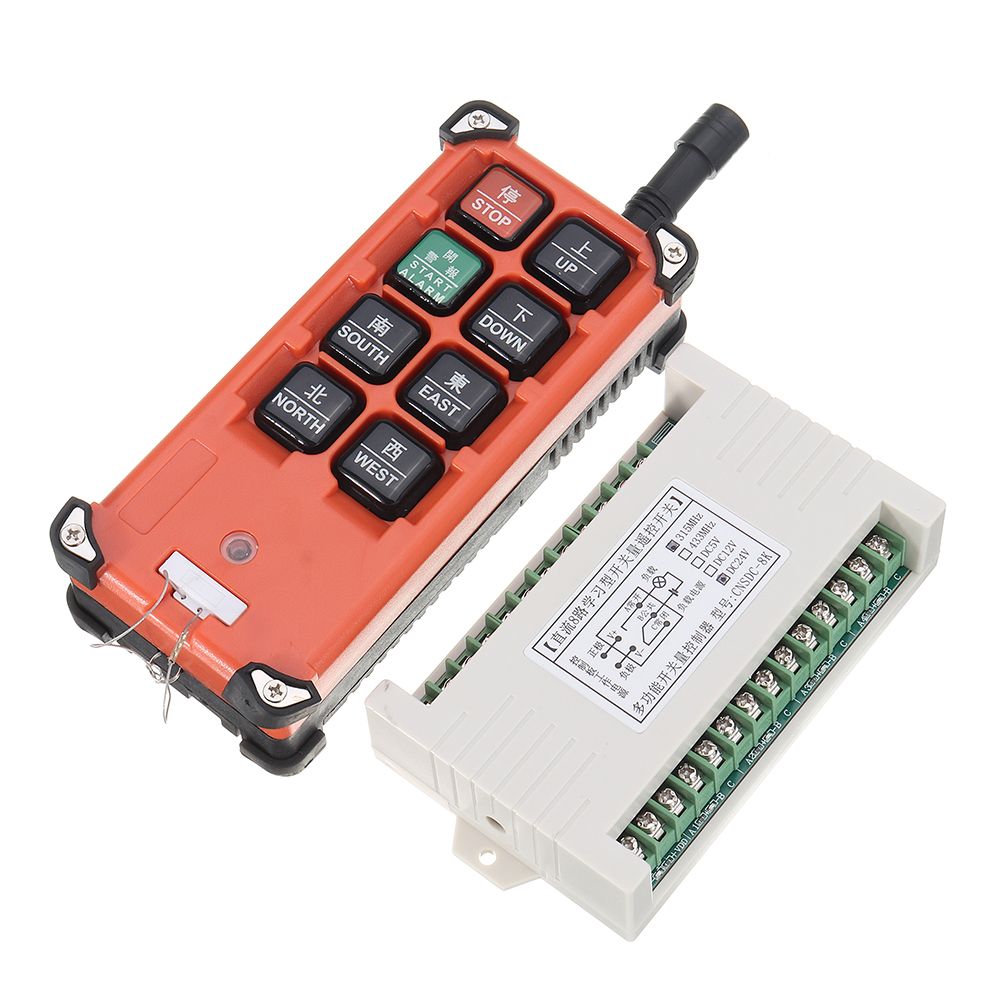

Package includes:

1 x Receiver

1 x Remote control
