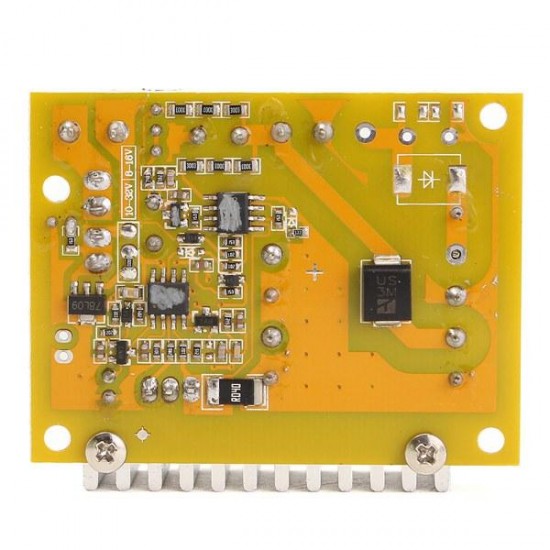

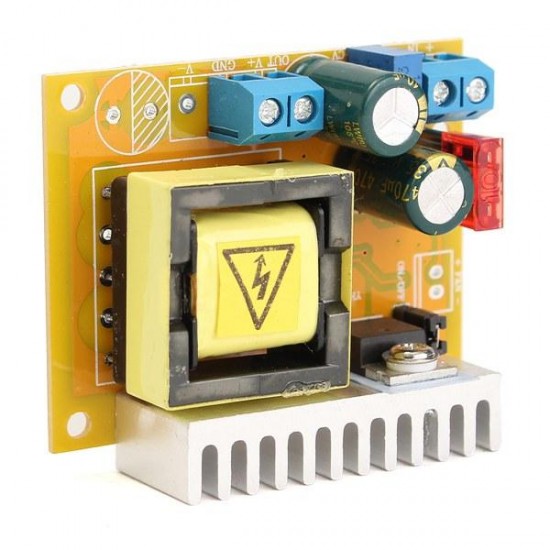

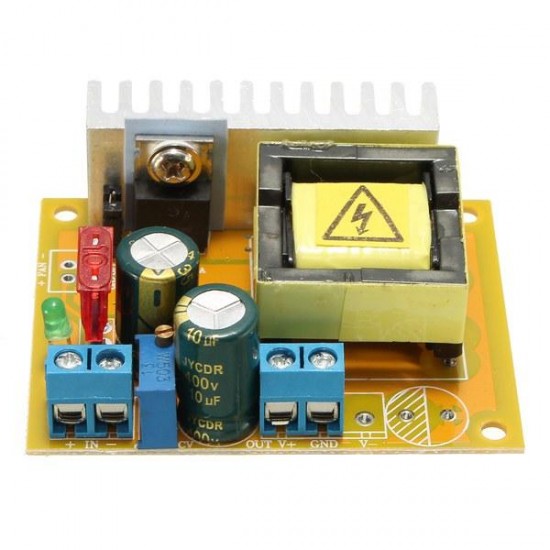

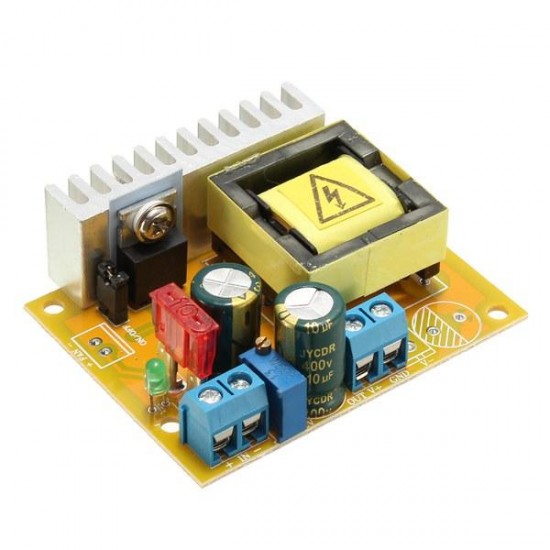

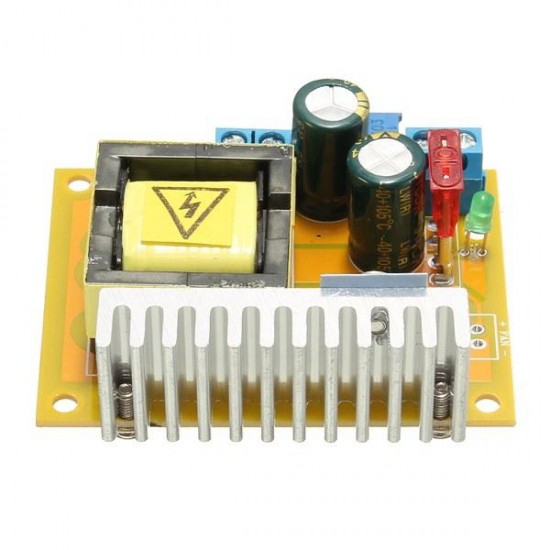

DC-DC Boost Converter 8~32V to 45~390V High Voltage Charging Booster Module 40W
- Stock: In Stock
- Model: EB0044088
- SKU: EB0044088
Module properties: Non-isolated step-up module
Input voltage: 8~32V input(the default is 10~32V input.)
Input current: 5A (Max)
Quiescent current: 15mA (12V liter 50V, the output voltage, the higher the current will increase too quiet)
Output voltage: +45~390V continuously adjustable (default output ±50V)
Output current: 0.2A Max(with input, output pressure related,the higher the output voltage, output current is smaller)
Output power: 40W (Peak 70W)
Working temperature: -40 ~ + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 75 KHz
Conversion efficiency: up to 88% (efficiency and input and output voltage, current, pressure-related)
Short circuit protection: Yes.
Over current protection: Yes. (Input current exceeds 4.5A, reducing the output voltage)
Over voltage protection: Yes. (Output voltage exceeds 410V, lowering the output voltage)
Input reverse polarity protection: Yes (non-self-healing, reverse burning fuse, try not reversed.)
Installation: Four 3 mm screws
Wiring: free welding output terminals

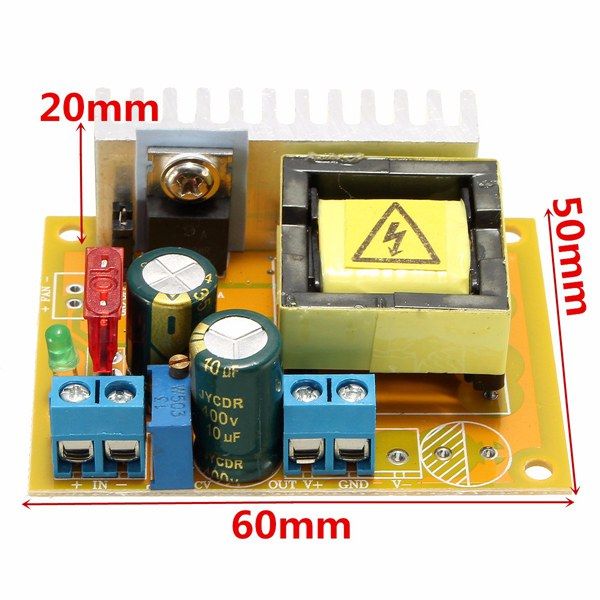

Size(L*W*H):60 x 50 x 20 mm
Applications:
Pressure test power.
Hunting,eradication of mice.
Capacitor charging,electromagnetic guns power supply.
The power supply for your electronic device, according to your system can set the output voltage value.
Package includes:
1 x Booster Module
Note:
Manual measuring, please allow 1 ~ 5 mm error,thank you.
