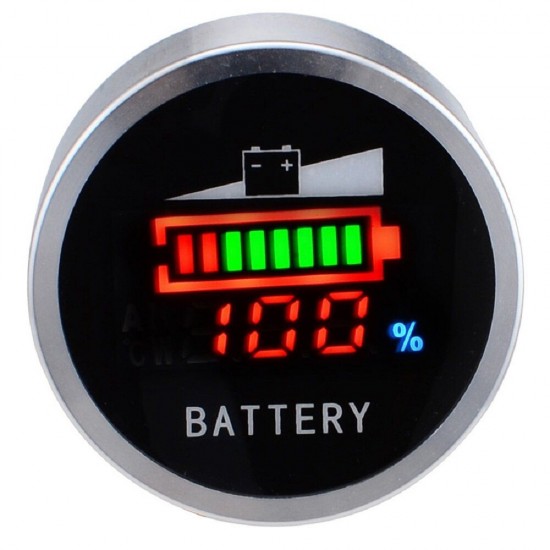

DC 6-120V Acid Lead Battery Indicator Lithium Battery Capacity Digital LED Tester

Based on 0 reviews. - Write a review

$12.99

Ex Tax: $12.99

Stock: In Stock
Model: EB003357
SKU: EB003357

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

Long life LED, high temperature resistance, anti-vibration.

Low power consumption

Easy to install

Specification:

Current Consumption: 5-15mA

Operating Voltage: 6-120V

Power Resolution: ≤1%

Voltmeter Accuracy: Approx. 1%

Working Temperature: -20 ~ + 70°C

Working Humidity: 10 to 80% (non-condensing)

Dimensions: Diameter 54mm

Note:

This tester is universal for Lithium and lead-acid batteries, the factory default setting for 48V lead-acid battery, power and voltage cycle display,If you need to test other specifications, you can re-set by yourself.

How to adjust:

The back of the board has a white high button, press the button 3 seconds to display 1-u, release the key, press the 1-second display 2-b, release the button, short press 1 seconds to display 3-c, release the button, short press 1 seconds display 4-D;

The display 1-u press the key 3 seconds, you can adjust the voltage measurement, then loosen the button and then long press, the voltage upward fine-tuning, stop press again long, downward fine-tuning, can be adjusted over and over, after the screen flashing automatically save exit;

When the display 2-b can adjust different battery types, long press button can change the value.12.0V represents Tan Jie 12V lead-acid battery, 3.7V representative Tan Jie for 3.7V polymer lithium battery, 3.2V representative Tan Jie for 3.2V lithium iron phosphate, 1.2V representative Tan Jie for 1.2V ni-MH battery;

When the display of 3-c , you can adjust the number of battery section, long press button can change the value.Different types of battery can be adjusted as follows: 12V lead-acid battery 1-8, 3.7V lithium battery 2-28, 3.2V lithium-ion battery 3-32, 1.2V ni-MH battery 10-70 section. 5, when the display-D, you can adjust the display mode, long press button can change the value.

When the display-D, you can adjust the display mode, long press button can change the value.V is voltage mode,% is percent mode, v% voltage and percent loop display.

Each adjustment value set, after the screen flashing automatically save exit, before the next operation, otherwise the new adjustment value will not be saved!

Setting Example:

1.Set lead Acid 48V, display mode is only show percent.The 48V lead-Acid Battery (4 section 12V series) is set as follows: Select 12.0V in 2-b, select 4 in 3-c, select % in 4-D;

2.Such as the setting of Polymer lithium 60V (16 series 3.7v lithium), display mode is only to show the percentage

60V Polymer Lithium (generally 16 series) is set as follows: Select 3.70V in 2-b, select 16 in 3-c, select % in 4-D;

Package includeid:

1 x DC 48V Battery Capacity Tester Voltmeter

1 x Fixed bracket

Details Pictures:
