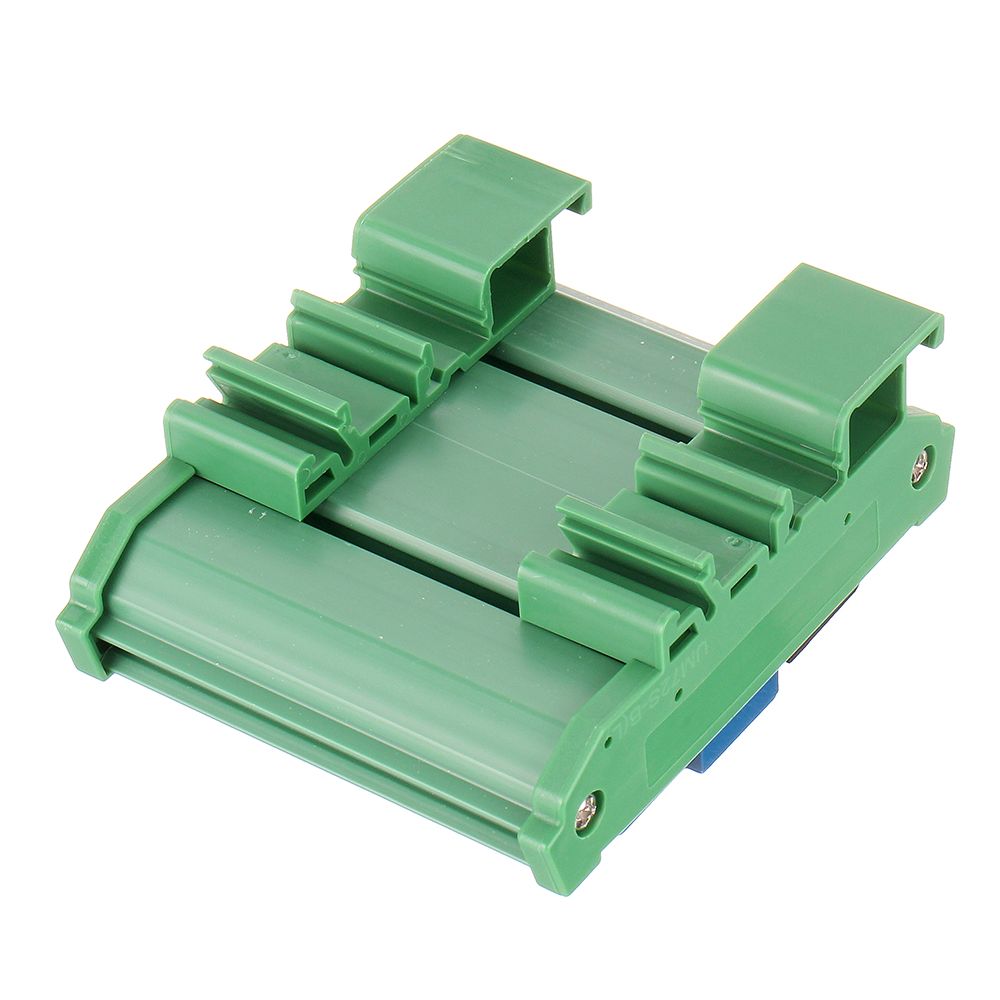

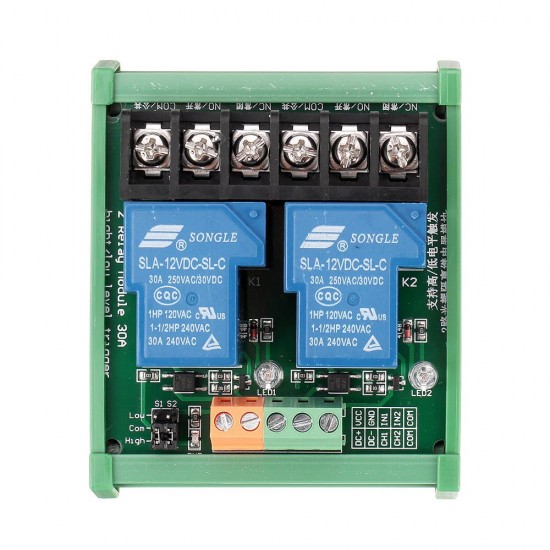

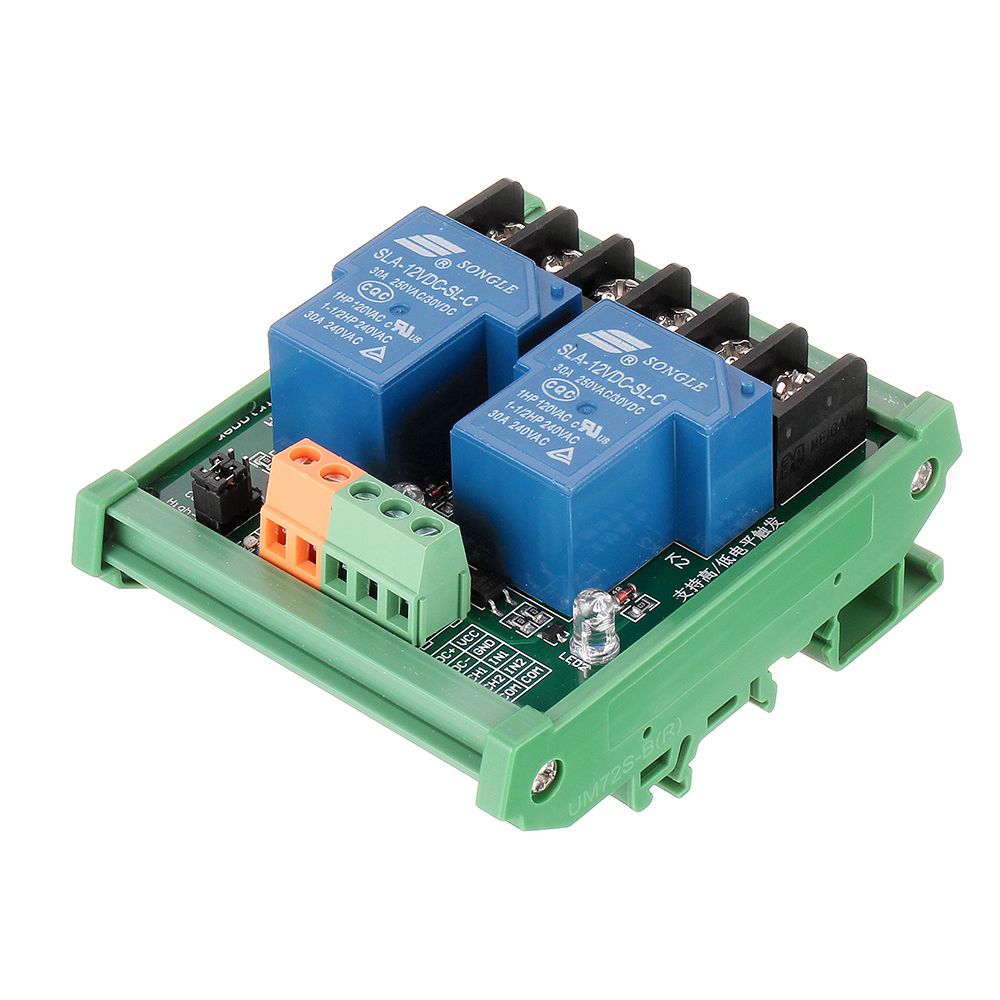

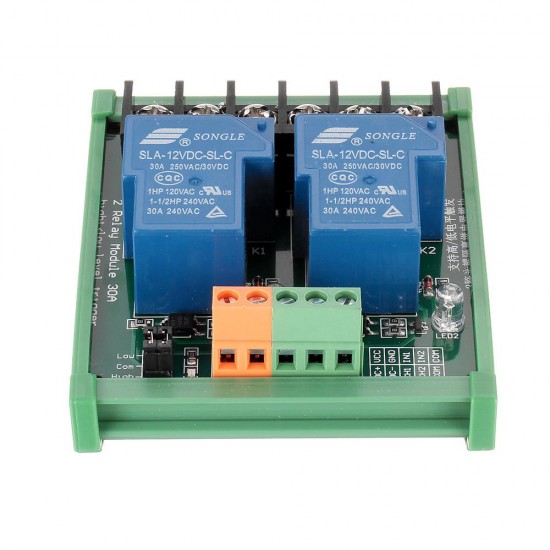

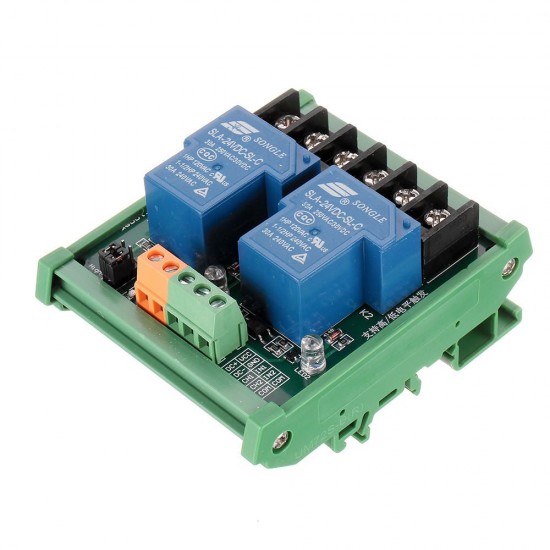

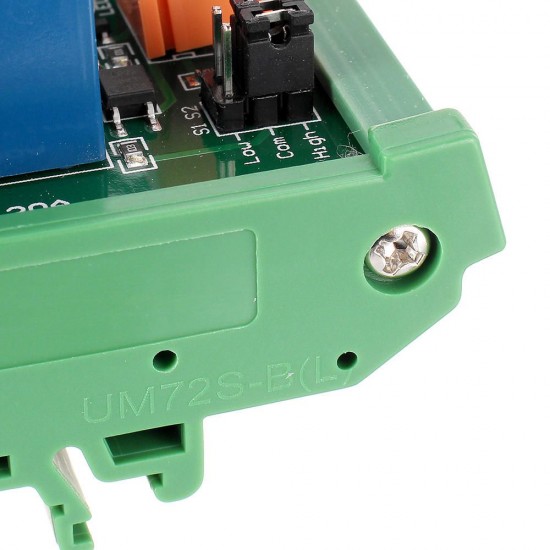

DC 5V 12V 24V 2 Channel 30A High And Low Level Trigger Relay Module PLC Automatic Control Module with Guide Rail for Smart Home

Based on 0 reviews. - Write a review

$14.99

Ex Tax: $14.99

Stock: In Stock
Model: EB0046129
SKU: EB0046129

Available Options

Voltage

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

- Using double-sided FR-4PCB board

- Using high-power relay, control the load up to 30A

- With each optocoupler isolation, anti-interference ability

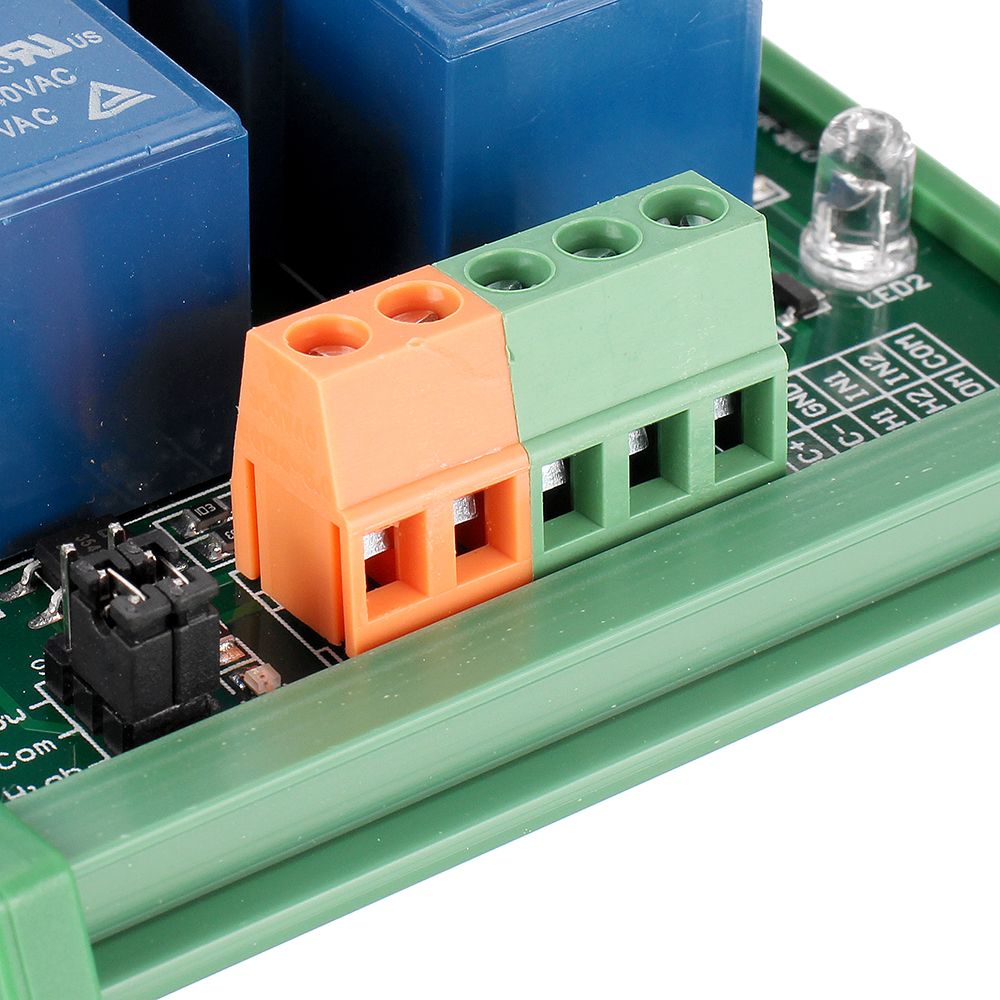

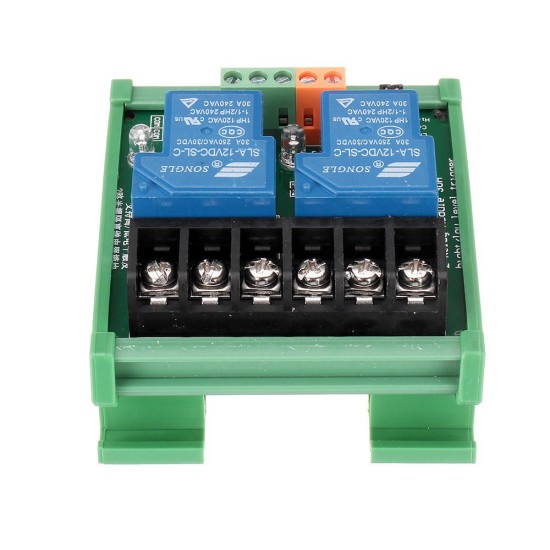

- Black 9500 terminals, more convenient for high-current wiring

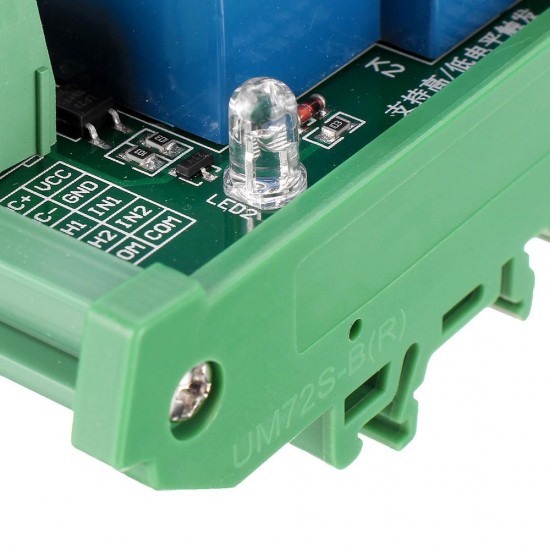

- Each circuit has a relay on LED indication

- The modules comply with international safety standards with isolation slots in the control and load areas

Applications:

PLC automation equipment control, industrial system control, internet of things control, home intelligent control, electronic hobbyist development experiment, all kinds of circuit modification

Specifications:

Supply voltage: 5V / 12V / 24V

Quiescent current: 5mA

Maximum operating current: 190mA / 80mA / 50mA

Trigger mode: low trigger, high trigger

Load voltage: DC 30V or AC 250V

Load current: 30A

Relay life: more than 100,000 times

Product weight: about 200G

Size: 70 x 72 x 22 mm

Trigger Voltage Range:

5V low trigger module: 0-2VDC relay on (ON), 3-5VDC relay off (OFF)

12V low trigger module: 0-5VDC relay on (ON), 6-12VDC relay off (OFF)

24V low trigger module: 0-12VDC relay is ON, 13-24VDC relay is OFF.

5V high trigger module, 3.3-5VDC relay (ON), 0-2.5VDC relay off (OFF)

12V high trigger module: 6-12VDC relay (ON), 0-5.5VDC relay off (OFF)

24V high trigger module: 12-24VDC relay (ON), 0-8.5VDC relay off (OFF)

Package Included:

1 x 5V/ 12V/ 24V 2 Channel 30A High And Low Level Trigger Relay Module
