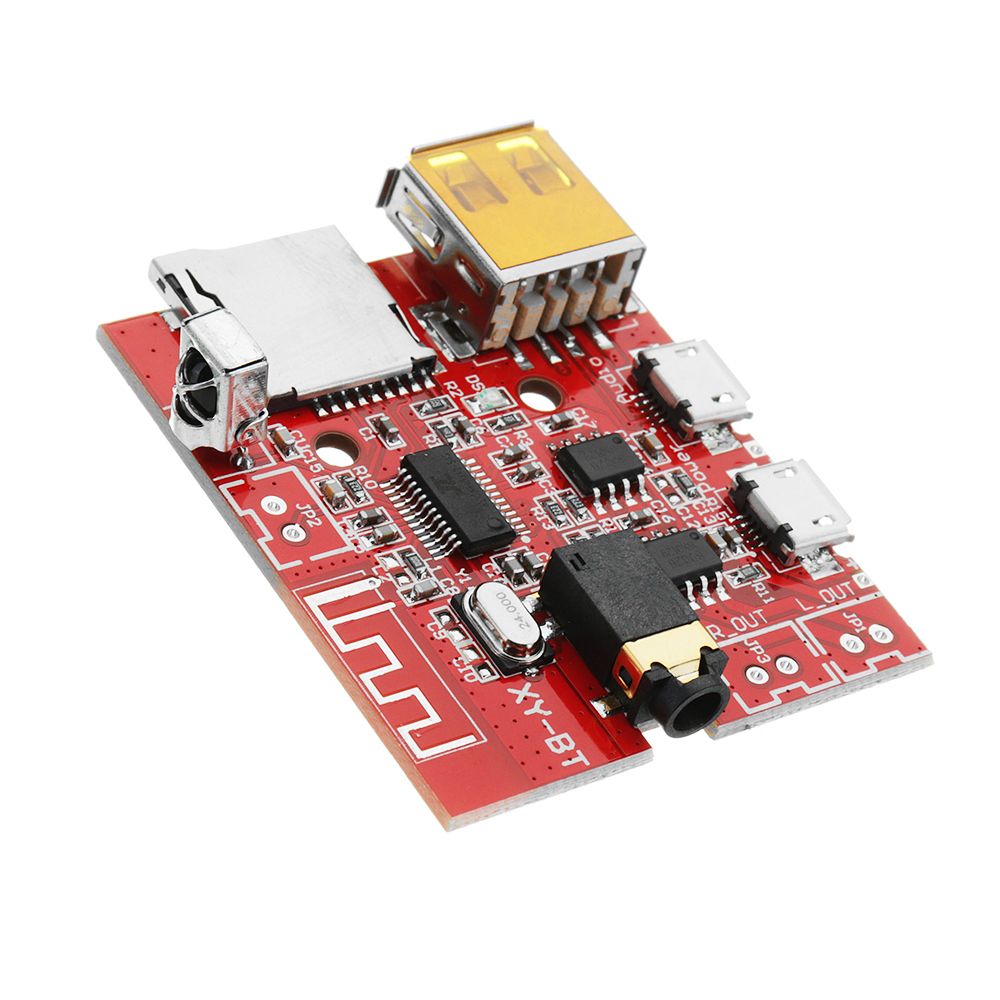

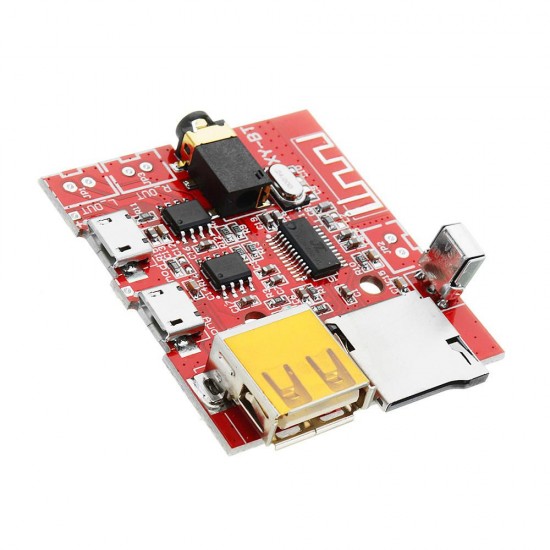

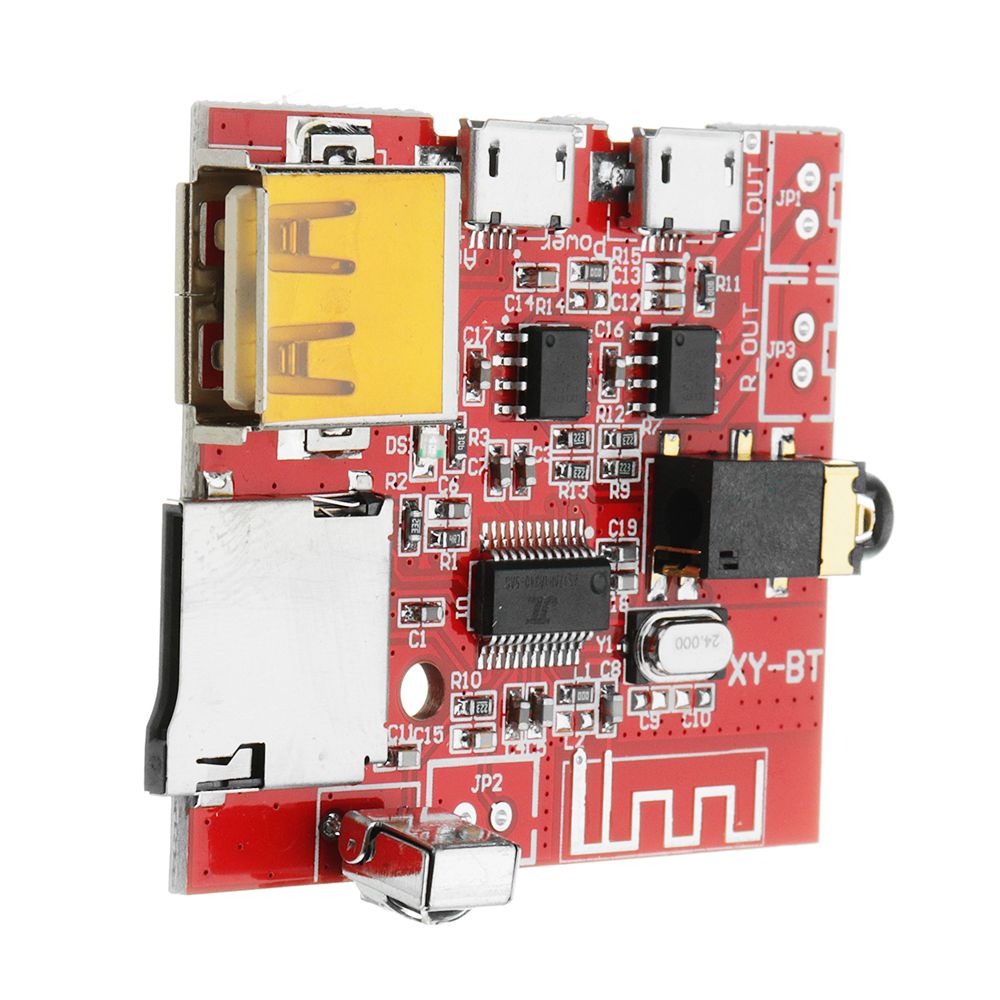

DC 3.7V To 5V bluetooth 4.1 MP3 WAV Decoder Board 3W Speaker Amplifier Audio Receiver Module Support USB/TF/U-DISK/IR Remote Control
- Stock: In Stock
- Model: EB0047440
- SKU: EB0047440
Parameters characteristics:
Power supply: DC 3.7-5V
Operating specification:

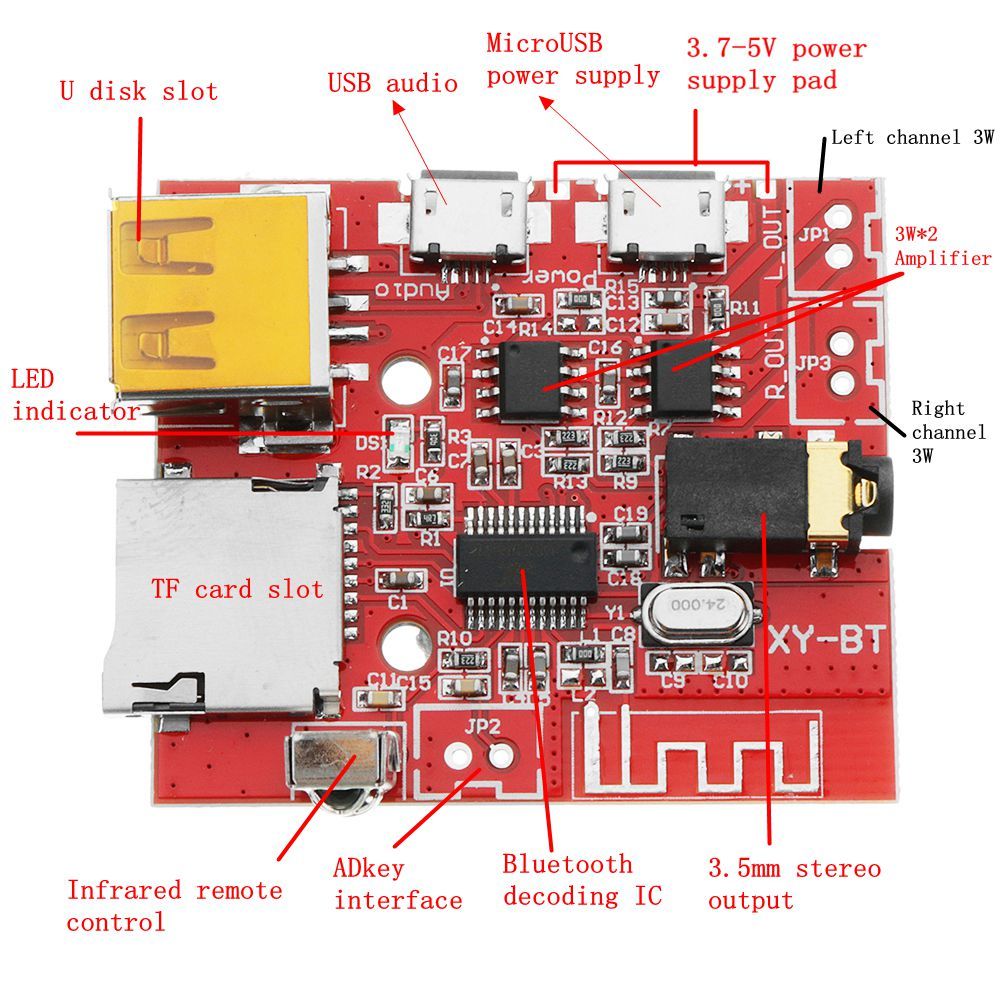

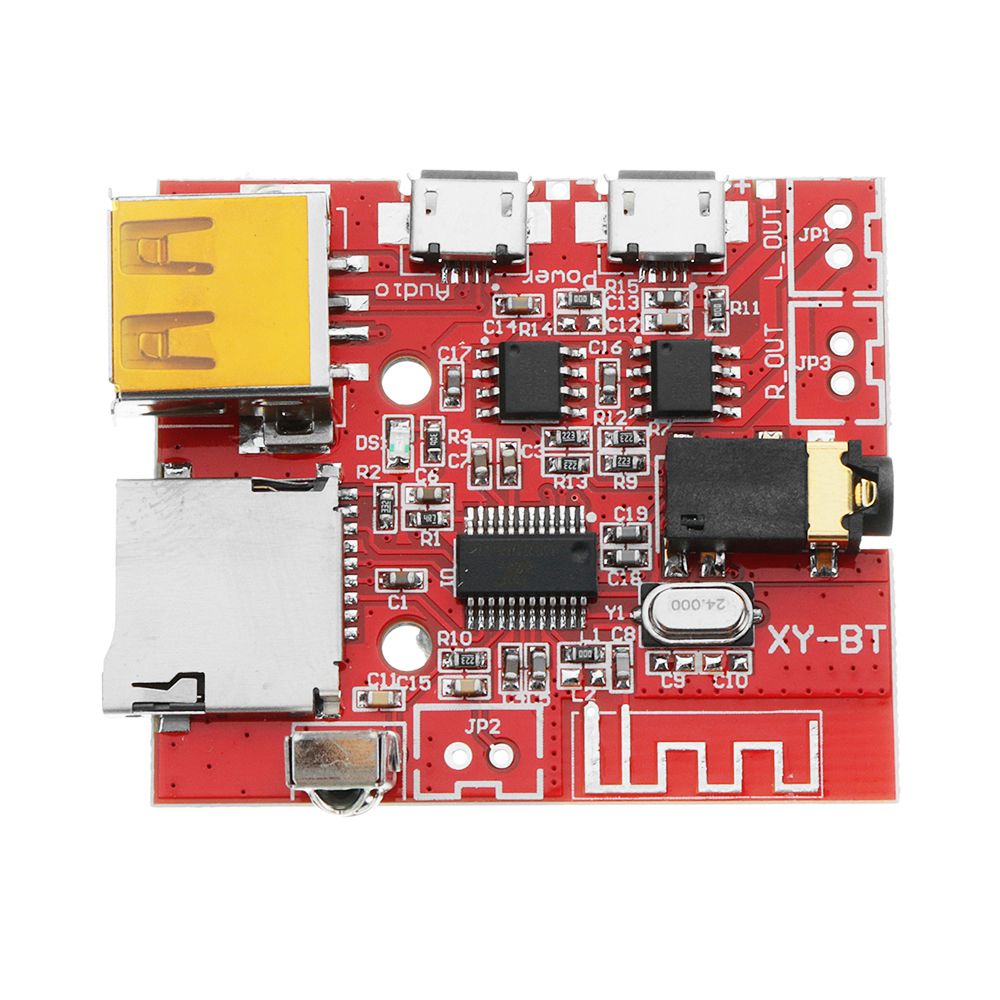

Interface details:
| Micro USB power | Universal Micro USB 5V power supply |
| USB Audio | Connect to a computer via a USB cable to use as an external sound card |

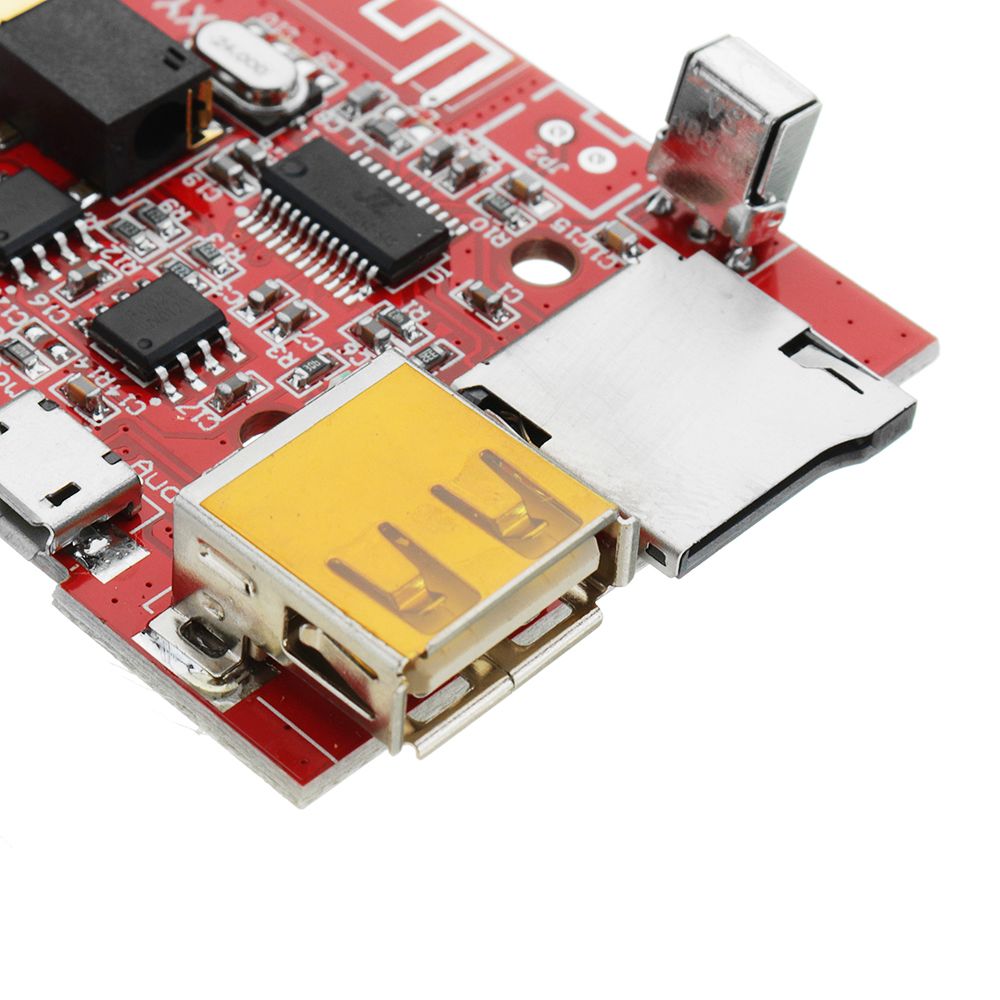

| U disk interface | Supports playing MP3/WAV/APE/FLAC files in U disk and supports FAT16/32 file format |
| LED indication | bluetooth mode blue light is on, music mode blue light is blinking |
| TF card interface | Supports playing MP3/WAV/APE/FLAC files in TF card and supports FAT16/32 file format |
| Infrared remote control | Support infrared remote control operation, the function is as defined below |

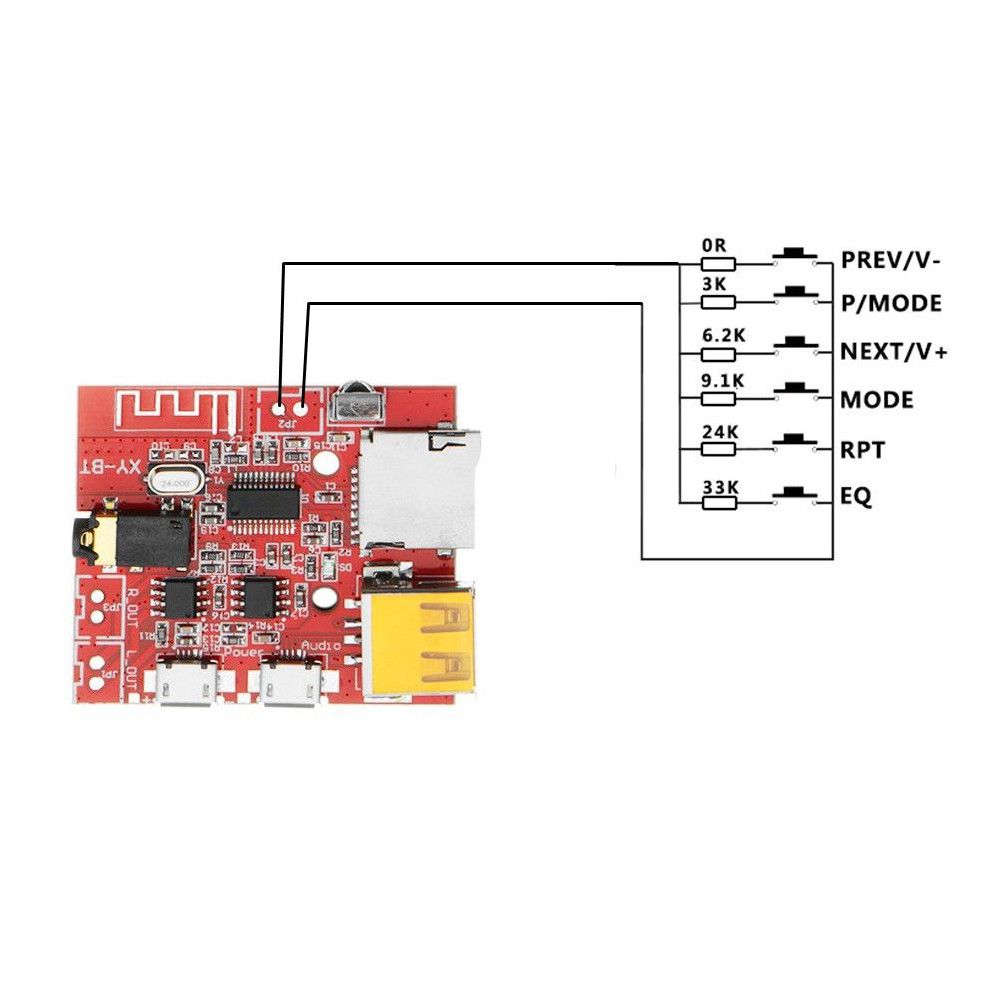

| AD key interface | Button interface, providing different resistance parameters to achieve different button functions |
| bluetooth decoding IC | Decoder board master chip |
| 3.5mm stereo output | Standard 3.5mm interface, output stereo sound source, can be plugged into headphones, connected to power amplifier and other equipment |
| Right channel 3W | Audio right channel output, can drive 3W speakers |
| Left channel 3W | Audio left channel output, can drive 3W speakers |
| 3W*2 amplifier | Onboard 2 channel 3W amplifier for stereo drive 3W speaker |
| 3.7-5V power supply pad | Realize external 3.7-5V power supply modification |

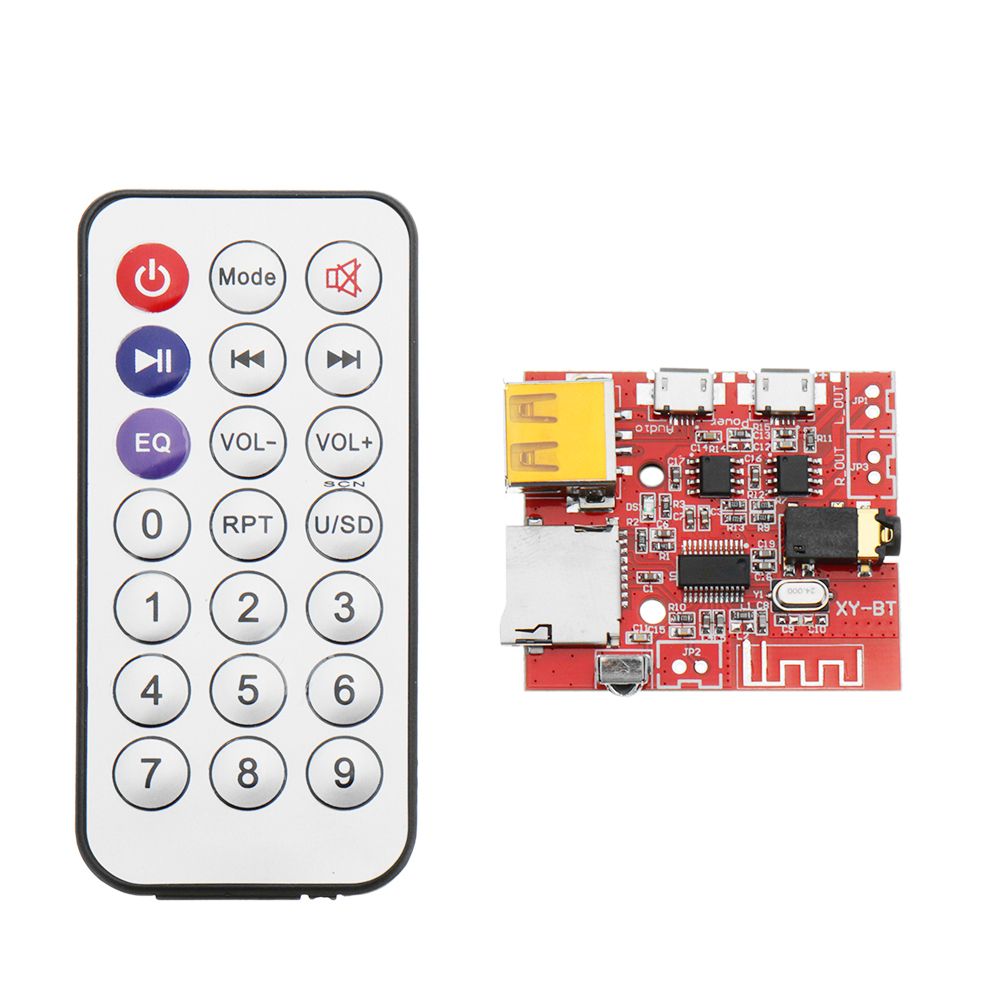

Button and remote control function definition:
| Button | Function |
| PREV/V- | Short press the previous track, long press the volume to decrease |
| P/MODE | Short press play and pause switch, long press mode switch |
| NEXT/V+ | Short press next song, long press the volume to increase |
| MODE | TF card, U disk, bluetooth mode switching |
| RPT | Single/cycle switching |
| EQ | Sound mode switching |
1 x bluetooth decoder board
