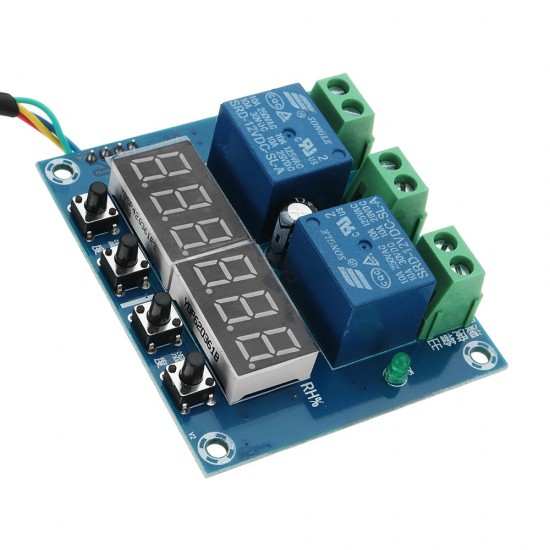

DC 12V XH-M452 Temperature And Humidity Controller Module Digital Display High Accuracy Dual Output

Based on 0 reviews. - Write a review

$17.27

Ex Tax: $17.27

Stock: In Stock
Model: EB0046233
SKU: EB0046233

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Parameter:

Model: XH-M452

Voltage: DC 12V

Temperature range: -20°C to 60°C

Temperature range: 0% to 100%RH

Control accuracy: 0.1°C, 0.1RH

Detector probe: integrated sensor

Output type: relay output

Output capacity: up to 10A

Weight: about 69g (with sensor)

Size: 65*55*28mm (length*width*height)

Temperature control:

1. Set the temperature + :Normal display mode, long press the + key for 3 seconds, start temperature numerical flashing, press the + / - key setting values, wrong operation after 5 seconds, automatically return to detect temperature display

2. Set the temperature - :Normal display mode, long press - button for 3 seconds, stop numerical flashing temperature, press the + / - key set value

3. Restore the factory Settings :At the same time long press temperature, and humidity + key for 3 seconds, digital display, 888, 888

DC-12V-XH-M452-Temperature-And-Humidity-Controller-Module-Digital-Display-High-Accuracy-Dual-Output-1310614

Set the start temperature:Long press the + key, start the flashing temperature, set start temperature by + / - key

set Stop temperature: long press - button, stop flashing temperature, set stop temperature by + / - key

Humidity Settings

DC-12V-XH-M452-Temperature-And-Humidity-Controller-Module-Digital-Display-High-Accuracy-Dual-Output-1310614

Set to start humidity: long press the + key, start the humidity value flashing, set by + / - key launch humidity value

Set stop humidity: long press - to stop humidity value, set by + / - key to stop the humidity value

Fault code: display LLL mean the sensor fault

display HHH mean Test temperature exceed the range of measurement

How to control the humidity:

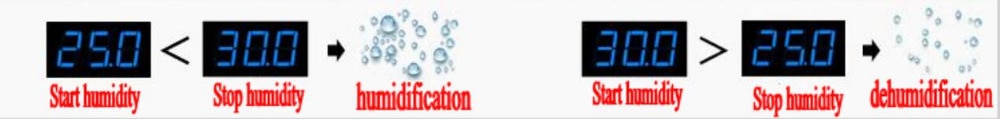

Humidification / dehumidification mode setting method:

1. Set [start humidity]: press and hold the “+” key to start the humidity value flashing, and set the start humidity value with +/- key.

2. Set [stop Humidity]: press and hold the "-" key to stop the humidity value from flashing. Use the +/- keys to set the stop humidity value.

How to control the temperature:

1. Set start temperature +:

under the normal display state, long press the "+" button for 3 seconds, the start temperature value flashes, press +/- key to set the value, after 5 seconds without operation, automatically return to the detection temperature display.

2. Set the stop temperature:

under the normal display state, long press the "-" button for 3 seconds to stop the flashing of the temperature value. Press the +/- button to set the value.

3. Restore factory settings:

at the same time long press the temperature key and humidity "+" button for 3 seconds, digital display 888888

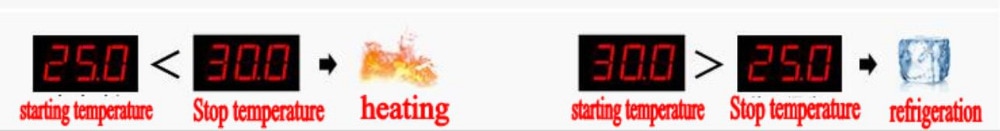

4. Heating / cooling mode setting method:

4.1 Setting method: start temperature < stop temperature (program automatically determines operating mode as heating mode)

4.2 Setting method: start temperature > stop temperature (program automatically determines the operating mode as cooling mode)

4.3 Setting method:

set [start temperature]: long press the "+" button to start the temperature flashing and set the start temperature value via the +/- keys;

set [stop temperature]: long press the "+" button to stop the temperature flashing and set the stop temperature value via the +/- keys

Note:

When setting the mode, if you accidentally set the set temperature value upside down, the output indicator will not light, the load does not work, if the above conditions appear after the setting, you can check whether the set temperature value is reversed.

Package included:

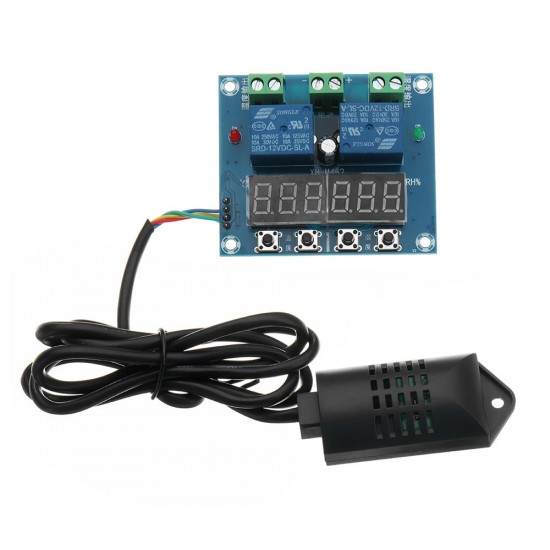

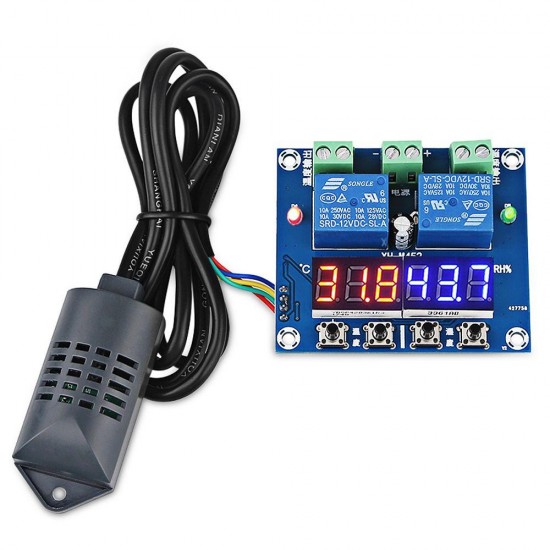

1 X XH-M452 temperature and humidity controller module

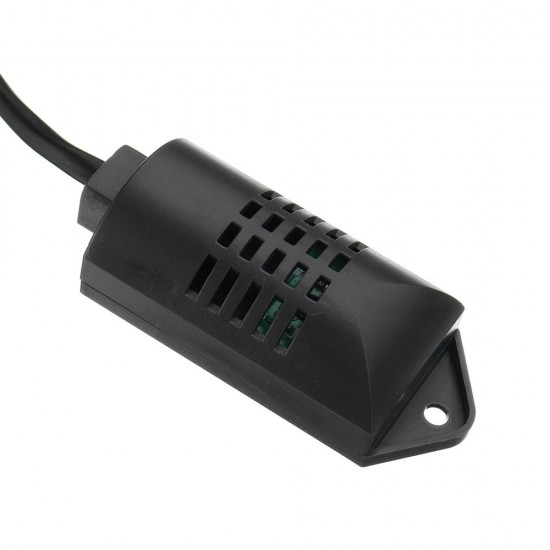

1 X Sensing line

DC-12V-XH-M452-Temperature-And-Humidity-Controller-Module-Digital-Display-High-Accuracy-Dual-Output-1310614
