DC 12V/5V MP3 Decode Board LED USB AUX FM bluetooth Radio Amplifier With Remote
- Stock: In Stock
- Model: EB0051708
- SKU: EB0051708
- Voltage: DC5V
Precise details:
Description:Stereo bluetooth 12V/5V lossless WAV music decoder, WMA / MP3 / FM speaker panel modules, support breakpoint memory
Features:
1. Support USB, SD, support for external signal directly switch
2. Support for stereo bluetooth (bluetooth3.0EDR)
3. Support USB / SD / bluetooth / FM / LINE switch automatically.
4. Support MP3 / WMA / WAV lossless songs.
5. Support USB / SD card switch, switch songs song selection
6. Support Bluetoot the song, the next song, adjust volume, EQ, play / pause, mute, shut down.
7. Support FAT16, FAT32 file system.
8. Support MP1 Layer3, MP2 Layer3, MP3 Layer3 version of the song.
9. Support 32-320kbps of MP3 songs.
10. Support power and memory function, continue playing the song played before the power and volume.
11. Support cycle mode
12. Power supply: DC 12V: 7-12V, DC5V: 3.7-5V

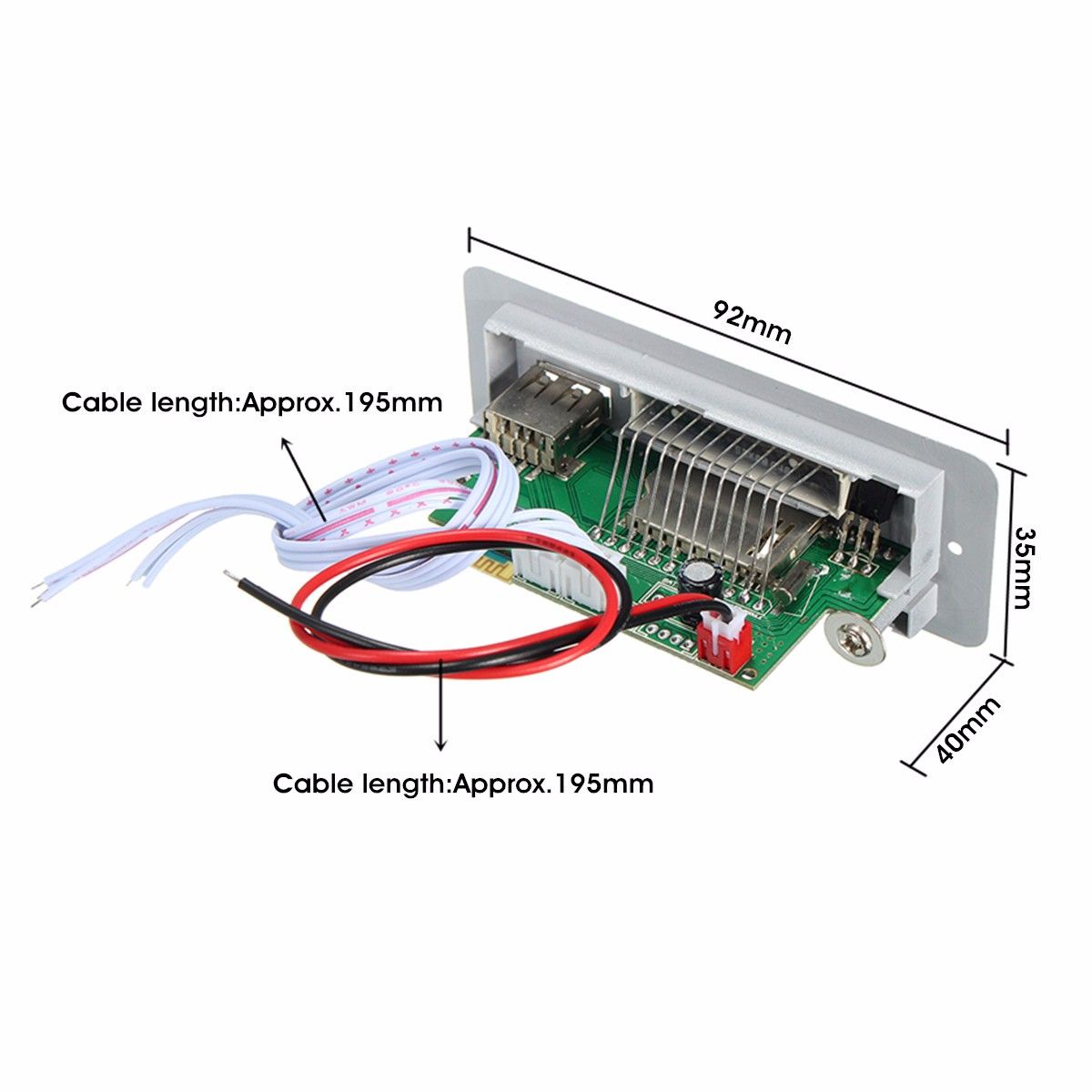

13. Panel dimensions: 92 * 35 * 40mm

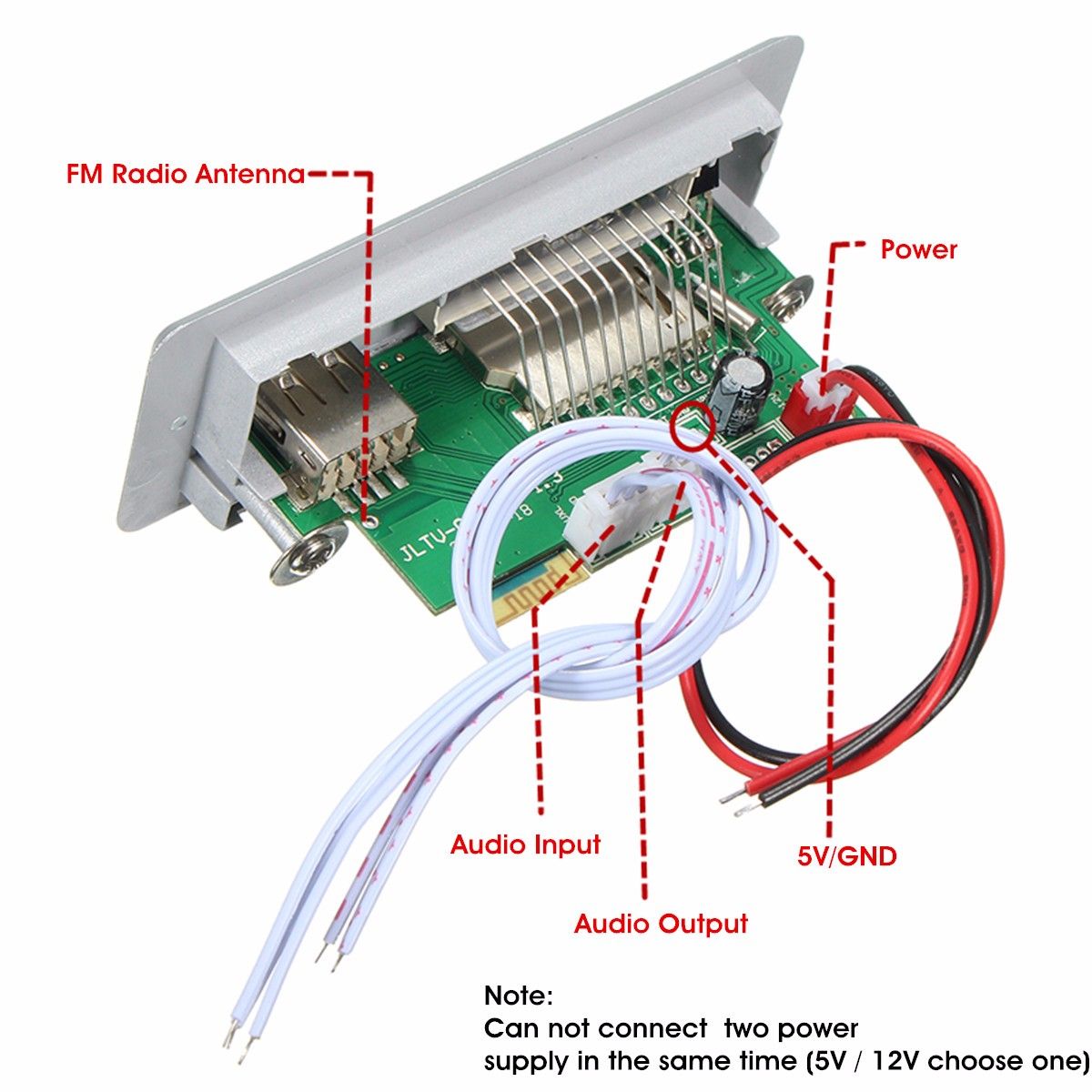

How to connect:
Connection: 2P circuit board electrically connected to 12V (GND Ground, + 12V positive);
FM: ANT FM radio antenna connected to the welding hole;
The audio output: 5P row seat then press the icon audio output R / L / GND; and your amplifier board R / L / GND pair are connected. Or connected to the AUX input jack
The audio input (AUX): 3P-row seat according to the illustrated audio inputs L-IN / GND / R-IN
Note:
Can not connect two power supply in the same time (5V / 12V choose one)
Package included:
1 x Decoding panel

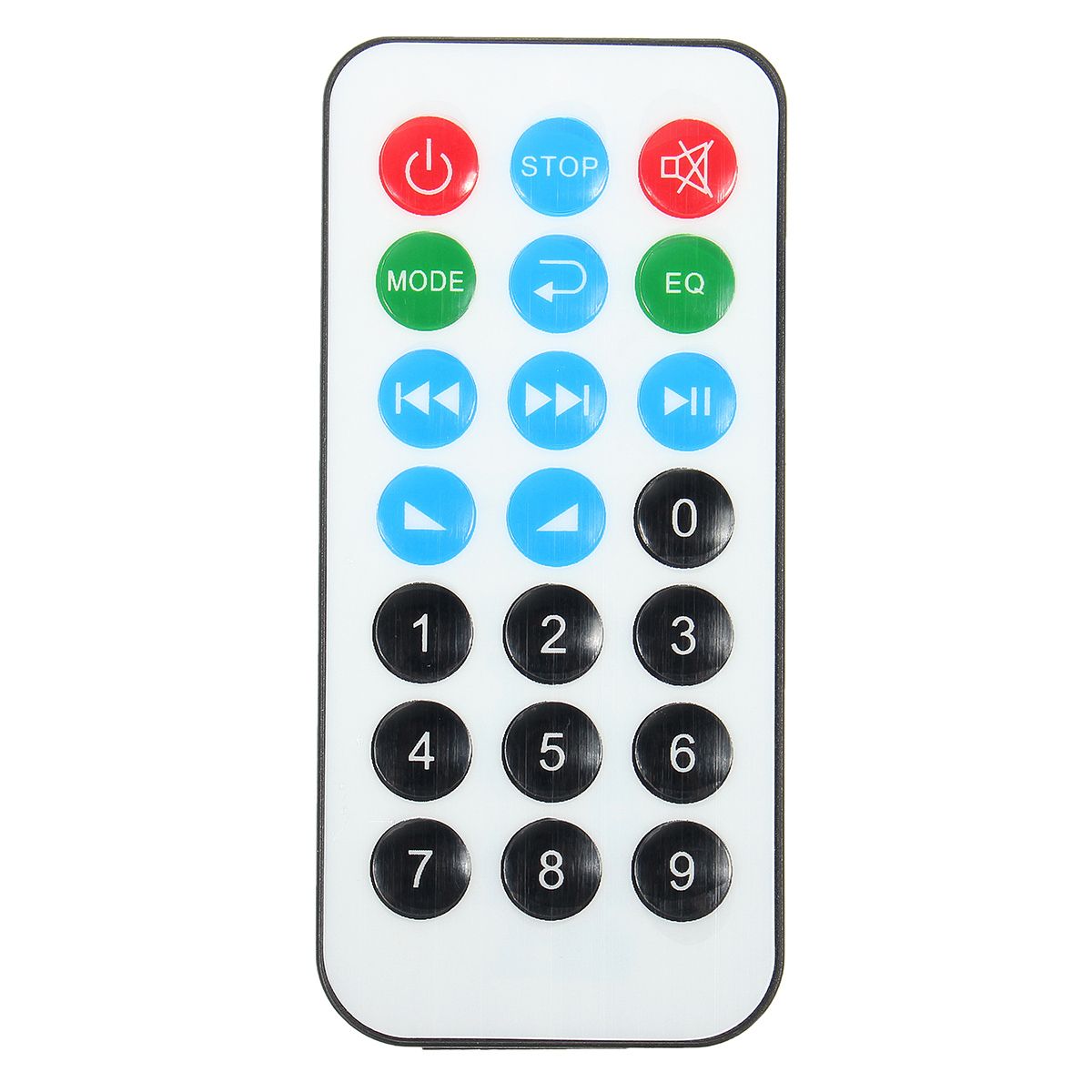

1 x Remote control
Stereo bluetooth 12V/5V lossless WAV music decoder, WMA / MP3 / FM speaker panel modules, support breakpoint memory
Features:
1. Support USB, SD, support for external signal directly switch
2. Support for stereo bluetooth (bluetooth3.0EDR)
3. Support USB / SD / bluetooth / FM / LINE switch automatically.
4. Support MP3 / WMA / WAV lossless songs.
5. Support USB / SD card switch, switch songs song selection
6. Support Bluetoot the song, the next song, adjust volume, EQ, play / pause, mute, shut down.
7. Support FAT16, FAT32 file system.
8. Support MP1 Layer3, MP2 Layer3, MP3 Layer3 version of the song.
9. Support 32-320kbps of MP3 songs.
10. Support power and memory function, continue playing the song played before the power and volume.
11. Support cycle mode
12. Power supply: DC 12V: 7-12V, DC5V: 3.7-5V
13. Panel dimensions: 92 * 35 * 40mm
How to connect:
Connection: 2P circuit board electrically connected to 12V (GND Ground, + 12V positive);
FM: ANT FM radio antenna connected to the welding hole;
The audio output: 5P row seat then press the icon audio output R / L / GND; and your amplifier board R / L / GND pair are connected. Or connected to the AUX input jack
The audio input (AUX): 3P-row seat according to the illustrated audio inputs L-IN / GND / R-IN
Note:
Can not connect two power supply in the same time (5V / 12V choose one)
Package included:
1 x Decoding panel
1 x Remote control
,
,
,
,
