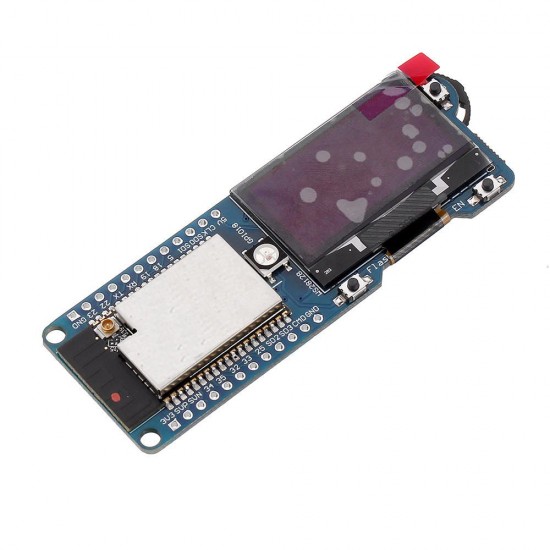

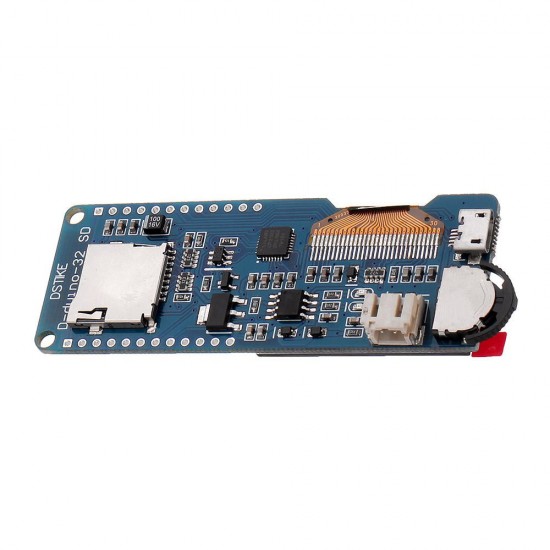

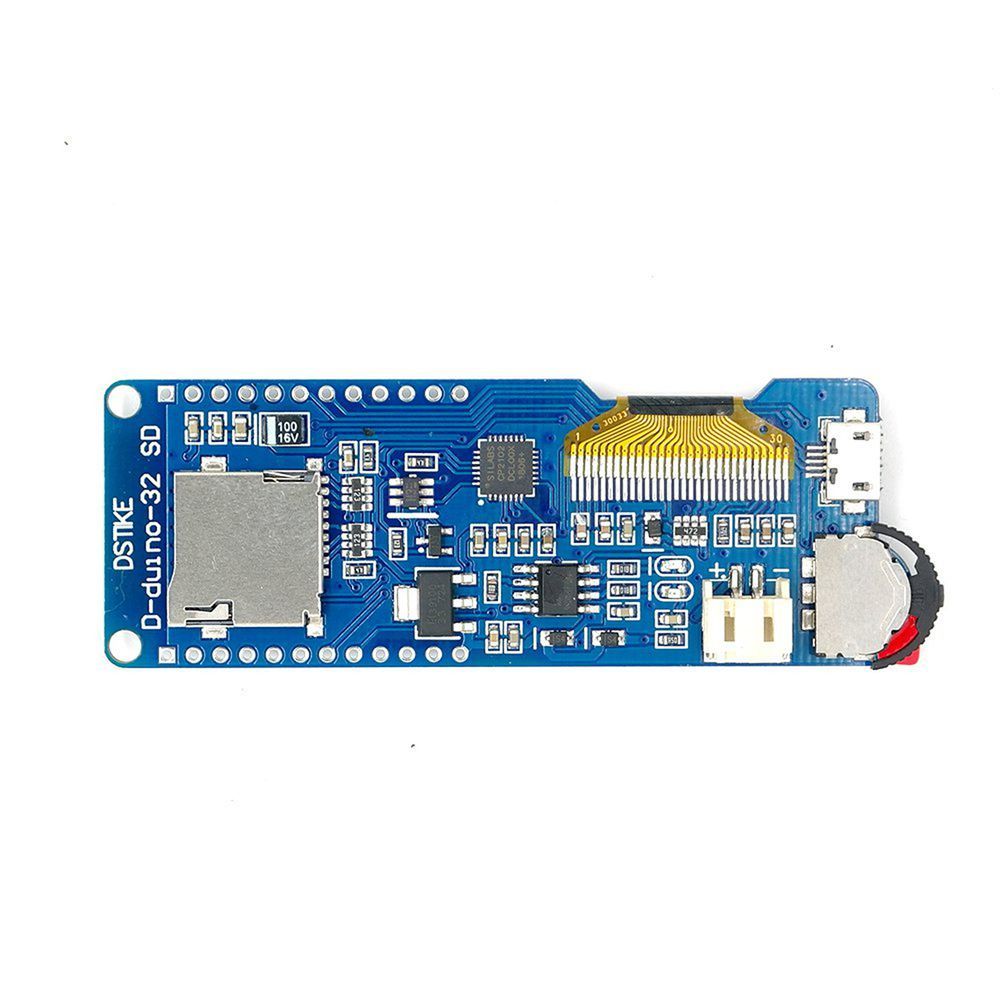

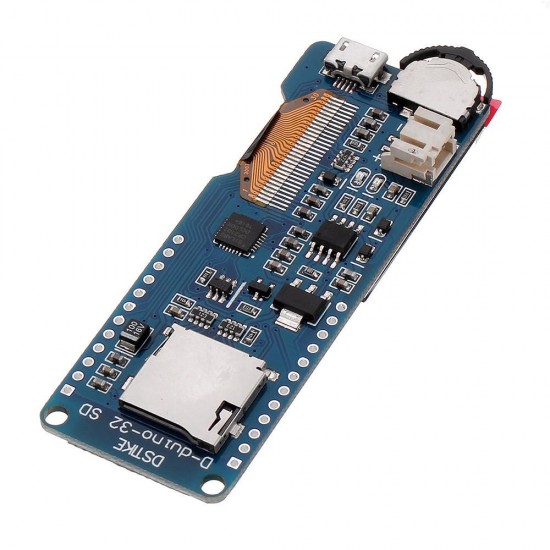

D-duino-32 SD Final OLED TF Card ESP32 Development Board

D-duino-32 SD Final OLED TF Card ESP32 Development Board
D-duino-32 SD Final OLED TF Card ESP32 Development Board
D-duino-32 SD Final OLED TF Card ESP32 Development Board
D-duino-32 SD Final OLED TF Card ESP32 Development Board
D-duino-32 SD Final OLED TF Card ESP32 Development Board
D-duino-32 SD Final OLED TF Card ESP32 Development Board
D-duino-32 SD Final OLED TF Card ESP32 Development Board
D-duino-32 SD Final OLED TF Card ESP32 Development Board
D-duino-32 SD Final OLED TF Card ESP32 Development Board
D-duino-32 SD Final OLED TF Card ESP32 Development Board
D-duino-32 SD Final OLED TF Card ESP32 Development Board
D-duino-32 SD Final OLED TF Card ESP32 Development Board
D-duino-32 SD Final OLED TF Card ESP32 Development Board
$26.79
Ex Tax: $26.79
  • Stock: In Stock
  • Model: EB0041757
  • SKU: EB0041757

What is it?

This is an ESP32 version Packet monitor.
Did you ever wonder how many data packets are flying around you right now?! This little project tells you how many Wi-Fi packets are sent every second and on which channel. It's not limited to one network, it scans all traffic on one channel. It's not limited to one network, it scans all traffic on one channel.
This board could record WiFi packets into a PCAP file.

What makes it special?

1.3 OLED integrated(GPIO26-SDA,GPIO27-SCL)

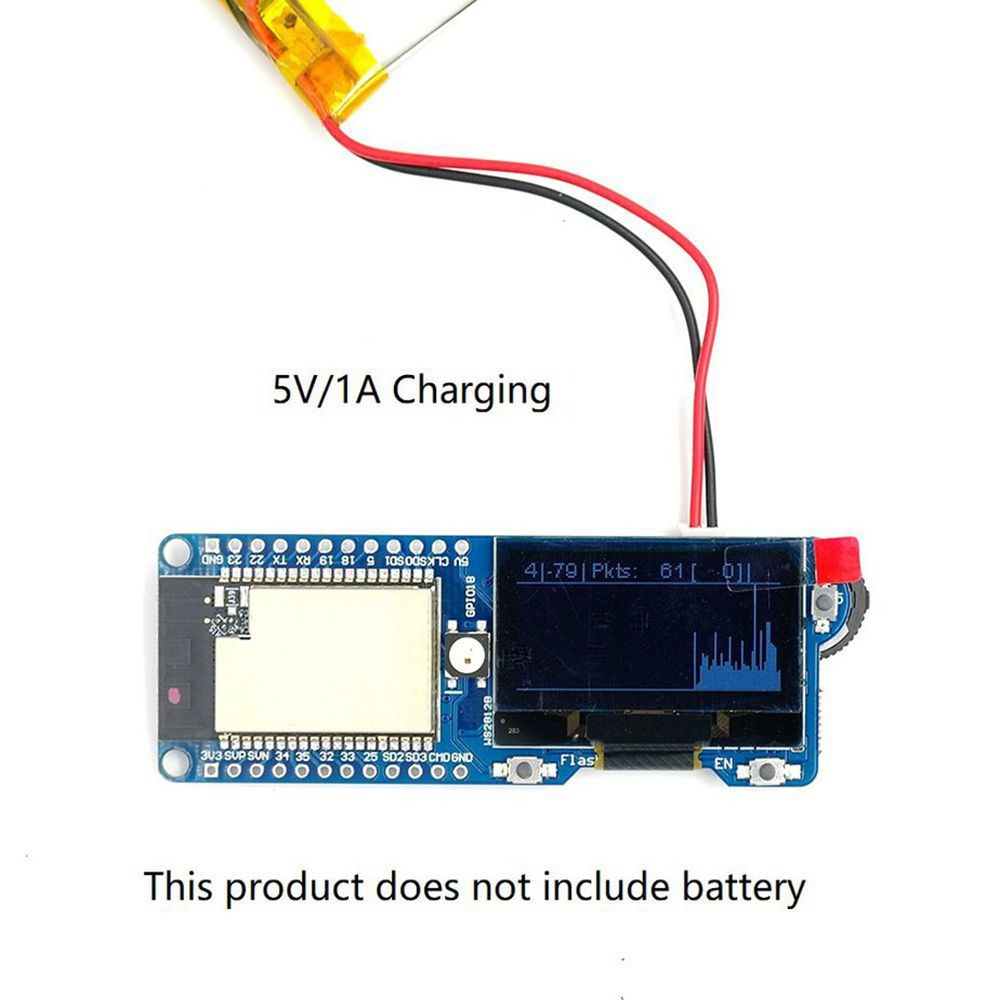

1A charging/discharging
Overcharging protection, discharging protection,reverse protection
Indicate LED(RED means charging, GREEN means full)
ESP32-Wrover inside(4MB Flash+4MB PSRAM)
Auto download function integrated
SD-card function integrated

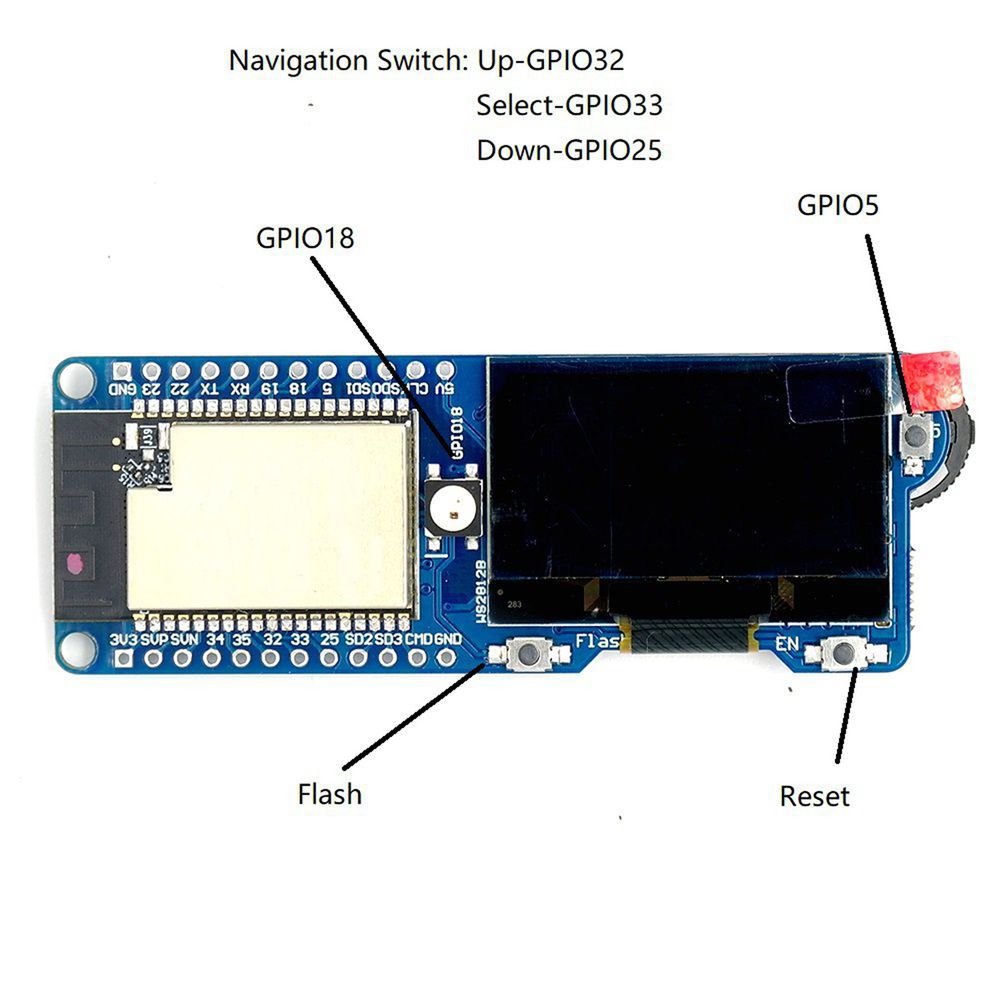

1 control button(GPIO5)
Flash button and rst button

SD cad pin map

GPIO12--DAT2
GPIO13--DAT3
GPIO15--CMD
GPIO14--CLK
GPIO2--DAT0
GPIO4--DAT1
GPIO21--card

Specs and Docs

Source Code

Package Included:

1 x DSTIKE D-duino-32 SD Final OLED TF Card ESP32 Development Board
