N-Type Crimp Plug Male Cable Straight RF Connector For LMR
- Stock: In Stock
- Model: EB001143
- SKU: EB001143
| -N type connectors are threaded and gasketed for weatherproof operation. |
| -The threaded coupling incurs low noise and withstands shock and vibration. |
| -N series RF connectors are 50 ohm constant impedance connectors with a consistently low VSWR across its frequency range of 0 to 11GHz. |
| -The N series connector is the most popular medium sized connector. Applications include test and measurement, antennae, base stations, transmitters, etc. |
| - N connectors are designed to conform to MIL-C-39012 specification.They are not matable with the 50 ohm connectors. |

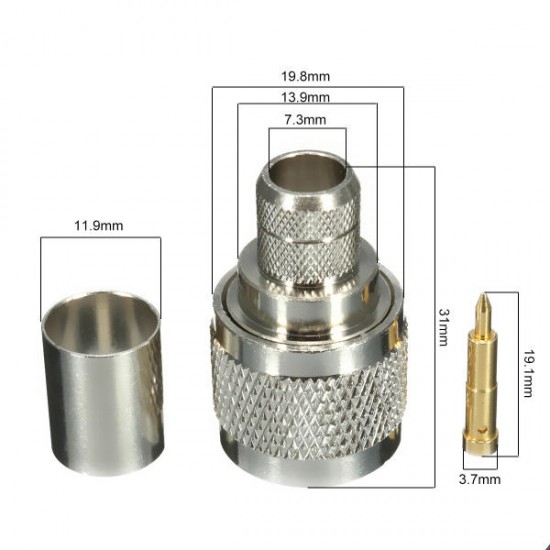

| -They are high quality medium size connectors standardly used with coaxial cables from 0.350" to 0.450" OD, but designs can also acccomodate 0..078" to 0.875" cables. |
Specification:
| Product Series:N | Product Type: Cable mount |
| Application:Crimp | Body Plating:Nickel-plated |
| Body Termination: Crimp | Cable Type:RG8,RG214,LMR400 |
| Connector Body Style:Straight | Connector Material:Brass |
| Contact Plating:Nickel | Contact Termination:Solder |
| Gender:Plug | Impedance:50 Ohm |
Package included:

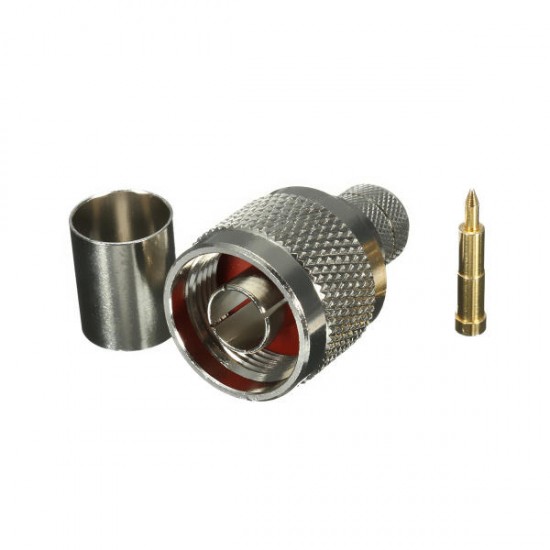

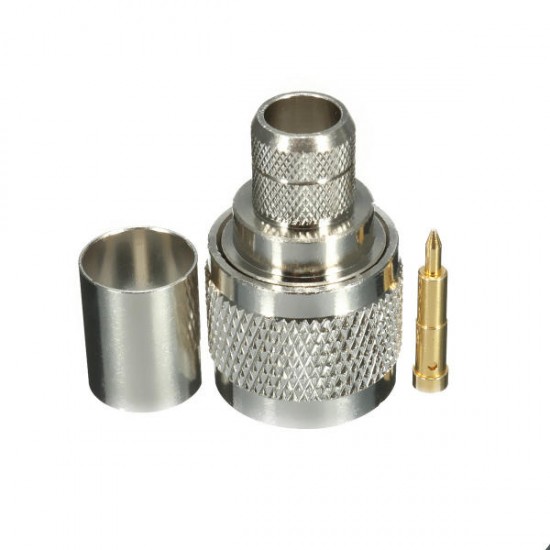

1Pcs x N-Type male plug crimp
