3.5 FT Black MC4 10AWG MC4 Solar Stripping Cable Connector Male Female Plug

Based on 1 reviews. - Write a review

$8.00

Ex Tax: $8.00

Stock: In Stock
Model: EB000363
Dimensions: 101.00cm x 0.00cm x 0.00cm
SKU: EB000363

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

3.5 FT Black MC4 10AWG MC4 Solar Stripping Cable Connector Male Female Plug

Features:

Long service life, environmental protection.

Suitable for solar power station, pv connector and pv junction box.

Solar system and dedicated solar power cable.

Specifications:

Nominal cross section: 4mm2

Model: PV1-F4mm

Rated current: 34A

Core number: single core

Conductor: copper wire structure

Conductor: stranded diameter: 2.6mm

Insulation minimum wall thickness:0.5mm

Sheath minimum wall thickness:0.5mm

Finished wire diameter:5.8 + 0.1mm

The conductor resistance (20 ℃) :≤ 5.09 /km

Test voltage:6.5/5 kV/min

Rated temperature: -40~90 ℃

Maximum conductor temperature: 120℃

Service life: ≥25 years (-40~90 C)

Ated voltage: AC U DC:1.8kv. 0.6/1kv /U

Working environment temperature: -40~90℃

Working voltage AC/DC (KV): 0.6~1.0/1.8

Weather resistance: UV

Flame retardant: single vertical combustion (IEC60332-1)

Solar test: HD605/A1

Finished cable ozone resistance test: EN50396

Smoke density: IEC61034, EN50268-2

Halogen acid release amount: EN50267-2-1 IEC670754-1

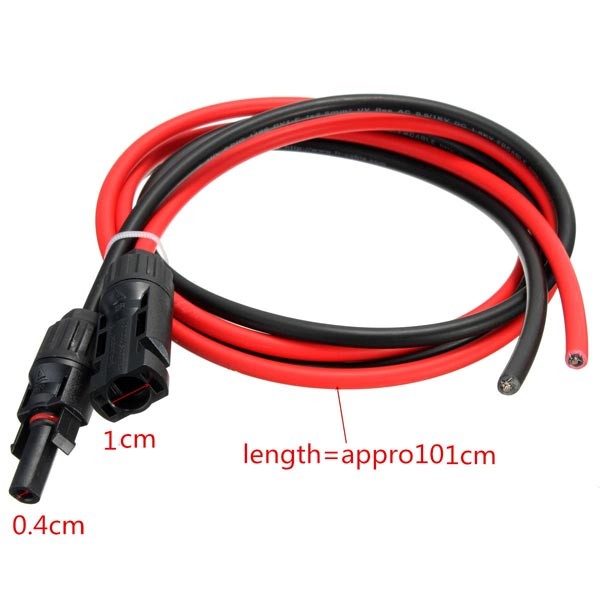

Length: Appro 101cm

Package included:

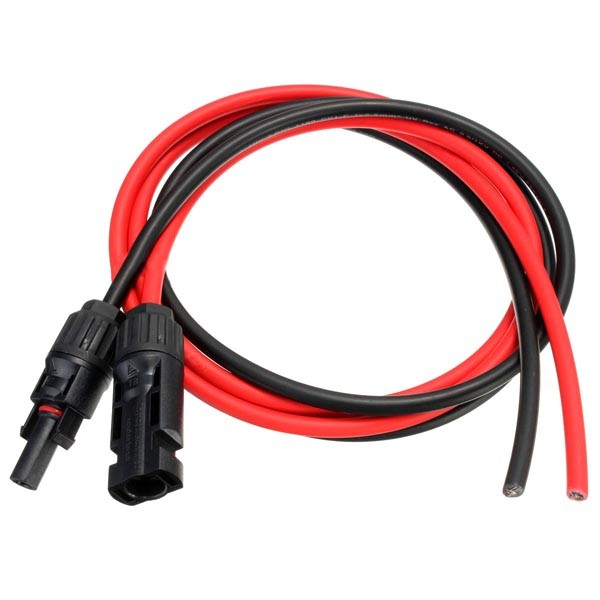

1 x MC4 Connectors Red & Black 3.5 FT

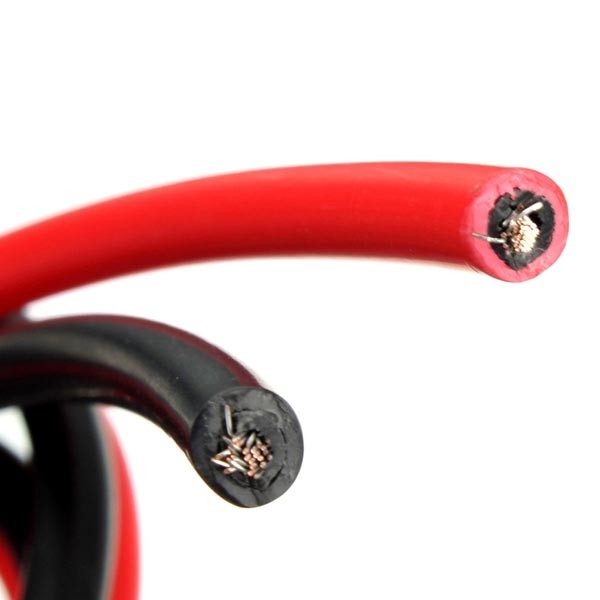

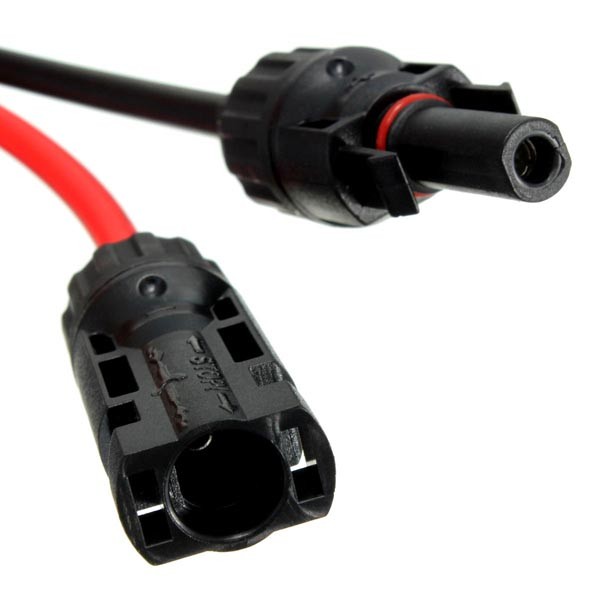

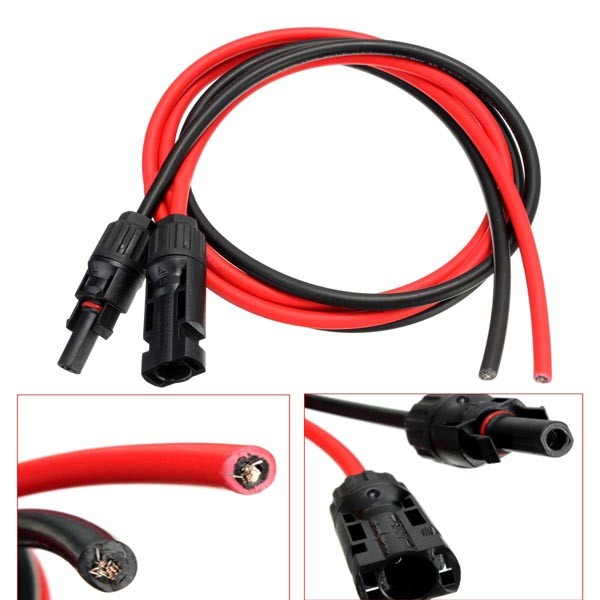

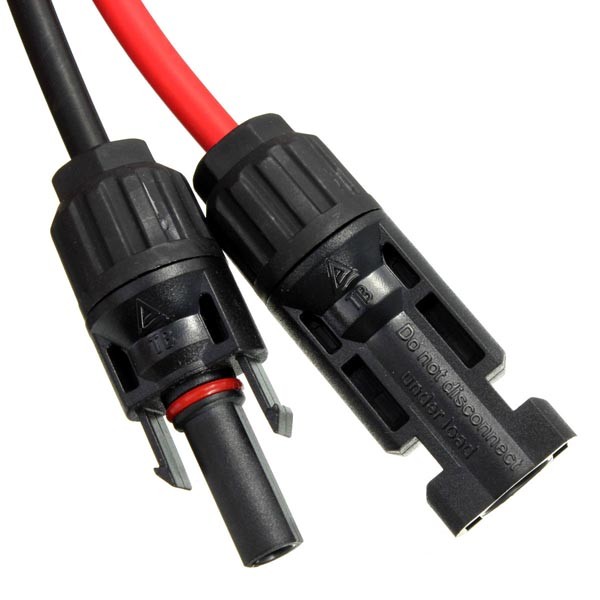

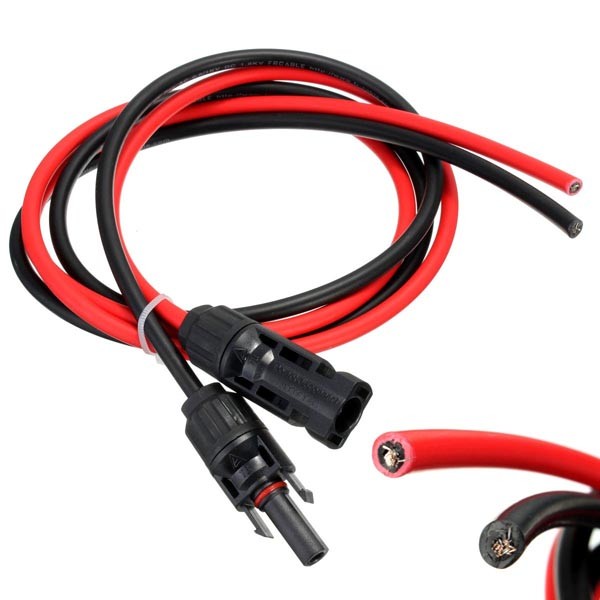

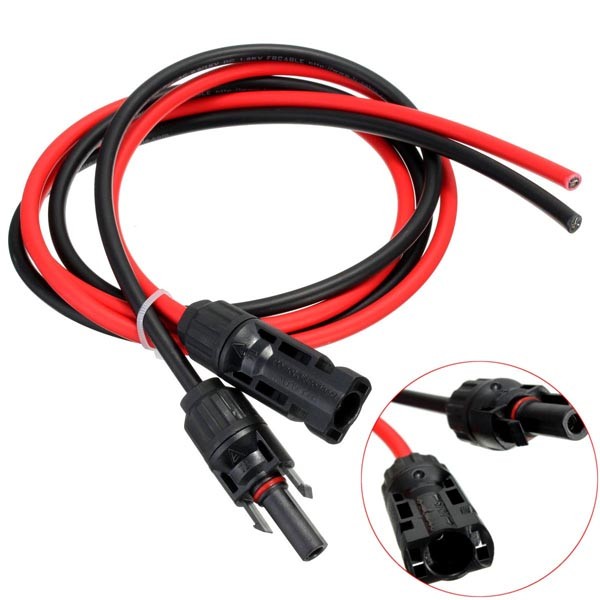

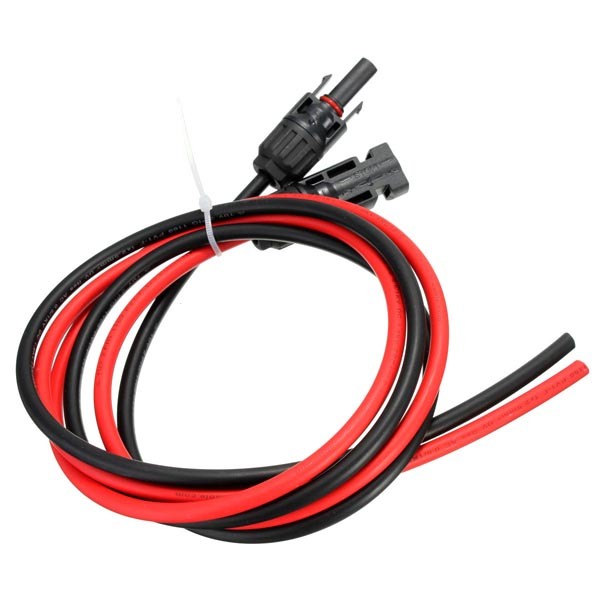

Details pictures:

35-FT-Black-MC4-10AWG-MC4-Solar-Stripping-Cable-Connector-Male-Female-Plug-1021614
