Colorful OV2640 Camera Module Serial Port JPEG Output with Converter Board for Arduino Raspberry Pi MCU - products that work with official Arduino Raspberry Pi MCU boards

Based on 0 reviews. - Write a review

$26.99

Ex Tax: $26.99

Stock: In Stock
Model: EB0046768
SKU: EB0046768

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

>>>Manual: Click here to open<<<

Features:

(1) Camera module supporting various single chip computers and function boards;

(2) The serial port reading is simple and convenient, easy to use;

(3) It can be directly connected with single chip microcomputer, Ardunio, Raspberry Pi, ARM, etc .;

(4) JPEG compressed image format output;

Application:

(1) Color photography

(2) Simple image recognition

(3) Car tracking

(4) Automatic tracking

(5) Automatic control

Description:

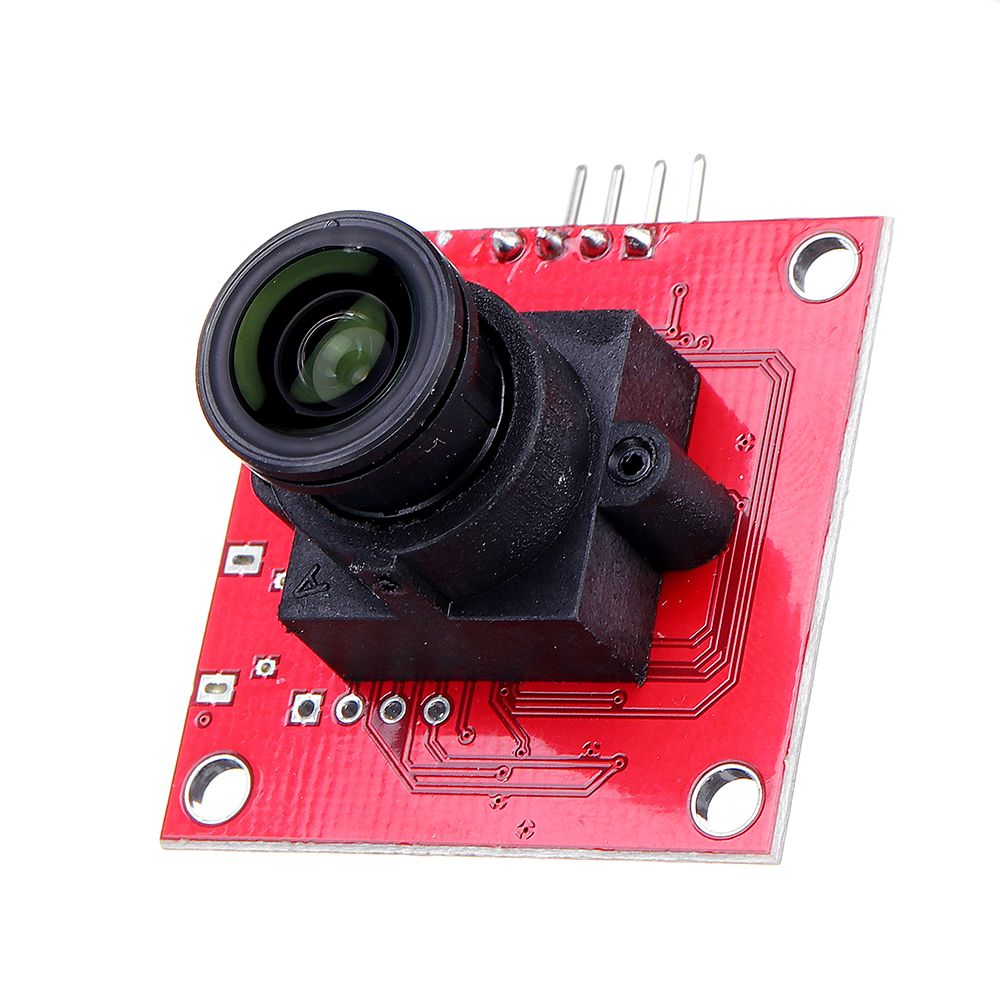

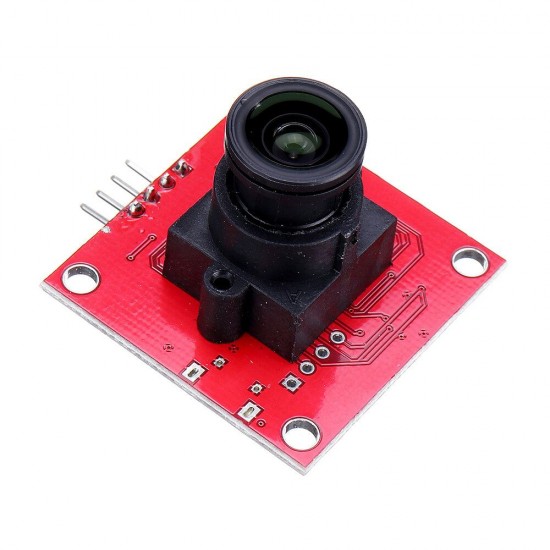

QYF-JPGSC01 is a color serial camera, QYF-JPGSC02 is a black and white serial camera. The QYF-JPGSC01 / 02 serial camera can directly read the captured image through the serial port. It can obtain image compression data by simply sending serial port commands. The image output format is a compressed JPEG file format. The module is currently capable of obtaining color (black and white) images with resolutions of 800 * 600, 640x480, 320x240, and 160x120. Continuous command output can obtain continuous image output. When the resolution is set to the lowest, the continuous output can reach a speed of about 5 frames.

Camera Parameters:

(1) Camera Parameters:

Chip name: OV2640

Photosensitive array: 1632x1232 maximum format UXGA

IO voltage: 1.7V-3.3V analog voltage 2.5-3.0v (internal LDO powers the core 1.2V)

Power consumption: TBD sleep <20μA

Temperature operation: -30 ℃ to 70 ℃

Stable work: 0 ℃ to 50 ℃

Output format (8 bits): YUV / YCbCr4: 2: 2 RGB565 / 555/444 GRB4: 2: 2 Raw RGB Data

Optical size: 1/4 "

Angle of view: 25 °

Maximum chastity rate: 15fps SXGA

Sensitivity: 1.3V / (Lux-sec)

Signal to noise ratio: 40 dB

Dynamic range: 50 dB

Browse mode: line by line

Electronic exposure: 1 line to 1247 lines

Pixel area: 2.2μm x 2.2μm

Dark current: 15mV / s at 60 ℃

(2) Lens Parameters

Focal length: 3.6mm

Horizontal field of view: 102 °

Minimum object distance: 20mm

Format: 1/3 "

Mount: M12X0.5

Aperture: F2.0

Size: 14x15.7

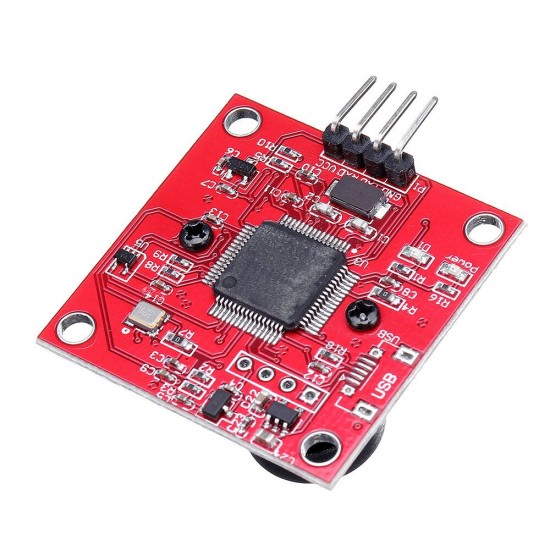

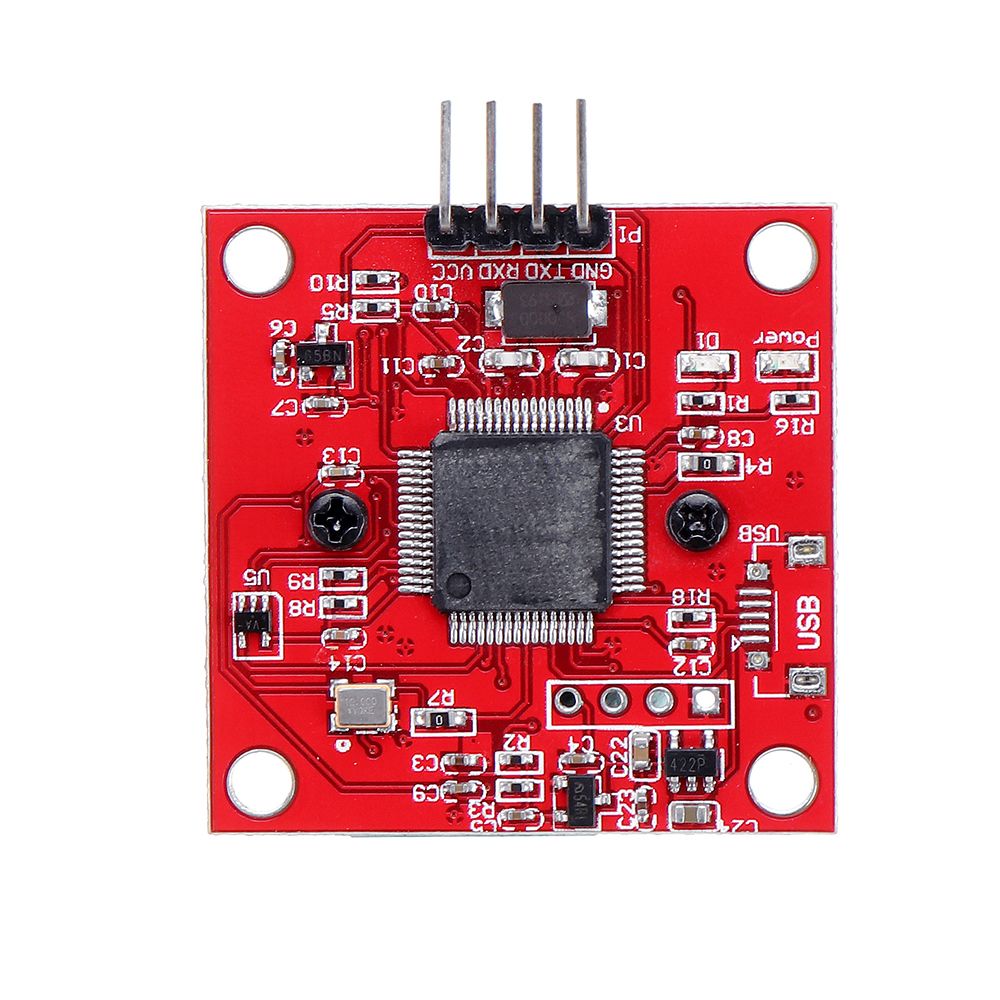

Interface Definition:

VCC: 3-3.3V

TX: TTL level serial port transmitter

RX: TTL level serial port receiver

GND: ground

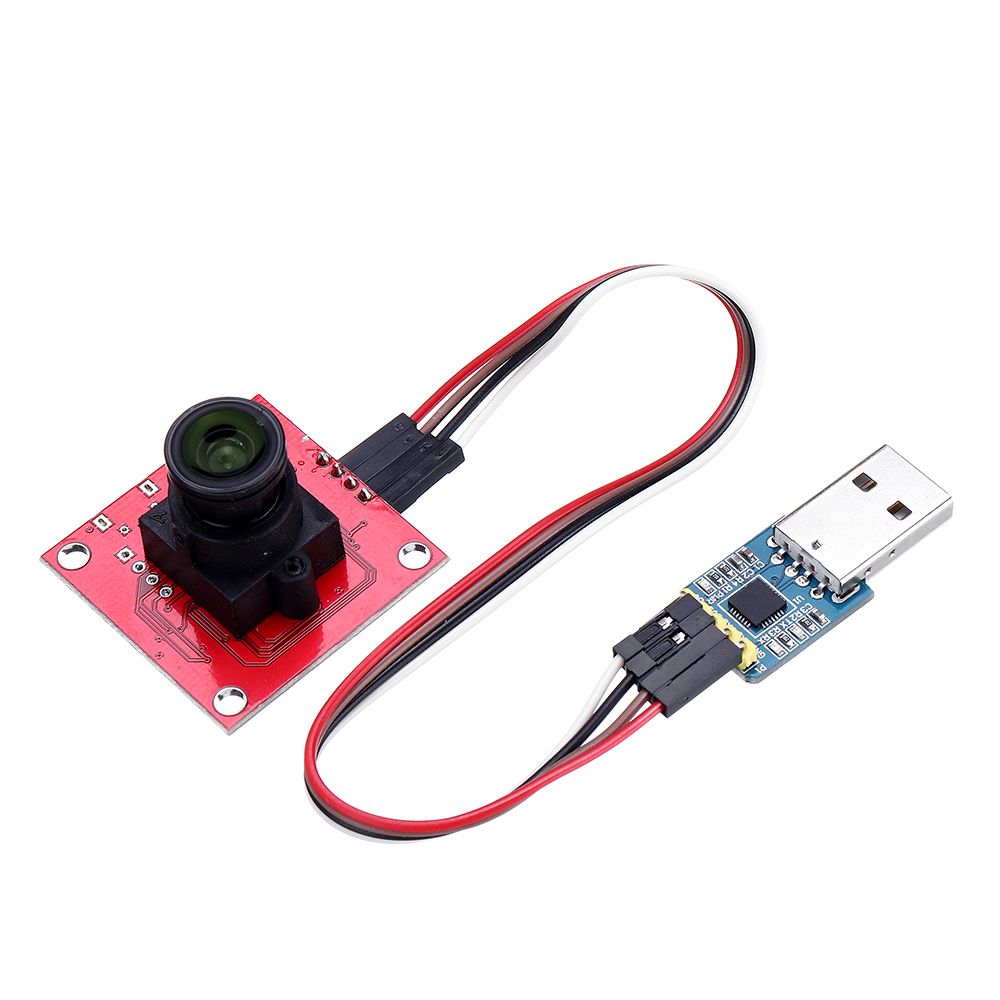

Package Included:

1 x Colorful OV2640 Camera Module Serial Port JPEG Output

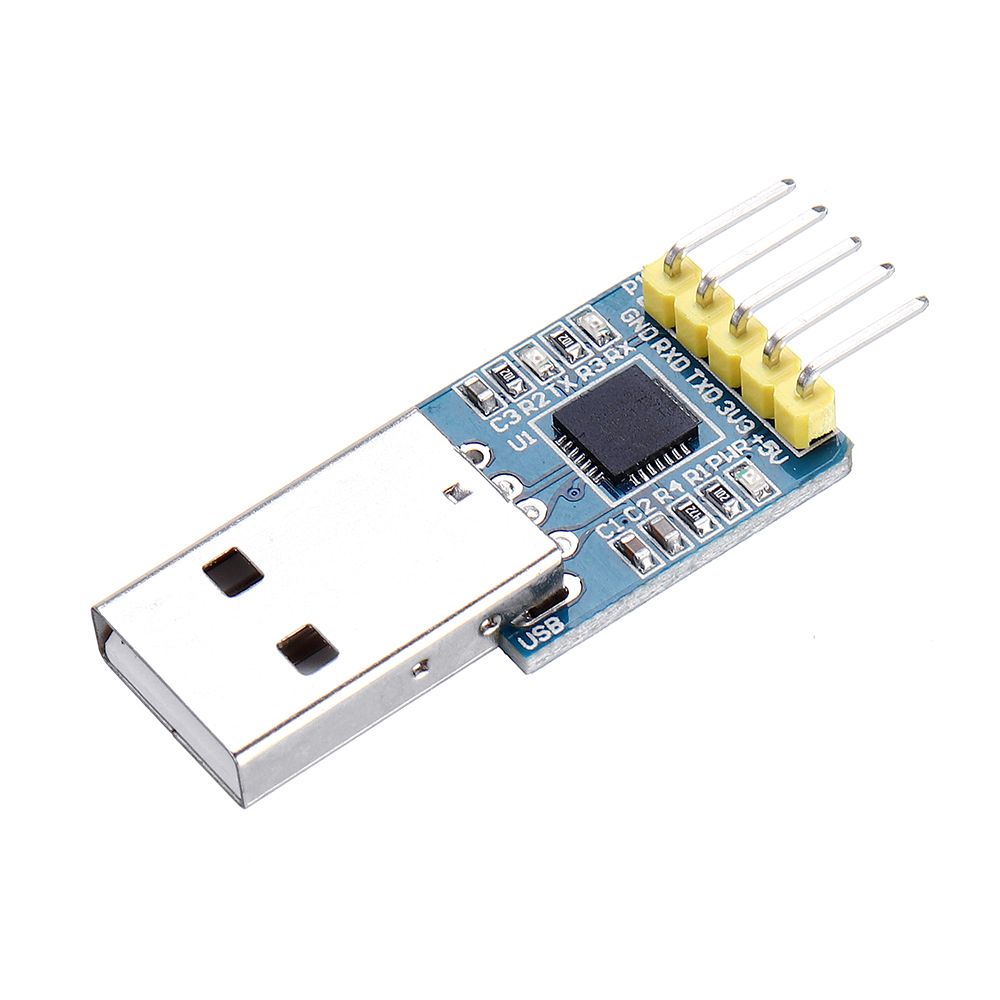

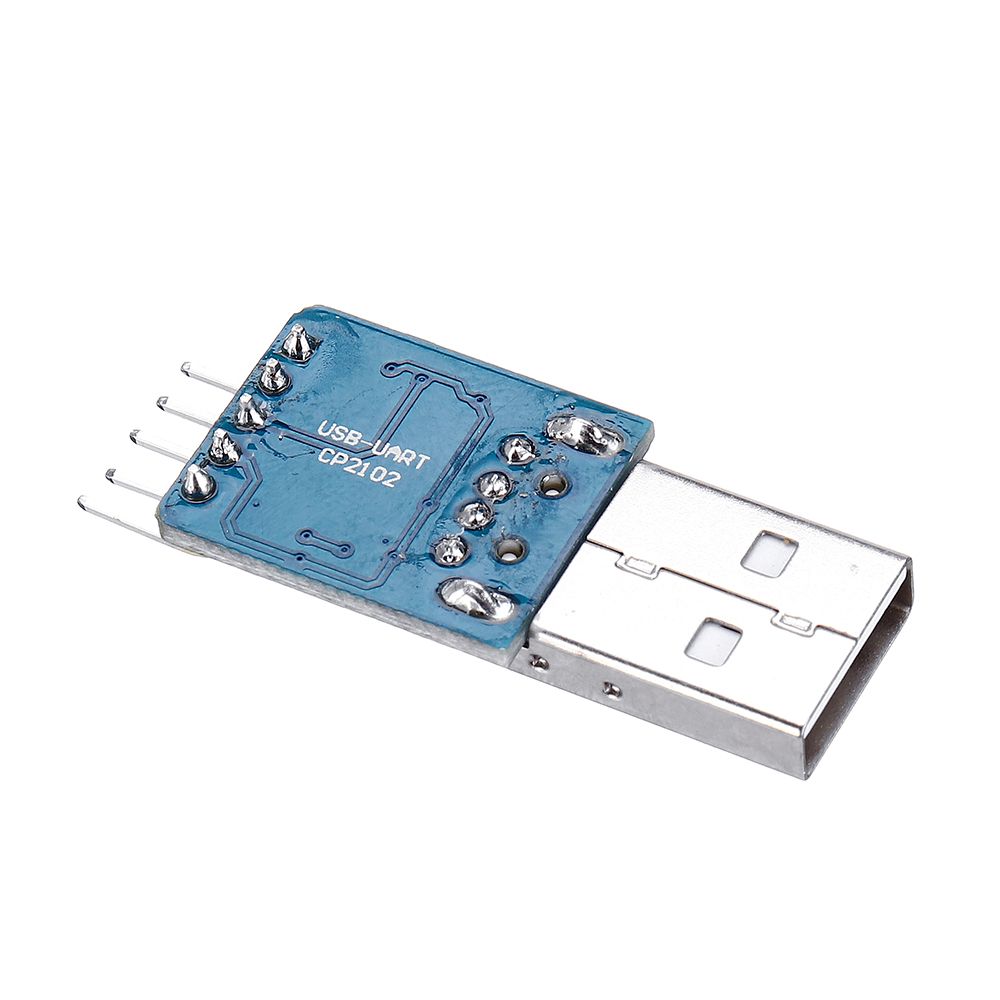

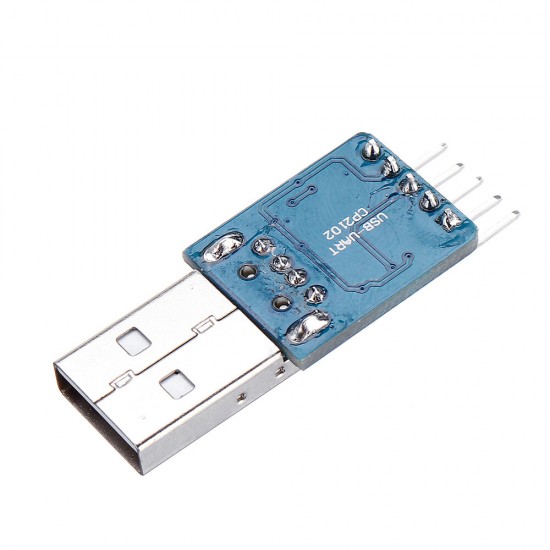

1 x Converter Board

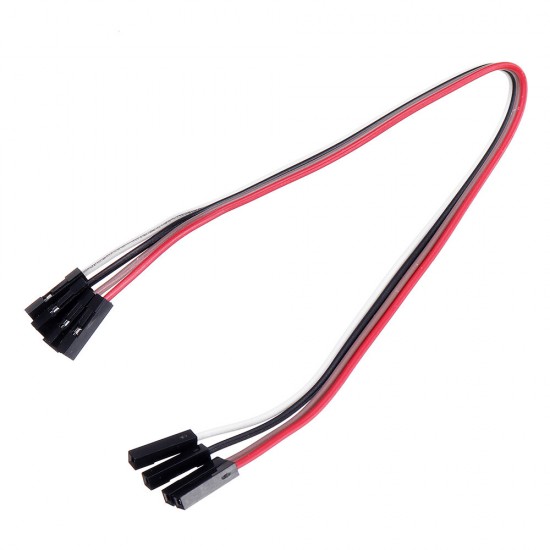

1 x Cable

Colorful-OV2640-Camera-Module-Serial-Port-JPEG-Output-with-Converter-Board-Geekcreit-for-Arduino-Ras-1661186
