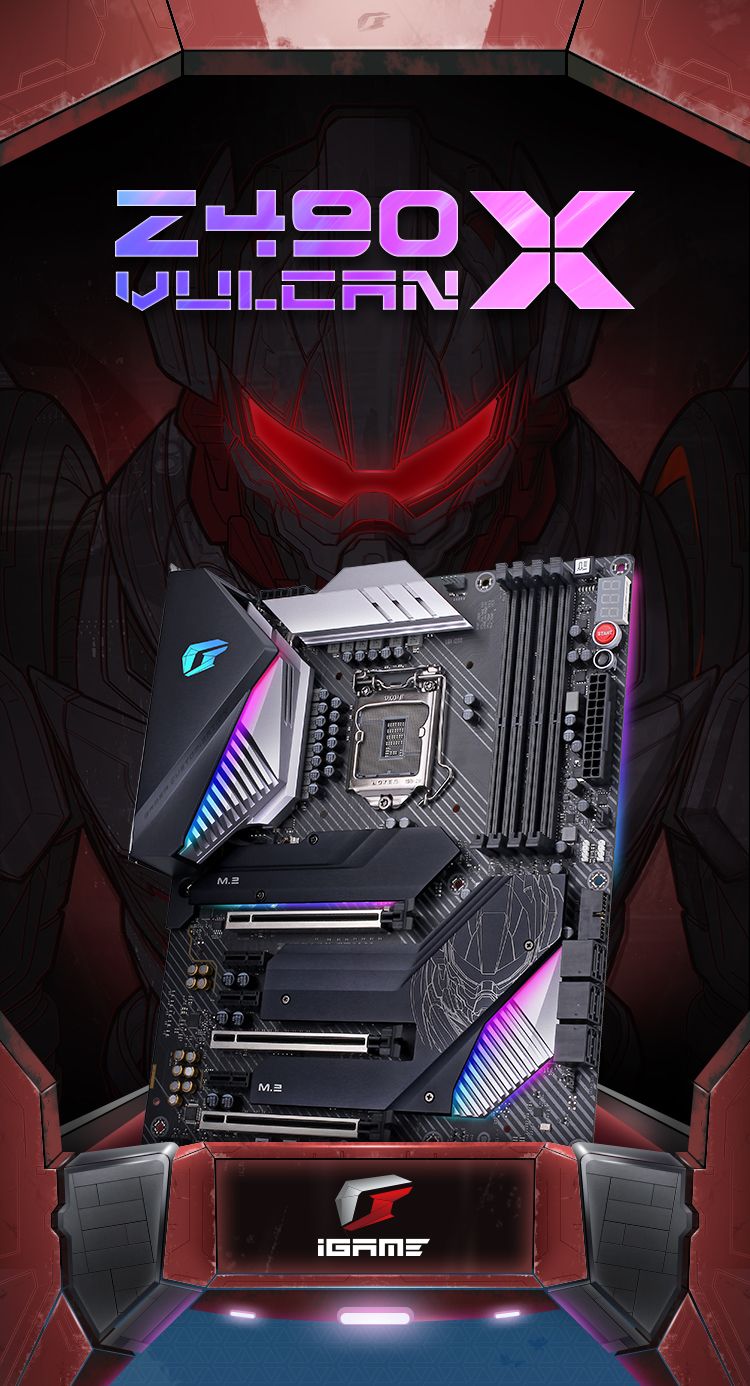

ColorfulZ490 Vulcan X V20 Computer Motherboard PC Desktop MotherboardWIFI6 Support 10th Generation Intel
- Stock: In Stock
- Model: EB0026331
- SKU: EB0026331
Specification:
Motherboard Series | Intel chipset,iGame series |
Chipset | Intel Z490 |
Processor | Intel® 10th Generation Core™ Processor / 10 Core (Including K series) |
Memory | 4 DIMM slots，support dual channel DDR4-4000(OC)/3800(OC)/3600(OC)/3400 (OC)/3200(OC)/3000(OC)/2800(OC)/2666/2400/2133 MHz |
Graphics Renhotec | 1*PCI Express 3.0x16 slot,1*PCI Express 3.0x8 slot，1*PCI Express 3.0x4 slot,support AMD CrossFire™ |
SATA Ports | 6*SATA3.0 6Gb/s ports |
Board I/O | 2*USB2.0 port;1*HDMI port,1*DP port,1*SPDIF port; 3*USB 3.2 Gen2 TYPE-A ports,1*USB 3.2 Gen2 TYPE-C ports,2*USB 3.2 Gen1 TYPE-A ports; 1*RJ45 1000M LAN; 1*WiFi Antenna port;6*audio ports; （onboard： 1*USB2.0 header,1*USB3.2 Gen1 header） |
Expansion Slots | 3*PCI Express3.0x1，2*M.2 slots,1*CNVI WiFi /BT module slot; |
BIOS | 128M UEFI |
Power Management | support 280W processors |
Hardware Monitor | CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring |
LAN | Intel I225V 2.5Gbit LAN 1000M LAN，Provides 10/100/1000Mb Ethernet |

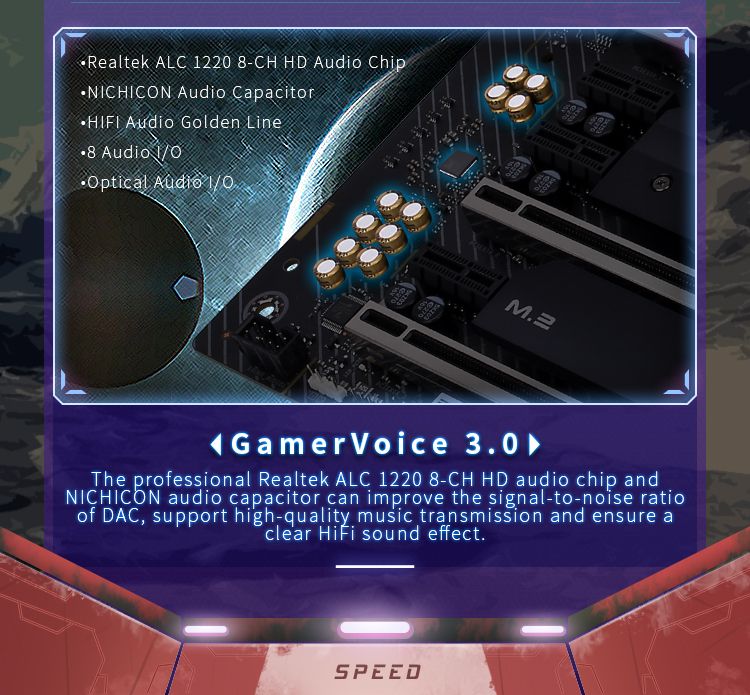

Audio | 8.1 Realtek ALC1220 8-CH HD |
Configuration | 305 x 244 mm ATX |
Other Features | One key update BIOS,Colorful Dynamic Monitor Status，Custom armor，Nichicon audio capacitor |
Features:
1. New generation motherboard： Support 10th Generation Intel Core™/10 Core (Including K series) Processors (Socket 1200).
2. Easy to operate：One-key update BIOS,Auto enter BIOS interface. Auto over-clocking button. Onboard debug card display function switch button.

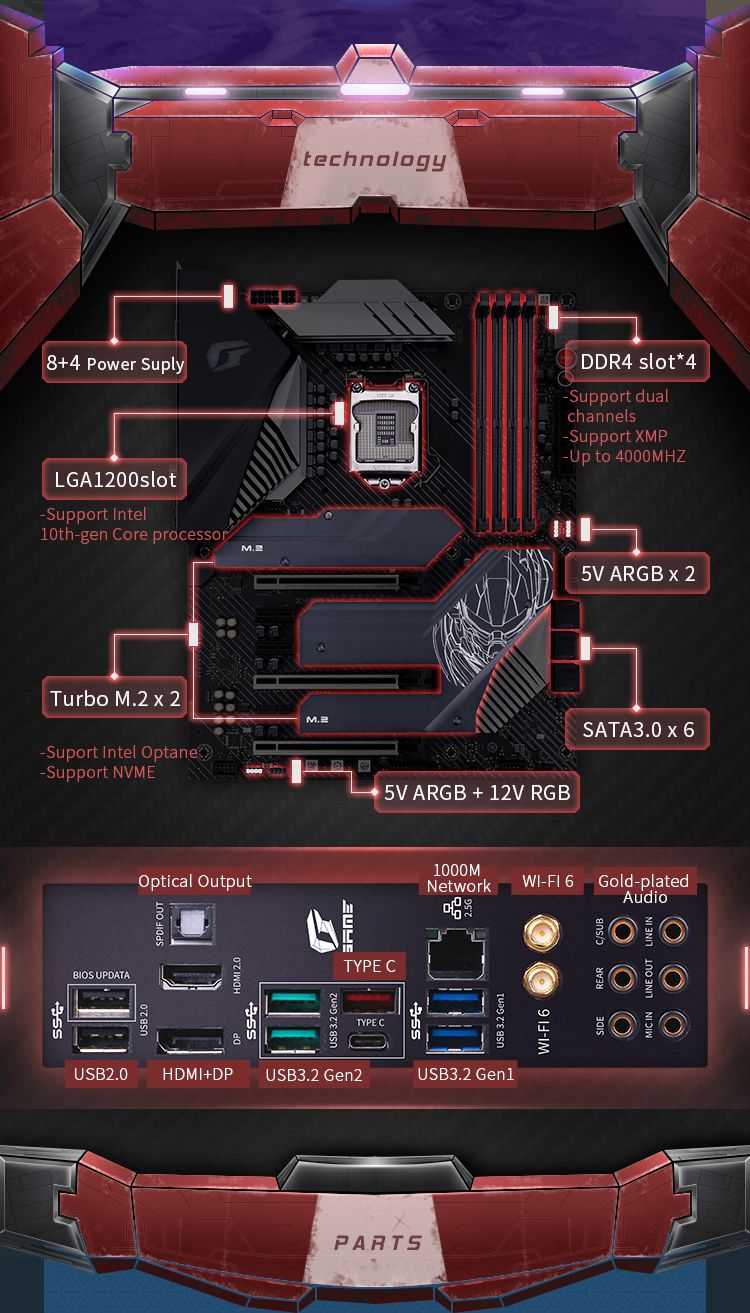

3. Rich interface： 6*SATA3.0， 2*M.2 slots Support 2242/2260/2280 size SSD and Intel OPTANE technology. *silk-screen as "M2_2280M_1" slot, support PCI-e x4 NVME M.2 SSD, *silk-screen as "M2_2280M" slot, support PCI-e x4 NVME M.2 and SATA M.2 SSD. 4*USB2.0(include header)， 4*USB3.2 Gen2 ports(3*Type-A+1*Type-C）， 4*USB3.2 Gen1 ports(include header)， *USB3.2 Gen1 header supports charging in shutdown state.

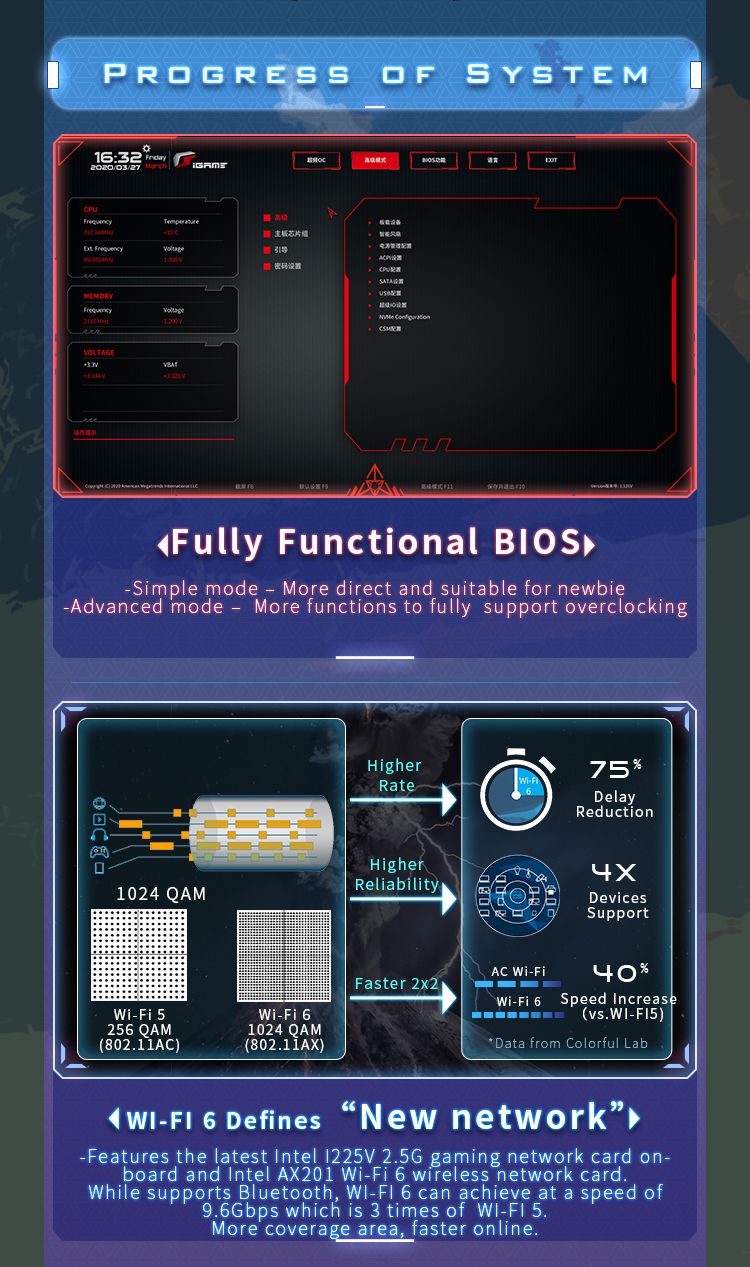

4. 1*CNVI WiFi/BT module slot（equipped with AX201 WIFI6 wireless card module）.
5. 14 Power Phase design,I.P.P digital power supply and Tantalum capacitor.
6. Audio isolated LED lightAudio isolated LED light and Gamer Voice 3.0.

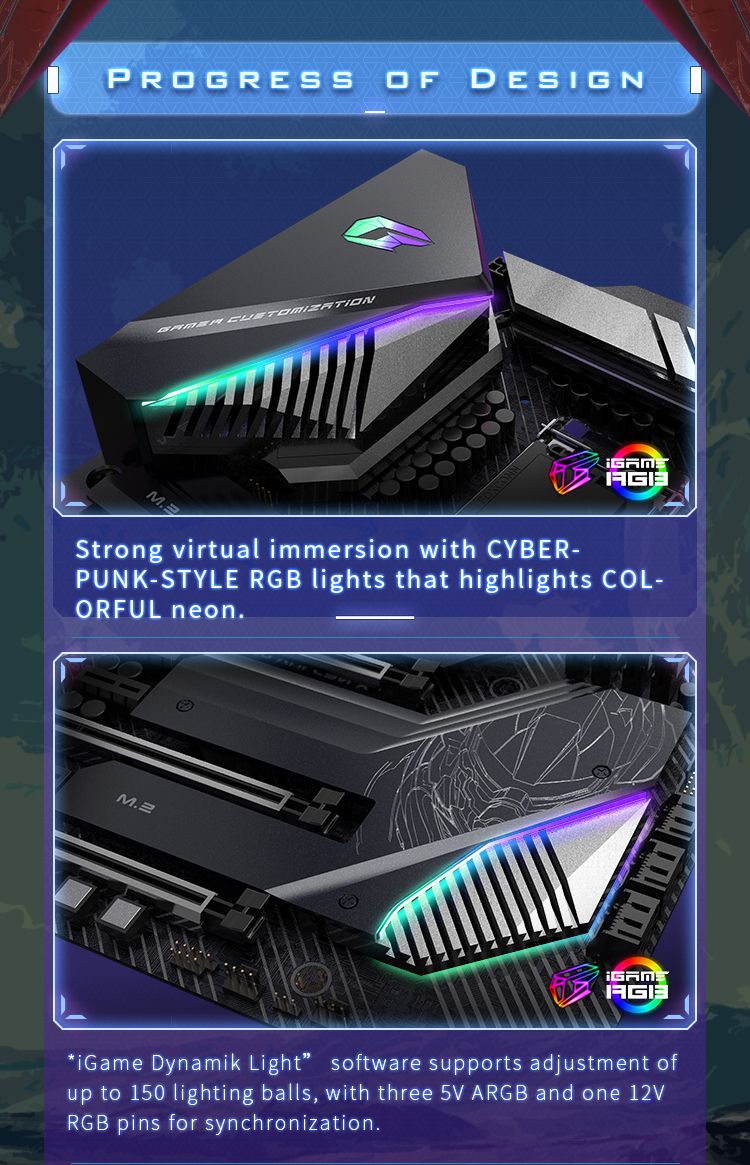

7. 1*4PIN 12V and 3*5V RGB headers.
Package Included:
1. 1*Colorful IGame Z490 Vulcan X V20 Computer Motherboard.
2. 1*Product Manual
