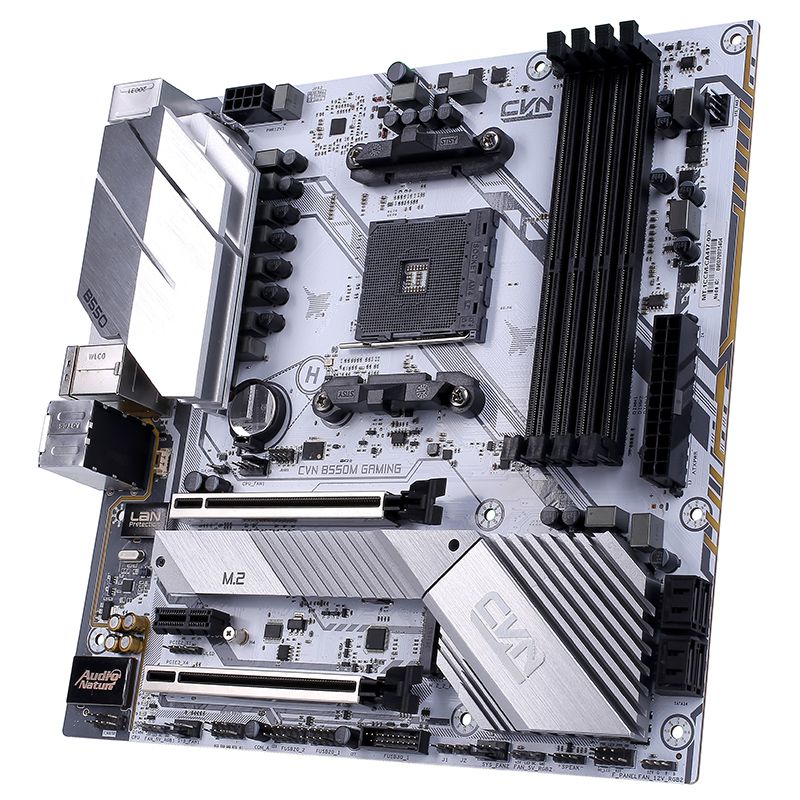

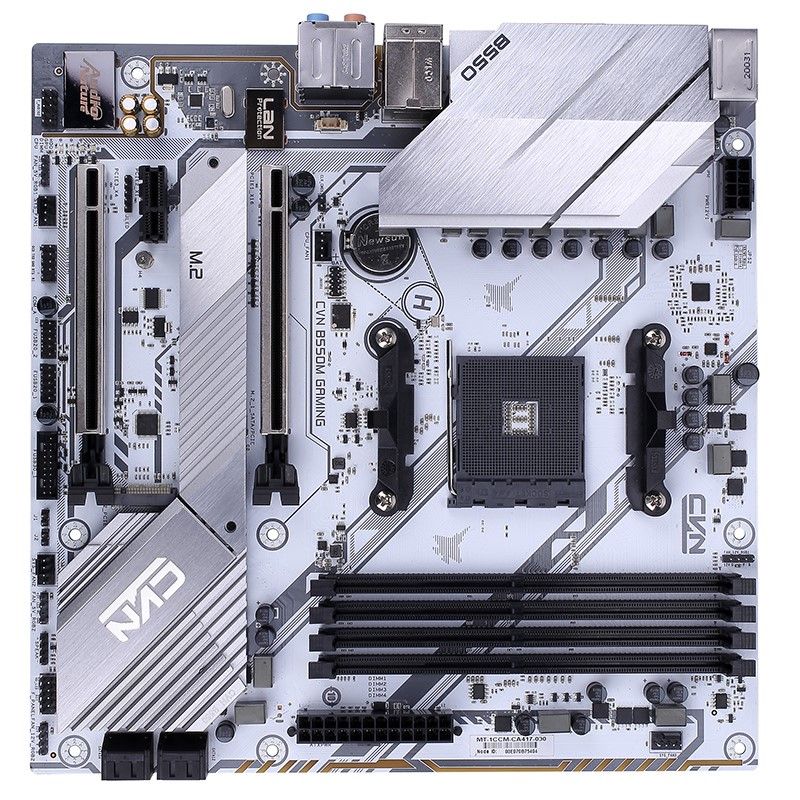

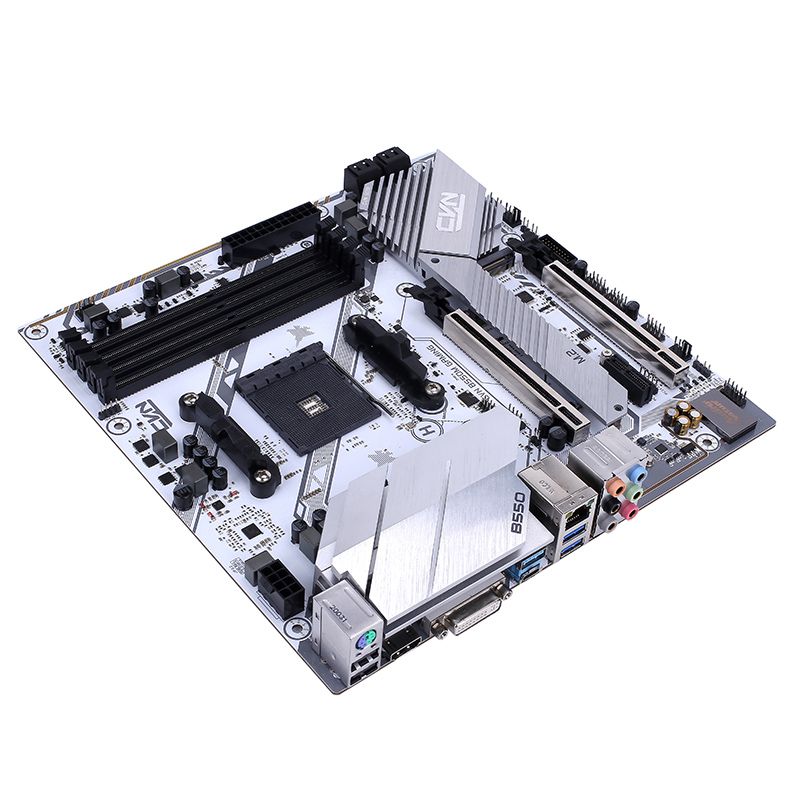

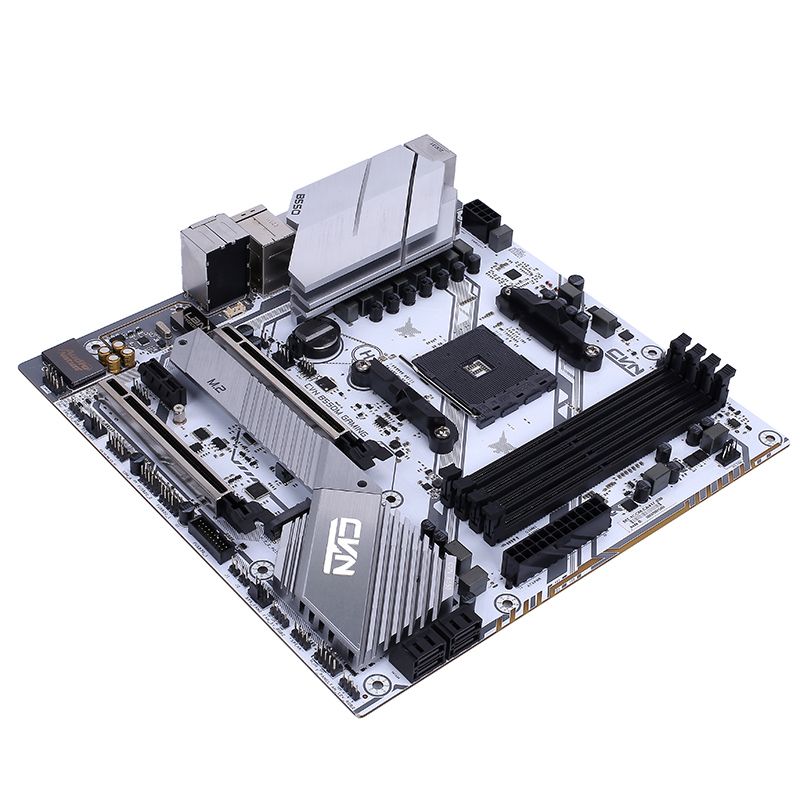

Colorful CVN B550M GAMING FROZEN V14 Computer Motherboard 4* DDR4 Memory OC Support AMD Socket AM4 and 3rd Generation AMD Ryzen Processors
- Stock: In Stock
- Model: EB0026678
- SKU: EB0026678
Specification:
Motherboard Series | AMD chipset,CVN series |
Chipset | AMD B550 |
Processor | Supports AMD Socket AM4 and 3rd Generation AMD Ryzen ™ processors |
Memory | 4 DIMM slots，support dual channel DDR4-4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133 MHz |
Graphics Renhotec | 1*PCI Express4.0X16 slot |
SATA Ports | 4*SATA3.0 6Gb/s ports |

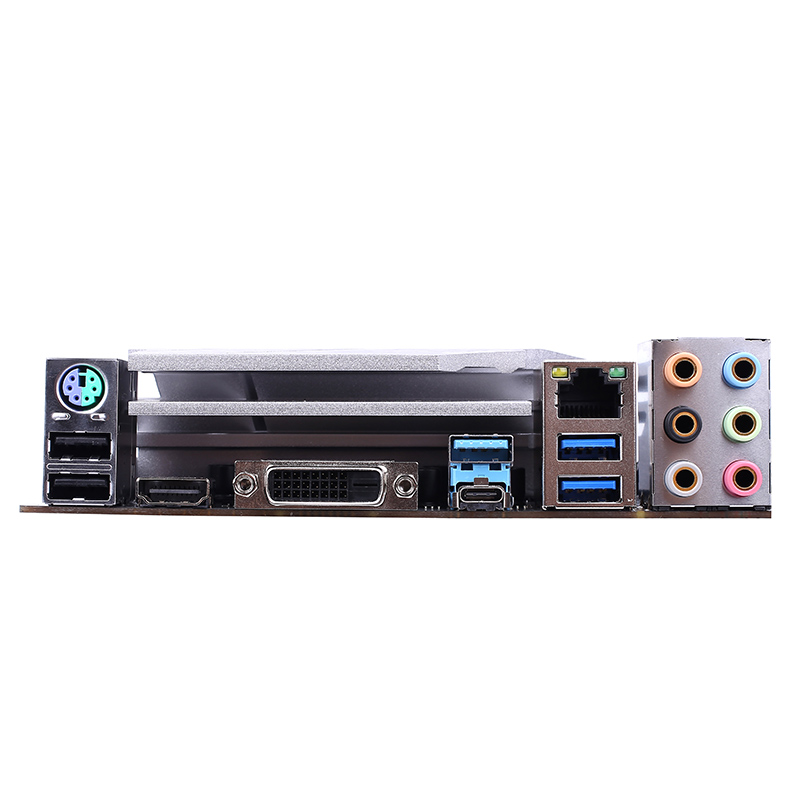

Board I/O | IO:1*PS2,2*USB2.0,1*HDMI,1*DVI,4*USB3.1 GEN1（3*TYPE-A & 1*TYPE-C）,1*RJ45 1000M LAN,1*6audio ports.Onboard：1*COM,2*USB2.0,1*USB3.1 GEN1 TYPE-A |
Expansion Slots | 1*PCI Express 3.0x4 slot，1*PCI Express3.0x1,2*M.2 slots |
BIOS | 128M UEFI |
Power Management | 10 Power Phase，support 125W processors |
Hardware Monitor | CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring |
LAN | 1000M LAN，Provides 10/100/1000Mb Ethernet |
Audio | 8-Channel High Definition audio CODEC |
Configuration | 245 x 245 mm mATX |
Other Features | support the shutdown charging function(Only the PS2+USB ports on the back panel) |
Features:
1. Supports AMD Socket AM4 and 3rd Generation AMD Ryzen ™ processors.
2.4*DIMM slots: Supports Dual Channel DDR4 4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133MHz memory.
3. Rich interface：IO:1*PS2, 2*USB2.0, 1*HDMI, 1*DVI, 4*USB3.1 GEN1（3*TYPE-A & 1*TYPE-C）, 1*RJ45 1000M LAN, 1*6audio ports. Onboard：1*COM,2*USB2.0,1*USB3.1 GEN1 TYPE-A.
4. 2*M.2 slots: silk screen as "M.2_1_SATA/PCIE" slot, support PCI-e4.0 x4 and SATA SSD and 2242/2260/2280 size SSD,
silk screen as " M.2_2_PCIE" slot, support PCI-e3.0 x4 SSD and 2280 size SSD.
5. Hardware monitoring：CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring.

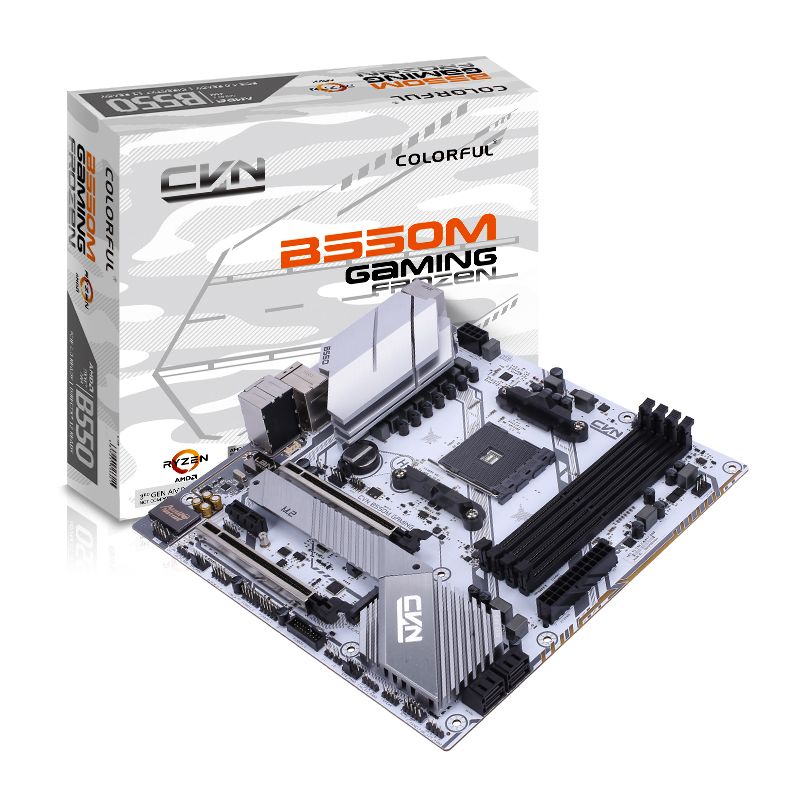

Package Included:
1* Colorful CVN B550M GAMING FROZEN V14 Computer Motherboard
1*Product Manual
