SIM808 GPRS Module U.FL IPEX IPX Ceramic Chip GPS Antenna For RC Drone

Based on 0 reviews. - Write a review

$4.50

Ex Tax: $4.50

Stock: In Stock
Model: EB000532
SKU: EB000532

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

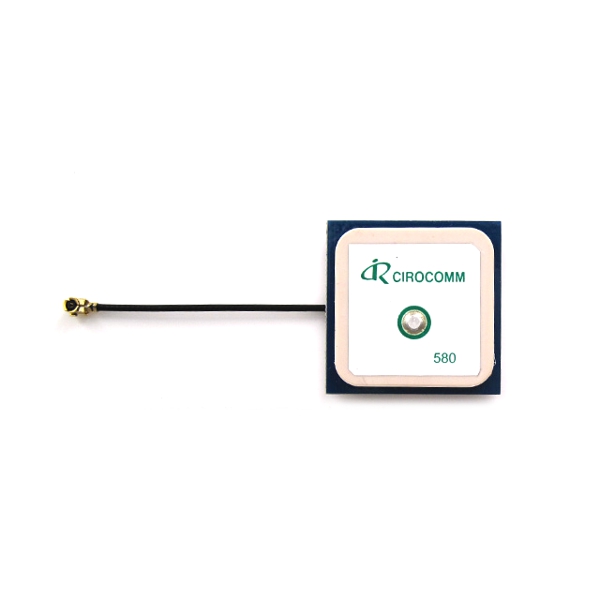

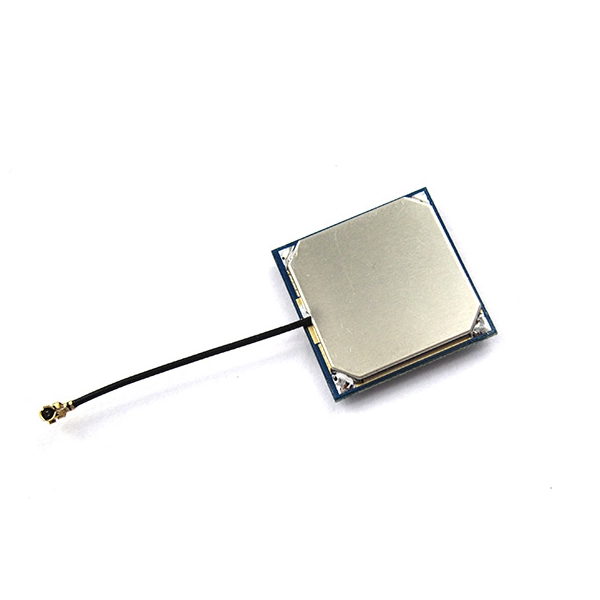

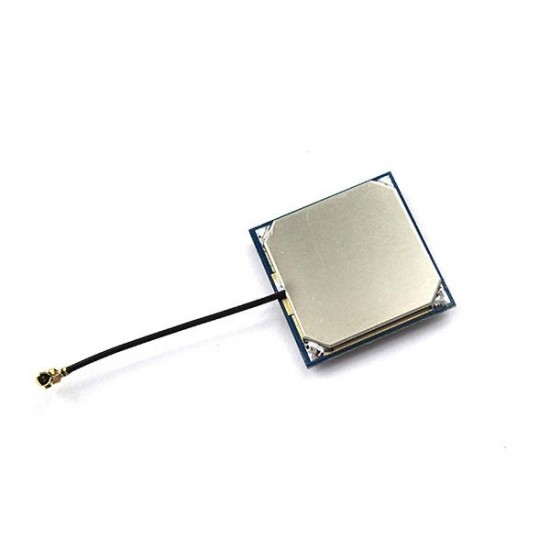

SIM808 GPRS Module U.FL IPEX IPX Ceramic Chip GPS Antenna

Description

Chip : 25*25*2mm

Whole Size : 28*28*5mm

Weight : 5.0g

Length : 5cm

Connector : IPEX

Specification

Connector : RG1.13

Gain : ±3dB

Center Frequency : 1575.42±3MHz

V.S.W.R : 1.5:1

Band Width : ±3MHz

Impendence : 50Ω

Peak Gain : >3dBi Based on 7 x 7cm ground plane

Gain Coverage : >-4dBi at -90° <0<+90°(over 75% Volume)

LNA Gain Without Cable : 28dB Typical

Noise Figure : 1.6dB

Filter Out Band Attenuation : (f0=1575.42MHz); 7dB Min f0+/-10MHz,20dB Min f0+/-30MHz,30dB Min f0+/-100MHz

Output V.S.W.R : <1.5

DC Voltage : 3.0V(2.8-5.0V)

DC Current : 7mA

Working Temp. : -40℃~+85℃

Vibration : Sine sweep 1g(0-p)10~50~10Hz each axis

Humidity : 95%~100%RH

Package Included

1 x GPS Antenna
