NB One 32 Bit Flight Controller Built-in 6-Axis Gyro With Altitude Hold Mode + GPS Module for Airplane RC Fixed Wing

Based on 1 reviews. - Write a review

$78.59

Ex Tax: $78.59

Stock: In Stock
Model: EB000450
Dimensions: 40.00mm x 25.00mm x 5.00mm
SKU: EB000450

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

NB One 32 Bit Flight Controller Built-in 6-Axis Gyro With Altitude Hold Mode + GPS Module for FPV RC Fixed Wing

NB one is a fixed-wing flight control with a barometer, measuring the height hrough a barometer,

then a key to get Rescue function ! Release all the joysticks of the remote control in the high mode, and automatically resume the 35m high automatic flying! ! The flight control that novice and veterans can use!

Description:

Item name: NB One flight controller
Product size: 40*25*5 mm

Weight: 4g

Working voltage: 5V-16V

Working current: 20mA

Working temperature: -15°C - 65°C

Gyro sensitivity: 2000sec/s

Suitable servo: 1.52ms imitated servo, 1.52ms data servo

Remote control compatibility: PPM,PCM,2.4G

Features:

* Support for three types : regular (T-tail ),V-tail,Delta wing.

* Three flight modes :Self - stabilizing mode, manual mode, altitude hold .

* Unique barometer altitude hold mode, easy to operate, safe flight, specially recommended for beginners.

* 32 Bit processor ,high-precision barometer, 6-axis sensor.

Flight attention points:

1. Refer to the instructions, do a good job of installation and commissioning.

2. Repeatedly check the control direction of the gyroscope, and the direction of the joystick control. (Check the working direction of the gyroscope first, then adjust the control direction of the remote control) Ground test. When the remote control is in the fixed height mode, the green light flashes quickly, the throttle is pushed, the motor rotates rapidly, the elevator surface is lifted up, and the elevator is facing down. Can't take off (this step is very important)

3. When using this flight control for the first time, or when replacing the receiver, etc., the remote control lever position must first be calibrated. (In some cases, the motor will rotate, please note) If it is not calibrated, the flight control will not work properly.

4. the flight control can balance the ailerons, lifts, and rudder surfaces at the same time.

5. In the high mode, you can take off with one button. (That is to push the throttle to the pole, the plane will take off on the ground and automatically climb to a height of 35 meters)

6. In the new venue, the first GPS positioning, it takes about 2 minutes, the positioning is very fast, the light on the GPS module is not used as the basis for positioning success, mainly depends on whether the red light of the flight control is always on, in addition, the positioning is not If successful, the flight control will not be unlocked. Only when the positioning is successful, the aircraft can be started.

7. About the loss of control return, please set in the remote control.

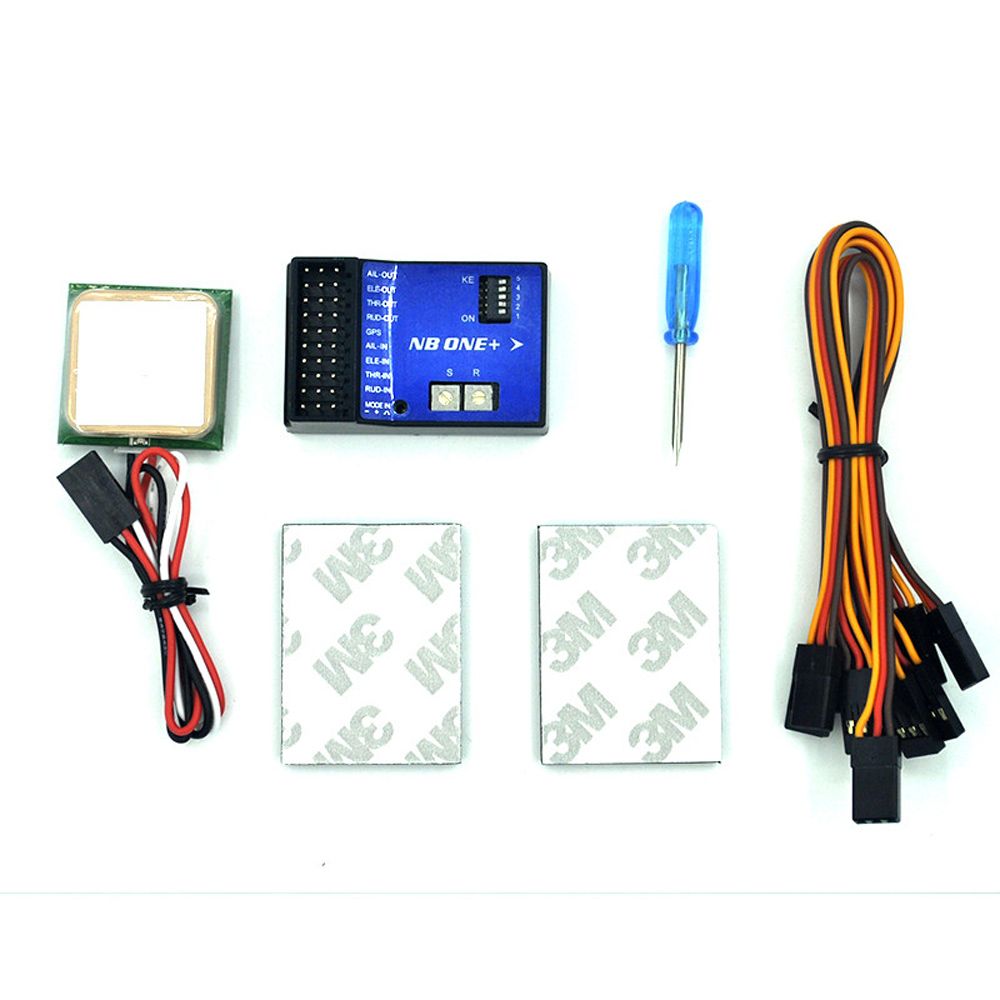

Package Included:

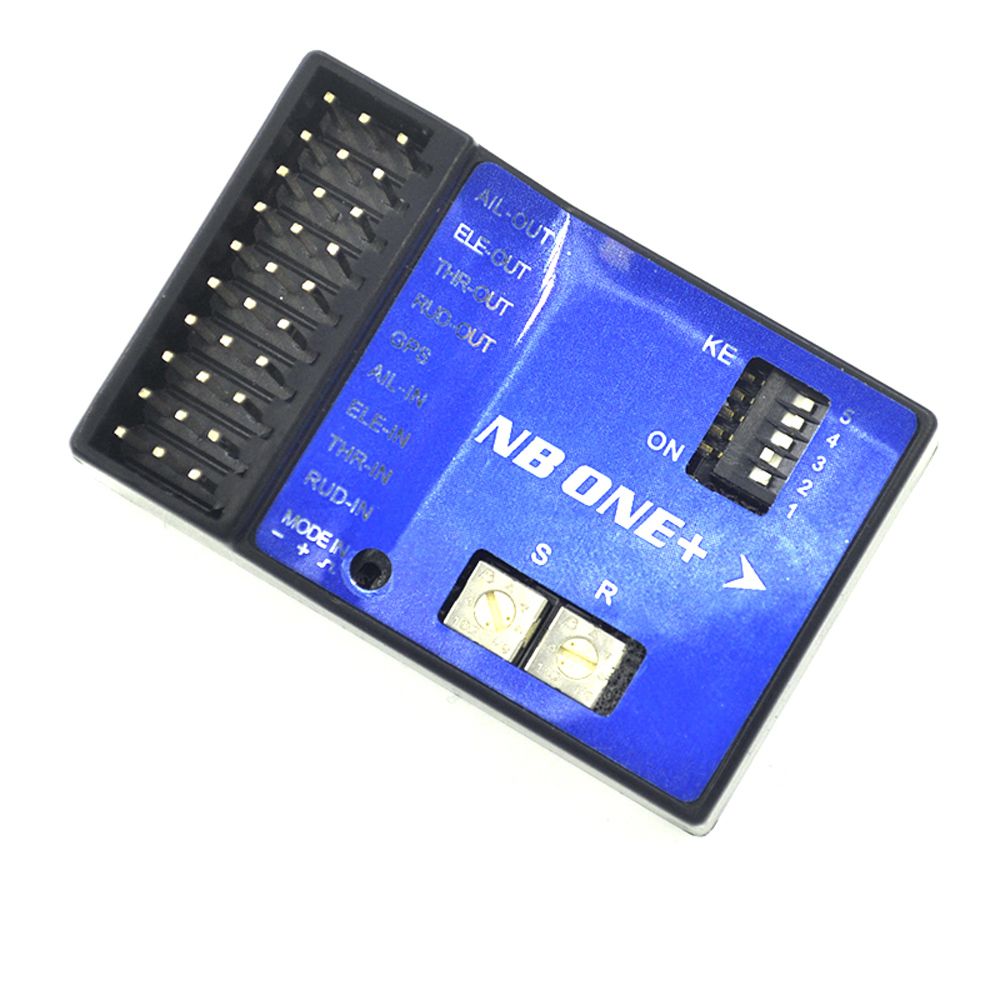

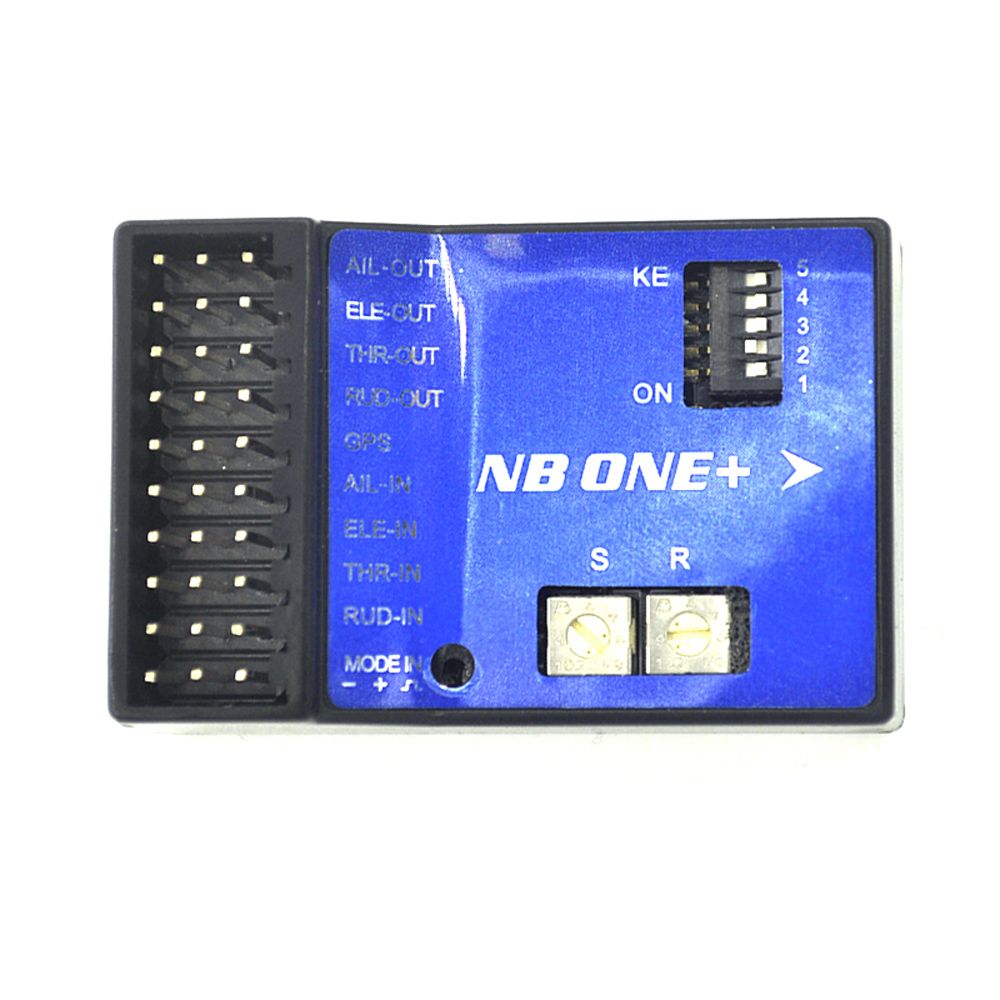

1 x NB one Flight controller

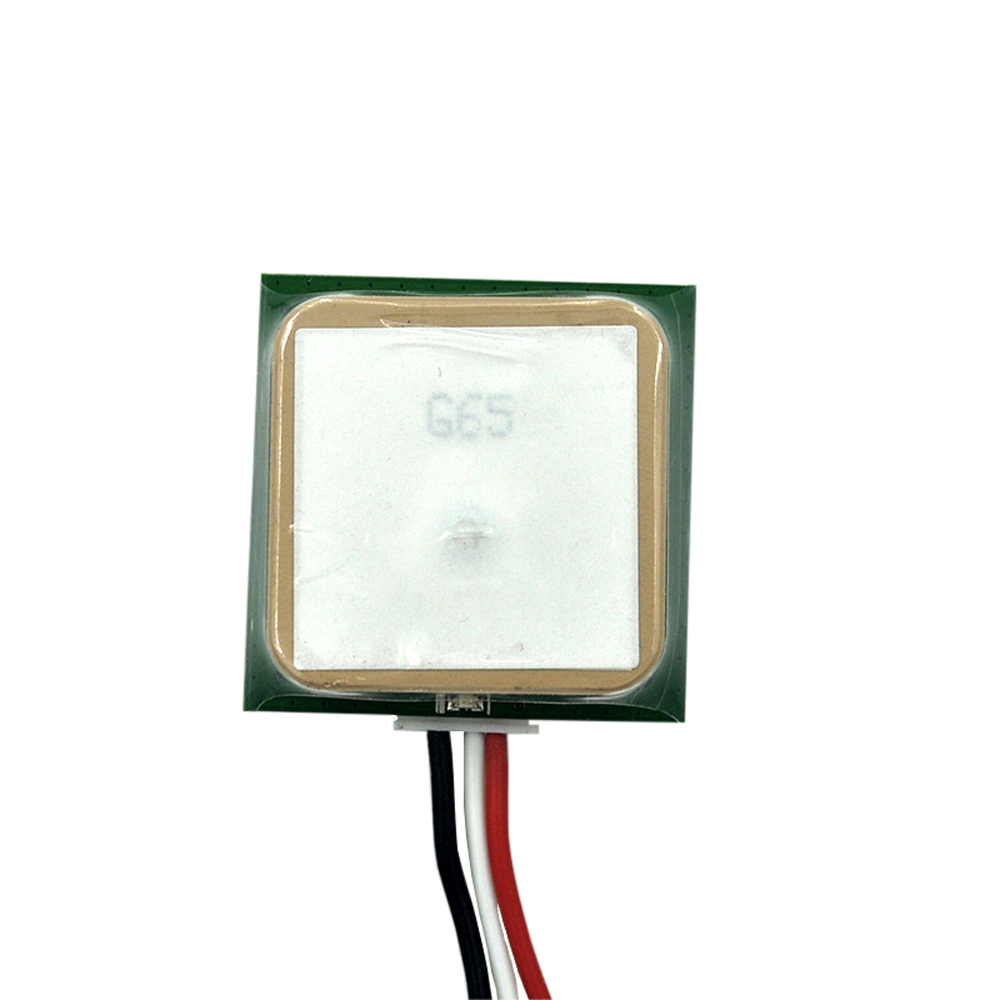

1 x GPS Module
