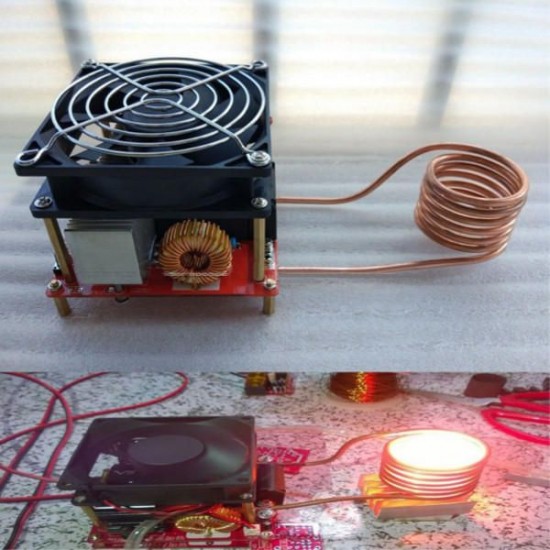

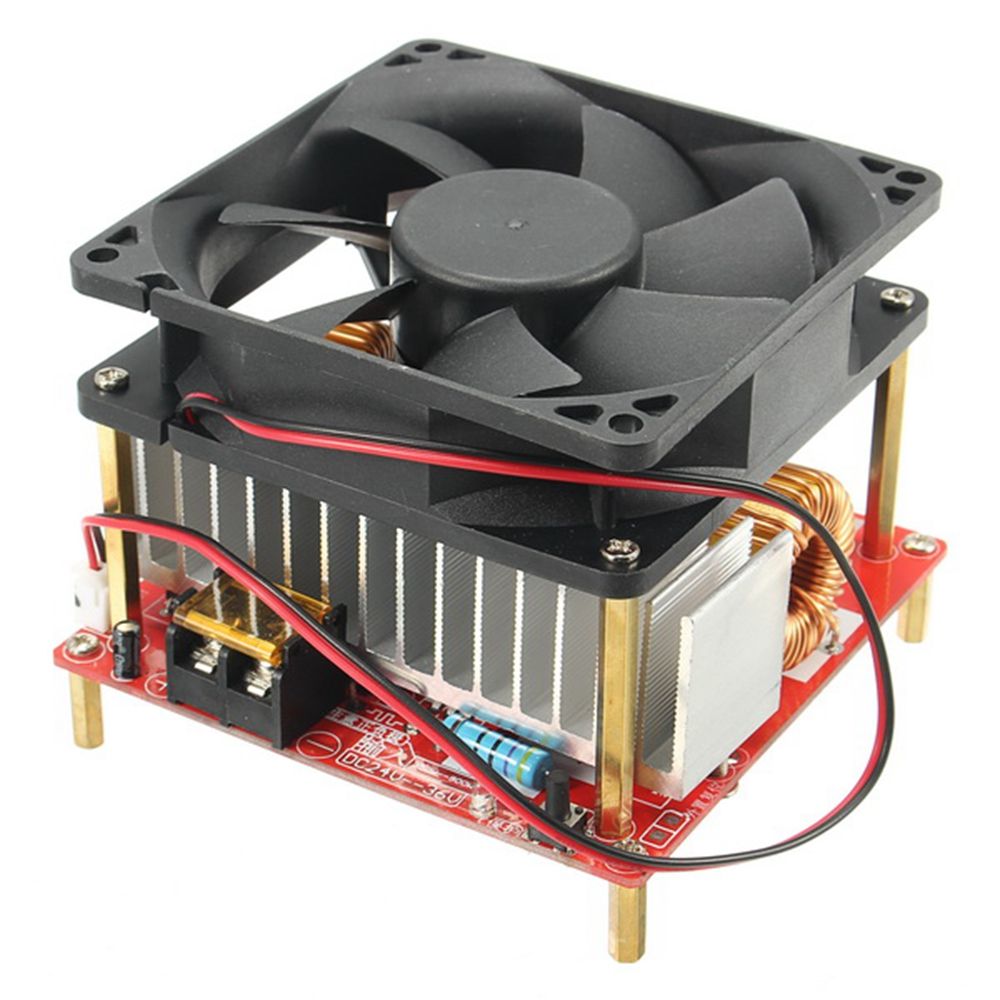

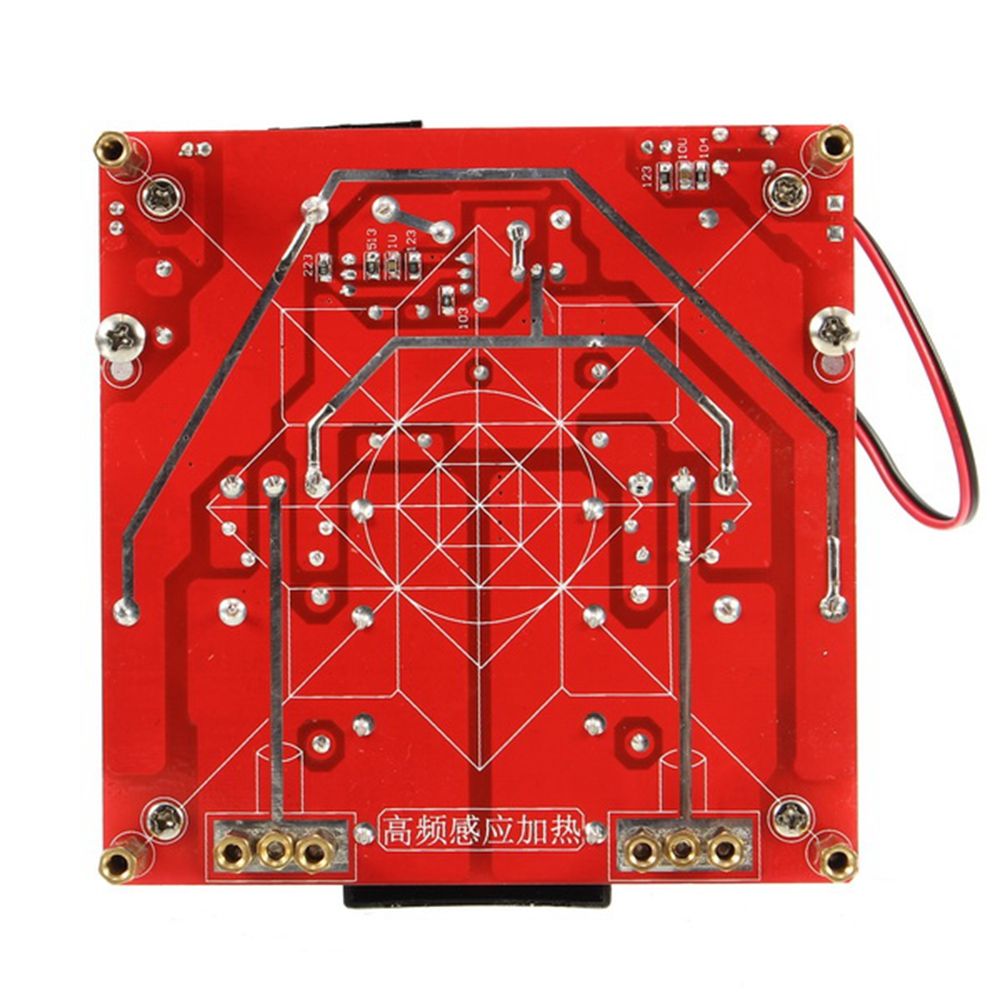

20A ZVS Induction Heating Board Flyback Driver Heater With Ignition Coil
- Stock: In Stock
- Model: EB0045691
- SKU: EB0045691
Features:
Working voltage: DC 24-36V
Working current: more than 15A, less than 30A
Power tube: Original IRFP260N (50A 200V)

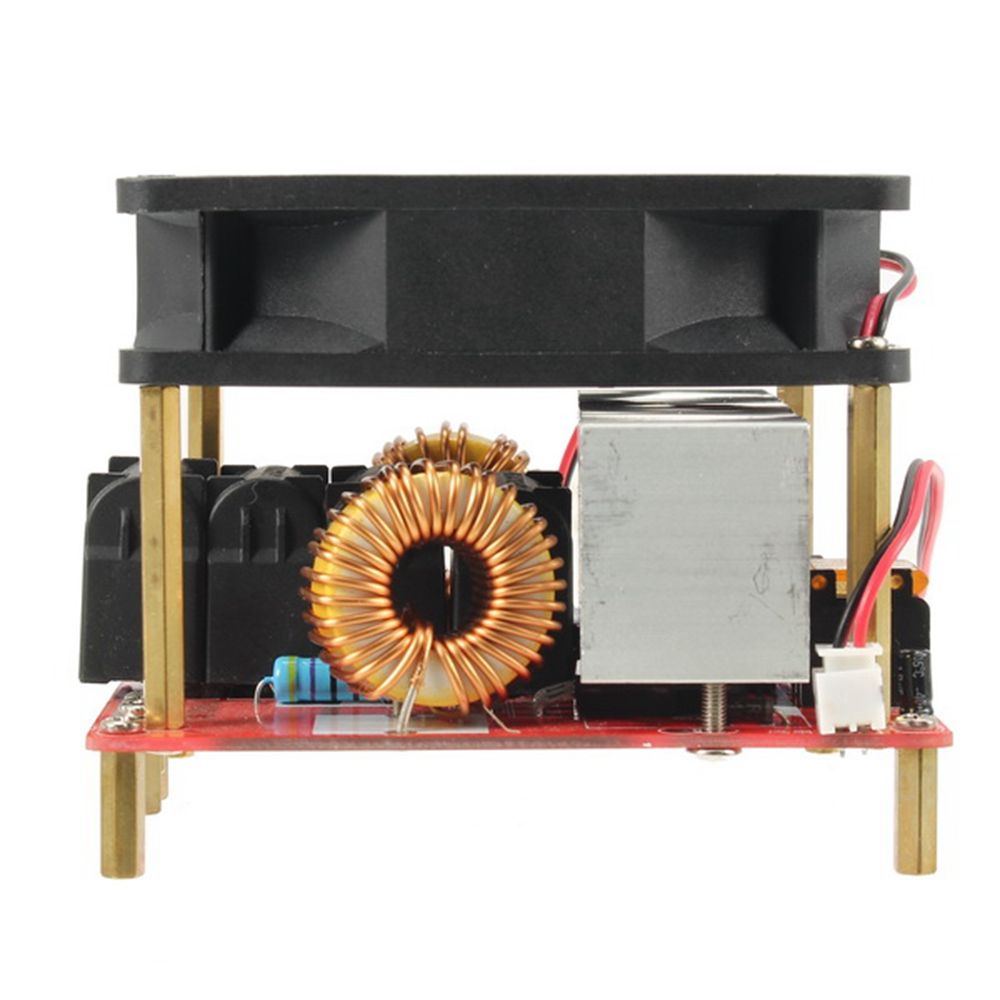

Size: 100 x 100 x 85mm
Spiral copper pipe size: Inside diameter 40 mm, high 45mm
Found with a 36V power supply completely into the new 30 * 30 graphite crucible input current of 25A
Found molten aluminum power requirements: 24V 350W - 500W power supply (15A to 20A) melting point: 660 ℃
Found melting copper, gold, silver, power requirements: 36V 700W - 900W power supply (20A to 25A), respectively melting point: 1083 ℃, 1065 ℃, 962 ℃
Uses:
DIY small parts made of steel hardening, annealing below the melting point of 1100 ℃ metal smelting, DIY small cooker and so on.
Notice: Only direct heating a steel material ( the magnet can be adsorbed material) Gold, silver, copper, aluminum can not be directly heated, need to match the graphite crucible melting, whirlpool brass heating will need to use a lot of water circulation cooling, without water circulating cooling is possible, but will burn into a black vortex brass, it will not be much affected.

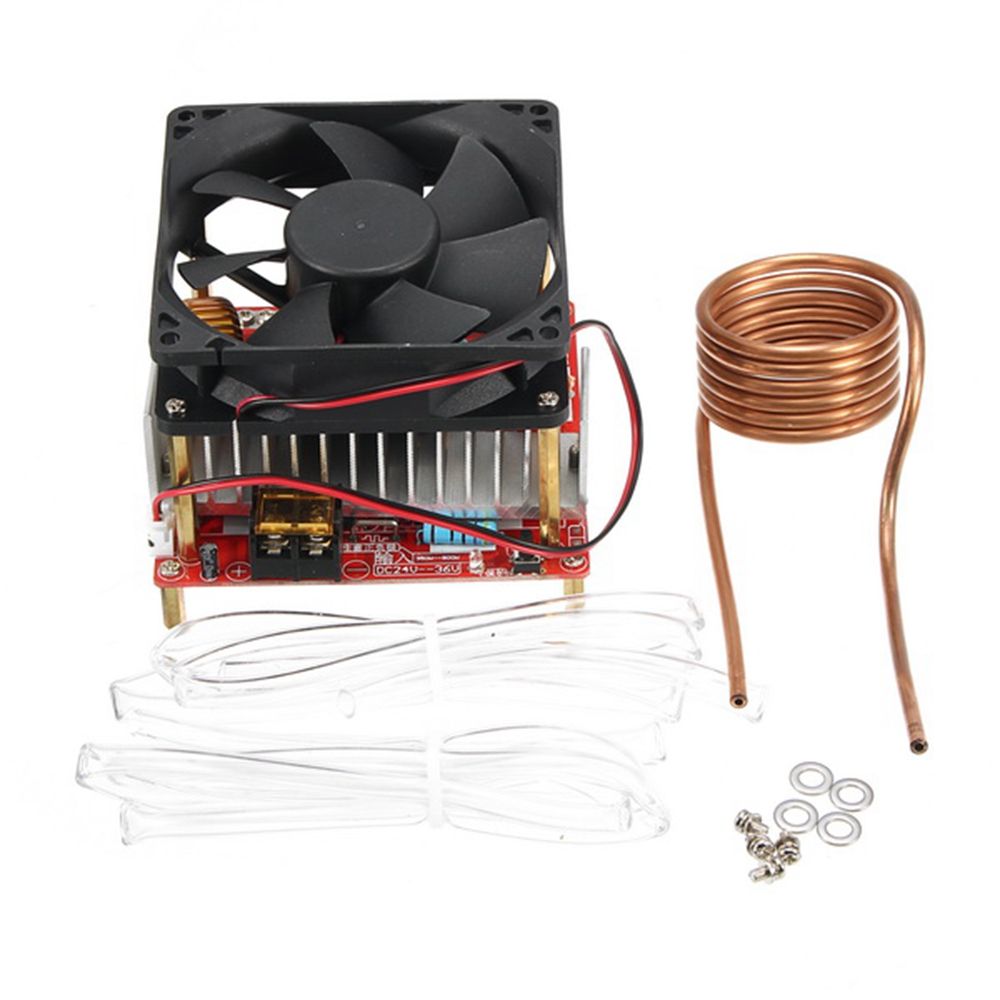

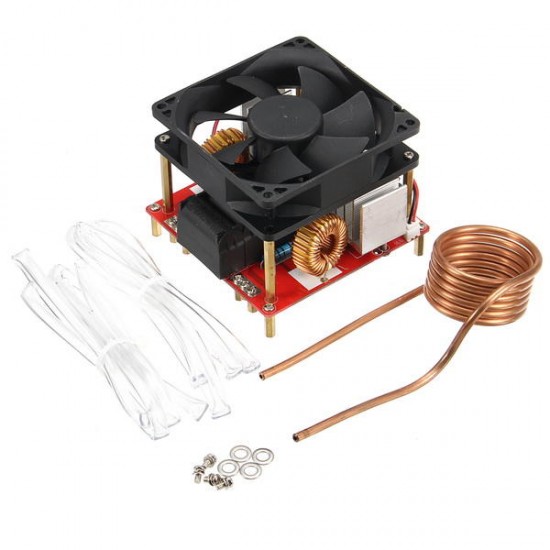

Package includes:

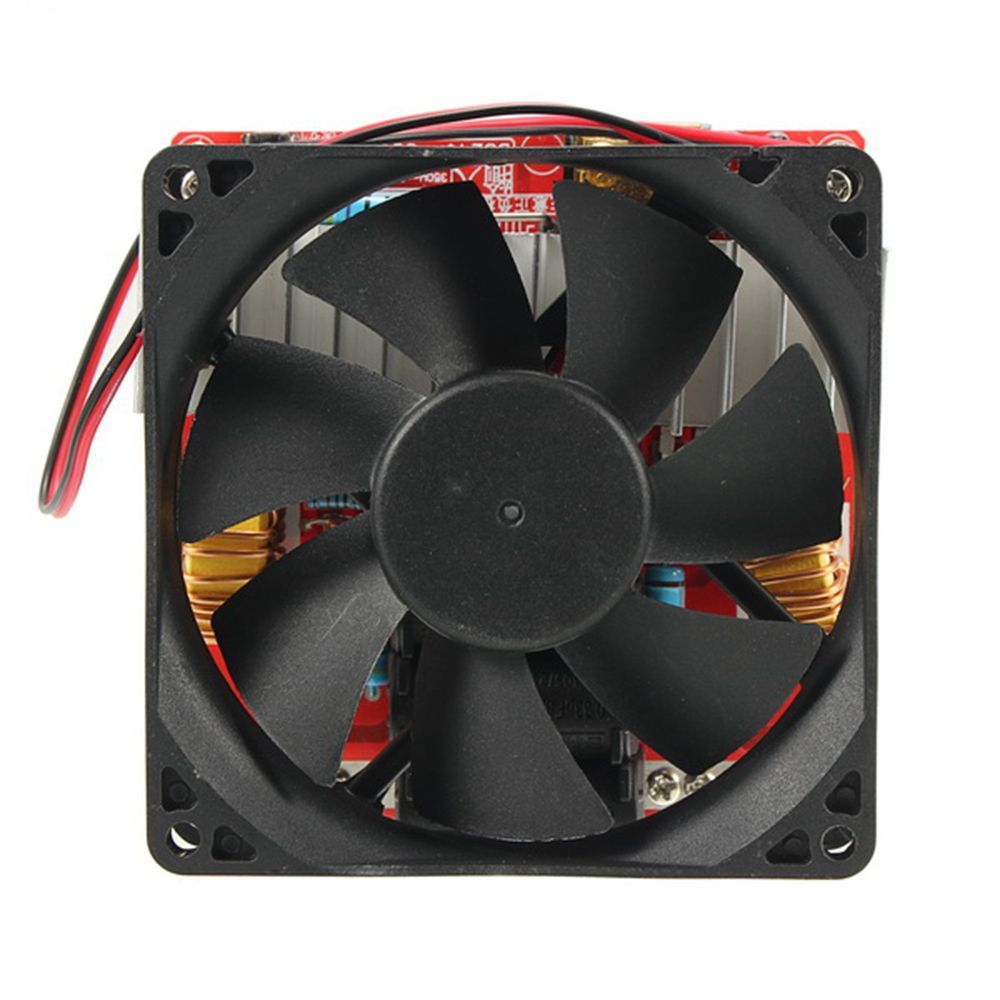

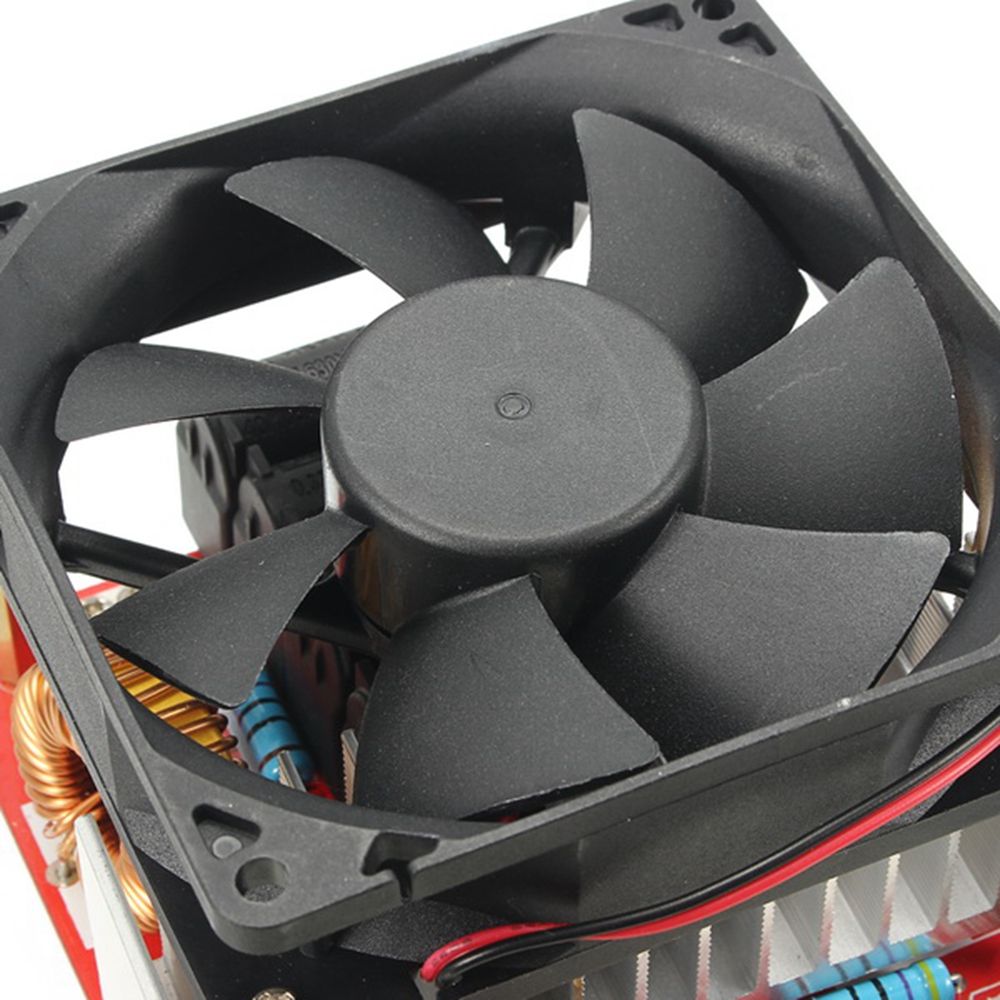

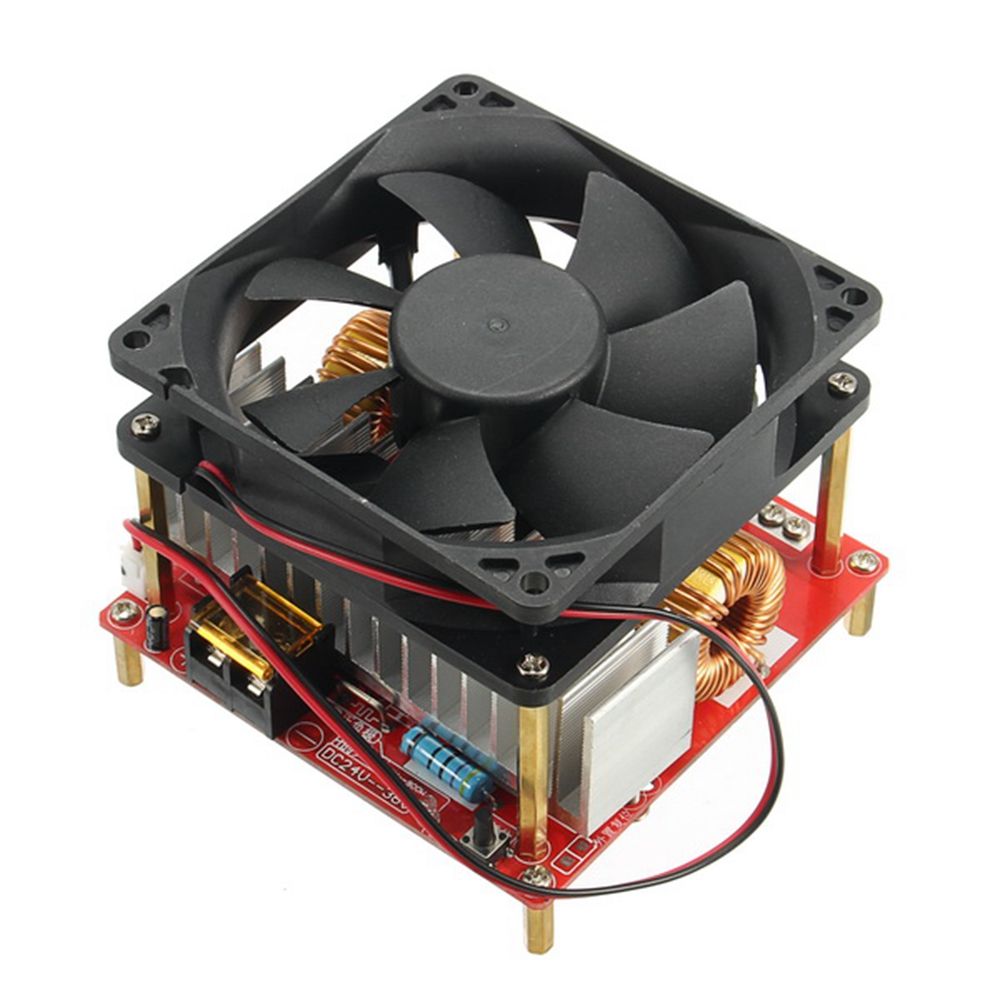

1 x Induction Heating Board with Fan
1 x Spiral copper pipe
1 x 2m Water pipe
