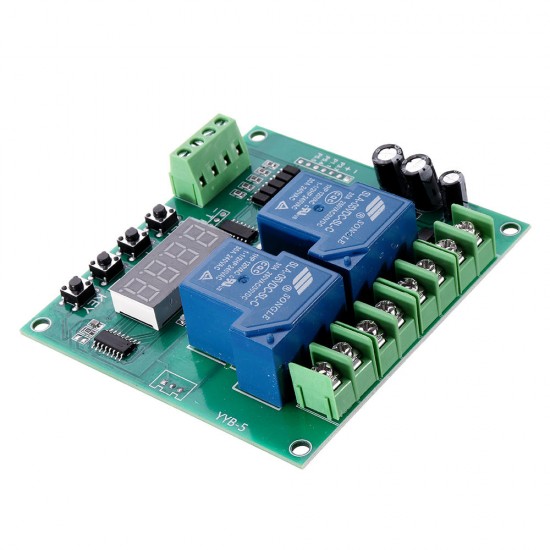

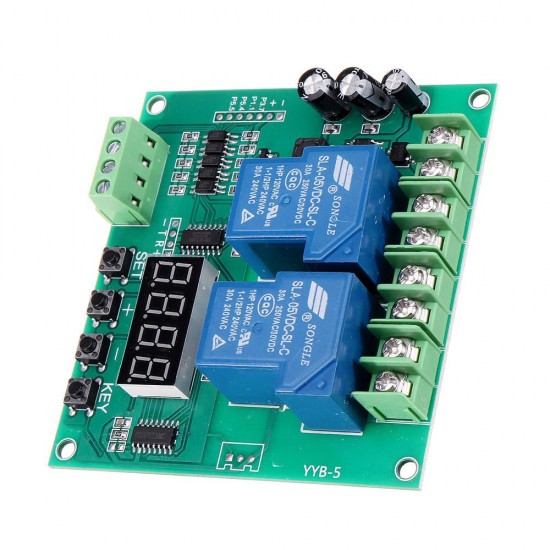

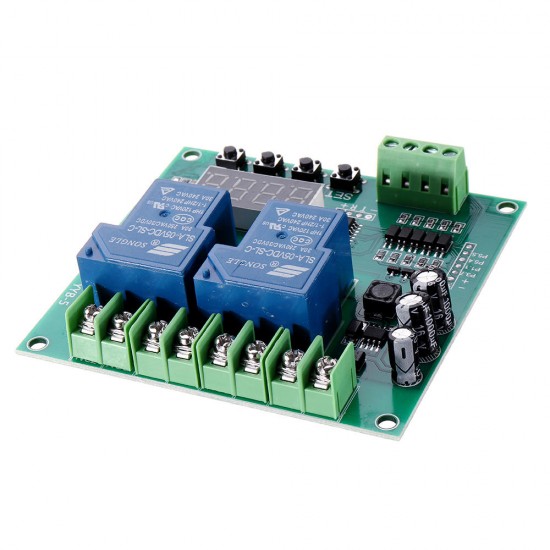

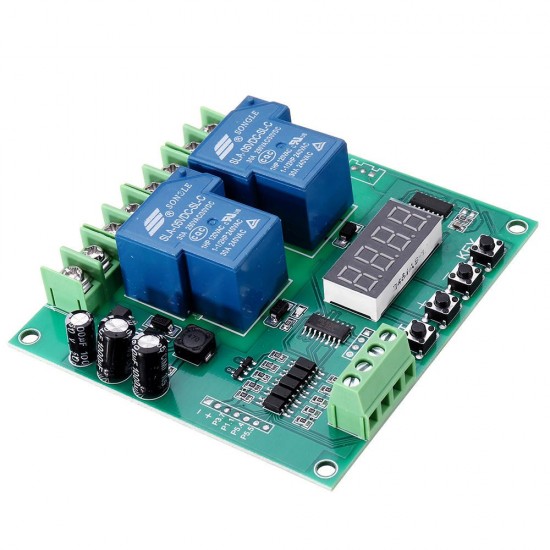

YYB-5 12V 24V Motor Forward Reverse Motor Speed Controller Board Two Relay Delay Timing Cycle Module DIY Motor

Based on 0 reviews. - Write a review

$13.99

Ex Tax: $13.99

Stock: In Stock
Model: 1622898
SKU: 1622898

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Content-Length: 3041 >

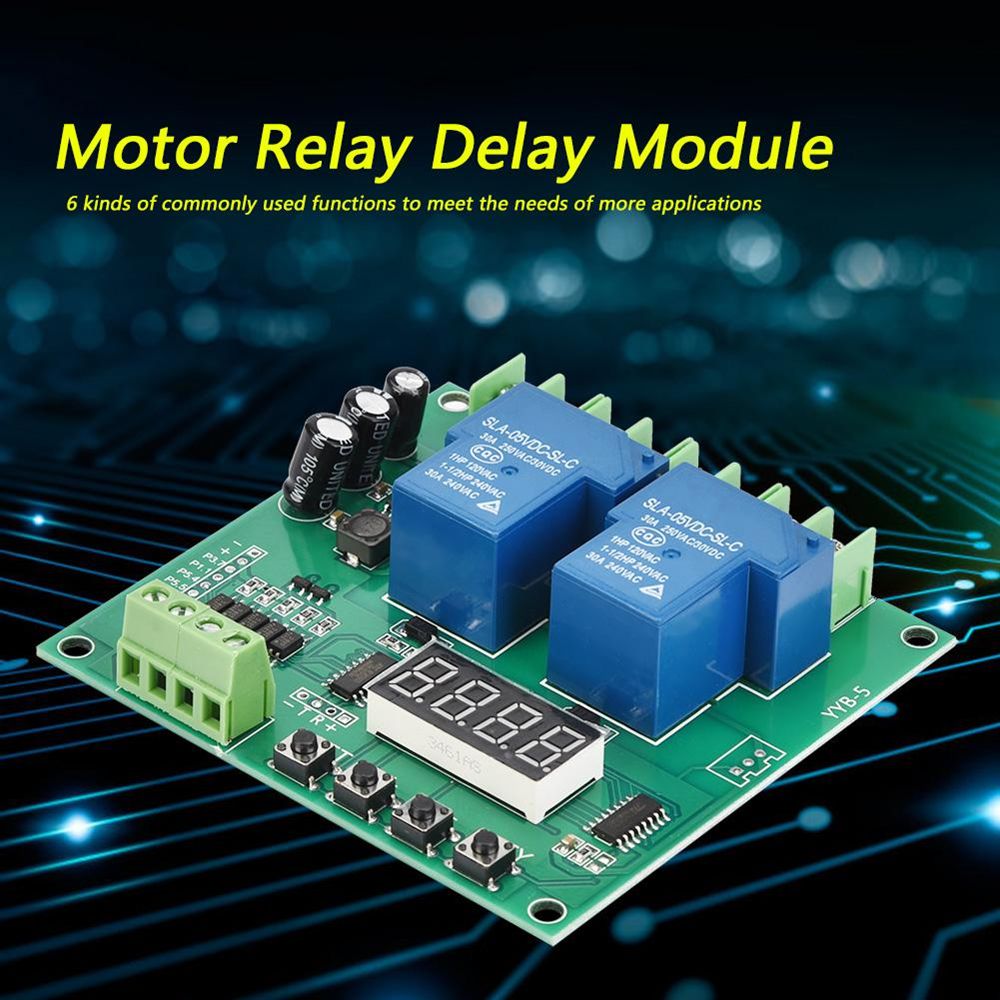

Features:

- 6 kinds of commonly used functions to meet the needs of more applications;

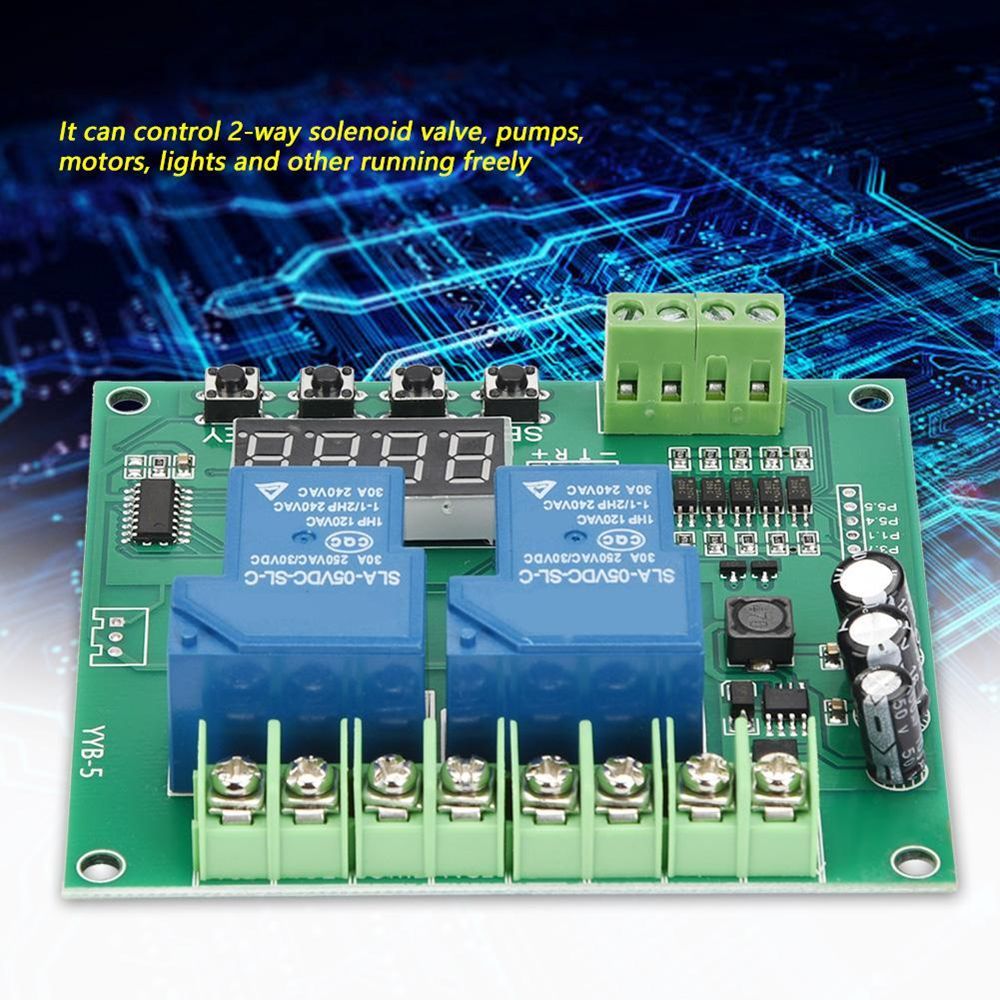

- It can control 2-way solenoid valve, pumps, motors, lights and other running freely

- Output power: it can control within 30A DC or AC load

- Time range: 0.1 seconds to 999 minutes any time adjustable

Specification:

Model:YYB-5

Input voltage: DC/ AC7V-27V

Time range: 0.1 seconds to 999 minutes

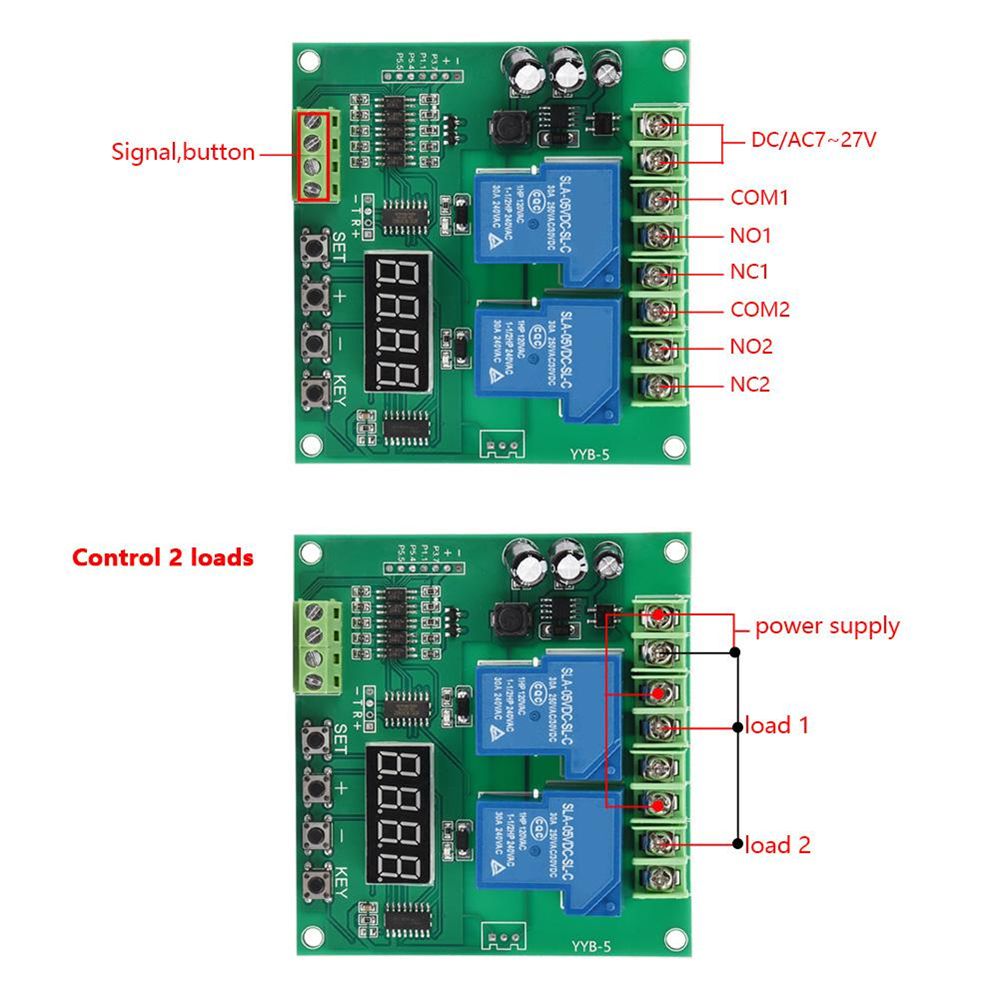

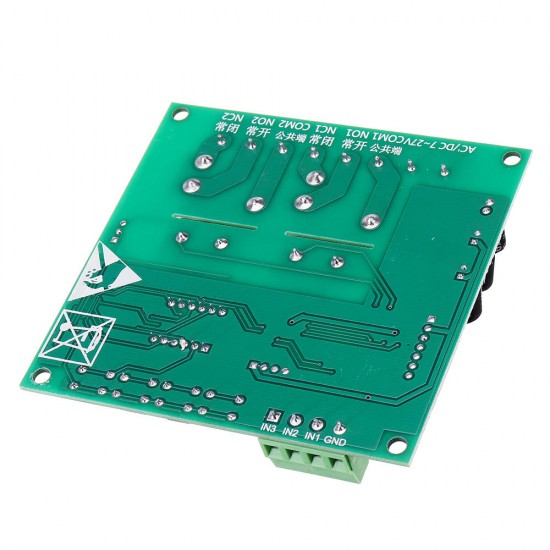

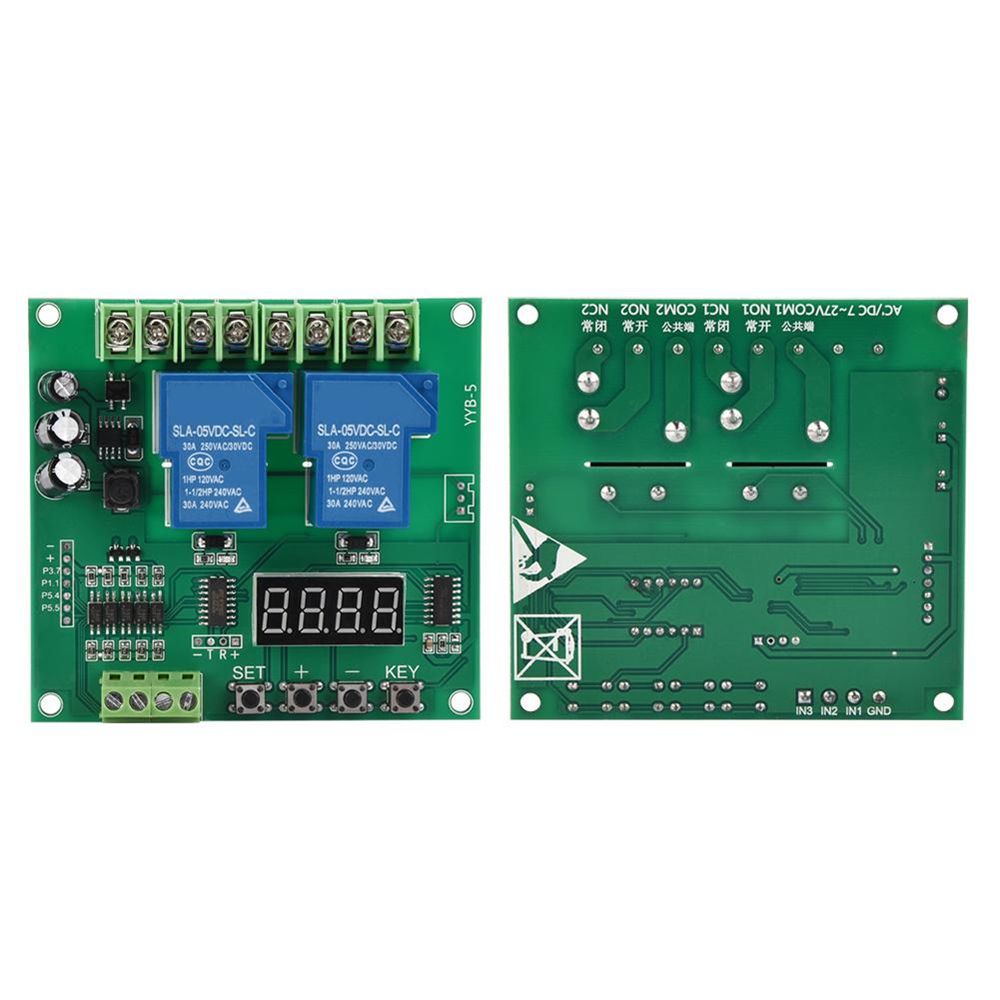

Wiring Port Description:

1. AC/DC : Input 7V~27V

2. IN1: Signal input 1 (negative trigger)

3. IN2: Signal input terminal 2 (negative trigger)

4. IN3: Signal input 3 (negative trigger)

5. NO: relay normally open interface, relay pull before the suspension, after the connection with the COM shorted

6. COM: relay common interface

7. NC: relay normally closed interface, the relay before the connection with the COM shorted, pull after the suspension

Function list:

P - 1: to signal 1, relay 1 pulls to A time automatically stops; to signal 2, relay 2 pulls to B time automatically stops; signal 3 is emergency stop reset signal

P - 2: signal 1, relay 1 is pulled to A time automatically stop; relay 2 from the signal to start delay B time after the suction to C time automatically stop (this function time unit needs to be consistent)

P - 3: After power on, relay 1 pulls up to A time release, waiting for C time, relay 2 pulls to B time release, waits for C time; relay 1,2 turns endless operation endless cycle

(If the control motor is reversible can be understood as: the motor is running a period of time; stop for some time; automatically reverse for some time; stop for some time; then automatically forward;

P - 4: to signal 1, relay 1 pull; to signal 2 (limit), relay 1 stops and starts counting to A time relay 2 pull; to signal 3 (limit), relay 2 stops and starts timing To B time relay 1 pull; infinite loop

(If the control motor is reversible can be understood as: press the start button 1; the motor is moving to the limit 2 to stop for a period of time; automatically reverse to the limit 3 to stop a period of time; then automatically forward;

P - 5: to signal 1, relay 1 pull; to signal 2 (limit), relay 1 stop and start timing to A time relay 2 pull; give signal 3 (limit), relay 2 stop; Signal 1; once again

P-6: to signal 1, relay 1 pull; to signal 2 (limit), relay 1 stop; give signal 1, relay 2 pull; to signal 3 (limit), relay 2 stop;

(If the control motor is reversible can be understood as: press the start button 1; go to the limit 2 stop; press the start button 1 again; reverse to the limit 3 stop;

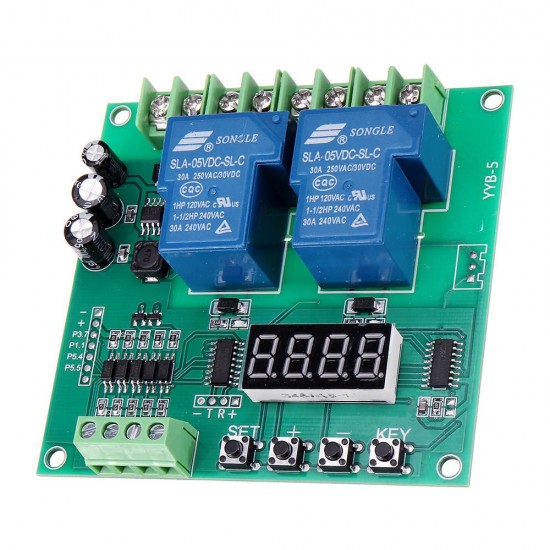

Key Settings Description:

Power display "----" that access to standby;

Press the first time K1, the screen shows: P-1: K2 and K3 adjustment mode

Press the second time K1, the screen shows: A001: K2 and K3 adjust the first time A, K4 adjust the decimal point (time unit)

Press the third time K1, the screen shows: B001: K2 and K3 adjust the second time B, K4 adjust the decimal point (time unit)

Press the fourth time K1, the screen shows: C001: K2 and K3 adjust the third time C, K4 adjust the decimal point (time unit)

Press the fifth K1, display "----" that entered the standby state;

For example; need to set the mode: P - 2; time: A010 B005 C006:

Indicating the second mode of operation; after the signal 1; relay 1 after 10 seconds to start off; relay 2 to give the signal after delay 5 seconds after the start 1 second automatically shut down.

Decimal Time Unit Description:

XX.X decimal point in the ten, timing range: 0.1 seconds to 99.9 seconds

XXX no decimal point, timing range: 1 second to 999 seconds

XXX. Decimal points in a single, timing range: 1 minute to 999 minutes.

Package Included:

1 x YYB-5 12V 24V Motor Forward Reverse Motor Speed Controller Board

YYB-5-12V-24V-Motor-Forward--Reverse-Motor-Speed-Controller-Board-Two-Relay-Delay-Timing-Cycle-Modul-1622898
