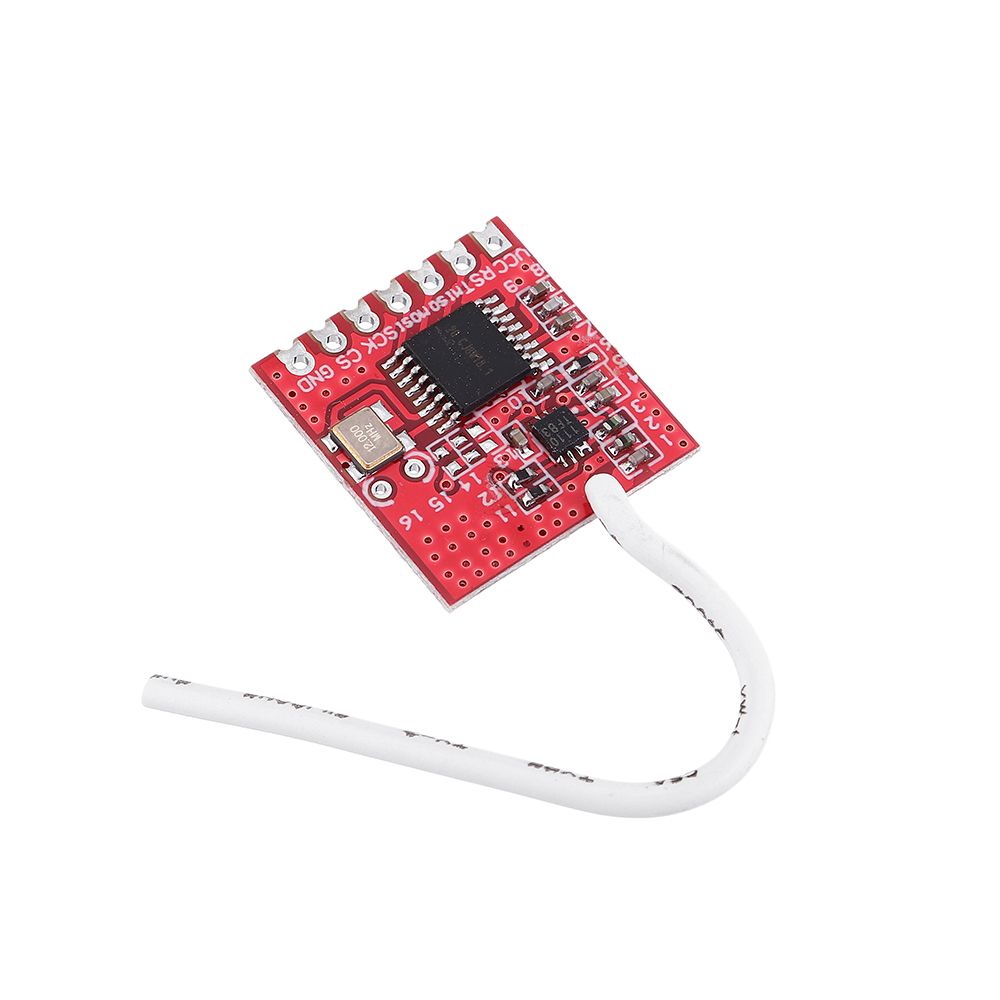

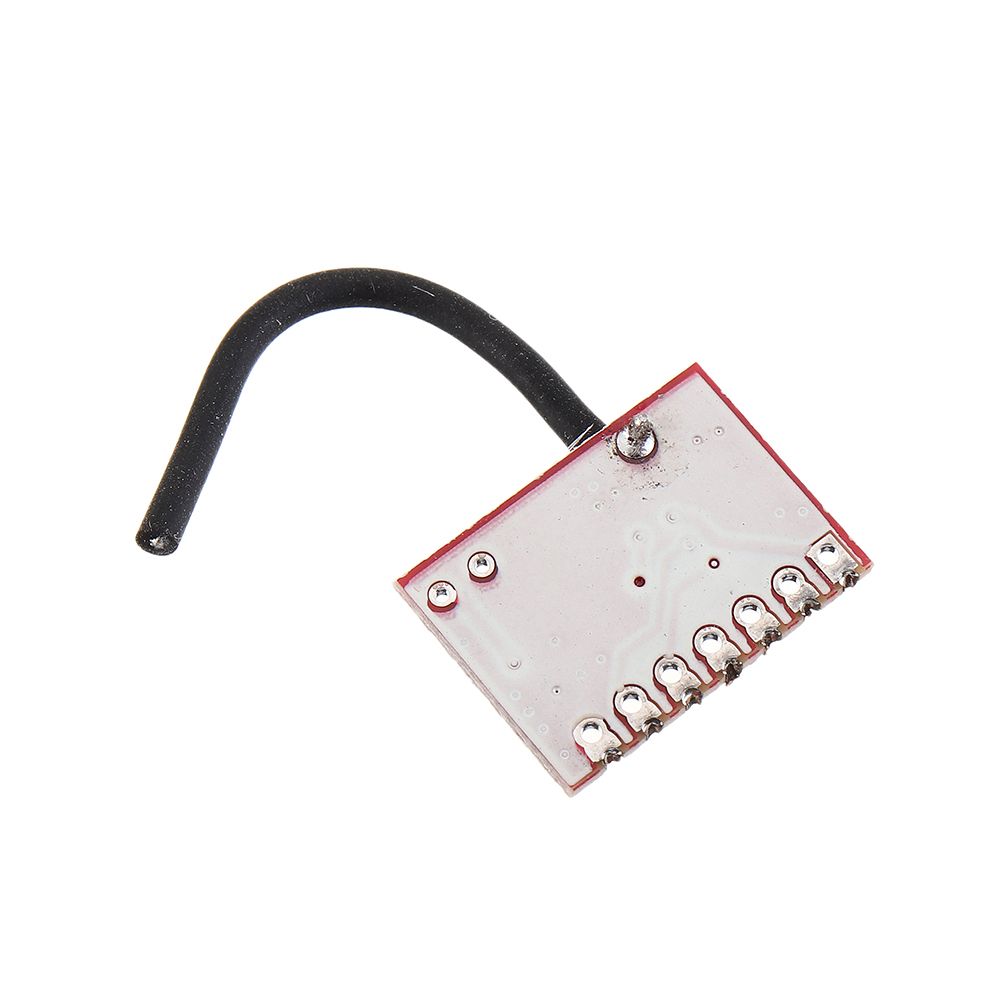

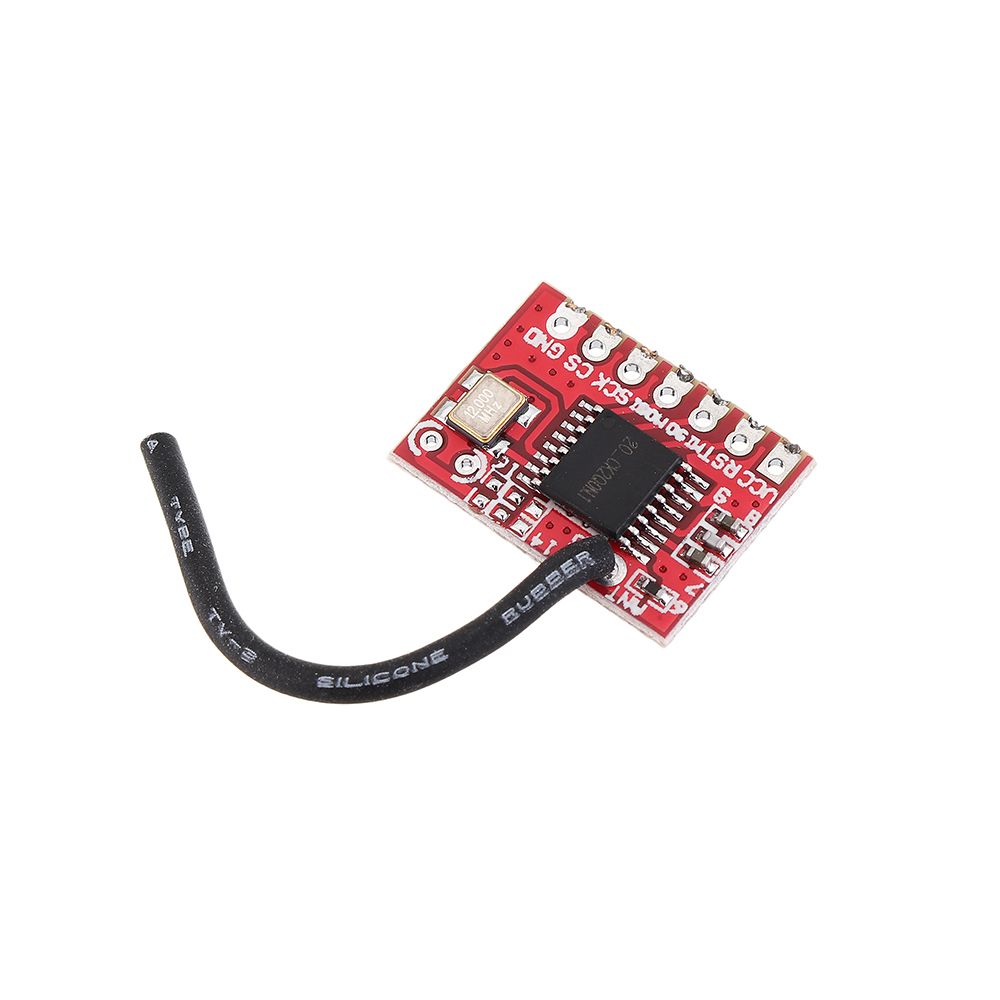

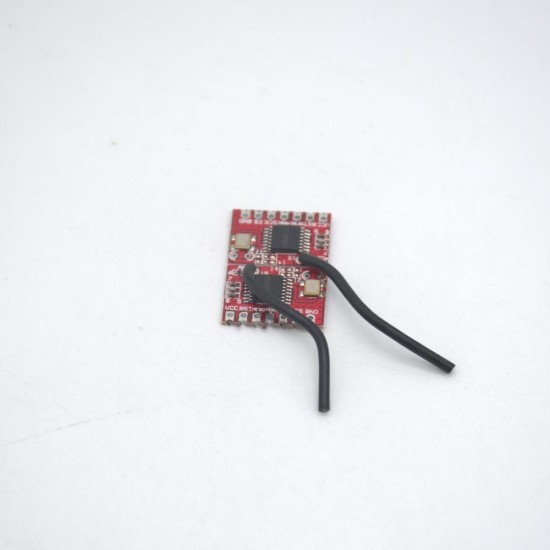

2.4G Wireless Remote Control RC Module Transmitter Receiver LT892 Instead of NRF24l01

Based on 0 reviews. - Write a review

$3.57

Ex Tax: $3.57

Stock: In Stock
Model: EB0042460
SKU: EB0042460

Available Options

Distance

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

150M version:

1. Module model: GWB

2. Transceiver type: transceiver

3. Working voltage: 3-3.6V

4. Power consumption: normal operating current 15mA, instantaneous emission current 42mA

5. Transmission distance: 150 meters

6. Module interface: 2mm pitch half hole, 7P, support IIC, SPI

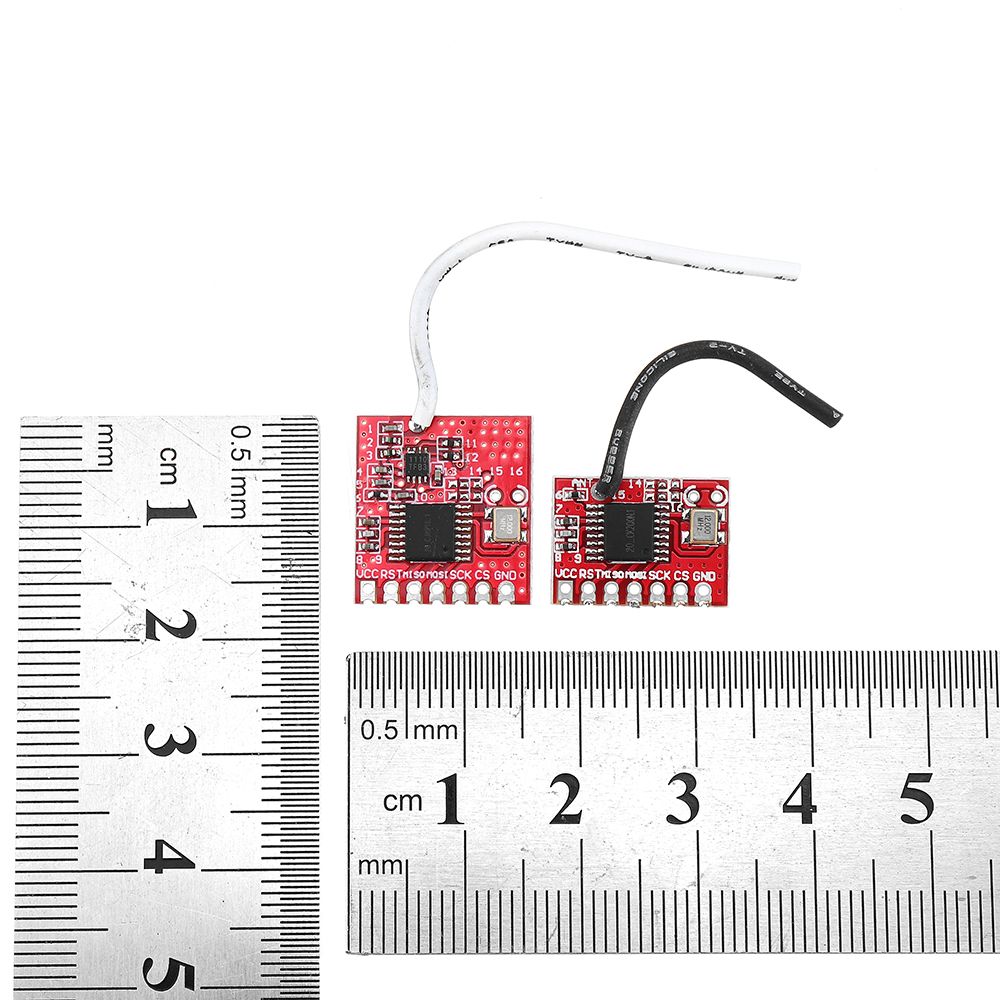

7. Module size: 15.4*11.4mm, antenna length 33mm, weight of 1 pair 1.8g

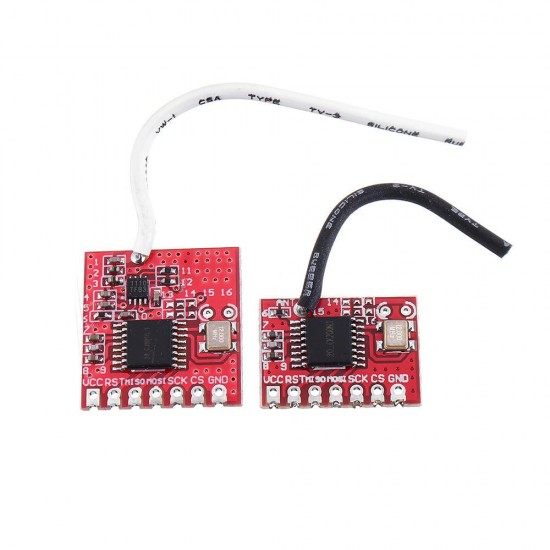

400M version:

1. Module model: GWB, T400 (added PA gain amplifier based on GWB)

2. Transceiver type:

T400-It can transmit or receive. Since PA is unidirectional transmit gain amplification, the transmission distance is 400 meters and the receiving distance is about 50 meters.

GWB - transceiver integration. Therefore, the T400 can transmit data to the GWB within 400 meters, but can only receive data of GWB within 50 meters. It can be applied to the high-end remote control model. The T400 is installed on the remote control, the GWB is installed on the model. After match the code, control the model up and down, left and right.

3. Working voltage: 3-3.6V (The instantaneous transmitting power is very large. For the wireless module to work reliably, please use LDO above 300mA, and the LDO voltage output terminal is above 100uf capacitor)

4. Power consumption: normal operating current 30mA, instantaneous emission current 340mA

5. Transmission distance: 400 meters

6. Module interface: 2mm pitch half hole, 7P, support IIC, SPI

7. Module size: 15.4*17mm, antenna length 50mm, weight of 1 pair 2g

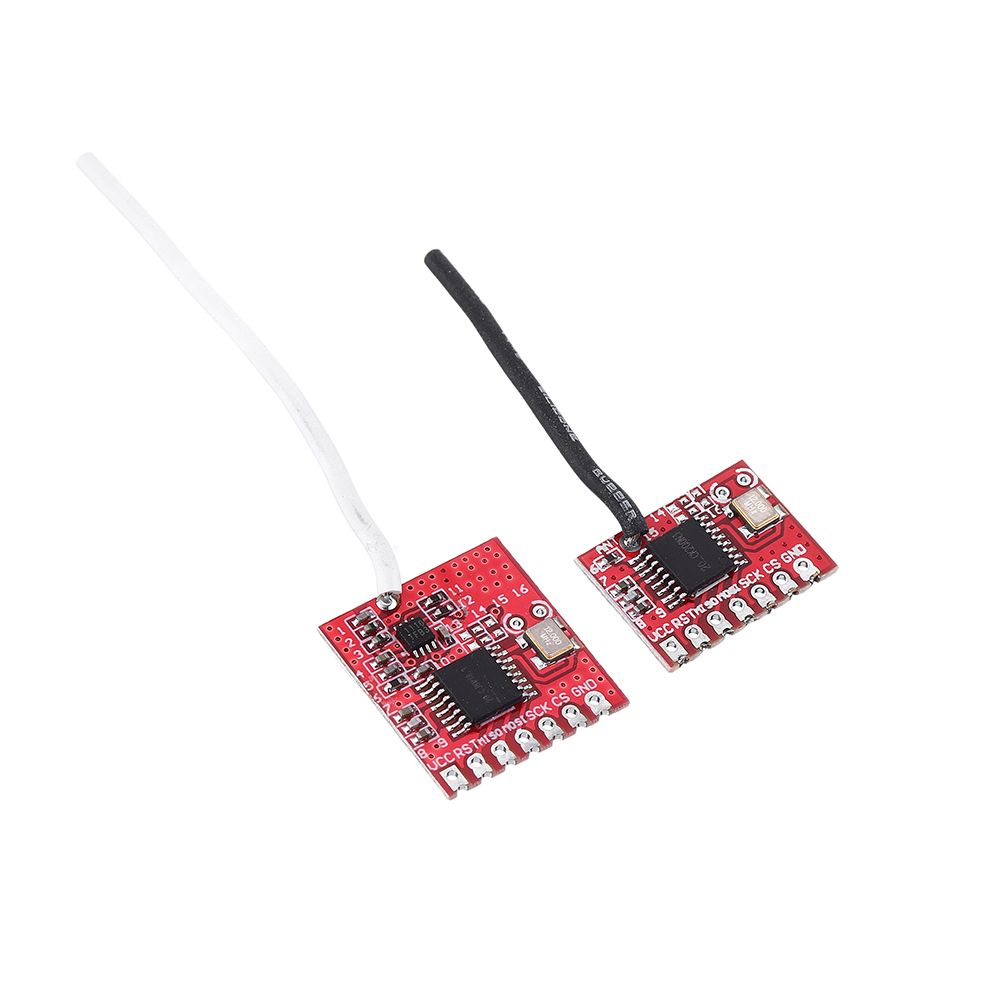

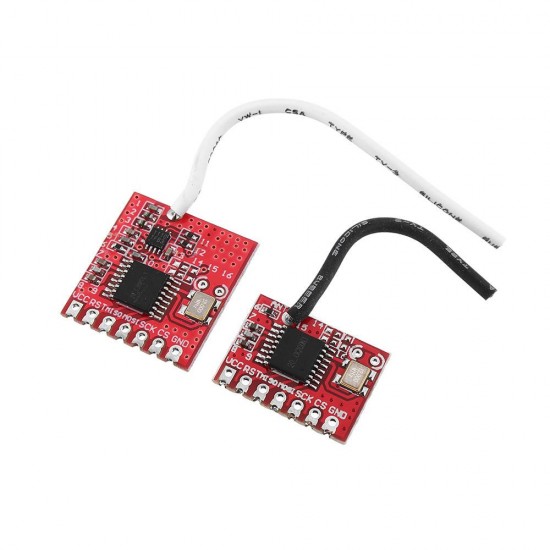

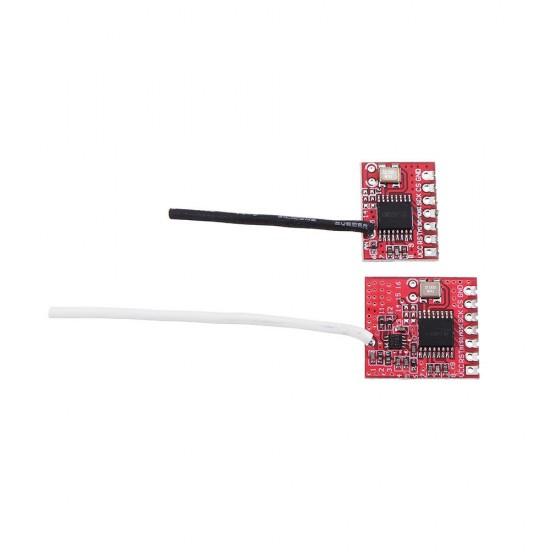

Package includes: (Emission distance optional)

1 x Transmitting Module
1 x Receiving Module

24G-Wireless-Remote-Control-RC-Module-Transmitter-Receiver-LT892-Instead-of-NRF24l01-1529539
