1.5W SK109 Coded Industrial Grade Remote Wireless 4CH Channel Switch Two-way Security Control Module
- Stock: In Stock
- Model: EB0042507
- SKU: EB0042507
| Parameter | Minimum | Typical | Largest | Unit | Condition |
| Operating conditions | |||||
| Operating voltage range | 9 | 12 | 18 | V | |
| Working temperature range | -40 | 25 | 85 | ℃ | |
| Current consumption | |||||
| Receiving current | <20 | mA | |||
| Emission current | <300 | mA | |||
| Sleep current | <5 | mA | @12V timing mode Host is not transmitting | ||
| Radio frequency parameter | |||||
| Transmit power range | 31.5 | dBm | |||
| Receiving sensitivity | -121 | dBm | @1200 | ||

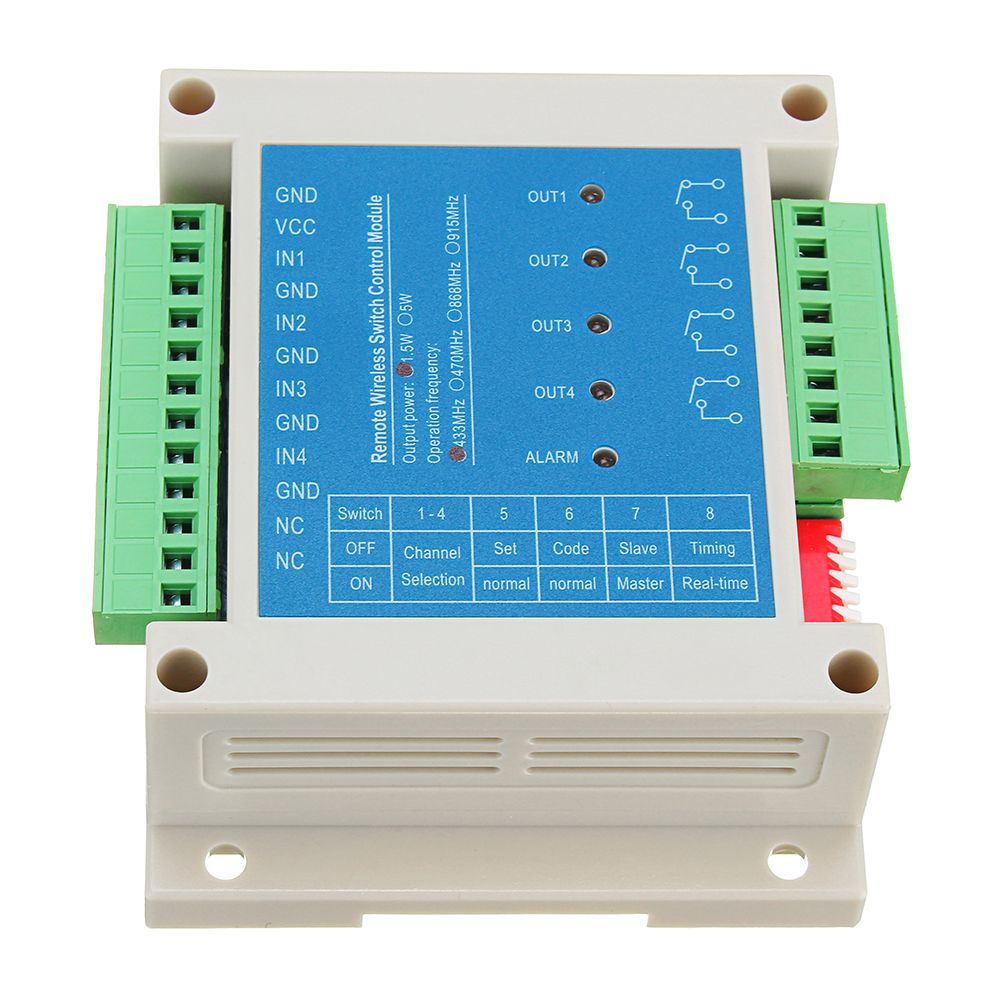

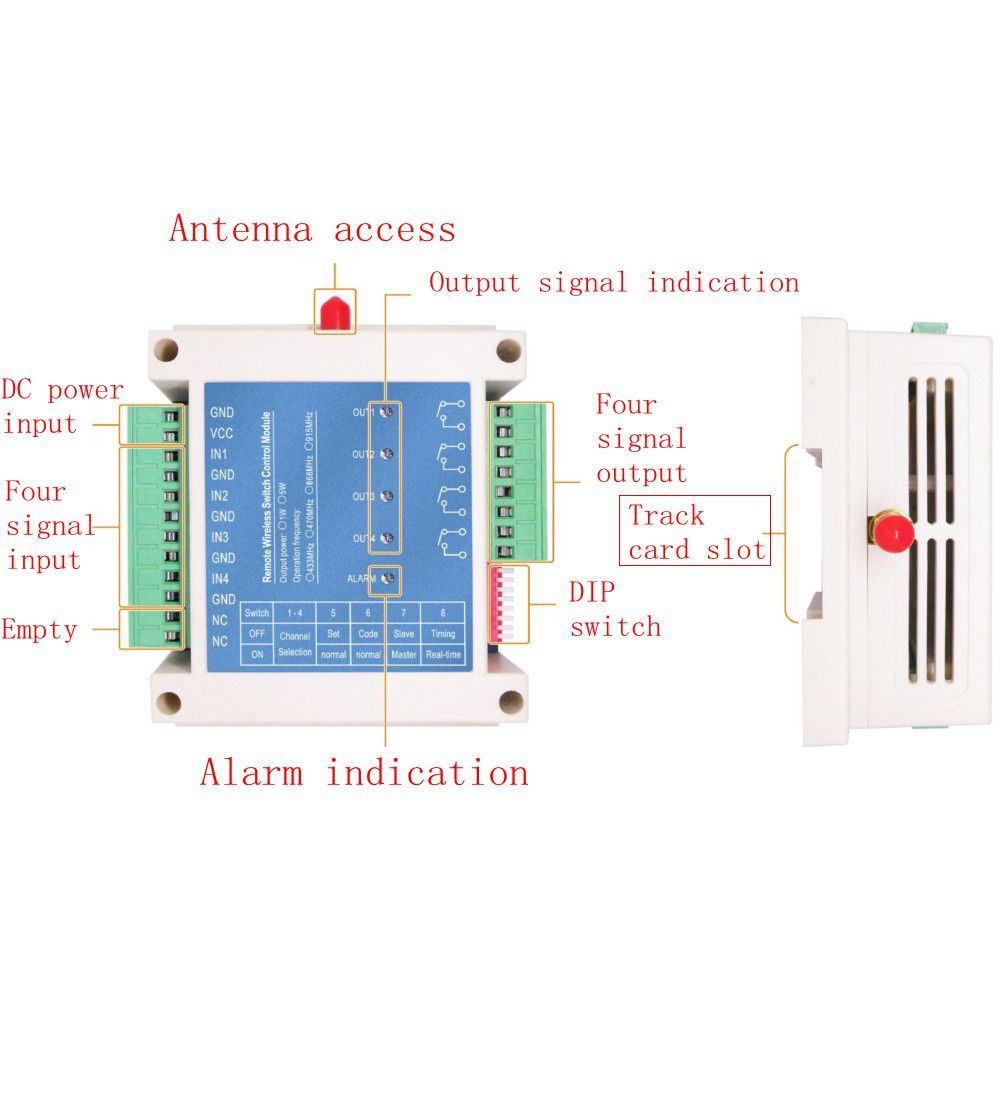

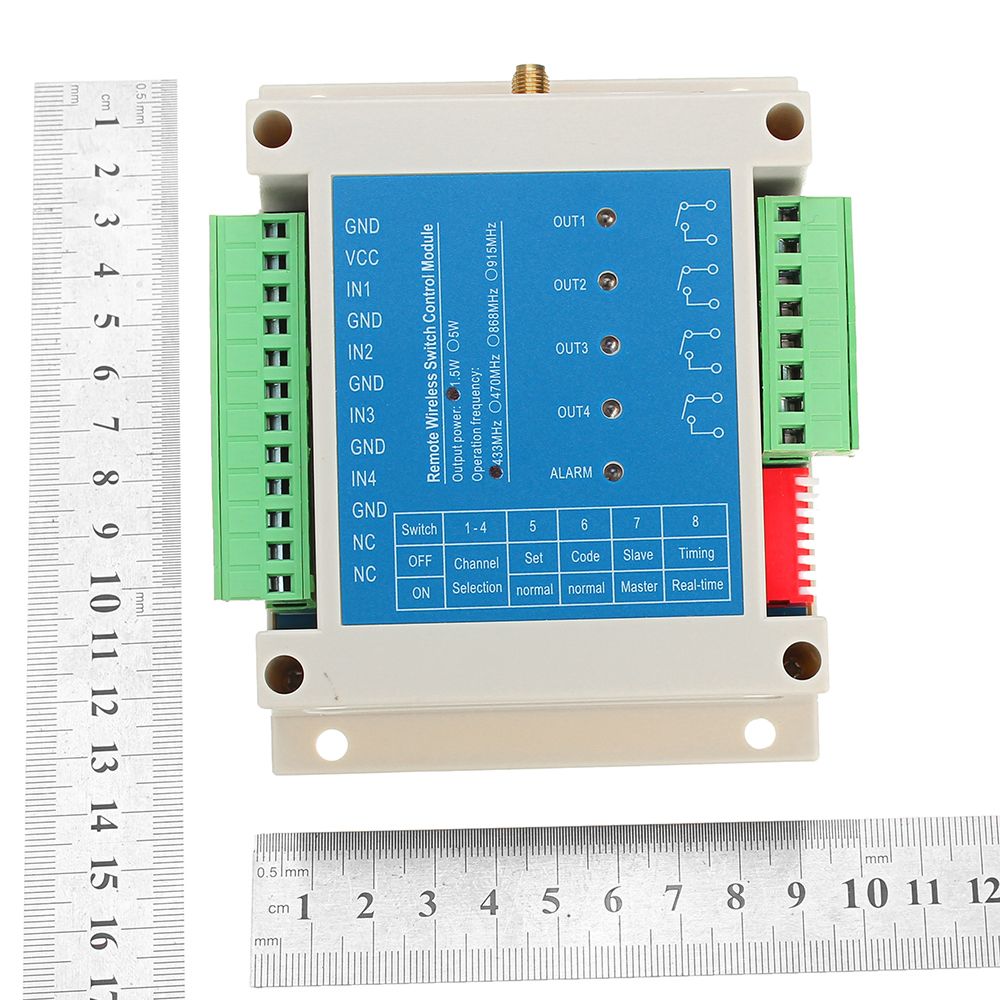

| Pin Name | Pin definition | Description |
| 1 | GND | Negative power supply |
| 2 | VCC | Positive power supply |
| 3 | IN1 | The first way switch input, short circuit is valid |
| 4 | GND | |
| 5 | IN2 | The second way switch input, short circuit is valid |
| 6 | GND | |
| 7 | IN3 | The third way switch input, short circuit is valid |
| 8 | GND | |
| 9 | IN4 | The fourth way switch input, short circuit is valid |
| 10 | GND | |
| 11 | NC | NC |
| 12 | NC | |
| 13 | OUT1 | First relay control output |
| 14 | ||
| 15 | OUT2 | Second relay control output |
| 16 | ||
| 17 | OUT3 | Third relay control output |
| 18 | ||
| 19 | OUT4 | Fourth relay control output |
| 20 |
Package includes:
1 x Control Module

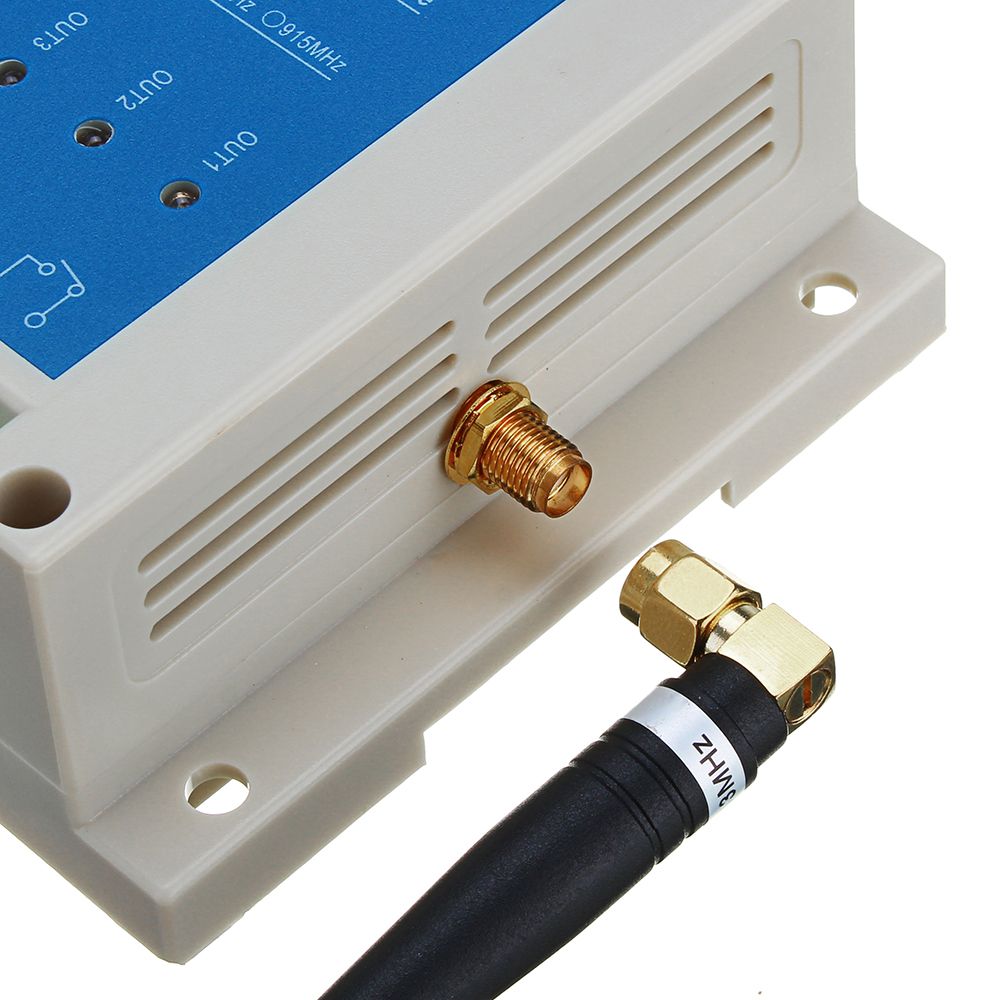

1 x Antenna
