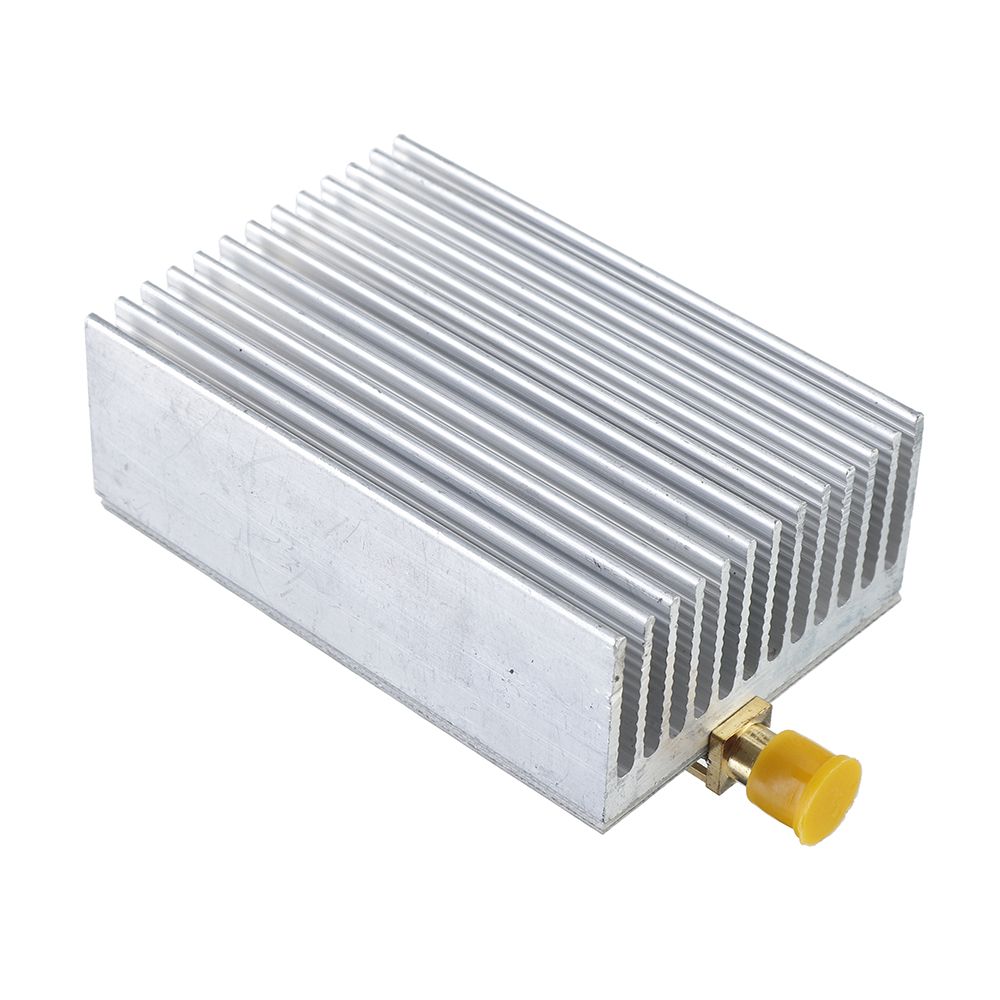

RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink

RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
RF Broadband FM Amplifier 1-512MHz 1.6W HF FM VHF UHF RF Amplifier Module Board with Heat Sink
$21.99
Ex Tax: $21.99
  • Stock: In Stock
  • Model: 1695880
  • SKU: 1695880
Content-Length: 2233 >
Product Usage:

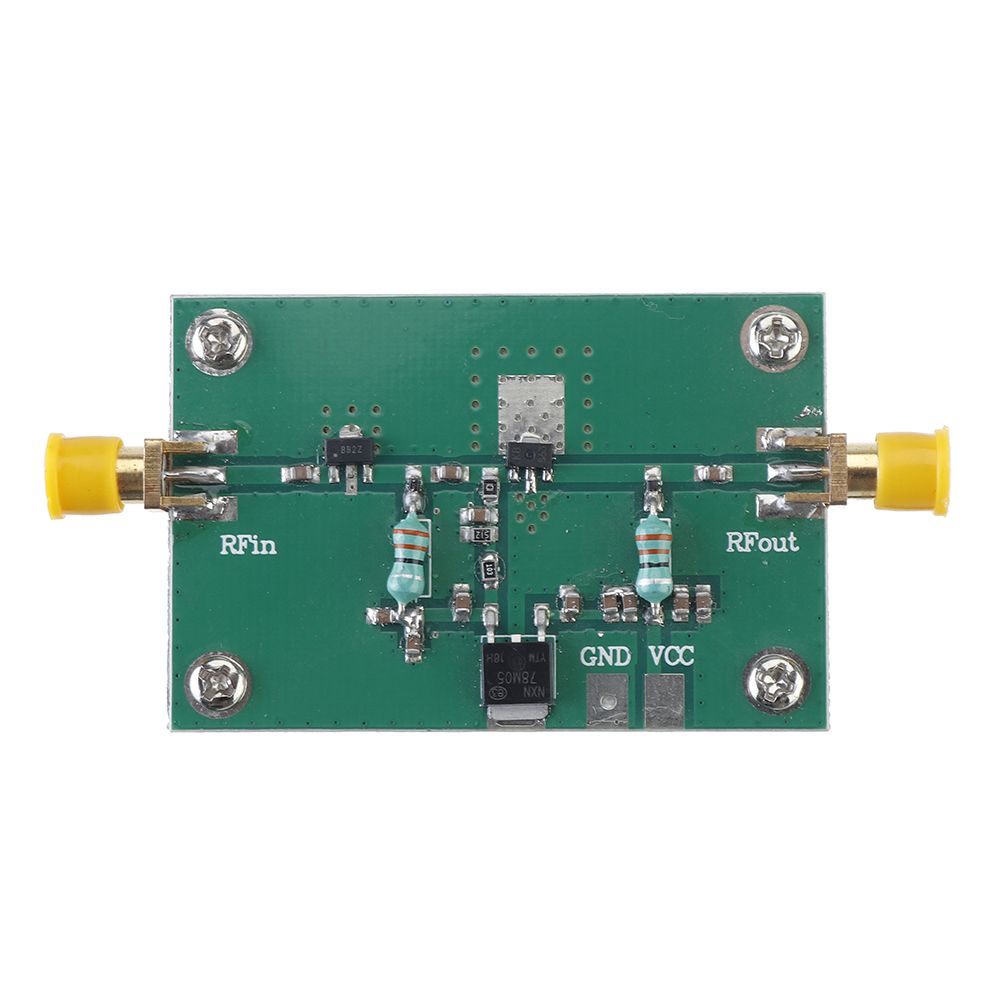

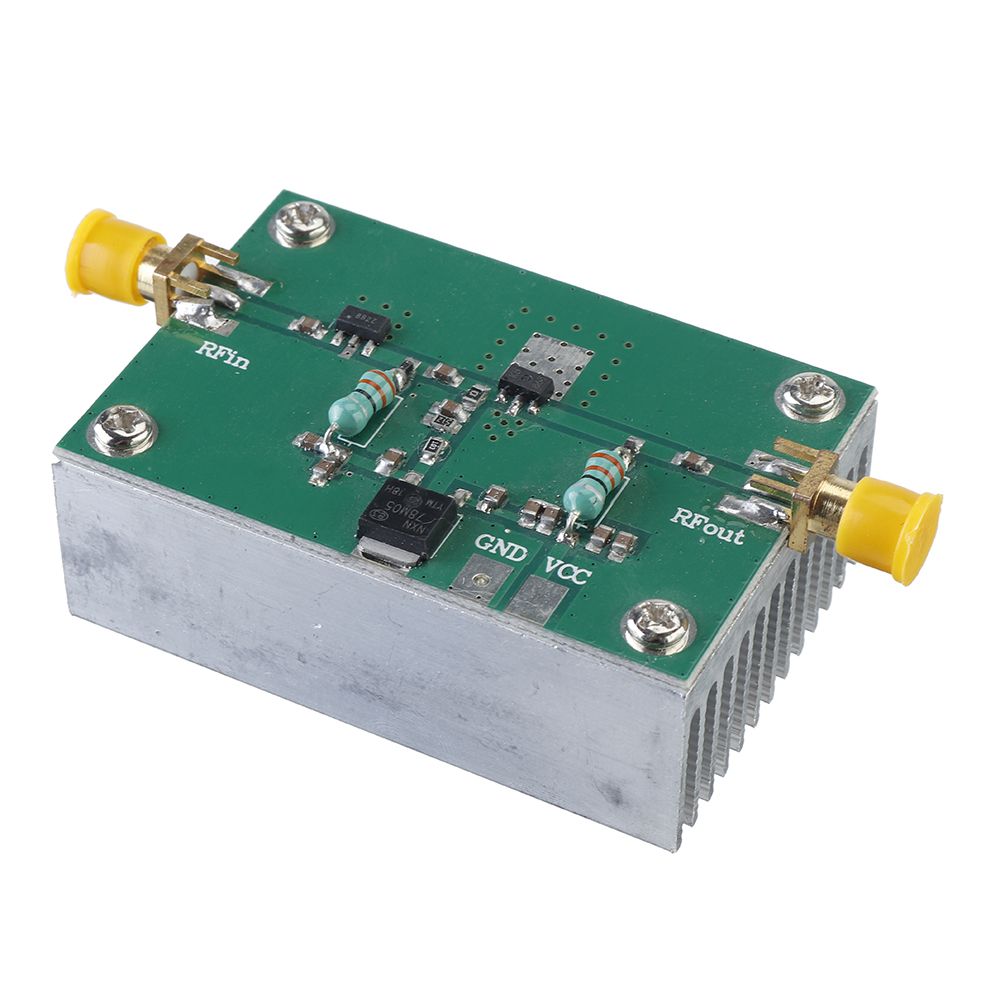

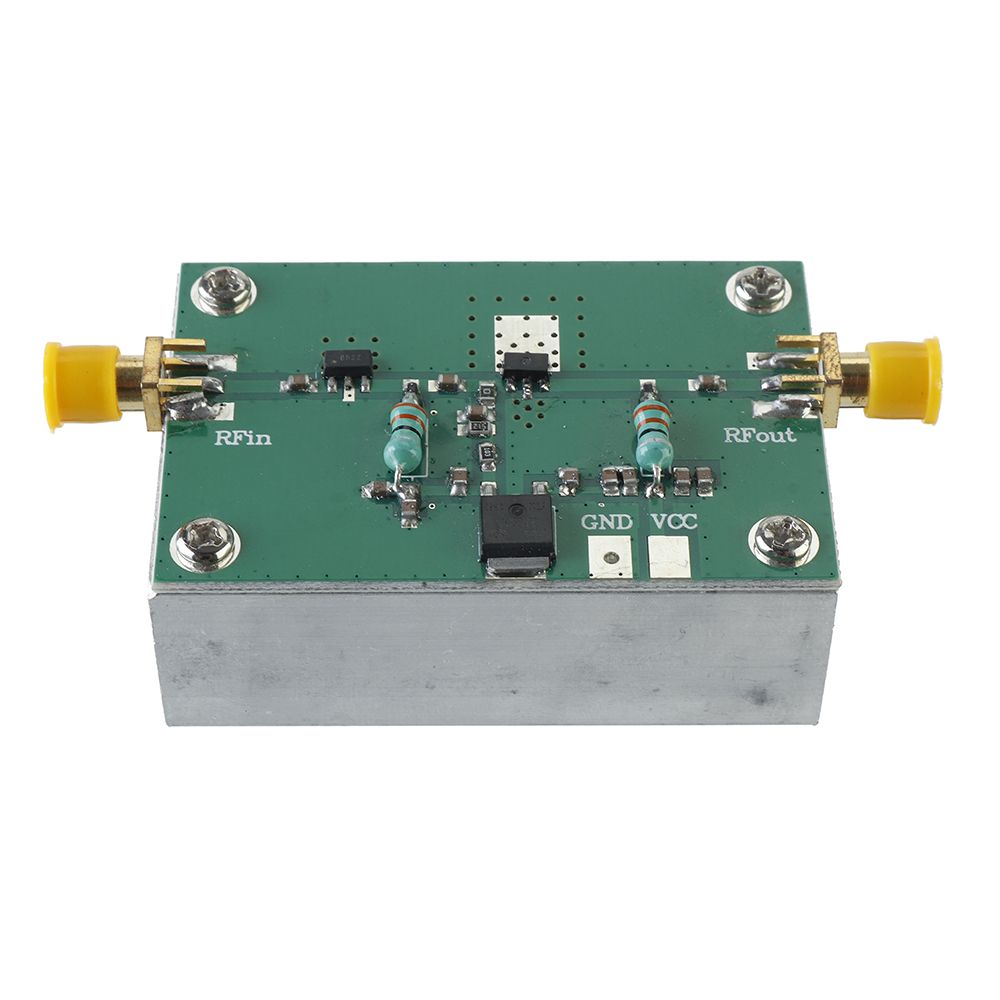

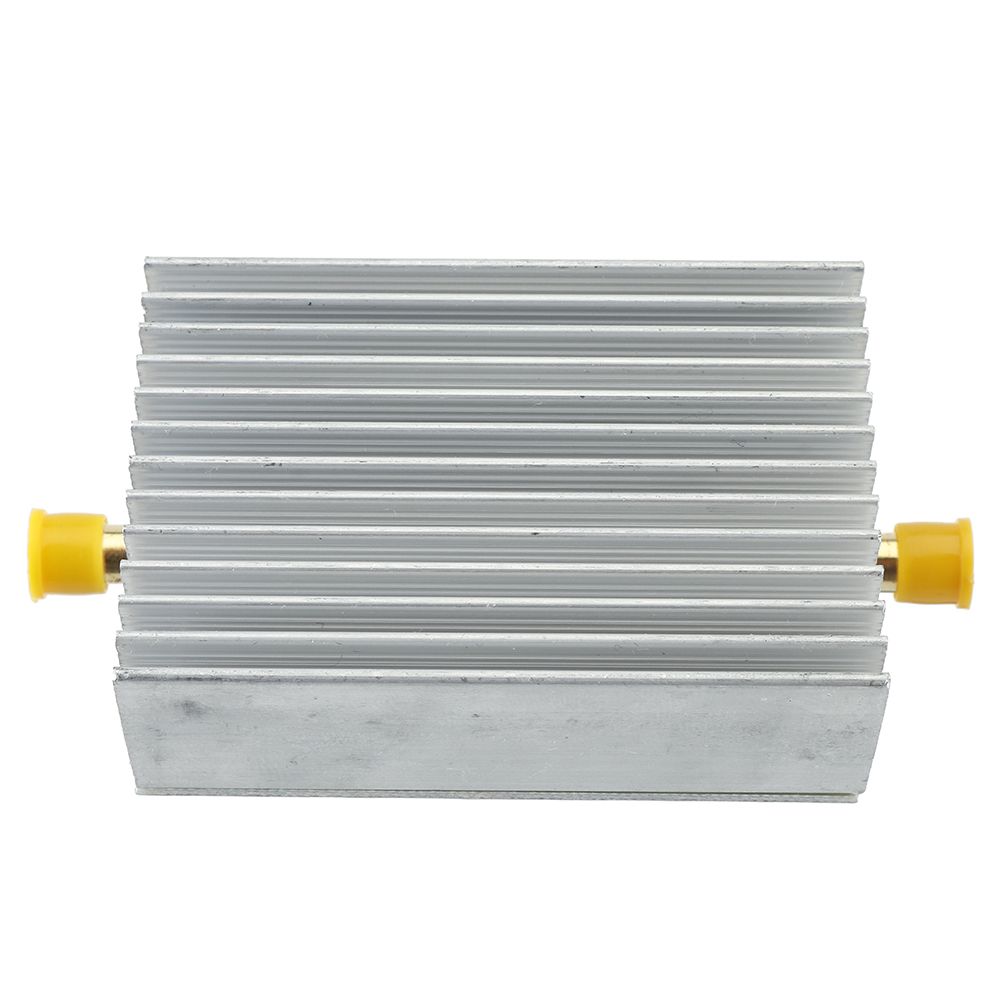

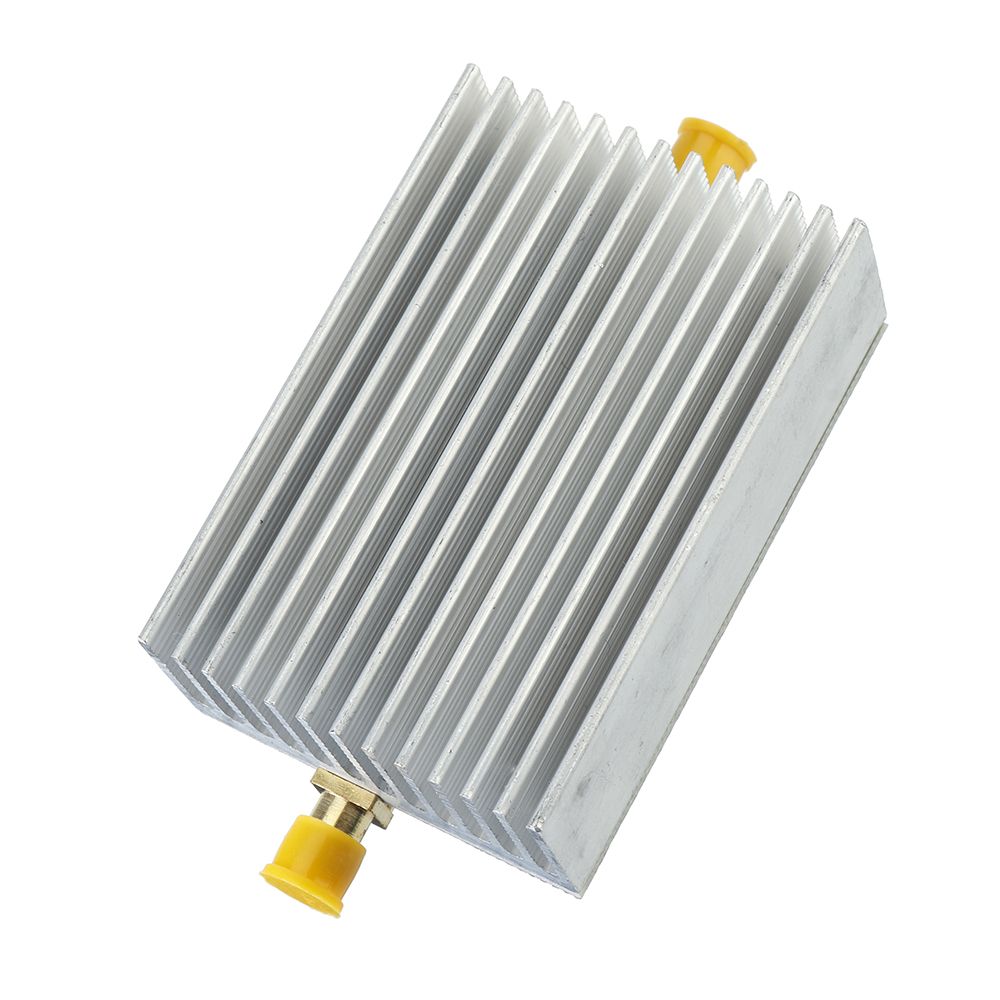

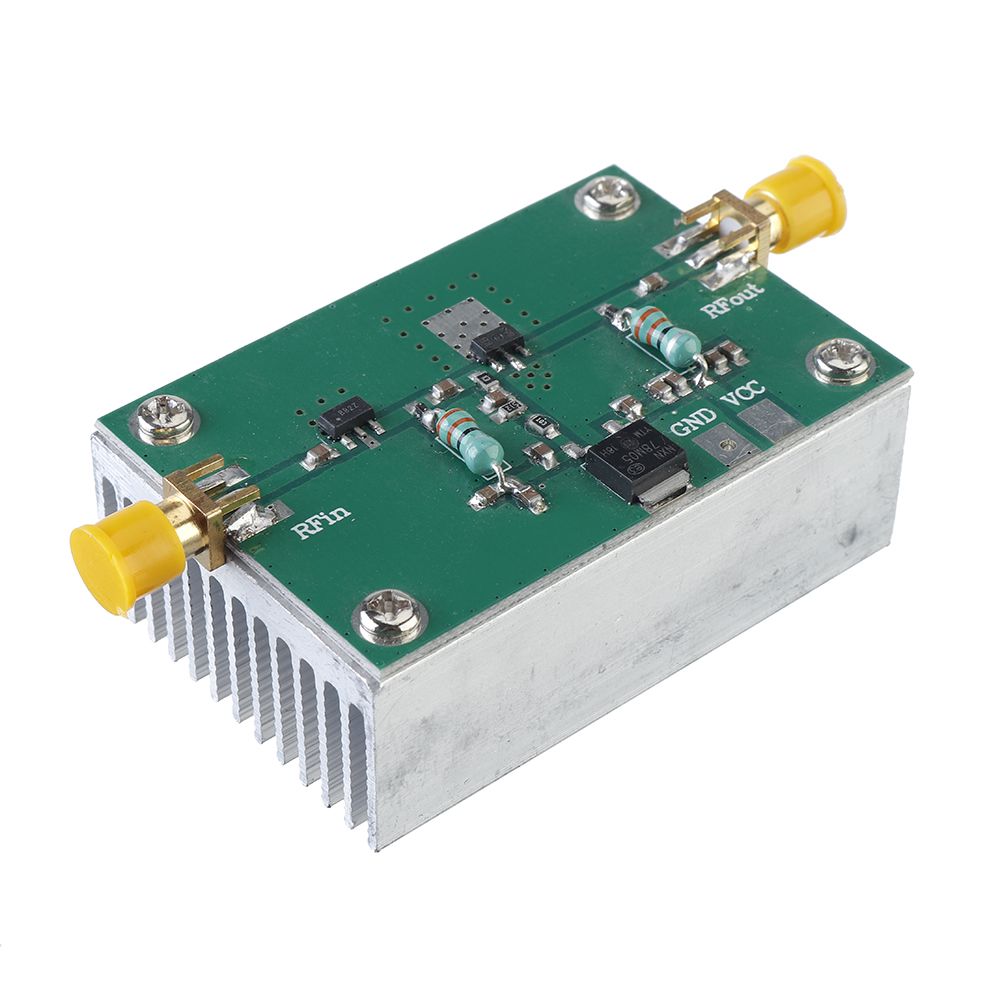

This broadband RF low power amplifier is suitable for all kinds of radio transmission, such as: short wave FM wireless remote control, FM FM radio transmission, amateur radio 135-175MHz, 380-470MHz walkie-talkie and other transmissions. The low-frequency input of 1mW can output a maximum of 1.6W of power, and the maximum output of 1.0W at 512MHz is equipped with a heat sink for long-term stable operation.

Technical Parameters:

Working frequency: 1-512MHz
Input power: 1mW (0dBm)
Maximum output: 1.6W (32dBm) low frequency end, 1.0W (30dBm) high frequency end
Working voltage: 12v (DC)
Working current: 270-370mA (determined by output power)

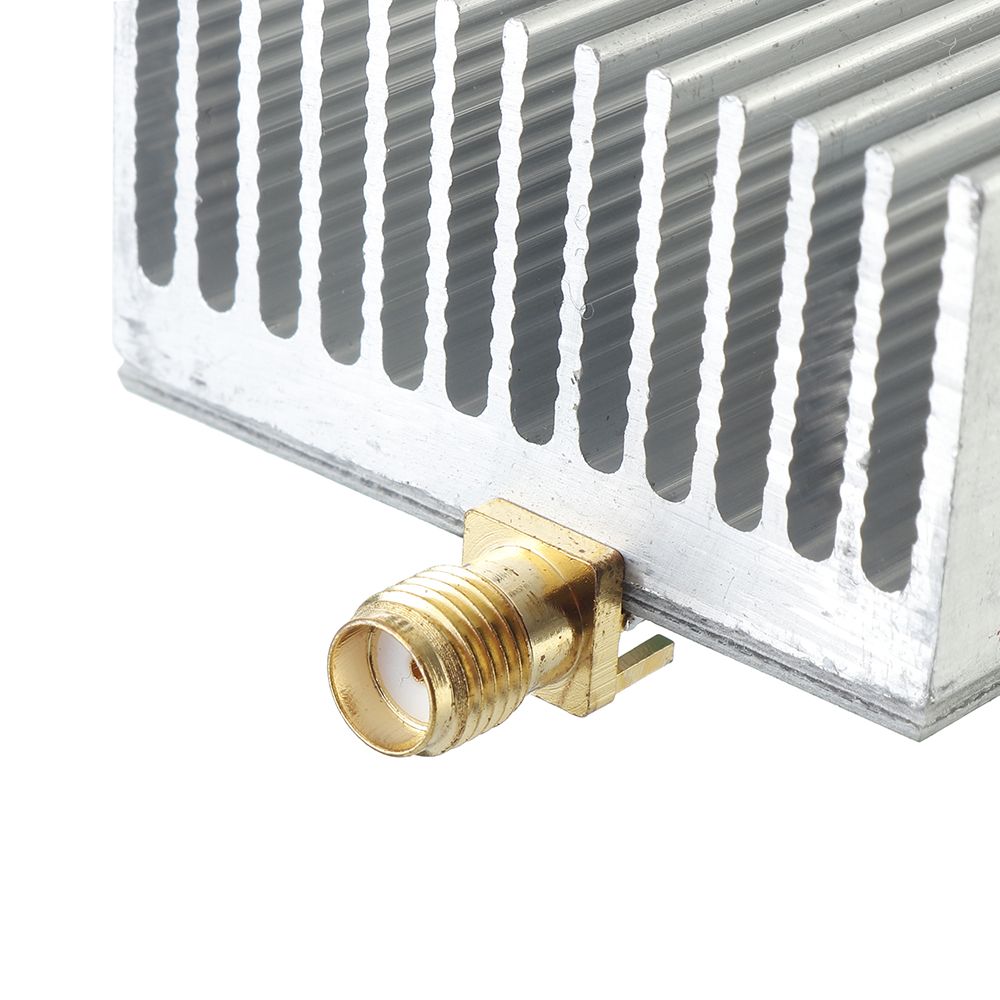

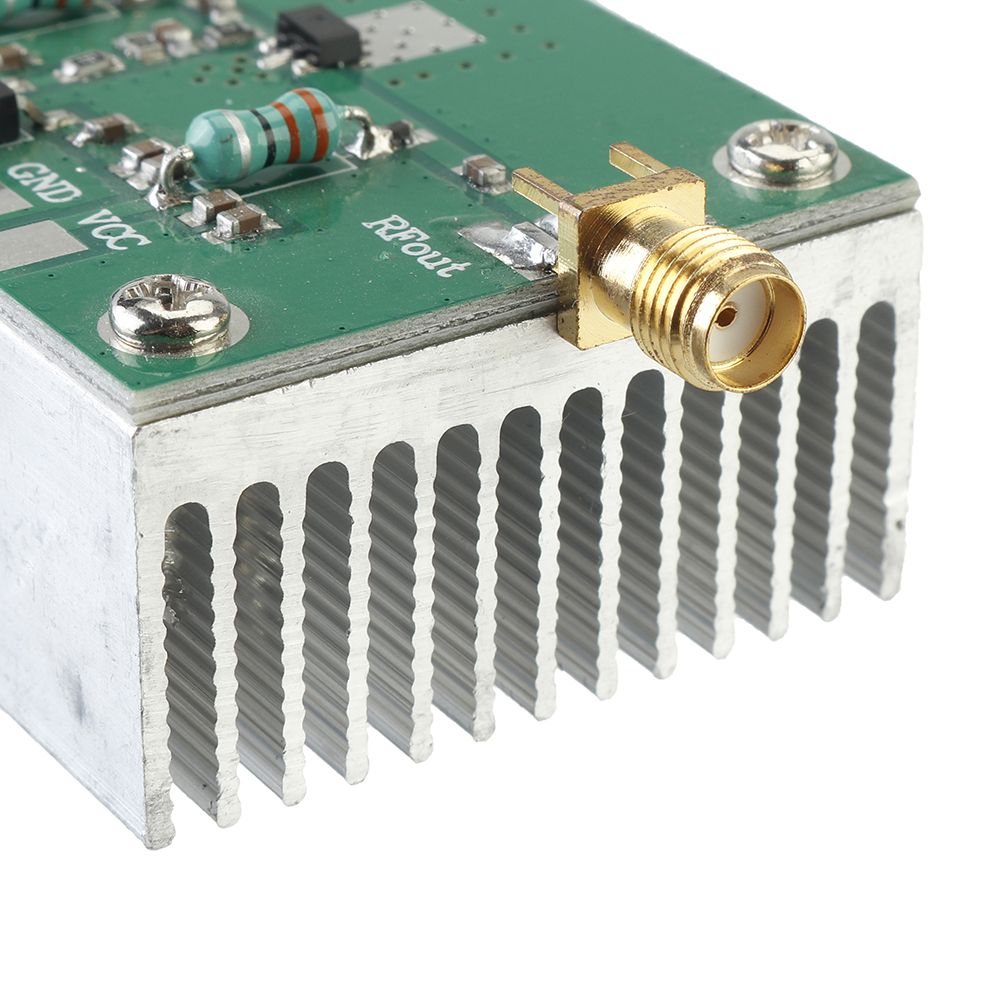

RF connector. Standard SMA female

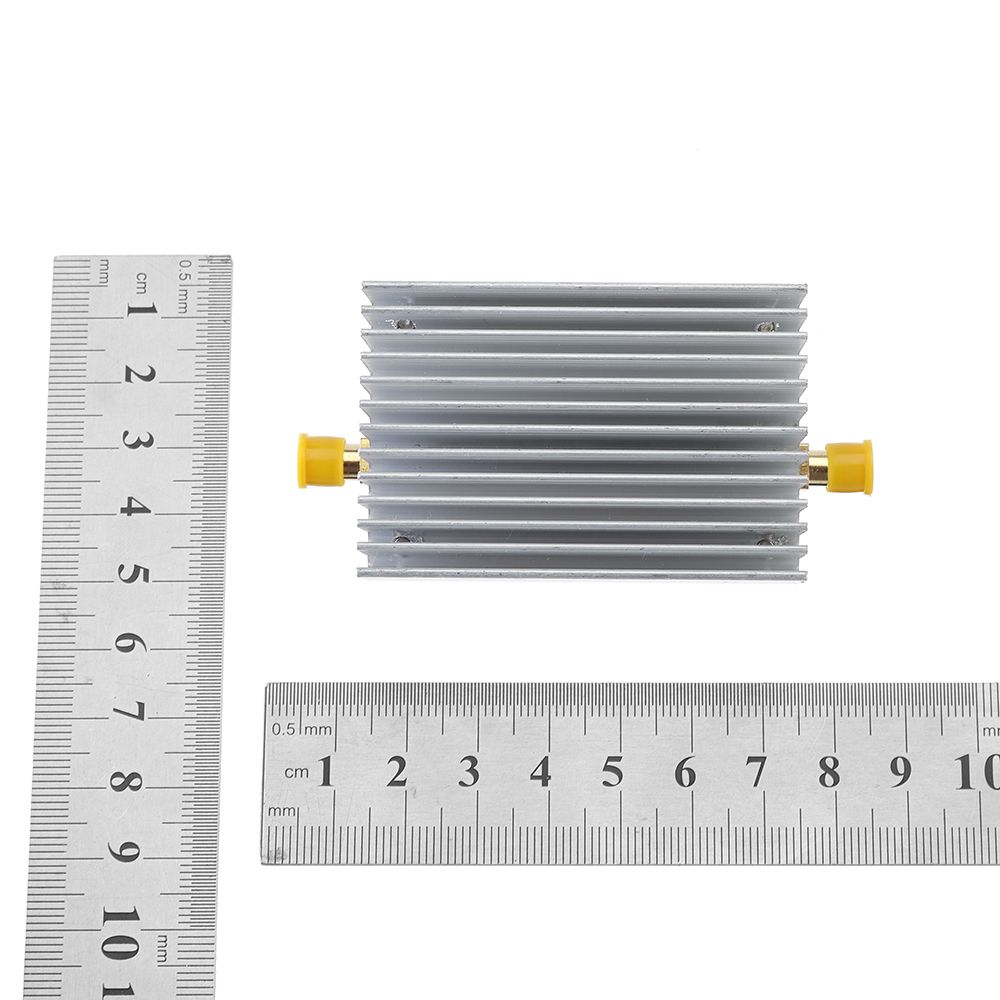

Dimensions: 60*40*25mm (length, width and height)
Product weight: 75g

Package includes:

1 x Amplifier
