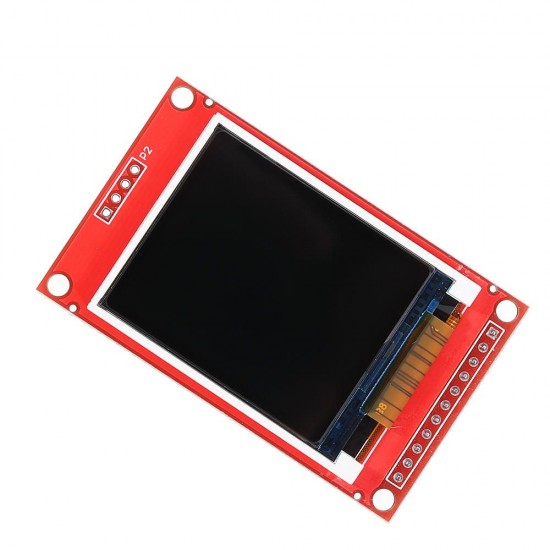

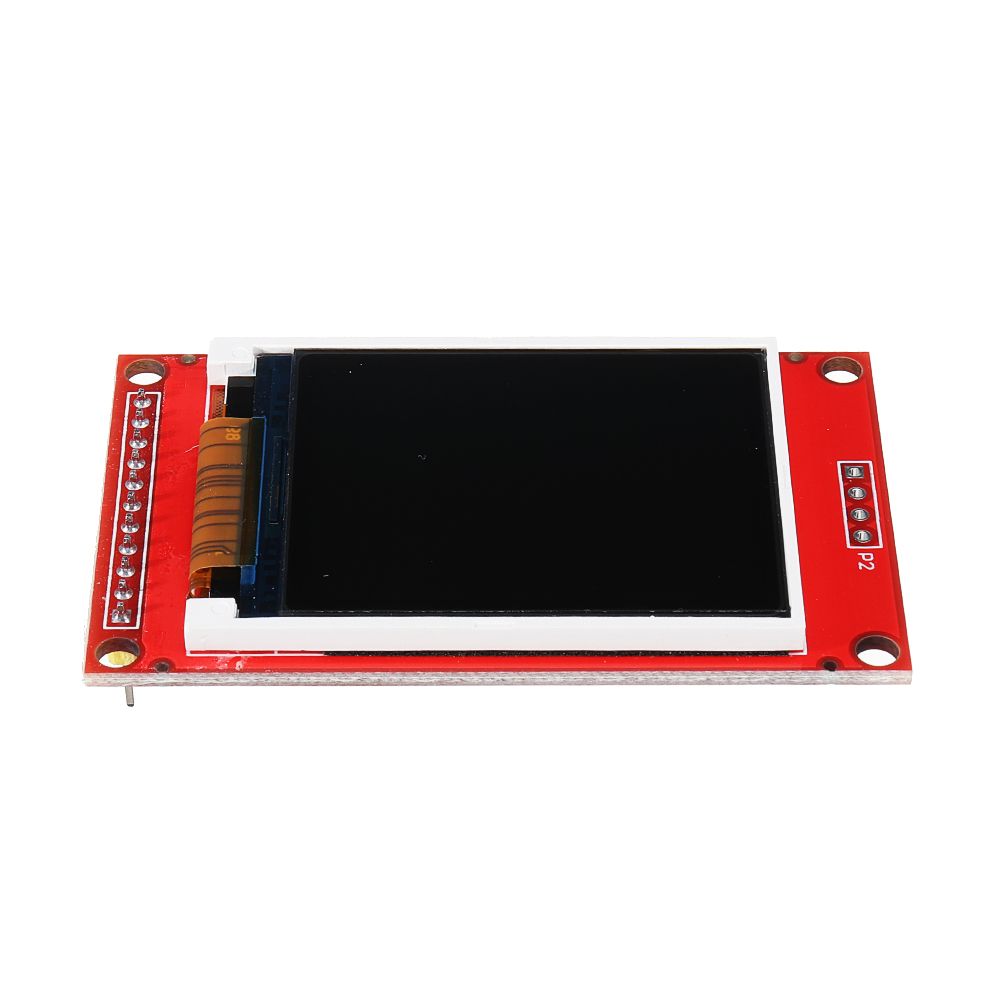

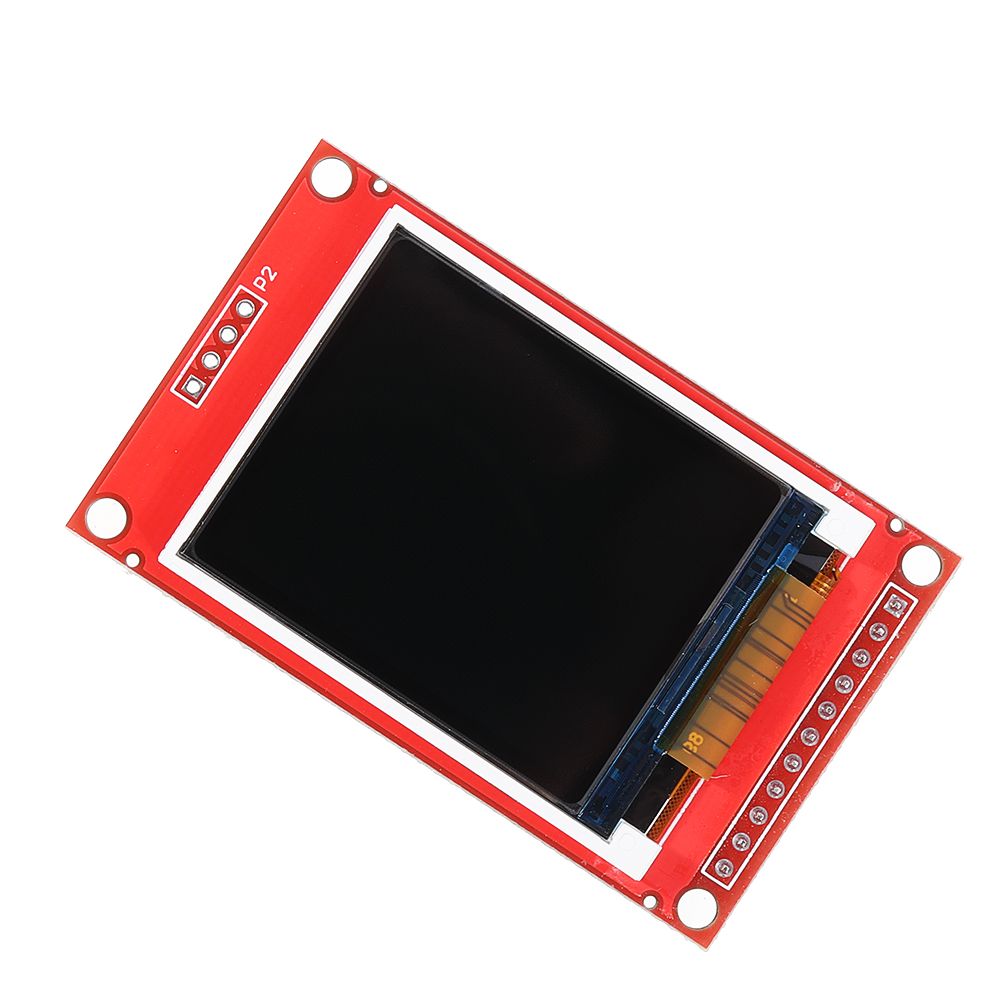

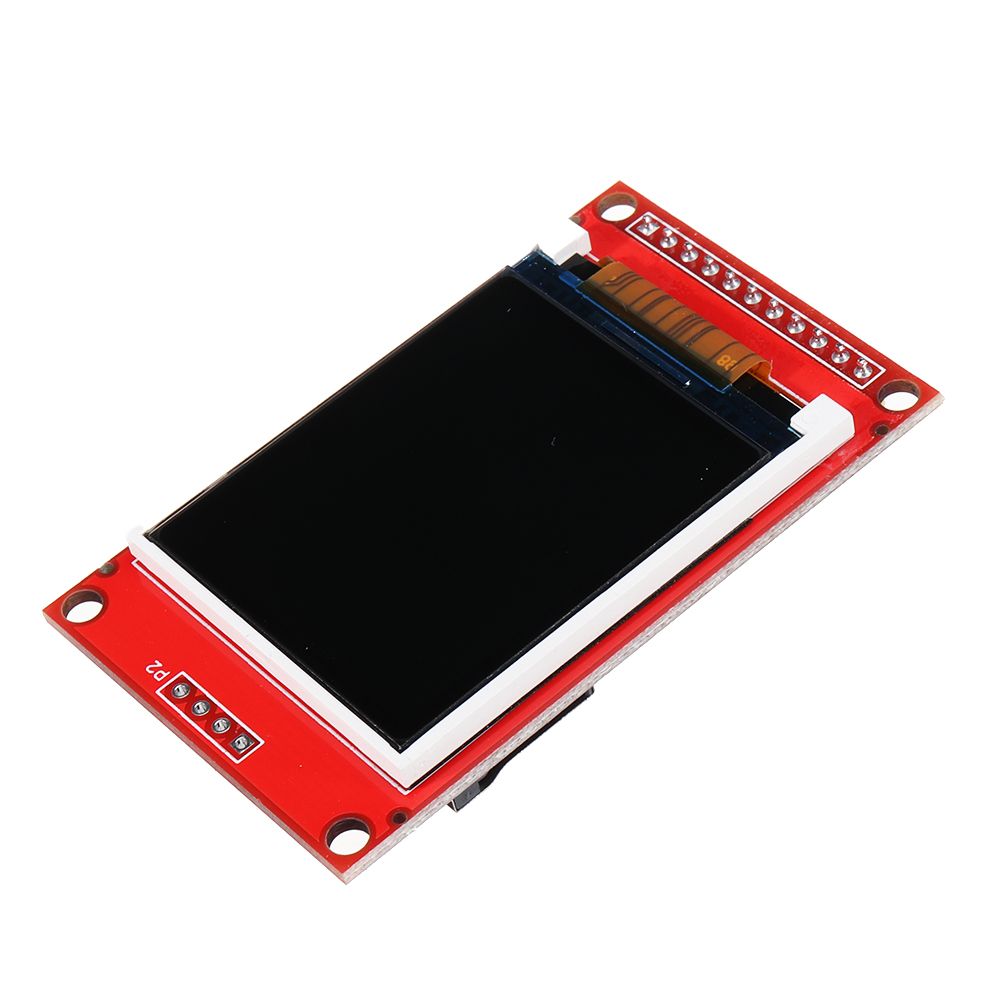

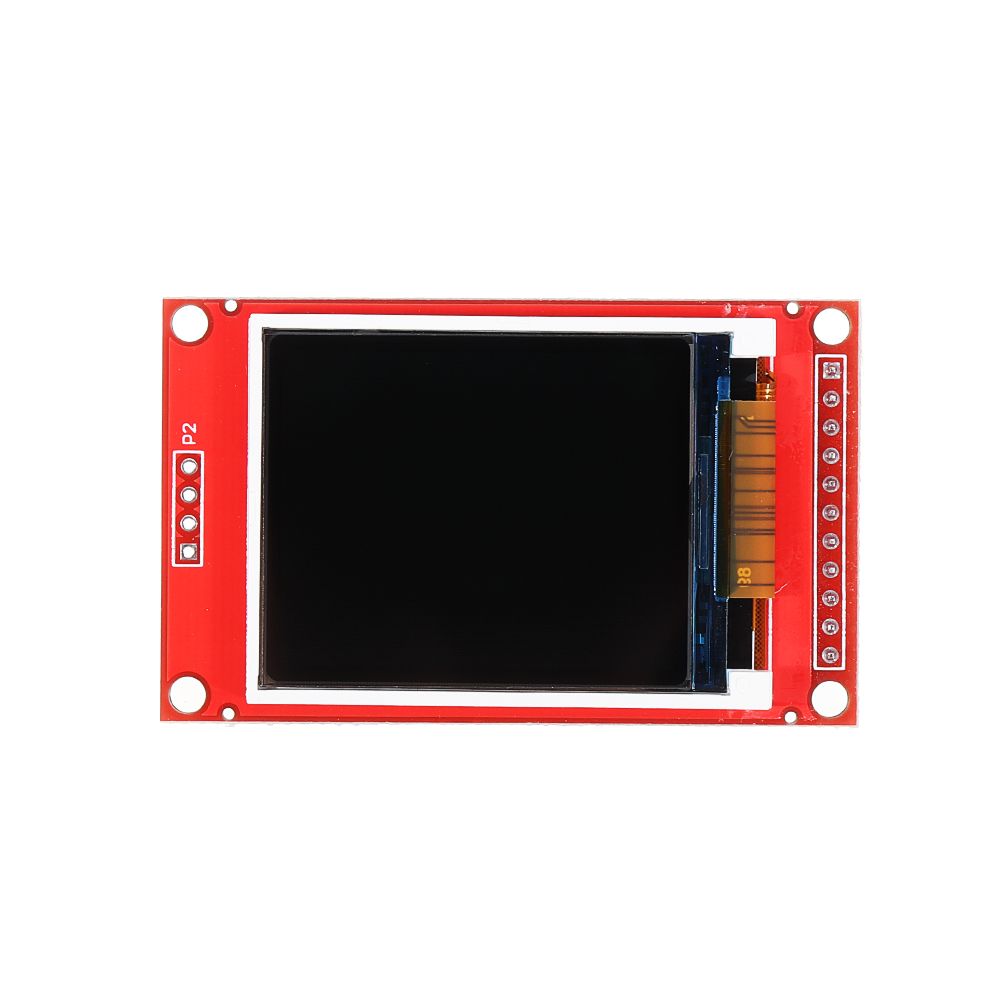

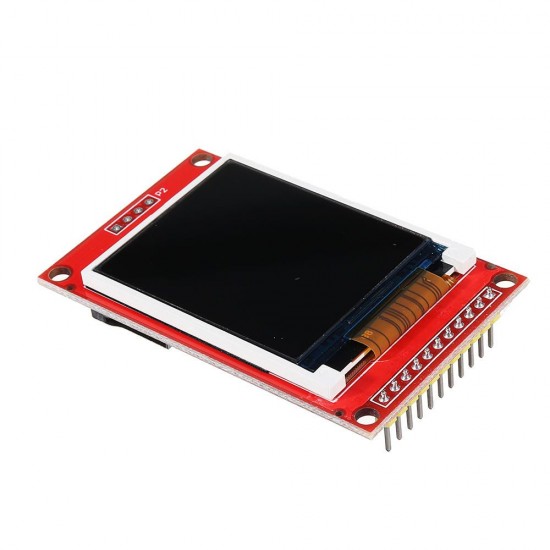

1.8 Inch TFT LCD Display Module Color Screen SPI Serial Port 128*160
- Stock: In Stock
- Model: EB0050978
- SKU: EB0050978
Feature:
Technical Parameters:

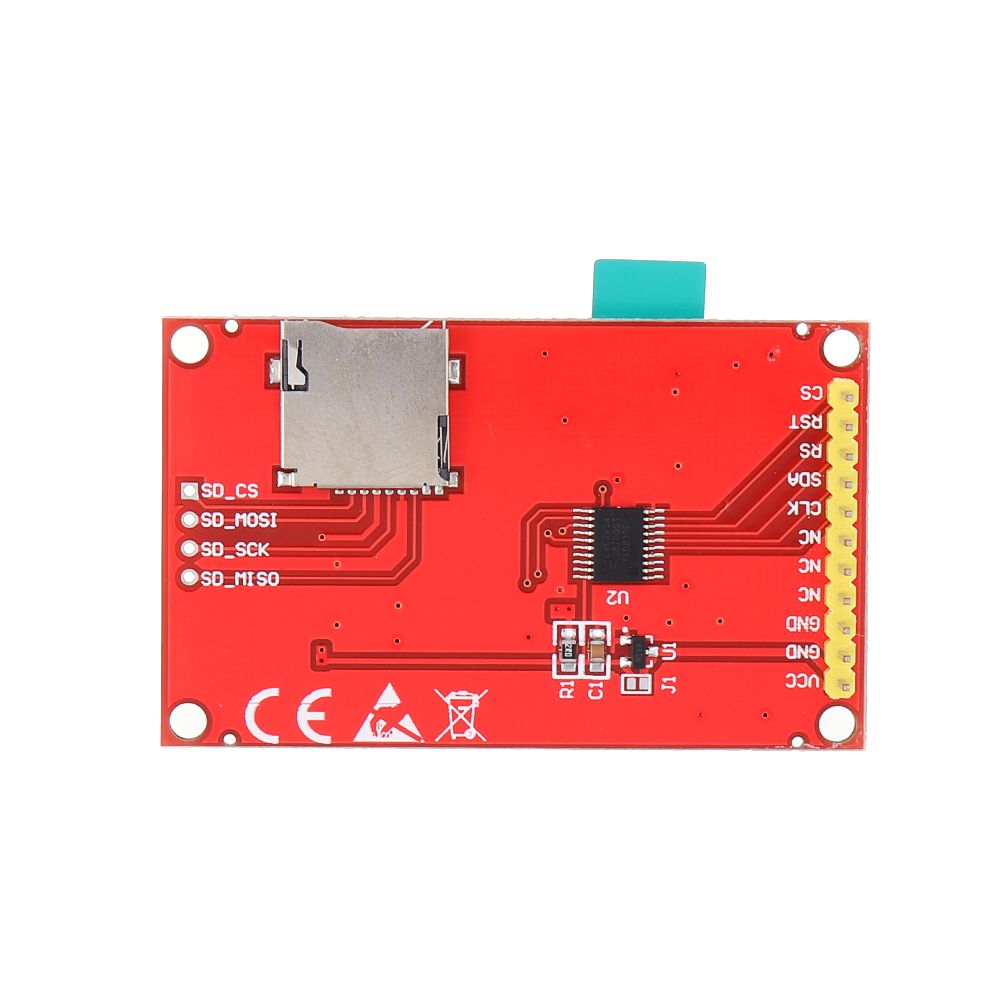

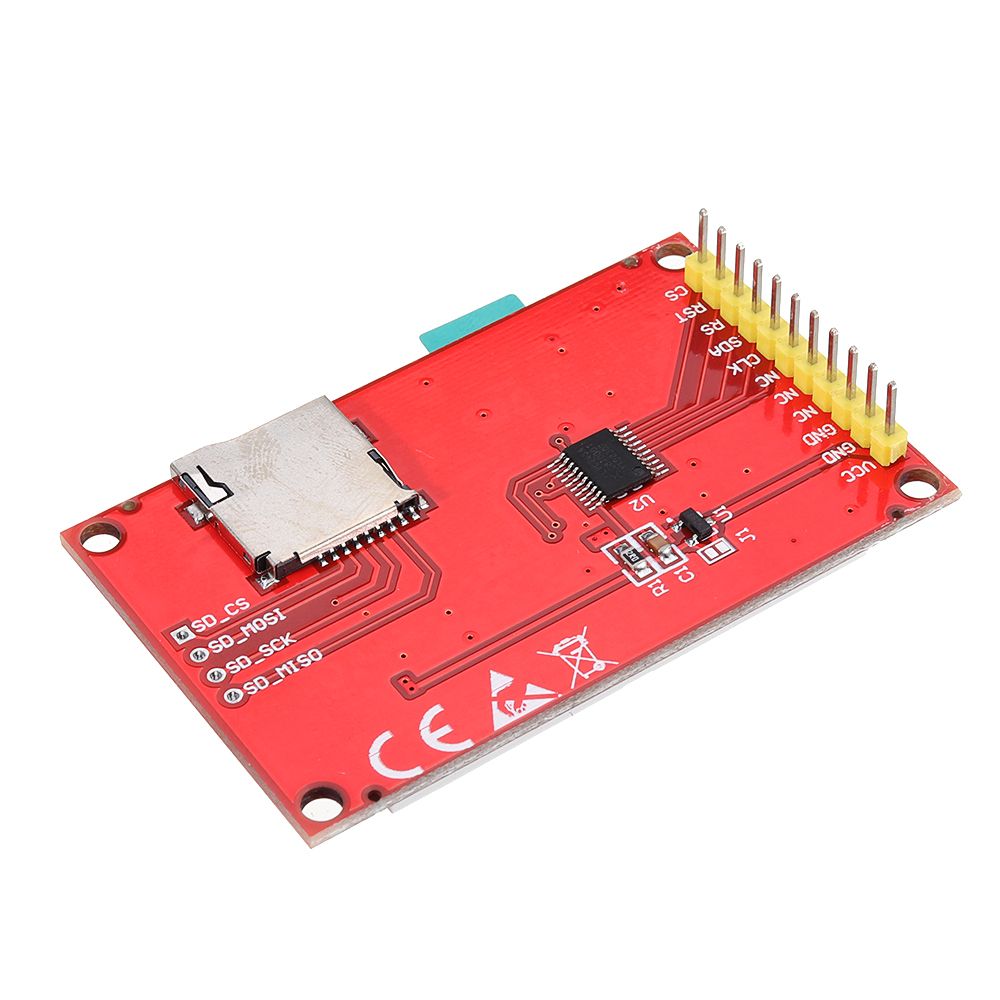

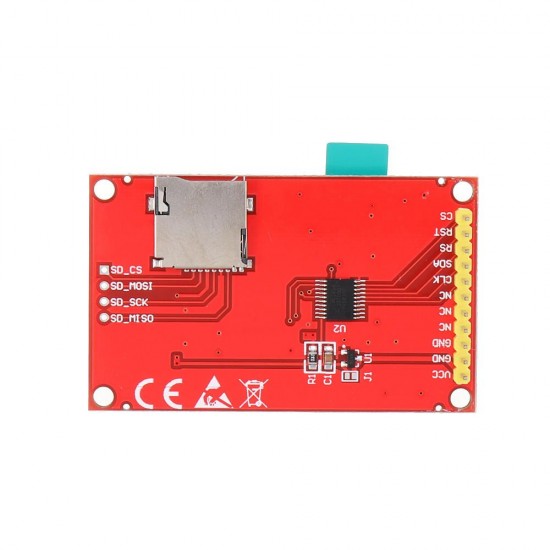

Pin Description:
| Number | PIN | Description |
| 1 | VCC | LCD screen power supply (3.3V ~ 5V) |
| 2 | GND | LCD screen power ground |
| 3 | GND | LCD screen power ground |
| 4 | NC | No definition, reserved |
| 5 | NC | No definition, reserved |
| 6 | NC | No definition, reserved |
| 7 | CLK | LCD screen SPI bus clock signal |
| 8 | SDA | LCD screen SPI bus write data signal |
| 9 | RS | LCD screen register / data selection signal, low level: register, high level: data |
| 10 | RST | LCD reset signal, low level reset |
| 11 | CS | LCD chip select signal, low level enable |
Package includes:
1 x LCD module
