2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection

2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board Balanced Function Overcharged Protection
$5.99
Ex Tax: $5.99
  • Stock: In Stock
  • Model: EB0046601
  • SKU: EB0046601
  • Number of Strings: 2S
    Precise details>>
    Specifications:

    Model: HX - 2S - D20
    Overcharging range: 4.25-4.35V ( ±0.05V)
    Over voltage range: 2.5-3.0V  (± 0.05 V)
    Maximum working current: 13A
    Working temperature: - 40 -   50 ℃
    Maximum instantaneous current: 20A
    Storage conditions: - 40 -   80 ℃
    Static current: less than 10uA
    Resistance: less than 300 m Ω
    Short circuit protection: to protect and restore must charge
    Charging Voltage: 8.4 V - 9V

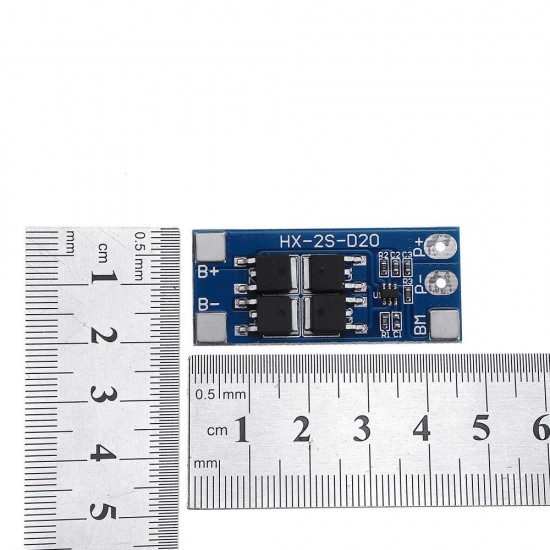

    Board Size : 46 x 20 x 3.6 mm

    Welding Point:

    B  : battery anode;
    B -:  connect battery negative terminal;
    MMB :connect battery 1 to battery 2;
    P  : charging/discharge correct poles (charging end/discharge end sharing);
    P -: charging/discharge terminal negative terminal (charging end/discharge end sharing).

    Note:

    This can not be used in lithium iron phosphate battery protection board, hernia lamp, hand electric drill battery, electric fish electromechanical ChiZu, electric bicycle batteries, car batteries, children (4 A) more than 775 motor, fisheye 1W LED lamp, used for
     the combined purchase customers please note!

    Package Included:

    1 x 2S 10A 7.4V 8.4V 18650 Lithium Battery Protection Board
