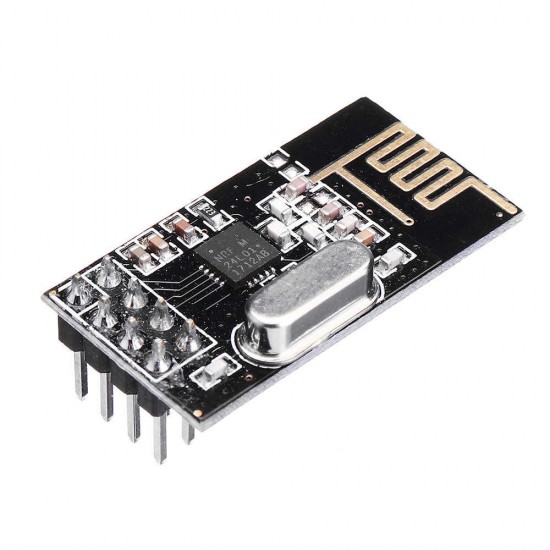

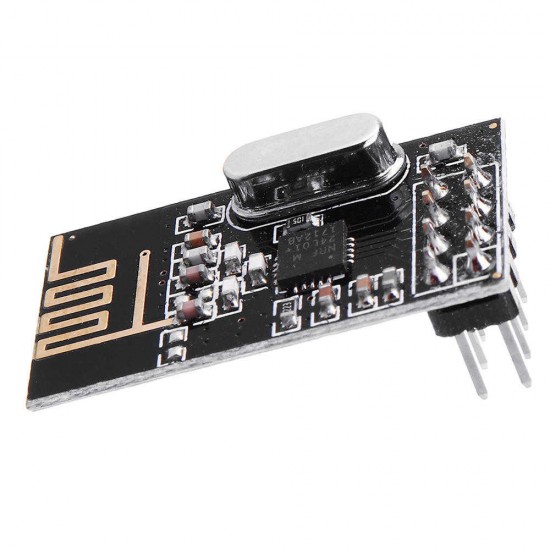

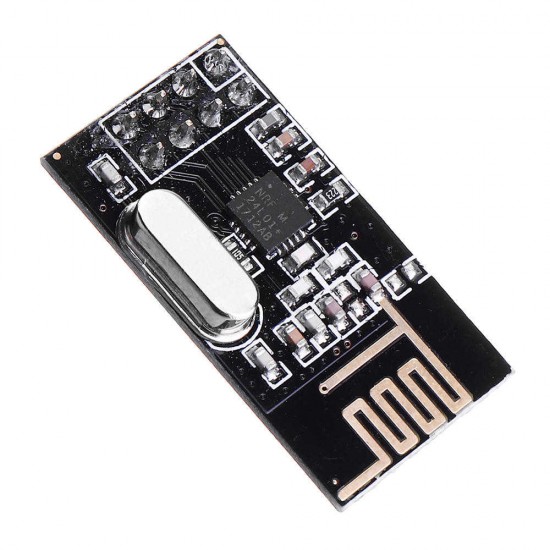

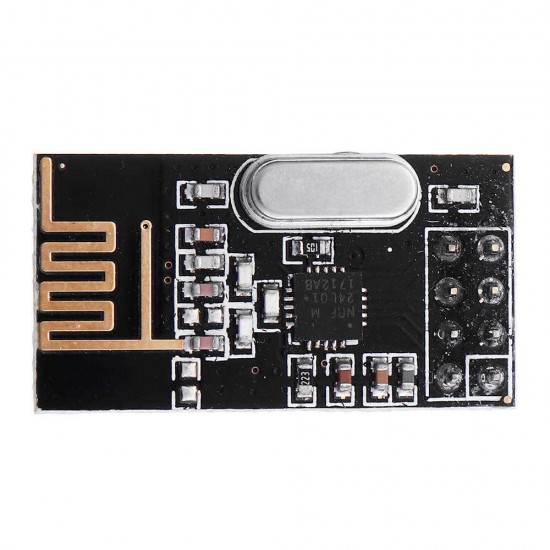

2.4G Wireless Module XH-NF-01 Built-in Antenna 100mW Power SPI Interface Internet Module
- Stock: In Stock
- Model: EB000330
- SKU: EB000330

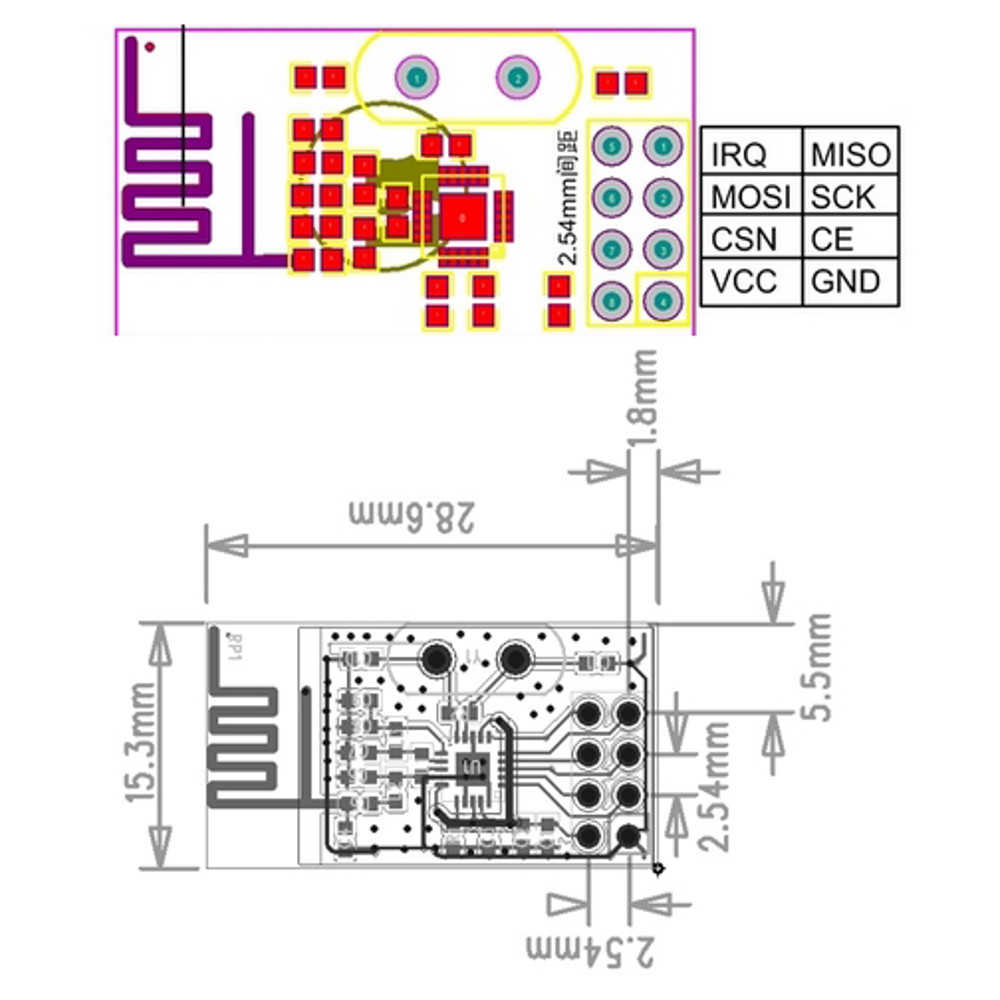

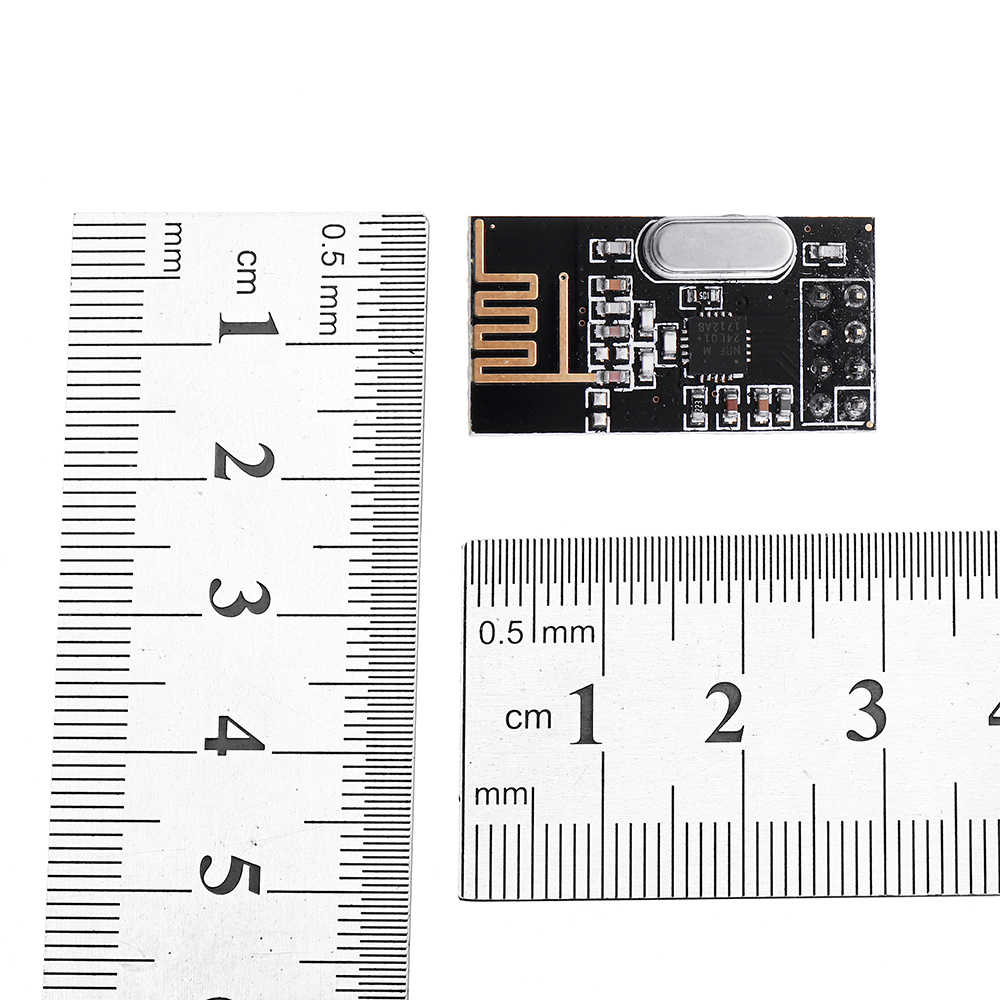

| Num. | Pin | Direction | Function |
| 1 | VCC | - | The power supply must be between 2.0 - 3.6V |
| 2 | GND | - | The ground wire, connected to the power reference ground |
| 3 | CSN | Input | The chip select pin for starting an SPI communication |
| 4 | CE | Input | Control pin |
| 5 | MOSI | Input | SPI data input pin |
| 6 | SCK | Input | SPI bus clock |
| 7 | IRQ | Output | Interrupt signal output, active low |
| 8 | MISO | Output | SPI data output pin |
| Model | XH-NF-01 |
| Package | DIP-8 |
| Size | 28.6*15.3*3.2 mm |
| Communication Interface | SPI (up to 10Mbps) |
| Airspeed rate | 250k~2Mbps 3 levels adjustable (250kbps, 1Mbps, 2Mbps) |
| Spectrum range | 2400MHz~2525MHz adjustable, 1MHz stepping |
| Antenna form | Onboard PCB antenna, gain 2dBi |
| Maximum transmit power | 7dBm |
| Receiving sensitivity | -96dBm@250kbps |
| Average current | Emission current: 25mA (7dBm) |
| Receive current: 15mA (2Mbps) | |
| Shutdown current 1.0uA (Shutdown mode) | |
| Power supply range | 2.0V~3.6V, typical value 3.3V |
| Operating temperature | -20 ℃ ~ 85 ℃ |
| Storage environment | -20 ℃ ~ 90 ℃ , < 90%RH |
