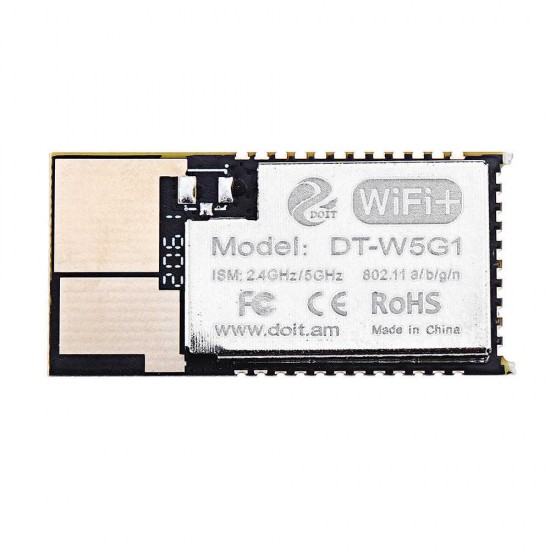

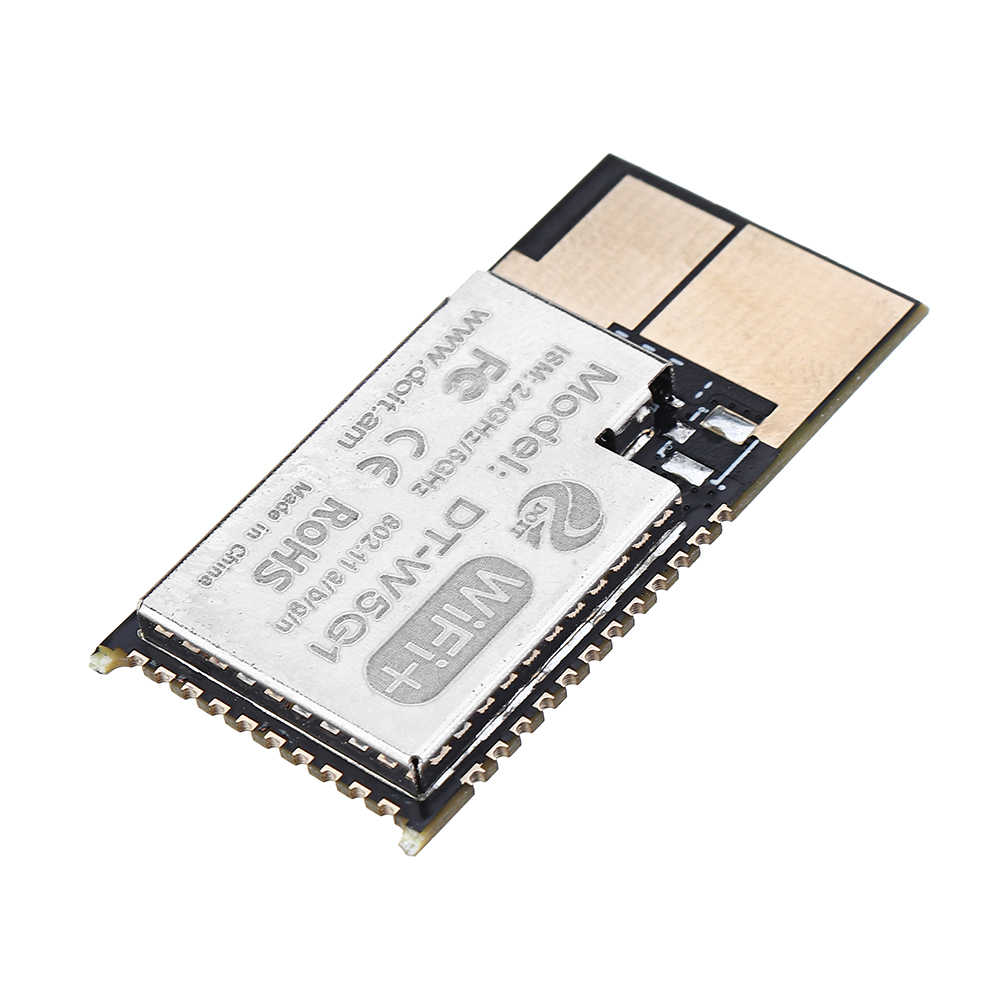

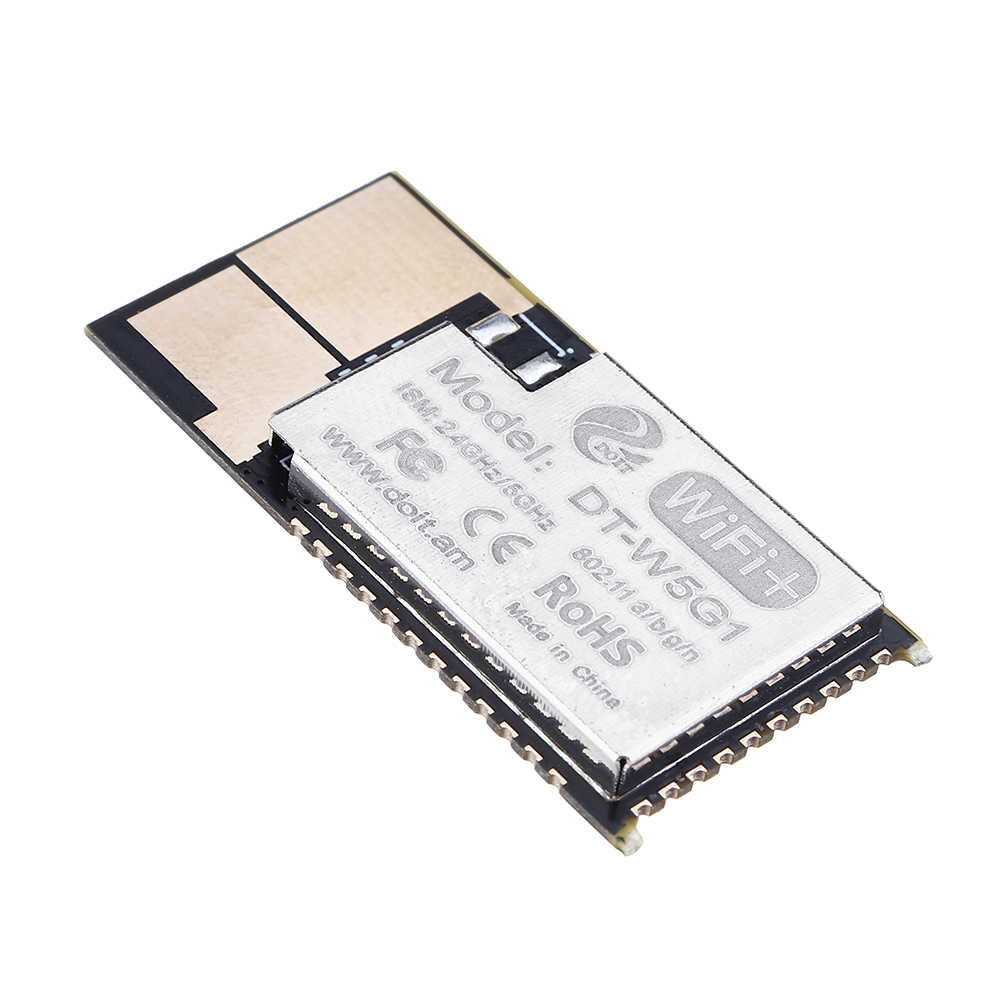

5pcs AT Firmware DT-W5G1 5G WiFi Module 2.4g/5g Dual-band Module with Antenna Interface For Wireless Image Transmission

Based on 0 reviews. - Write a review

$142.79

Ex Tax: $142.79

Stock: In Stock
Model: EB000309
Dimensions: 18.00mm x 30.00mm x 0.00mm
SKU: EB000309

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description:

SOC characteristics:

Built-in 160MHz MIPS RISC processor

512K SRAM

Communication rate: 72Mbps (20MHz)

Optimal balance & LLR quantification

Wi-Fi features:

Support 802.11 a/b/g/n, 2.4-2.5GHz, 4.9-5.85GHz

2.4GHz Rx sensitivity: -75dBm/11n HT20 MCS7, Tx Power: 21dBm

5GHz Rx sensitivity: -74dBm/11n HT20 MCS7, Tx Power: 16.5dBm

Support Station, SoftAP mode

Support Wi-Fi Direct (P2P)

Supports CCMP (CBC-MAC, counter mode), TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC

P2P discovery, P2P GO mode/GC mode and P2P power management

Seamless roaming support

Support AT remote upgrade and cloud OTA upgrade

Support Android and iOS device SmartConfig function

Module peripheral:

2xUART

3xADC

1xHSPI

1xI2C

1xI2S

2xDMA

2xPWM

Up to 23xGPIOs

2M bytes SPI Flash

Operating temperature range: -30 ° C -85 ° C

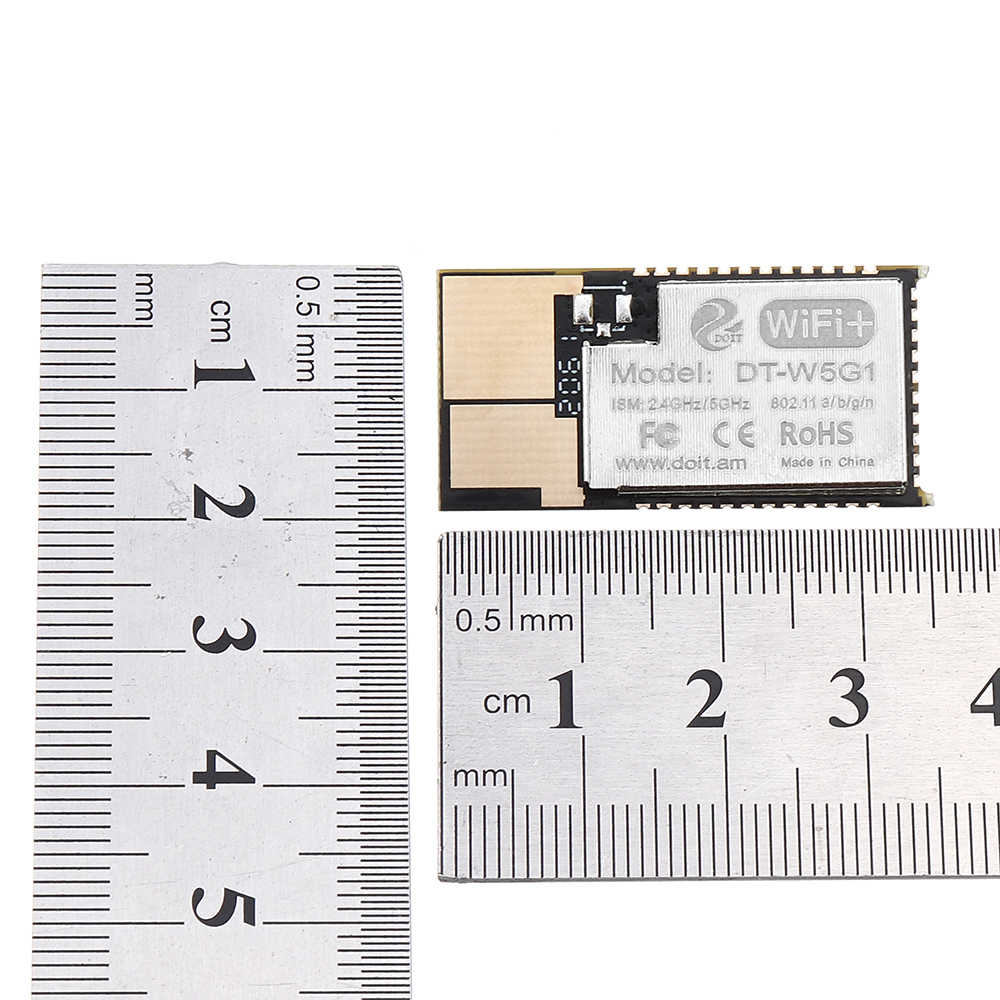

Module size: 18mm × 30mm

Application scenario:

Wireless image transmission

Home automation

Smart Home

Mesh Network

Baby monitor

IP camera

Sensor network

Wearable electronics

Security ID tag

Wireless location awareness

Wireless positioning system beacon

Industrial wireless control

Package Includes:

5 x DT-W5G1 2.4G 5G Dual Frequency Module
