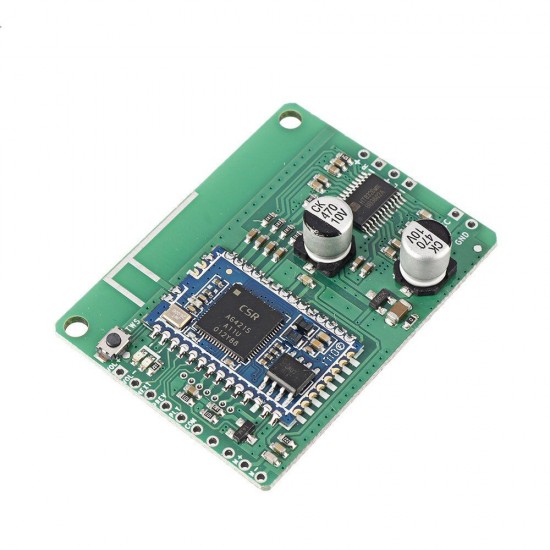

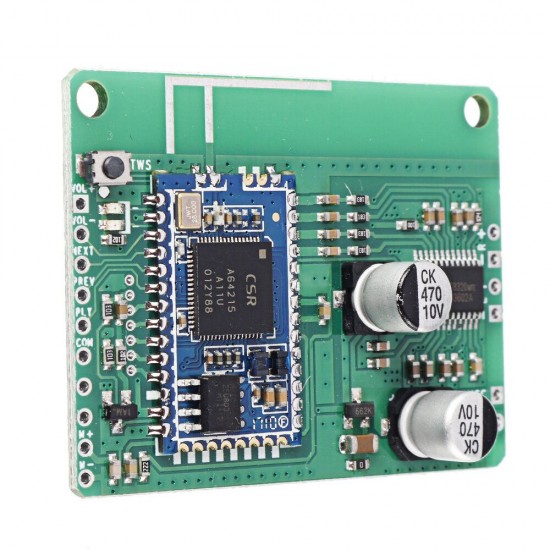

CSRA64215 bluetooth 4.2 Amplifier Audio Board 4Ohm 5W/6W/8W Power Amplificador for APTXLL TWS Sound Amplifier Speaker

Based on 0 reviews. - Write a review

$17.99

Ex Tax: $17.99

Stock: In Stock
Model: EB0051712
SKU: EB0051712

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Content-Length: 2246 >

Product description:

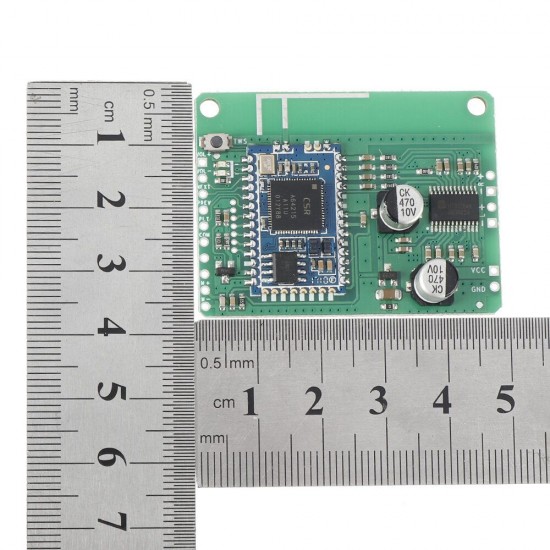

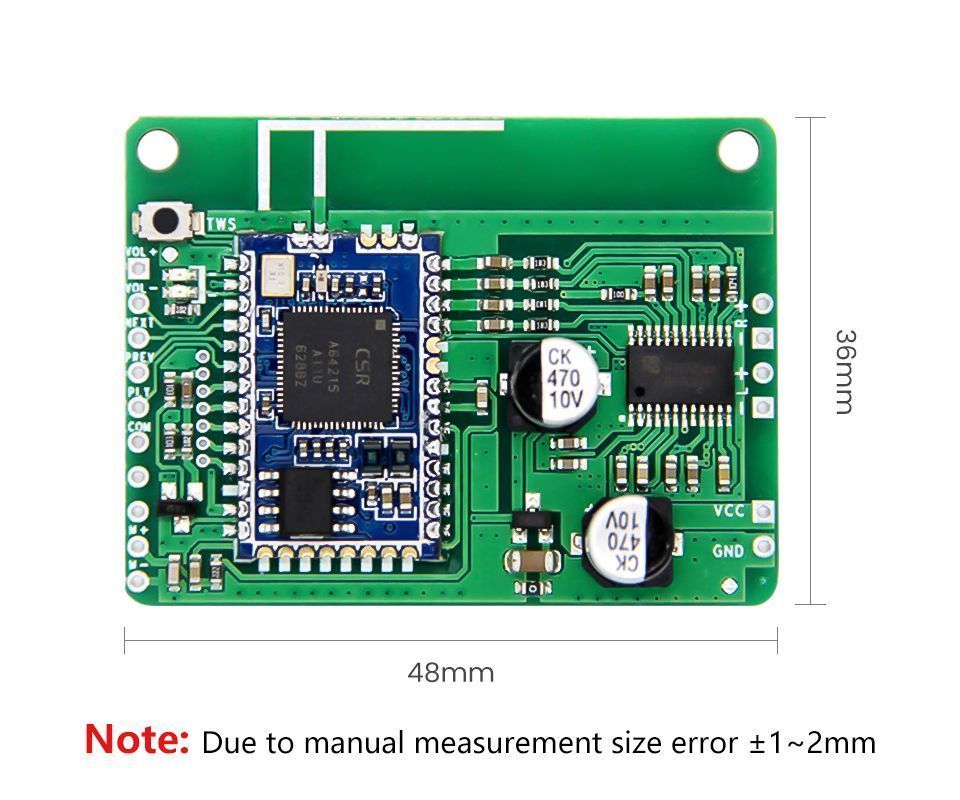

Amplifier board size: 4.8x3.6CM

Support TWS pair box (two wireless stereo speakers), with call function, CSRA64215 low power consumption, power on, default volume is maximum, self-boosted 6.5V, lithium battery powered 4 ohm 5/6 /8W speaker Binaural

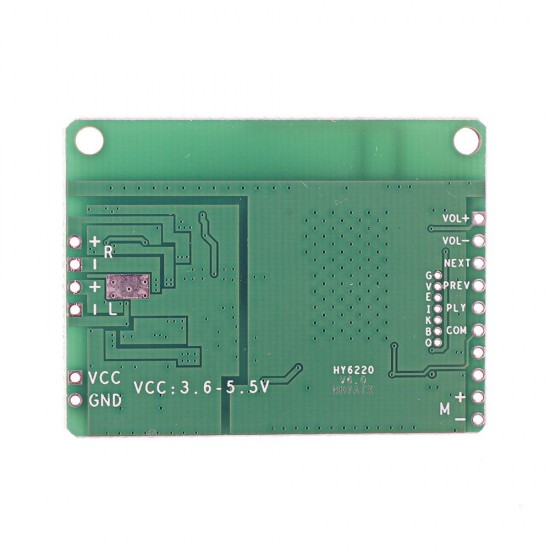

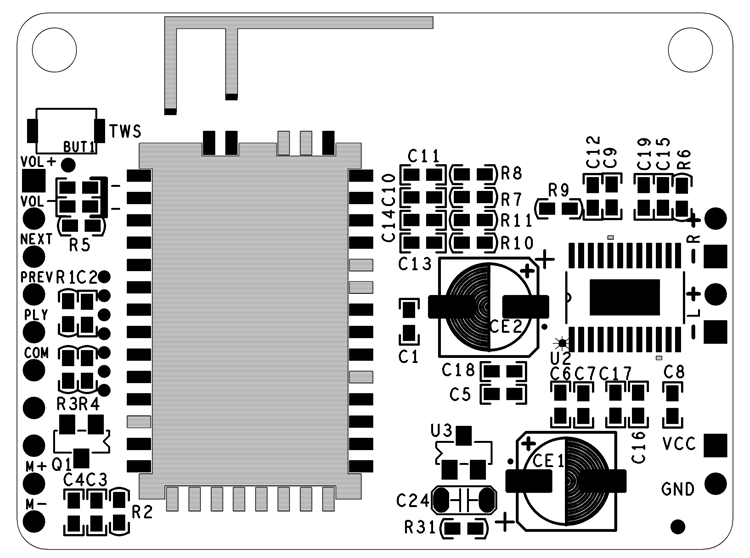

VCC, GND: 3.6-5.5V

R / L: Speaker (4 Ohm 5/6 / 8W)

COM: the common end of the button, the other end of the button is connected to VOL +, VOL-, PREV, NEXT, PLY

M +, M-: microphone (with positive and negative poles)

Key Description:

"VOL +": short press to increase the volume, long press to continuously increase the volume

"VOL-": Short press to decrease the volume, long press to continuously decrease the volume

"NEXT": short press

"PREV": Short press the previous song

"PLY": short press to play / pause / answer / hang up, long press to reject incoming call for 1 second

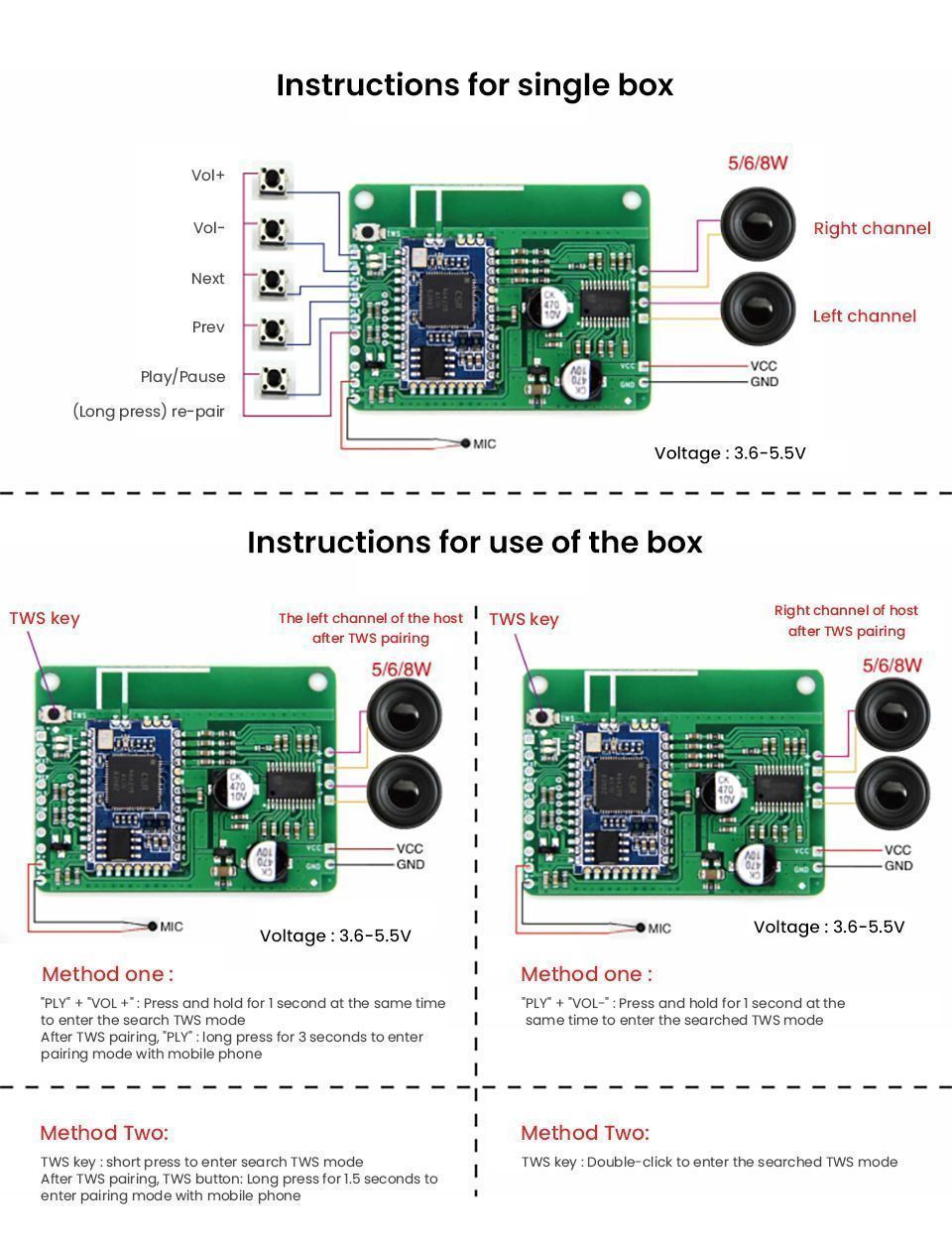

Special function description:

"PLY": long press for 3 seconds to force into pairing mode, long press for 6 seconds to clear the pairing list

"PLY" + "VOL +": Press and hold for 1 second at the same time to enter the search TWS mode

"PLY" + "VOL-": Press and hold for 1 second at the same time to enter the searched TWS mode

"VOL +" + "VOL-": long press at the same time for 1 second to disconnect TWS

Package included:

1 x Amplifier Audio Board
