CSR8675 bluetooth 5.0 Decoder Board PCM5102A Low Power for APTX/APTXLL/APTXHD Lossless I2S

Based on 0 reviews. - Write a review

$36.99

Ex Tax: $36.99

Stock: In Stock
Model: EB0041416
SKU: EB0041416

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Specification:

Type: Voltage Regulator

Model Number: CSR8675 Bluetooth V5.0 Decoder Board

Application: Computer

Supply Voltage: 3.6-5.5V

Color: Blue

Material: plastic

Amplifier board size: 5.7CMx3.3CM

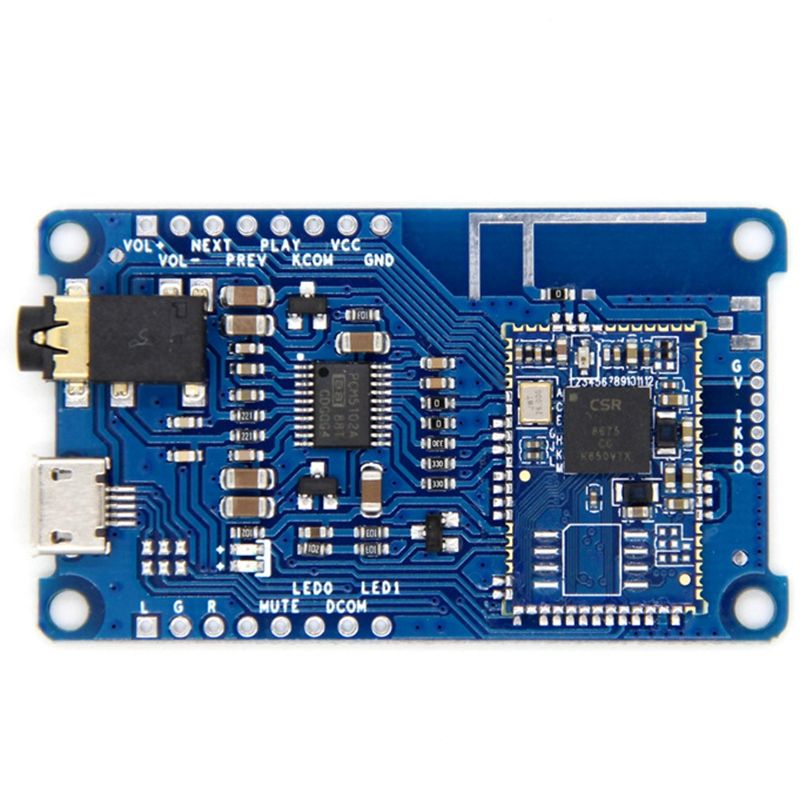

CSR8675 Bluetooth V5.0 Decoder Board

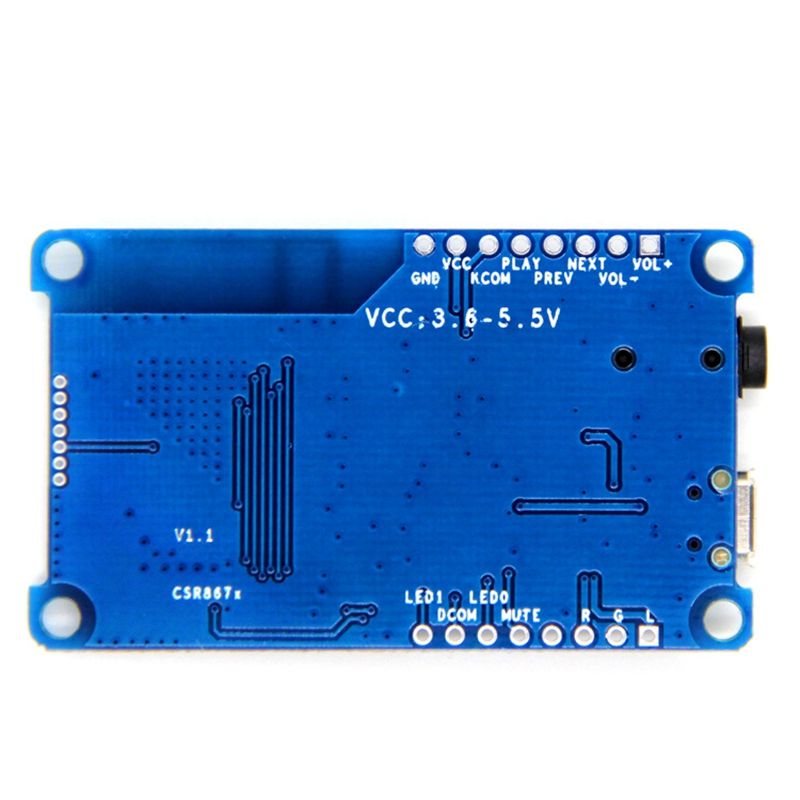

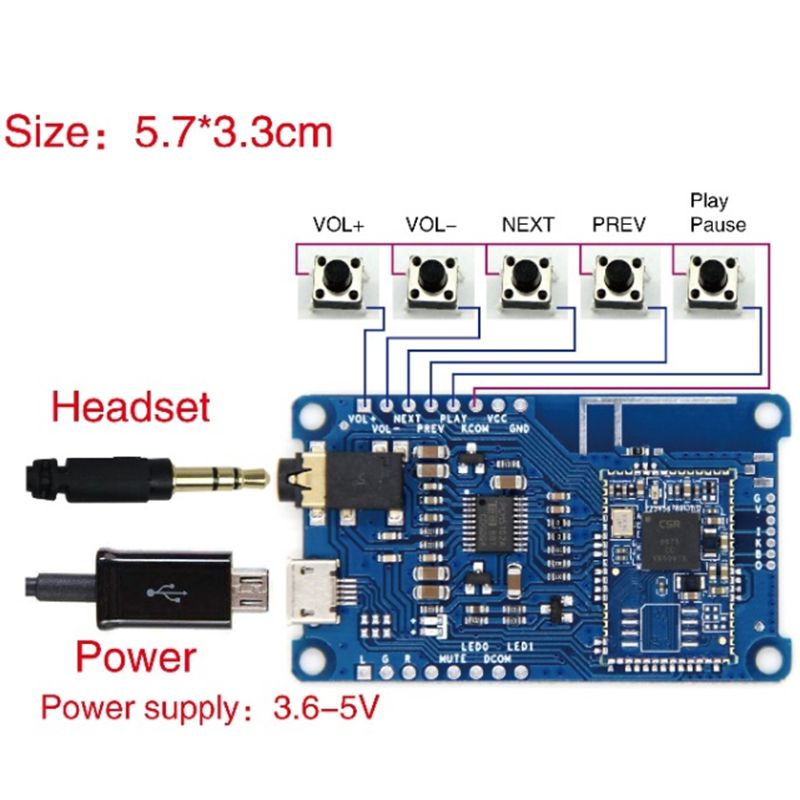

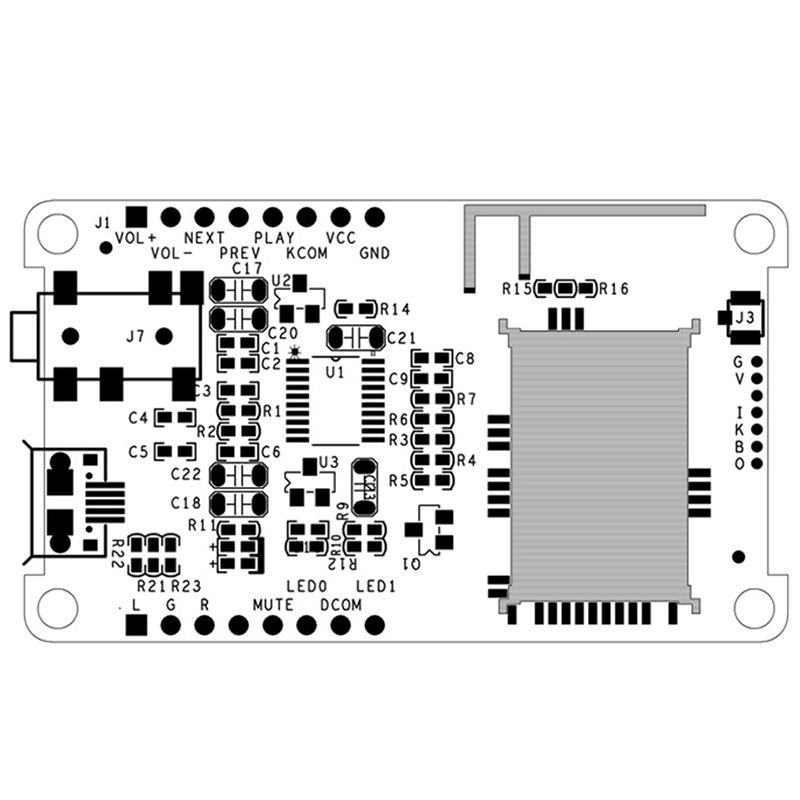

1.VCC and GND are power supply pins, L, G, R are connected to headphones

2.DCOM is the common end of the indicator light, and the other end of the indicator light is connected to LED0 and LED1 respectively

3.KCOM is the common end of the button, and the other end of the button is connected to VOL+, VOL-, PREV, NEXT, PLY

The button functions are described as follows:

"VOL+": Short press to increase the volume, long press to increase the volume

"VOL-": Short press to decrease the volume, long press to decrease the volume continuously

"NEXT": short press a song

"PREV": Short press the previous song

"PLY": Short press to play/pause/answer/hang up, long press for 1 second to reject the call

Special function description:

"PLY": Long press for 3 seconds to force enter pairing mode, long press for 6 seconds to clear the pairing list

For APTX, for APTX-LL, for ATTX-HD decoding

Package Included:

1 x CSR8675 Bluetooth V5.0 decoder board
