CSR8635 Bluetooth Module 4.0 Bluetooth Stereo Audio Receive Board Speaker Module

Based on 0 reviews. - Write a review

$5.39

Ex Tax: $5.39

Stock: In Stock
Model: EB0045376
SKU: EB0045376

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

>>>Manual: Click here to open<<<

Overview:

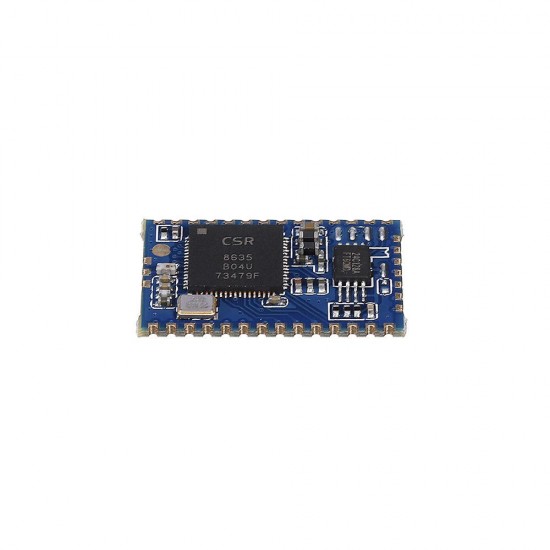

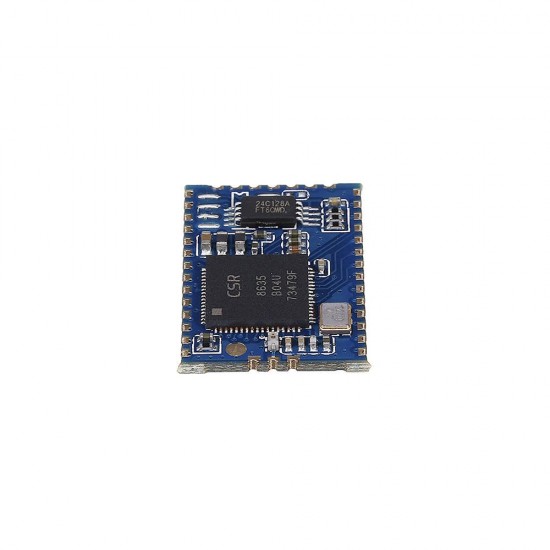

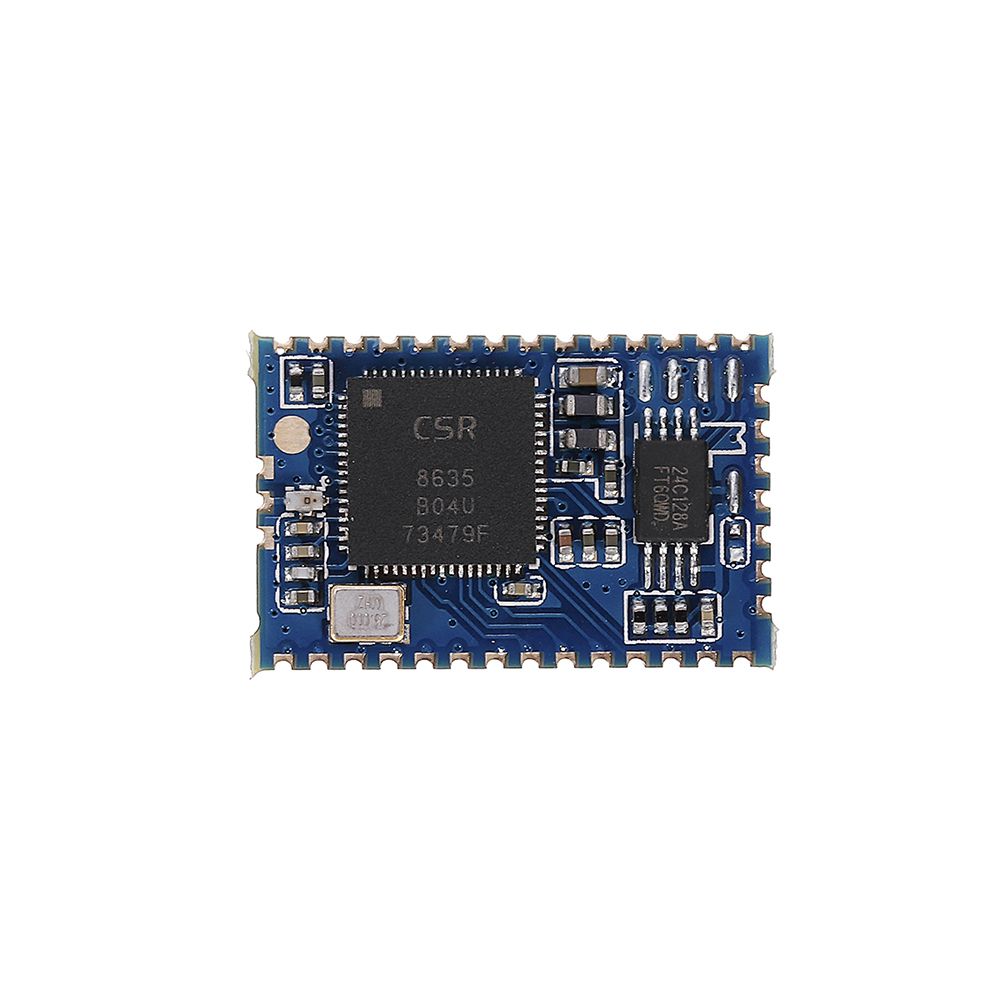

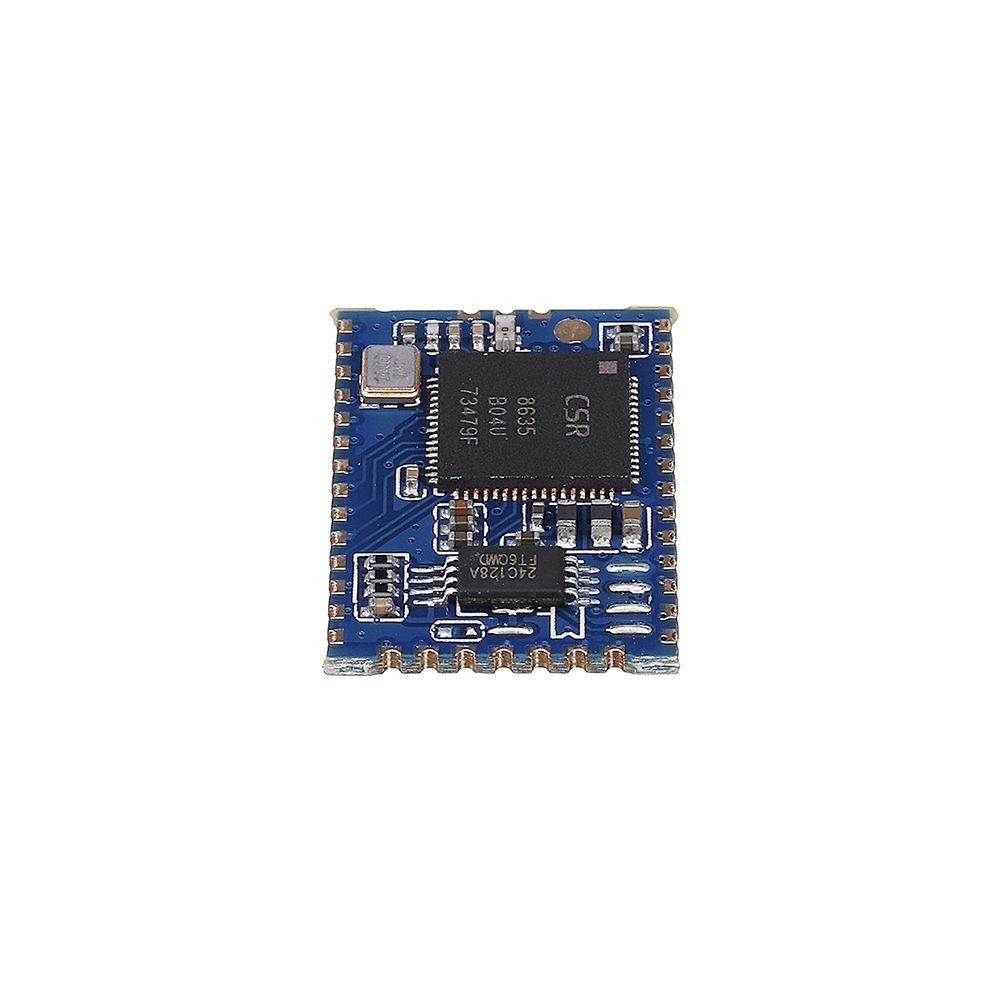

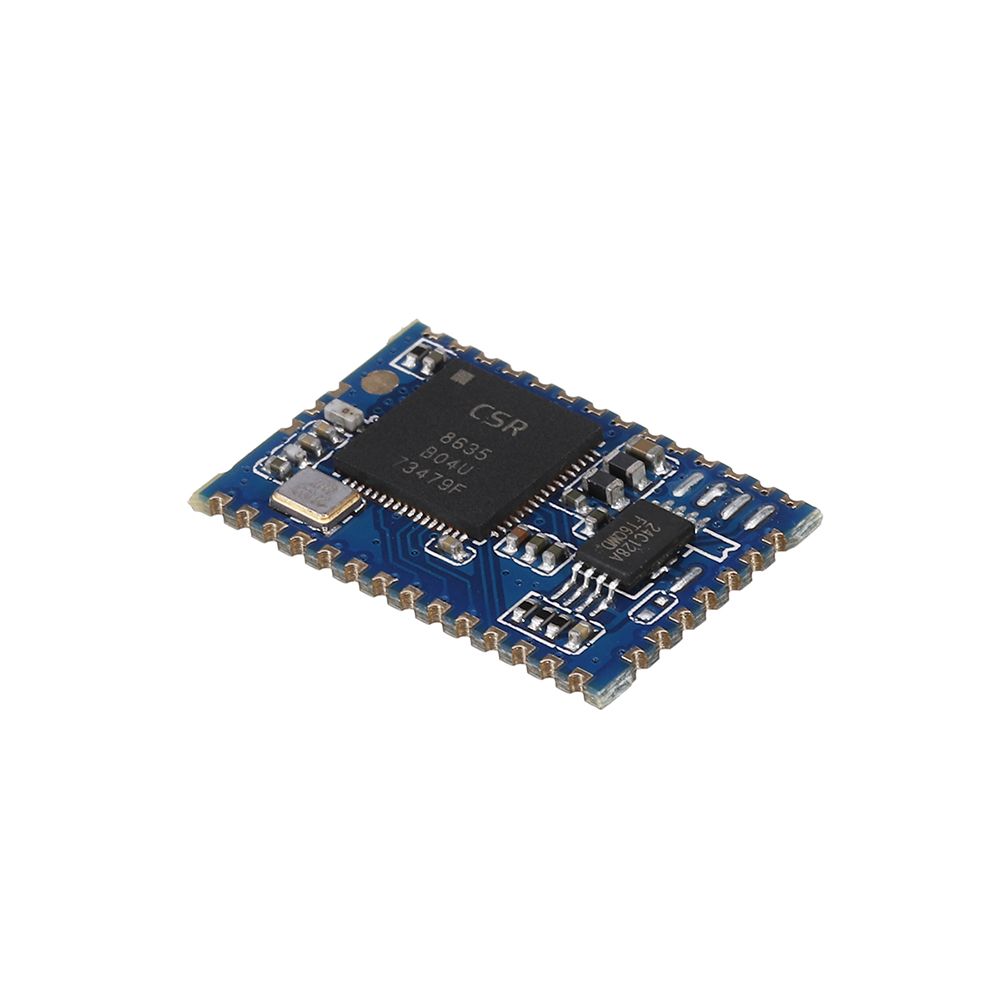

The BT835 is a Bluetooth module based on the C S R BC8 chip BC8635. It integrates almost all Bluetooth peripheral components and optimizes the RF and audio performance of the module, providing an easy-to-use solution for Bluetooth product design. Mainly targeted at Bluetooth stereo applications, such as Bluetooth speakers, Bluetooth car kits, Bluetooth headsets, etc.

Features:

■ High integration, cost-effective, low power consumption

■ Support A2DP, AVRCP, HSP, HFP and other protocol frameworks

■ Compliant with Bluetooth v4.0 specification

■ Highly replaceable, fully compatible with the Bluetooth modules of our other Bluetooth chips, no need to change the design to directly replace

■ 3/5 button inputs (switching / pairing / answering / hanging, play / pause, volume +, volume -, previous, next)

■ Built-in DSP can realize echo cancellation, environmental noise elimination, EQ adjustment sound effects, etc.

■ Module own antenna, good RF distance and consistency

■ 128K EEPROM

■ USB sound card function

■ AUX-IN input switching function

Application field

■ Stereo Bluetooth Headset

■ Stereo Bluetooth Speaker

■ Bluetooth car handsfree

Notes:

1. This module is a semi-finished module, you need to configure the peripheral circuit to use, do not directly wire the wire on the module.

2. The audio output of the module is a differential output. It cannot be directly connected to the power amplifier. It needs to be converted into a non-differential signal.

3. There are two kinds of software for the module, one is the button to boot (soft boot), suitable for battery-powered occasions; the other is to power on (hard boot), suitable for occasions with ordinary power supply, please note With that kind of software, there is no default burning power-on software.

4. Module soldering requires a certain knowledge of soldering iron technology and electronic technology.

5. The module's IO can only withstand a voltage of 1.8V, and there is a possibility of burning the module over 1.8V. Please pay attention.

6. The Bluetooth module is sensitive to static electricity and leakage. Please use a constant temperature soldering iron and ensure that the soldering iron is reliably grounded. Otherwise, the module may be broken.

Package Included:

1 x CSR8635 Bluetooth Module
