COM.LoRaWAN Module ESP32 Development Communication Module 868MHz ASR6501 Support LoRa

Based on 0 reviews. - Write a review

$35.99

Ex Tax: $35.99

Stock: In Stock
Model: EB0042605
SKU: EB0042605

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Precise details:

Description:

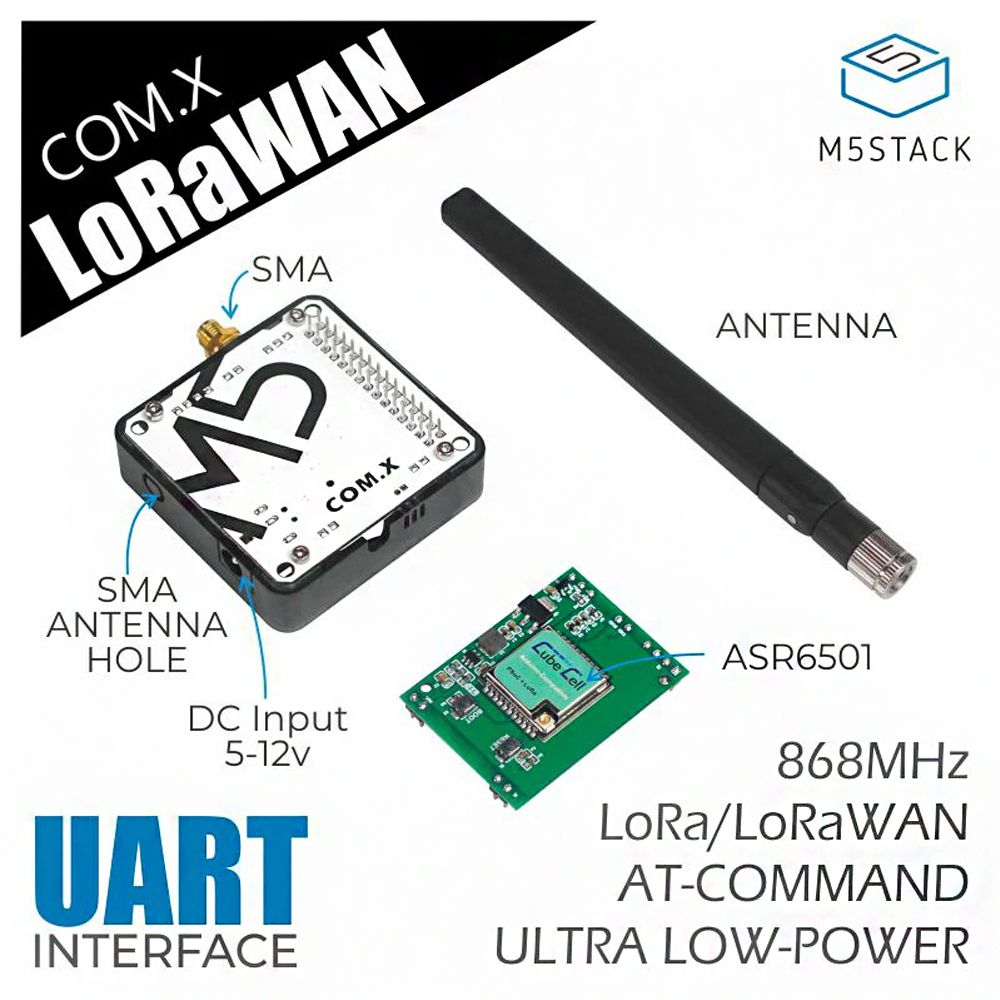

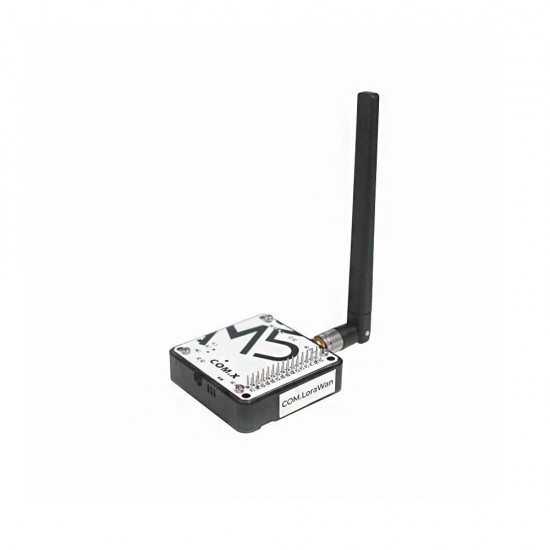

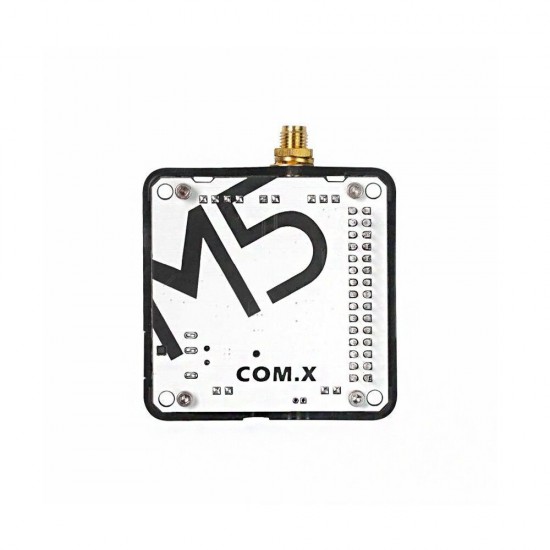

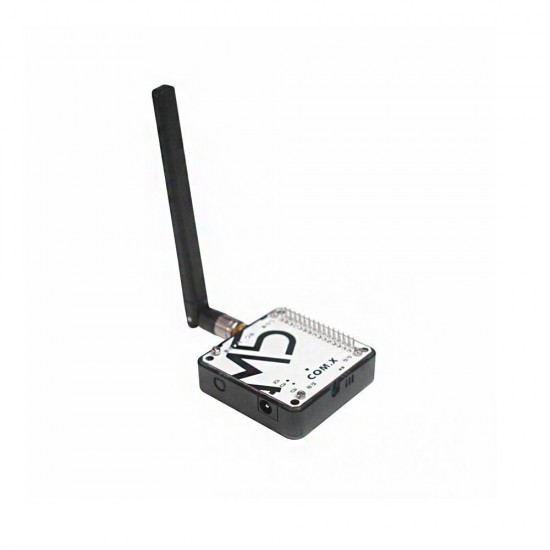

COM.LoRaWANis a LoRaWAN communication module in the M5Stack stackable module series, supporting node-to-node or LoRaWAN communication. The LoRaWAN module based on ASR6501 encapsulates the PSoC4000 and SX1262 chips, supports the 868MHz frequency band, is based on an ultra-low power design, and consumes very low current (3.5μA) in deep sleep mode. In order to facilitate the user to configure the pins, the DIP switch is used to set the hardware serial port pins. The user only needs to switch the corresponding pins to ON as needed and specify the pins in the program. A DC power socket is designed under the module, which can be powered by an external power supply, and an external antenna can be used to obtain better signal quality. This module is especially suitable for remote low-power transmission application scenarios with ultra-low power consumption and ultra-small size as the core requirements. Since LoRa defines the lower physical layer, the upper networking layers were lacking. LoRaWAN was developed to define the upper layers of the network. LoRaWAN is a media access control (MAC) layer protocol but acts mainly as a network layer protocol for managing communication between LPWAN gateways and end-node devices as a routing protocol,maintained by the LoRa Alliance.You can upgrade your work with a LoRa / LoRaWAN radio, so it can communicate over very long distances and extremely low power consuming.

COM.LoRaWAN serial port settings baud rate: 115200, stop bit: 1, data bit: 8, parity bit: none, terminator: none

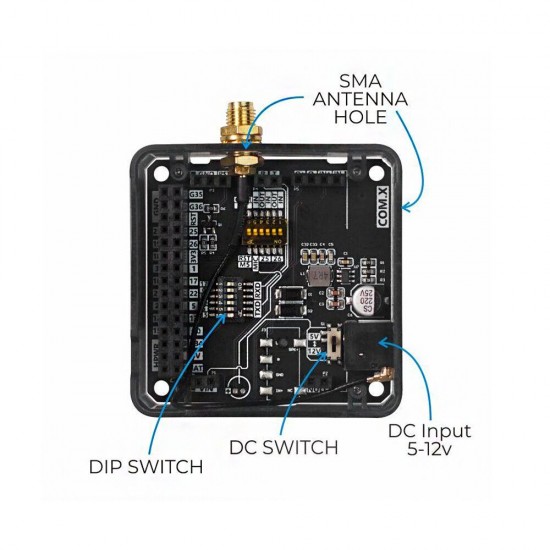

COM.LoRaWAN RXD/TXD can be connected to M5Stack's UART (TX(0/13/17)RX(5/15/16)) by setting the DIP switch. Since these GPIO in M5Stack Fire 16/17 are connected to PSRAM by default. It is recommended to use any set of UART pins in the remaining two groups.

The DIP switch on the right is invalid for the LoRaWAN module, no need to set.

Features:

- Stackable design

- Support LoRa/LoRaWAN

- Module: Based on ASR6501

- Frequency Baud:868MHz(EU868)

- Radio IC: SX1262

- MasterChip:PSoC® 4000 series MCU (ARM® - Cortex® M0+ Core)

Interface: UART

Protocol：AT Command

- Compatible Arduino

- Ultra-low power design

Package Included:

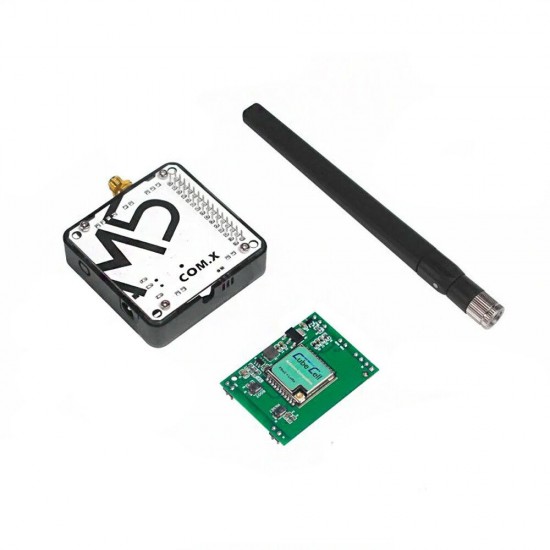

- 1x LoRaWAN Module

- 1x SMA antenna

Applications:

- Automatic meter reading

- Home building automation

- Remote irrigation system

Main countries and regions supported by EU868

Austria/Belgium/Czech Republic/Denmark/Finland/France/Germany/Italy/Netherlands/Sweden/UK/Angola/Andorra/Bulgaria/Estonia/India/Malta/Philippines/Portugal/Russia/Spain/Switzerland/Zambia

Specification:

Specification	Parameter
Frequency Baud	868MHz
Communication	UART
Protocol	AT Command
Net weight	40g
Gross weight	75g
Product Size	54.254.213.2mm
Package Size	605717mm

EasyLoader: Click to download

EasyLoader is a concise and fast program writer, which has a built-in program related to the product. It can be burned to the main control by simple steps to perform a series of function verification. Please install the corresponding driver according to the device type. M5Core host Please click here to view the CP210X driver installation tutorial: https://docs.m5stack.com/en/arduino/arduino_development, M5StickC/V/T/ATOM series can be used without driver)

PinMap:

HTCC-AM01_UART	ESP32 Chip
RXD	TXD(GPIO0/13/17)
TXD	RXD(GPIO5/15/16)

MBUS PinMap: Click to open: http://myosuploads3.banggood.com/products/20200819/2020081922275041190.jpg

Related Link:

LoRaWAN AT Command

LoRaWAN Area parameters

Schematic: Click to open: http://myosuploads3.banggood.com/products/20200819/202008192229031.jpg

Example:

Arduin IDE

Click here to get Arduino example: https://github.com/m5stack/M5-ProductExampleCodes/tree/master/Module/COM_LoRaWAN/Arduino

UIFlow

Click here to download: https://github.com/m5stack/M5-ProductExampleCodes/tree/master/Module/COM_LoRaWAN/UIFlow
