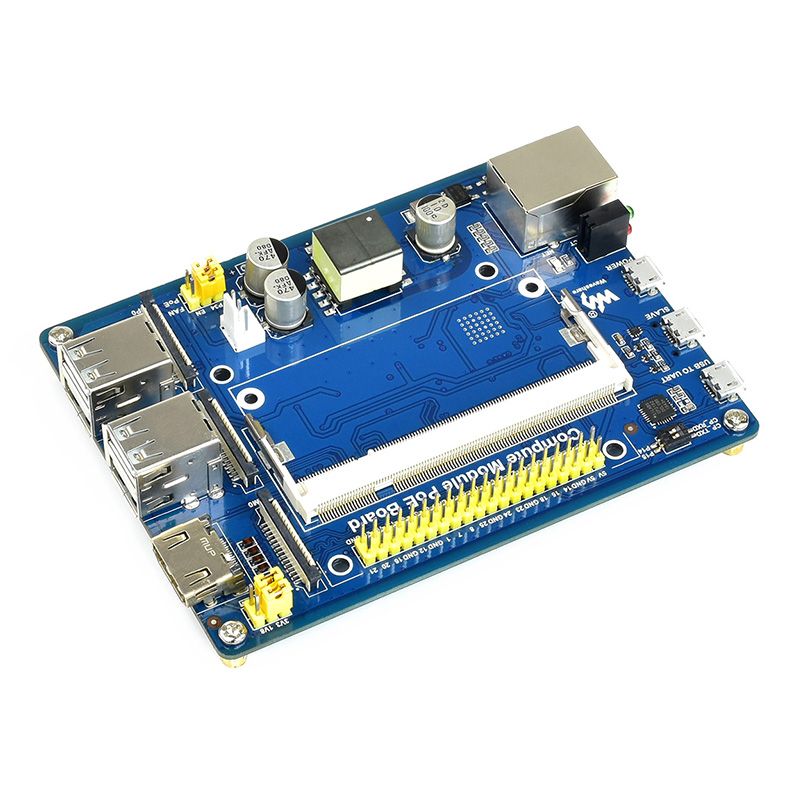

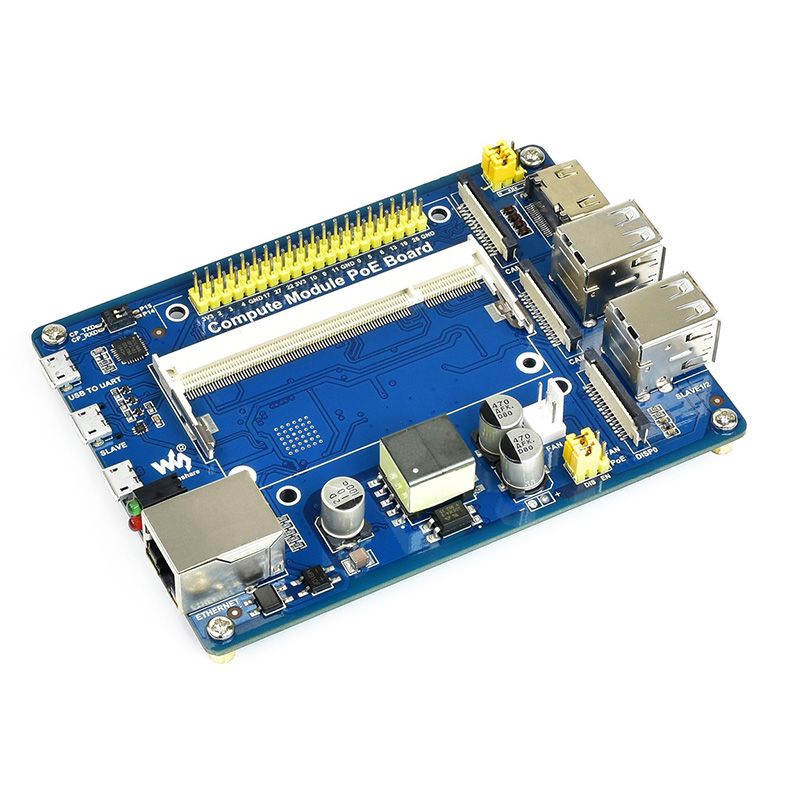

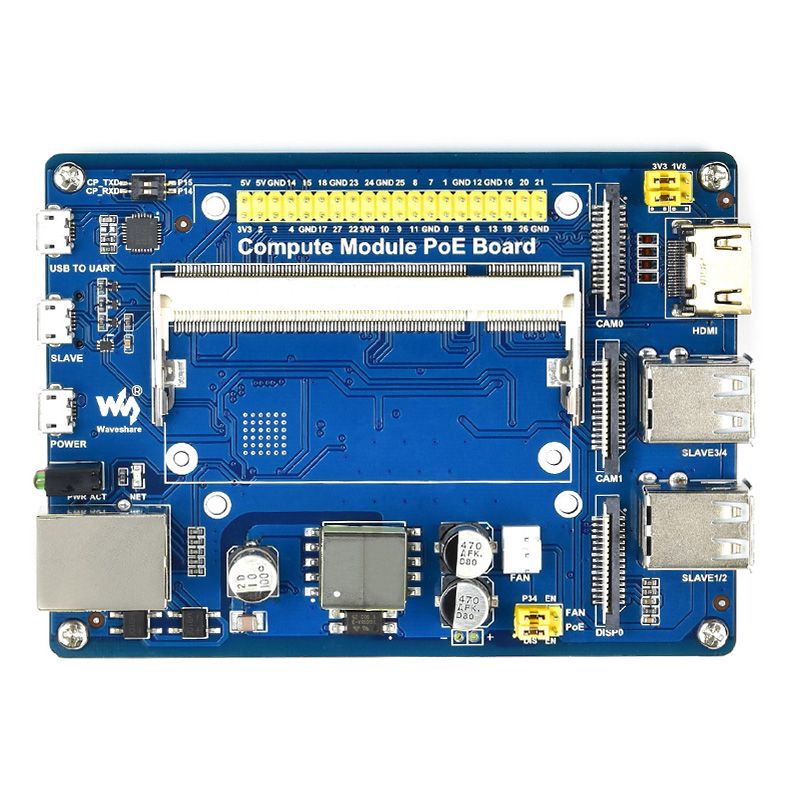

C2700 CM3/3Lite/3/3+ Calculate Module Base With POE Multi-Port Expansion Board for Raspberry Pi
- Stock: In Stock
- Model: EB0048357
- SKU: EB0048357
Onboard for Raspberry Pi GPIO interface for easy access to the Raspberry Pi expansion board.
Onboard 10/100M adaptive Ethernet port with PoE Power over Ethernet.
Onboard HDMI, DSI interface for easy access to the display.Onboard USB TO UART for easy serial port debugging.
Onboard cooling fan interface for power-up operation or pin programming contro
Expansion board based on Compute Module 3/3 Lite/3+/3+ Lite. It supports PoE Power over Ethernet and has a variety of peripheral interfaces on the board. Power supply: Micro-USB power interface or PoE Ethernet interface
color: blue
Material: PCB
PoE power input: 37V ~ 57V DC input
PoE power output: 5V 2.5A DC output
Network standard: support 802.3af PoE network standard

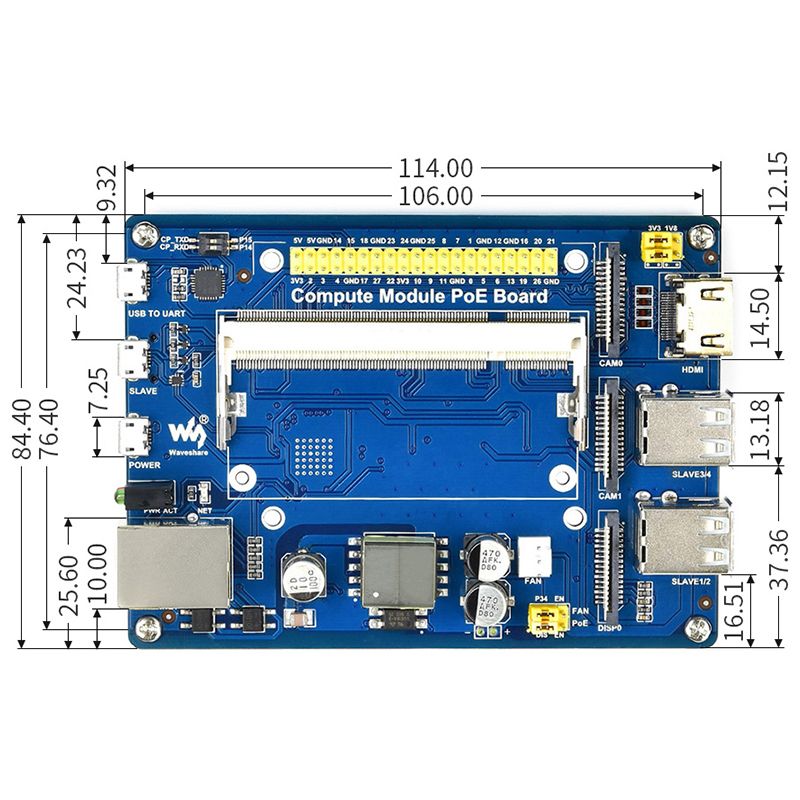

Product size: 114mm x 84.4mm
Through hole diameter: 3.2mm

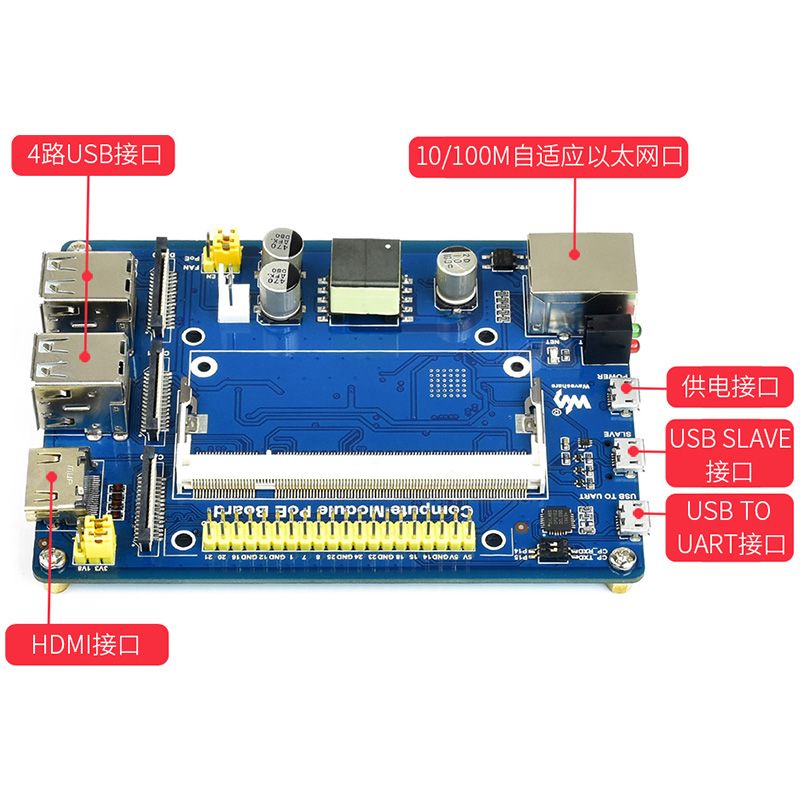

Introduction to the core interface
Compute Module interface

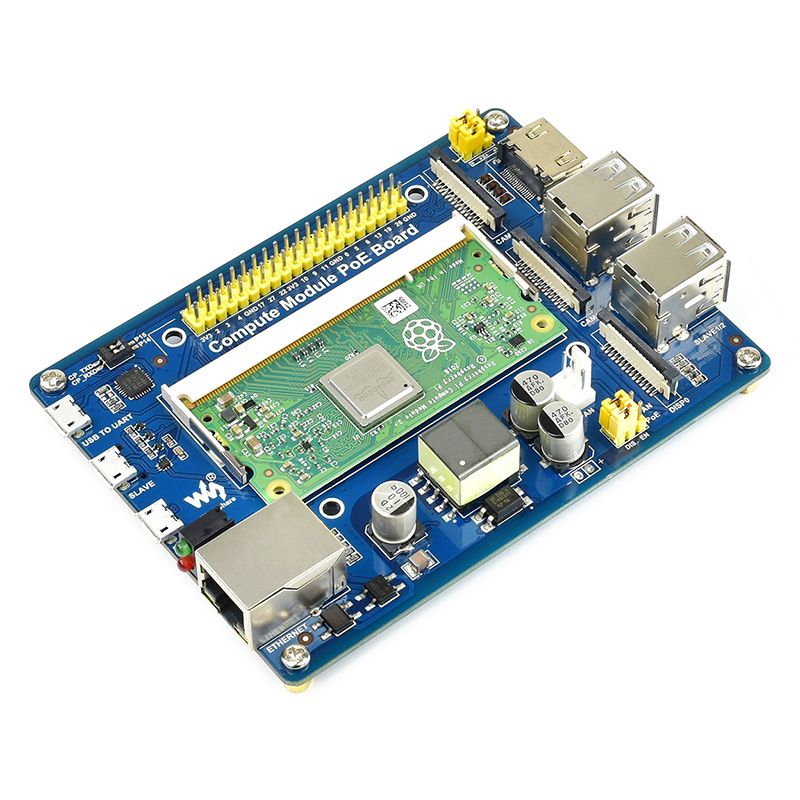

Access to Compute Module 3/3 Lite/3+/3+ Lite
Access to a variety of Raspberry Pi HAT
Ethernet interface with PoE function
10/100M adaptive, can access PoE-enabled routers or switches

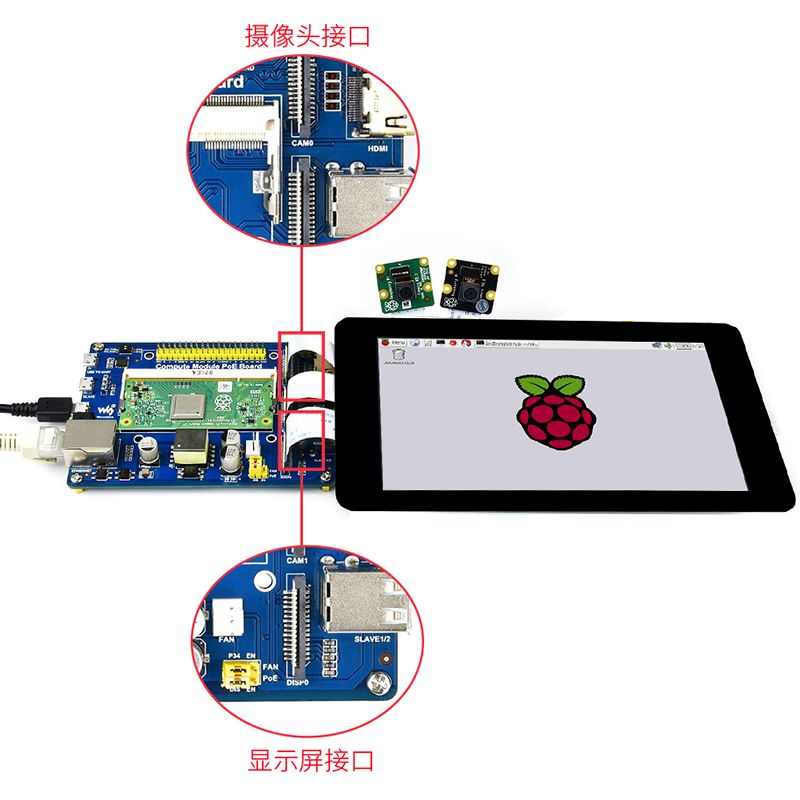

DSI display interface
USB interface
4-channel USB interface for access to a variety of USB devices
CSI camera interface
2-way CSI interface for access to Raspberry Pi Camera
HDMI interface
Access to a variety of HDMI devices
USB TO UART interface
Convenient for serial port debugging
USB SLAVE interface
Compute Module 3/3+ can burn system ies through this interface
Power interface
General access to 5V 2.5A power supply

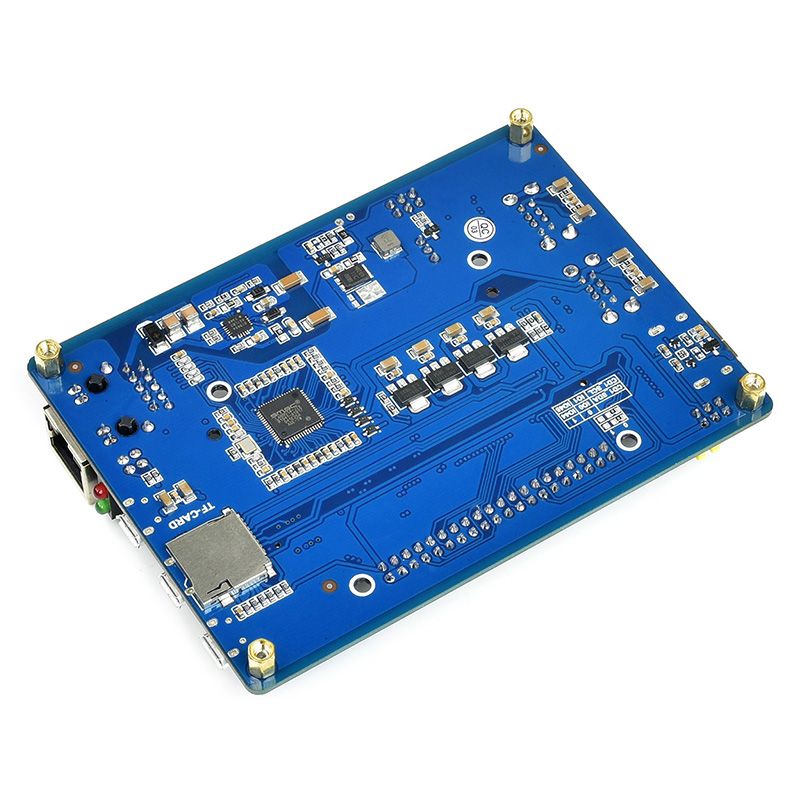

TF card interface (back)
Used to access the Micro-SD card with system to start Compute Module 3 Lite/3+ Lite
Fan interface
Easy access to the cooling fan
Device Introduction
LA14 (back)
Chip with integrated 10/100M Ethernet and USB hub function
Si3404 PoEPower Management IC (back)
CP2102 USB to serial port chip
EP13 PoE power transformer
Package Included:
1* Computing Module Expansion Board
