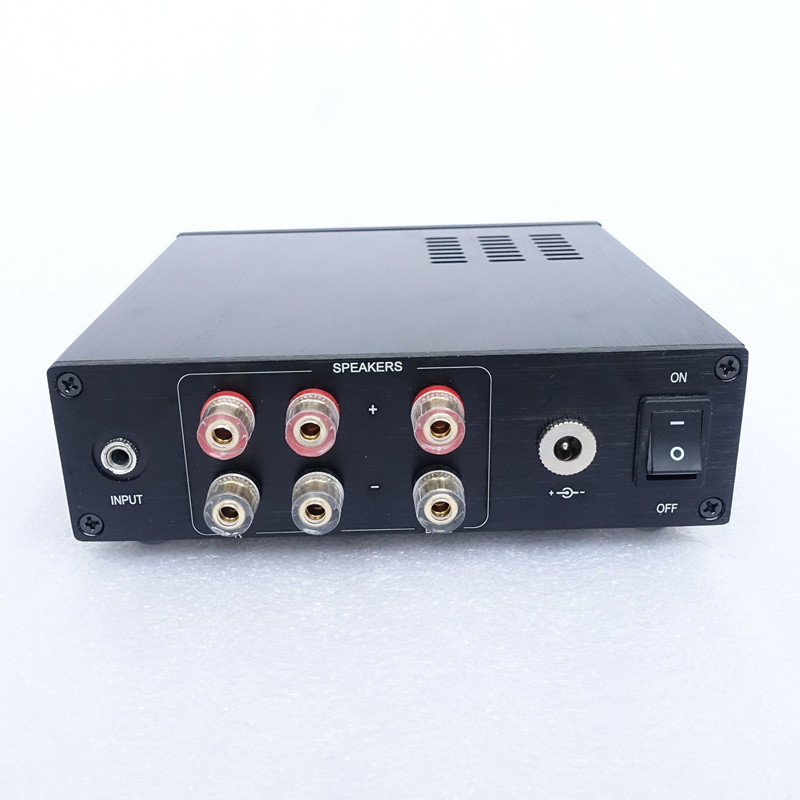

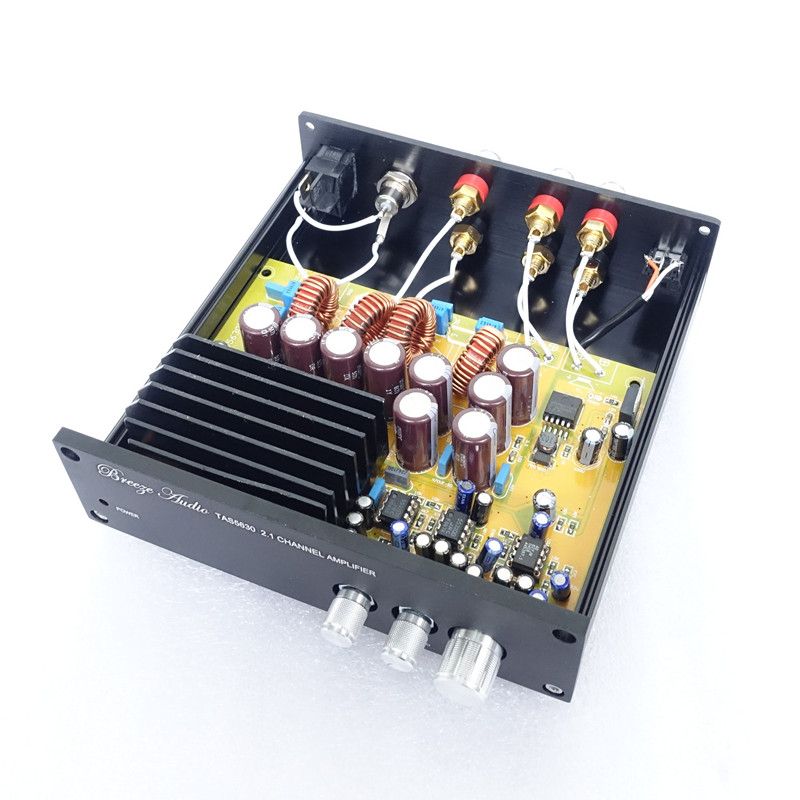

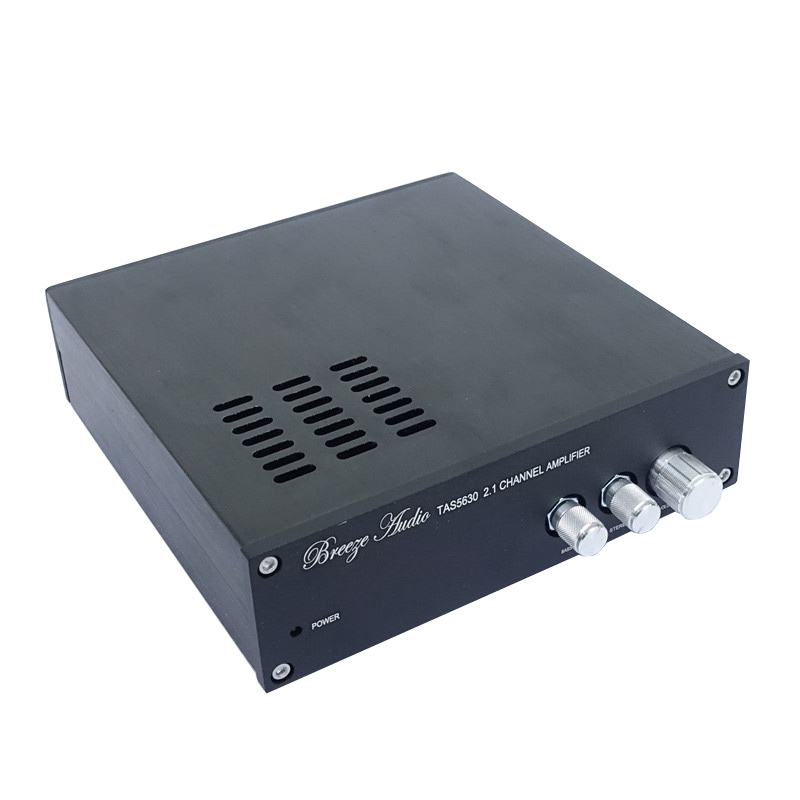

Audio SL1 TAS5630 2.1CH 2CH 2x150W+300W Class D HIFI Lossless Amplifier

Audio SL1 TAS5630 2.1CH 2CH 2x150W+300W Class D HIFI Lossless Amplifier
Audio SL1 TAS5630 2.1CH 2CH 2x150W+300W Class D HIFI Lossless Amplifier
Audio SL1 TAS5630 2.1CH 2CH 2x150W+300W Class D HIFI Lossless Amplifier
Audio SL1 TAS5630 2.1CH 2CH 2x150W+300W Class D HIFI Lossless Amplifier
Audio SL1 TAS5630 2.1CH 2CH 2x150W+300W Class D HIFI Lossless Amplifier
Audio SL1 TAS5630 2.1CH 2CH 2x150W+300W Class D HIFI Lossless Amplifier
Audio SL1 TAS5630 2.1CH 2CH 2x150W+300W Class D HIFI Lossless Amplifier
$66.94
Ex Tax: $66.94
  • Stock: In Stock
  • Model: EB0018630
  • SKU: EB0018630
Specifications:

Chip: TAS5630
Max output: 300W+150W+150W (under 48V DC 4ohm)
THD+N: <1%
SNR: >100dB
Impedance: 20KΩ
SR: 50V/us
Frequency: 20Hz - 20KHz
Input: 3.5mm Jack
Voltage: DC20 - DC50V
Power interface: 5.5 x 2.1mm
Size: 146 x 42 x 148mm

Bass:

DC=50V, R=4Ω,THD+N=10%, P=300W
DC=50V, R=6Ω,THD+N=10%, P=210W
DC=50V, R=8Ω,THD+N=10%, P=160W
DC=50V, R=4Ω,THD+N=1%, P=240W
DC=50V, R=6Ω,THD+N=1%, P=160W
DC=50V, R=8Ω,THD+N=1%, P=125W

Package Included:

1 x Breeze Audio SL1 Amplifier
