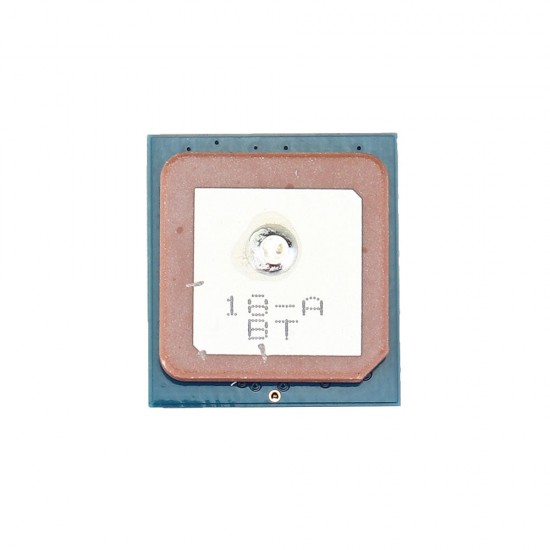

Dual BN-220 GPS GLONASS Antenna Module TTL Level RC Drone Airplane

Based on 0 reviews. - Write a review

$17.59

Ex Tax: $17.59

Stock: In Stock
Model: EB000404
Dimensions: 22.00mm x 20.00mm x 6.00mm
SKU: EB000404

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Description ^{User Manual}

Dimension :　22mm*20mm*6mm

Weight : 5.3g

Connector : 1.00mm spacing between the 4pins patch seat

Specification

Electrical Characteristics

Chipset : 8030-KT

Receiving Format :　GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS

Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1

Channels : 72 Searching Channel

Sensitivity

Tracking : -167dBm

Reacquisition : -160dBm

Cold start : -148dBm

Hot start : -156dBm

Accuracy

Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky)

Rate : 0.1m/sec 95% (SA off)

Timing : 1us synchronized to GPS time

Acquisition Time

Cold Start : 26s

Warm start : 25s

Hot start : 1s

Data and Update Rate

Support Rate : 4800bps to 921600bps,Default 9600bps

Data Level : TTL or RS-232,Default TTL level

Data Protocol : NMEA-0183 or UBX, Default NMEA-0183

Single GNSS : 1Hz-18Hz

Concurrent GNSS : 1Hz-10Hz,Default 1Hz

Operational Limits

Altitude : 50,000m Max

Rate : 515m/s Max

Acceleration : Less than 4g

Power consumption

VCC : DC Voltage 3.0V-5.5V,Typical: 5.0V

Current : Capture 50mA/5.0V

Operating temp :　-40 °C ~ +85°C

Storage Temp : -40°C ~ +105°C

Indicator :

TX LED:blue.The data output, TX LED flashing

PPS LED:red.PPS LED not bright when GPS not fixed,flashing when fixed

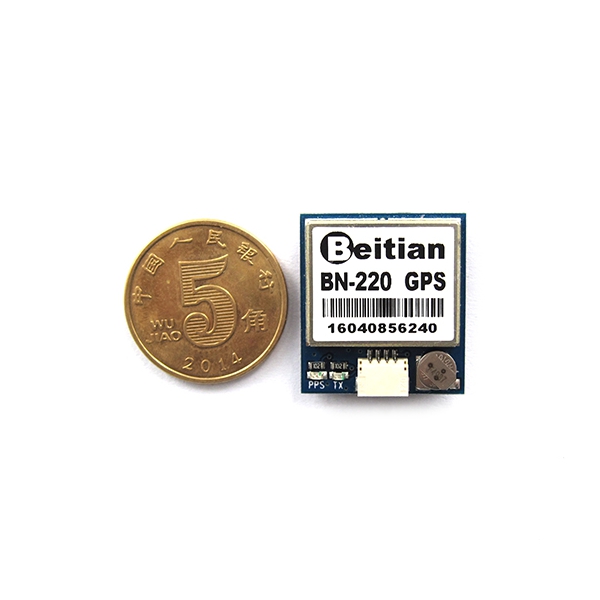

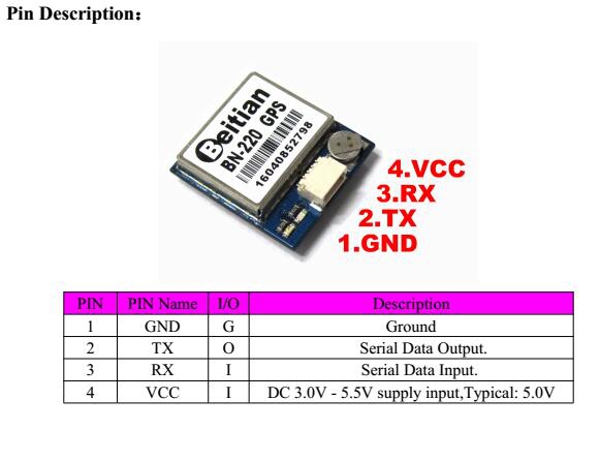

Wiring:

GND,TX output,RX input,VCC(3.0v-5.5v)

Package Included

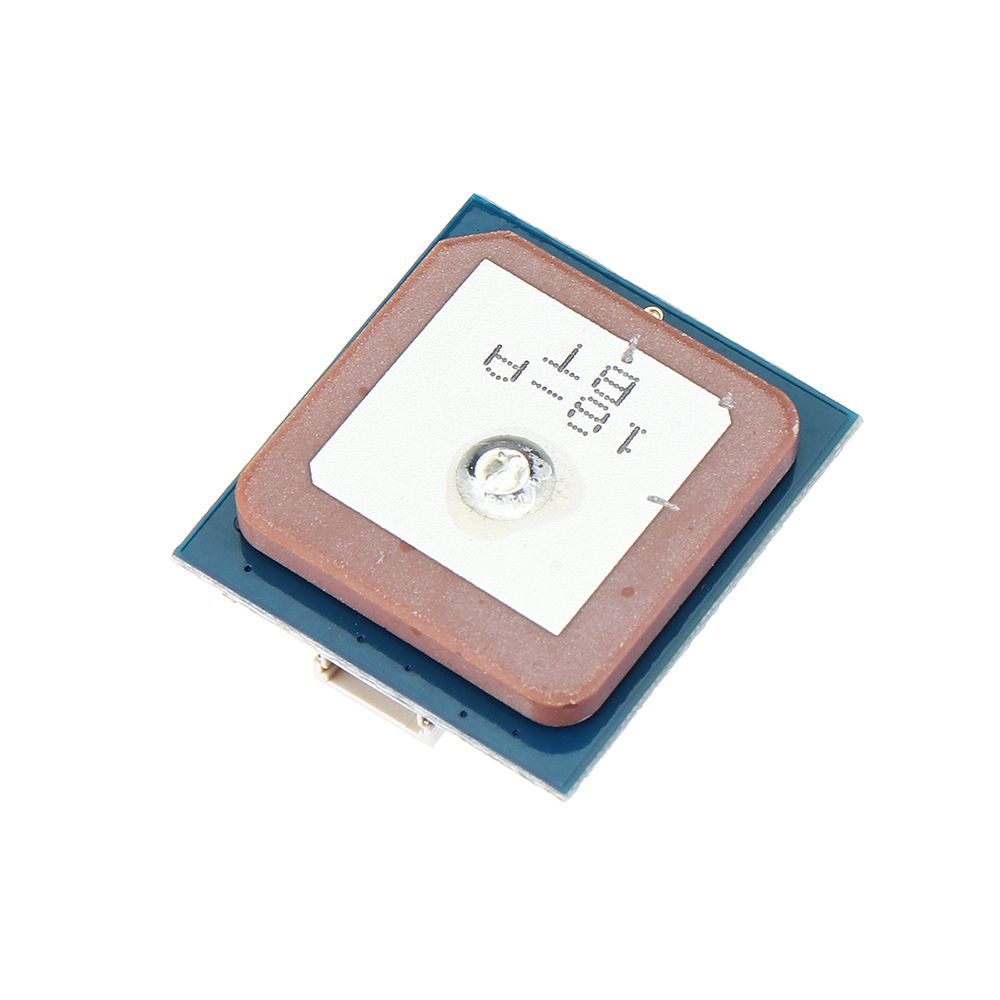

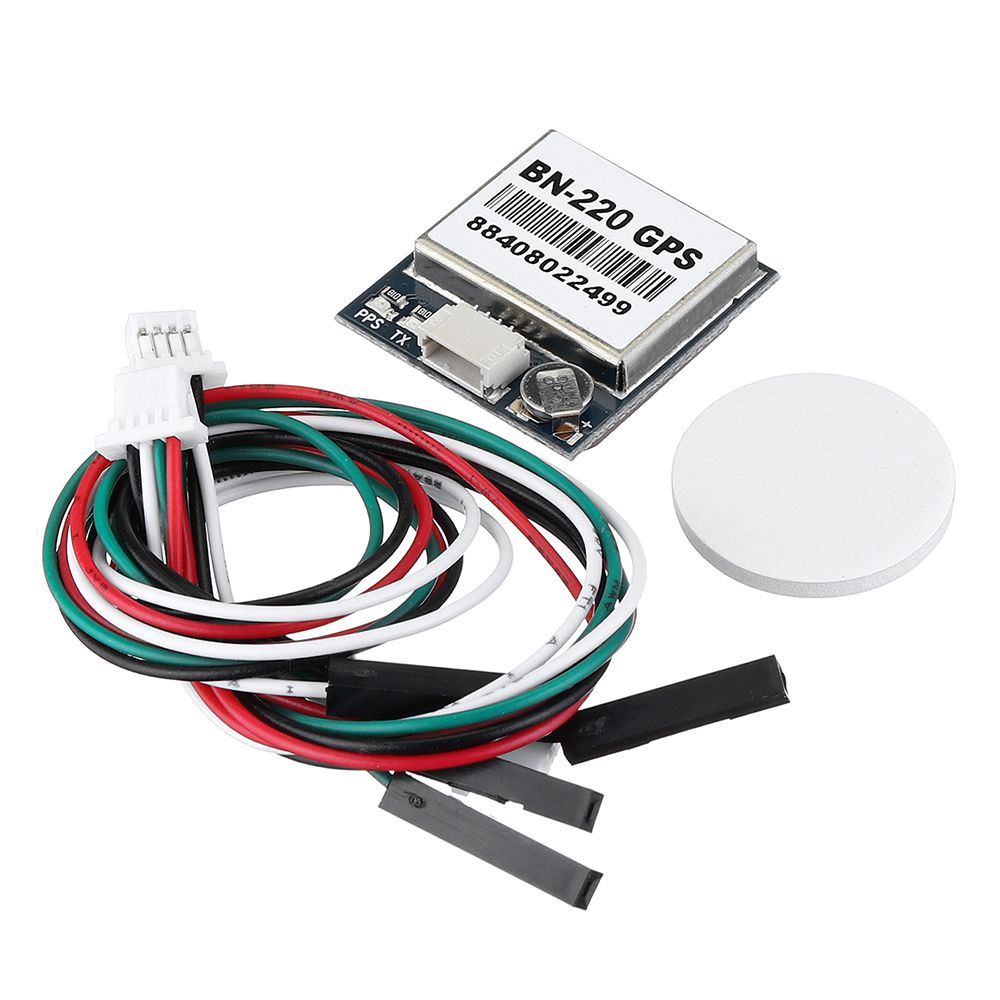

1 x BN-220 GPS Module

2 x 15cm Cable
