Barcode QR Code Computer Scanning Recognition Module Support PDF417/Data Matrix Scanner

Based on 0 reviews. - Write a review

$54.99

Ex Tax: $54.99

Stock: In Stock
Model: EB0042544
SKU: EB0042544

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

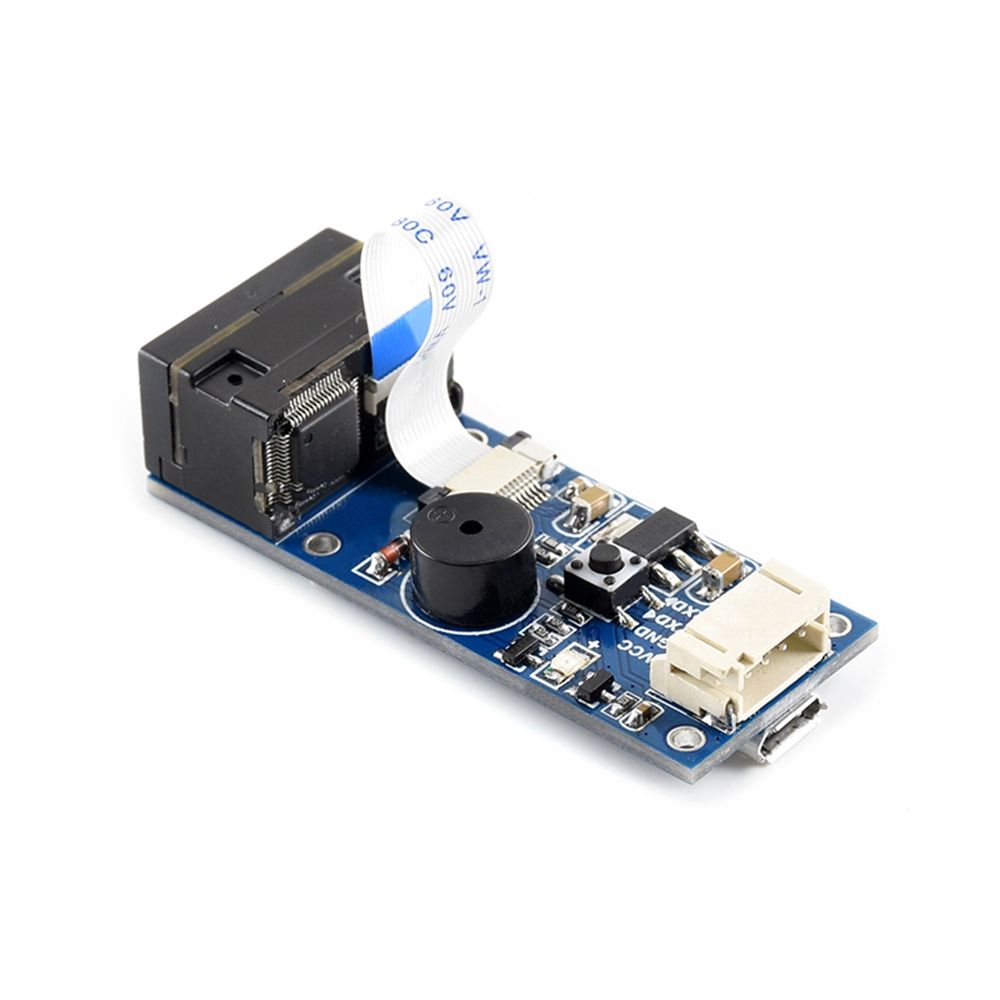

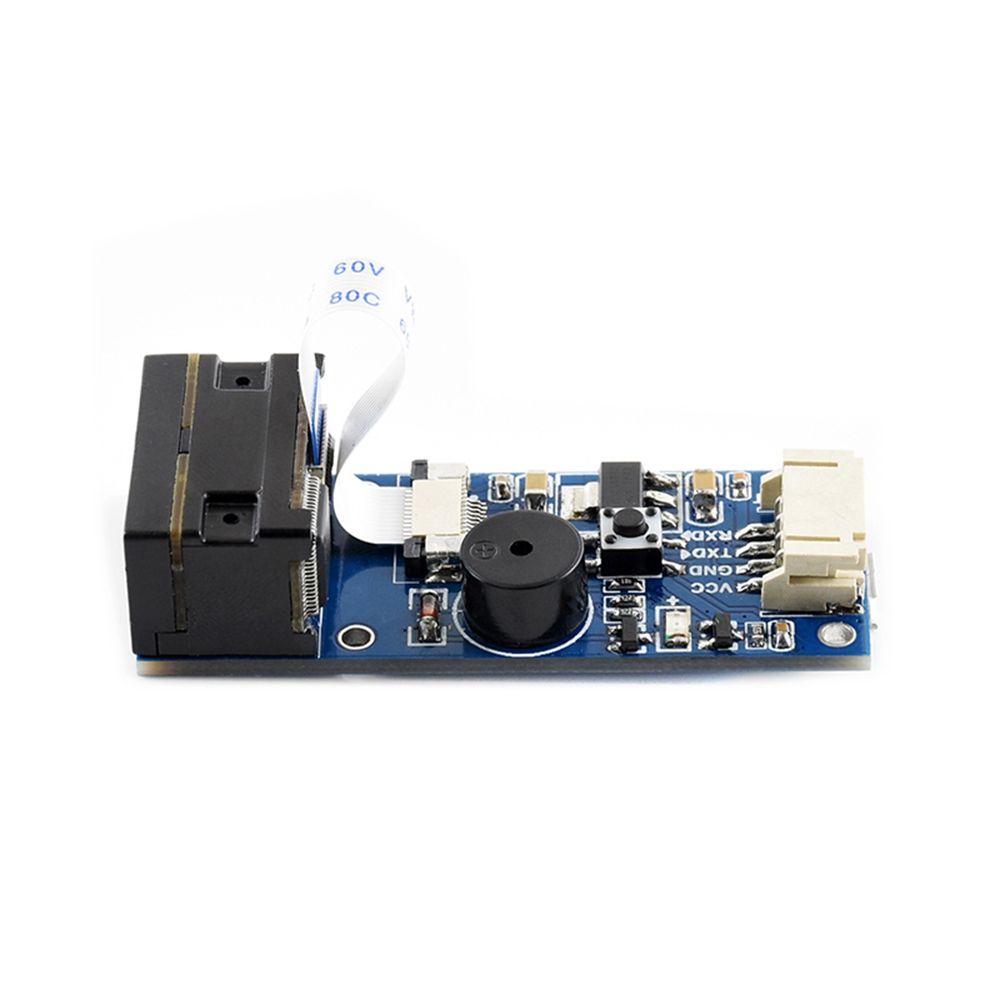

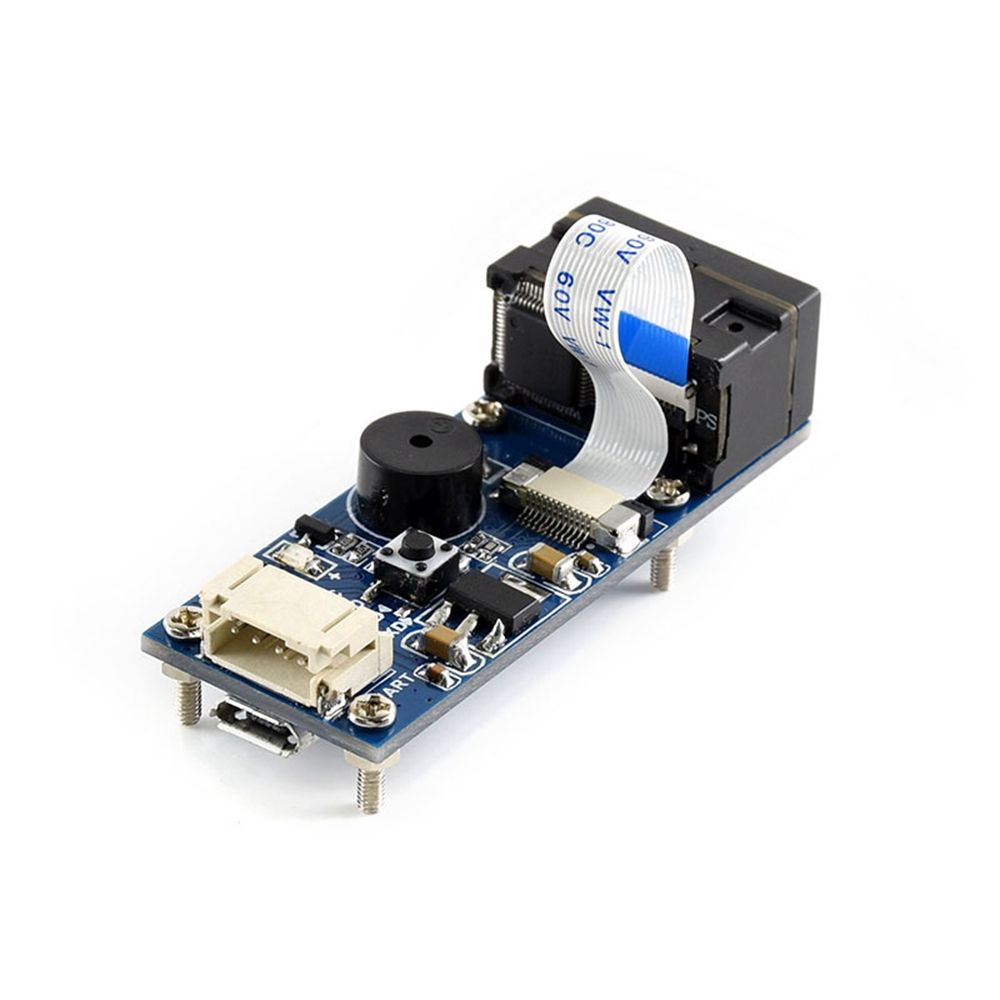

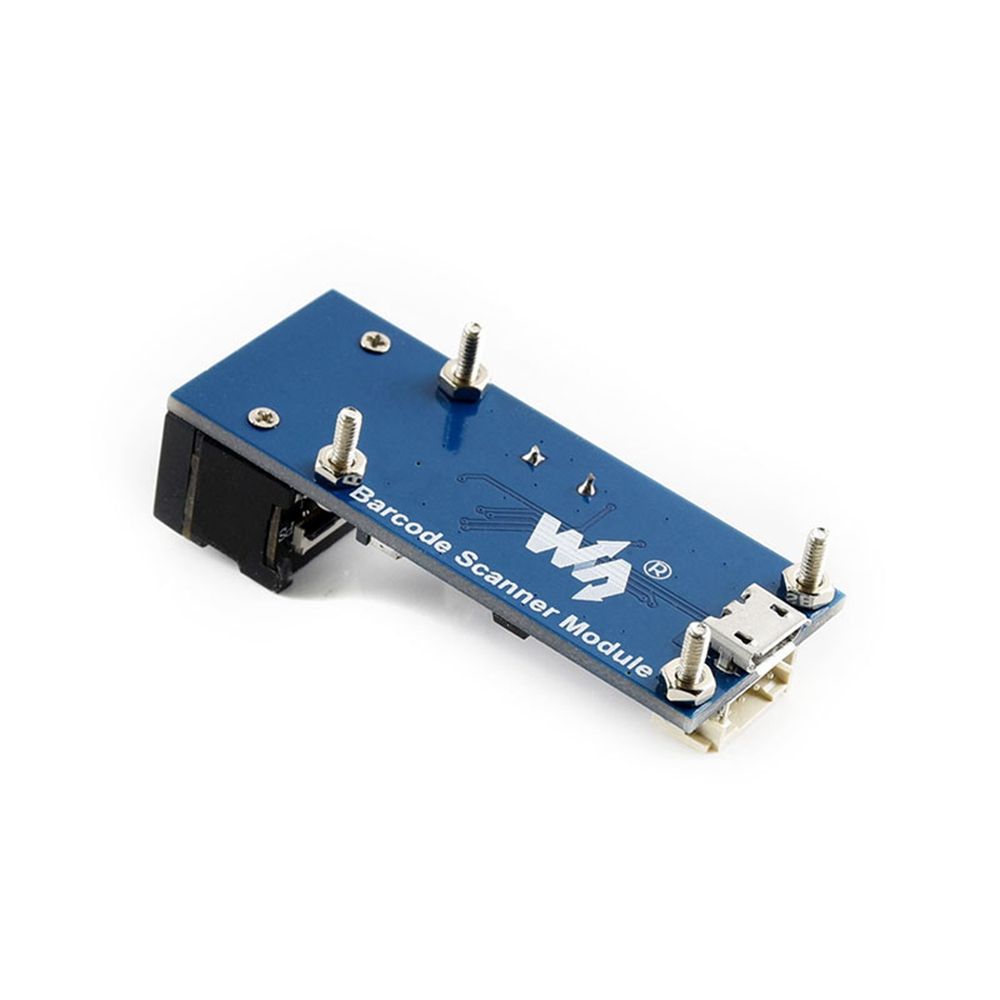

Introduction:

The barcode QR code scanning recognition module can quickly and accurately read the one-dimensional code and the two-dimensional code on the paper or the screen through the image intelligent recognition algorithm.

Small in size, onboard USB and UART interface, can be directly connected to the computer, or integrated into a variety of devices.

Characteristic:

Simple operation, no need to understand complex image recognition algorithms

Support the reading of common one-dimensional codes and two-dimensional codes such as Barcode and QR

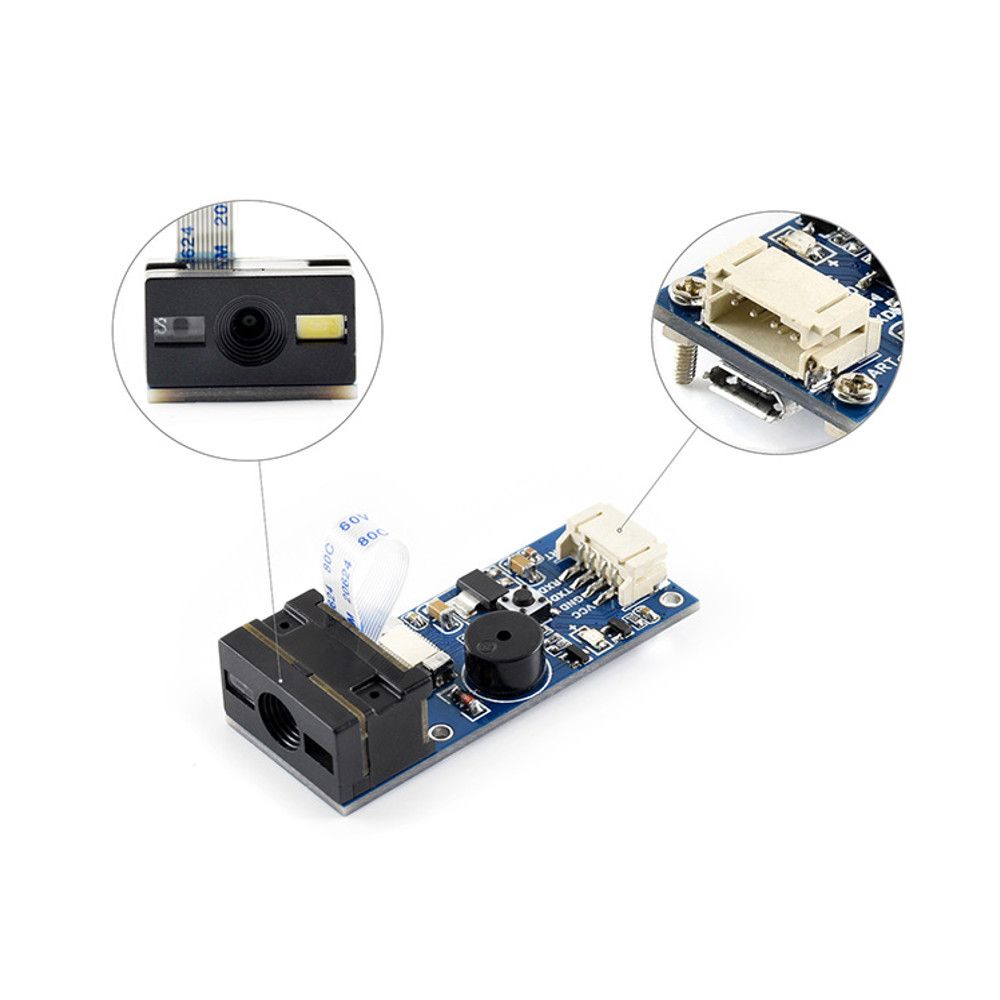

Onboard micro USB and UART serial port for access to a computer or embedded device

Support for setting module parameters by scanning the setup code

Onboard auxiliary light source for reading in a completely dark environment

Parameter:

Working voltage: 5V

Operating current: 135mA (scan), 58mA (standby), 2mA (sleep)

Working temperature: 0 ° C ~ 60 ° C

Working humidity: 5%~95% (non-condensing)

Communication interface: UART, USB

Supports 1D code types: Codebar, Code 11, Code 39/Code 93, UPC/EAN, Code 128/EAN128, Interleaved 2 of 5, Matrix 2 of 5, MSI Code, Industrial 2 of 5, GS1 Databar (RSS)

Support QR code type: QR code, Data Matrix, PDF417

Auxiliary light source: white light

Reading angle: 360° rotation, ±65° tilt, ±60° deflection

Field of view angle: 28° (horizontal), 21.5° (vertical)

Product size: 53.3mm × 21.4mm

Package includes:

1 x Barcode Scanner Module

1 x USB cable type A male to micro male

1 x PH2.0 4PIN cable

Waveshare-Barcode-QR-Code-Computer-Scanning-Recognition-Module-Support-PDF417Data-Matrix-Scanner-1572943
