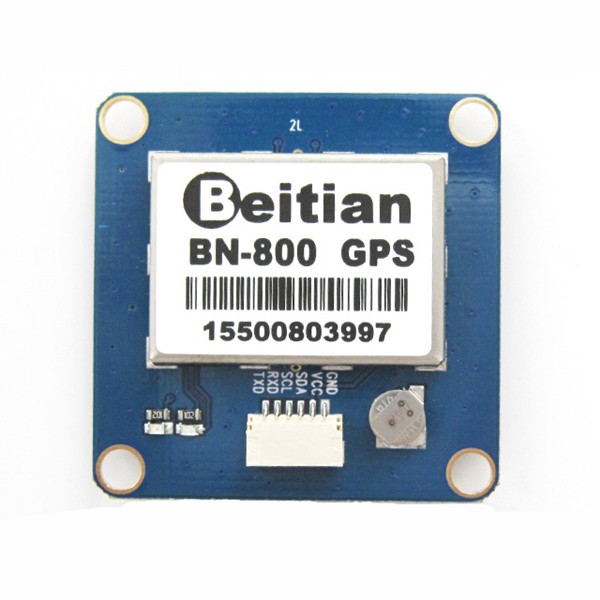

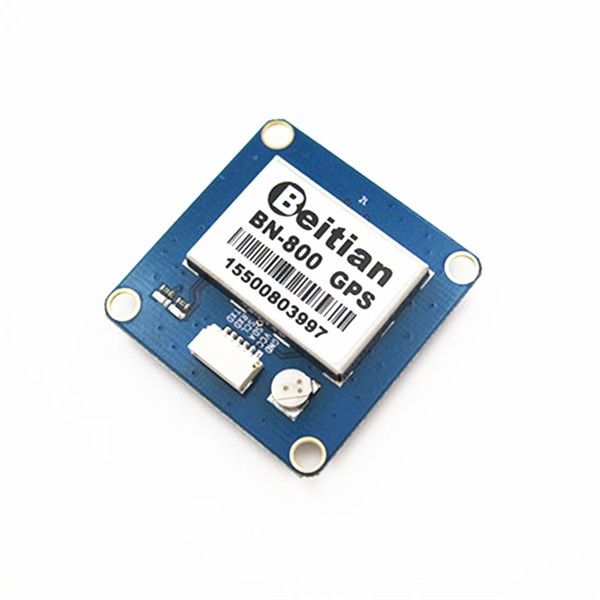

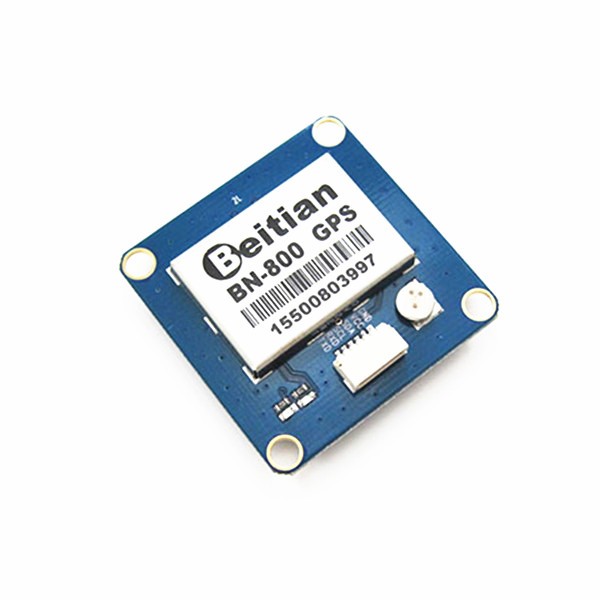

BN-800 GPS Module Support GPS GLONASS BeiDou For Pixhawk APM
- Stock: In Stock
- Model: EB000503
- SKU: EB000503
Item Name:GPS Module
Model:BN-800
Power Supply:DC Voltage 2.8V~6.0V,Typical:3.3V or 5.0V
Consumption:Capture 50mA@5V
Receiving Format:GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Receiving Channel:72 Searching Channel
Receiving Sensitivity:Trace -167dBm
Capture-148dBm
Positioning Time:Cold Start:avg26s
Warm Start:avg25s
Hot Start:avg3s
Level Positioning Precison:2m At Open Wind
Output Frequency:1Hz-10Hz,Default 1Hz
Speed Precison:0.1 m/s (Without Aid)
Acceleration Precison:0.1 m/s (Without Aid)
Dynamic Characteristics:Max Height:18000m
Max Speed:515m/s
Max Acceleration:4G
UART Interface:UART Port:TXDA and RXDA
Support Rate:4800bps to 115200bps,Default 9600dps
Working Temperature:-40℃-+85℃
Storage Temperature:-40℃-+85℃
Weight:11g
Size:35 x 35 x 6mm
Mounting Distance : 30x30mm
Hole Dia. : R1.7mm
Features:
With M8
Can simultaneously acquire and track different GNSS (Global Navigation Satellite) system,parallel to receive GPS (QZSS) and GLONASS or BeiDou, or while receiving GLONASS and BeiDou.
Specially adapted to the needs to the highest availability and accuracy of high-performance applications,even if is in the GPS signal poor environment.
Equipped with a built-in intelligent automatic switching function.
With long Offline A-GNSS (GPS and GLONASS) function.
Support GPS + BeiDou
Can run simultaneously GPS + GLONASS or GPS +BeiDou

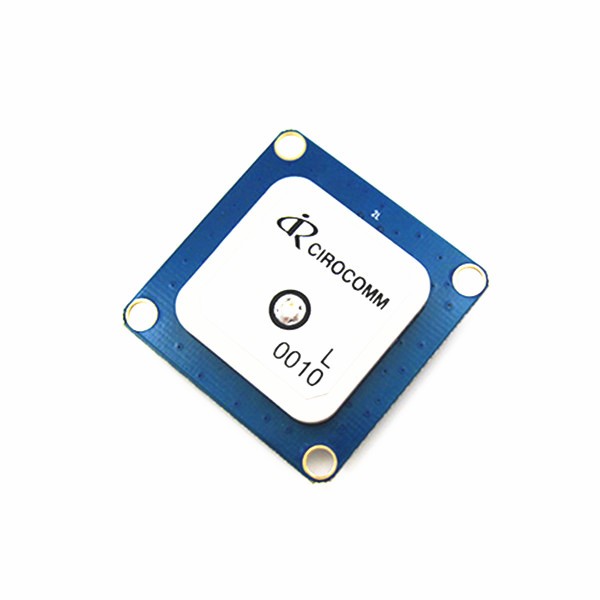

With GPS antenna
Low power consumption
Fast positioning speed
Search to more number of satellites and high positioning accuracy
Notice:
Cable supports mini APM,if it is used for version 2.6 or 2.8,GPS of Pixhawk is needed to change the cable by yourself.
Can not use for flight control with ,but it is also suitable for Open source flight controller.
Package Included:
1xBN-800 GPS Module

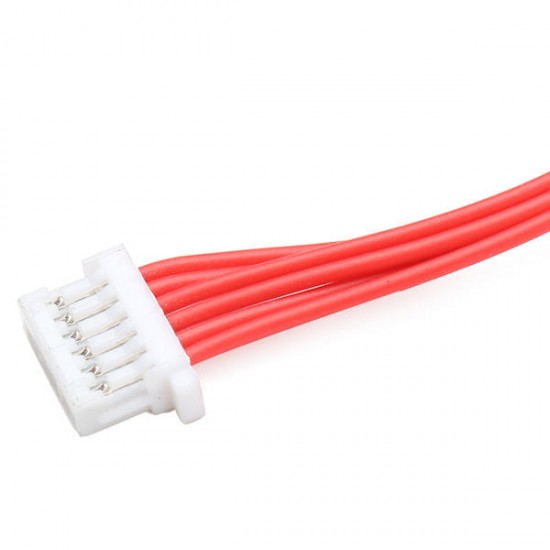

1x Cable
,
,
,
,
