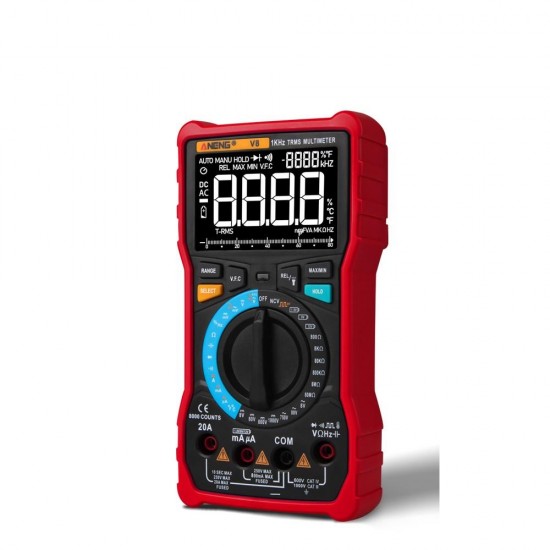

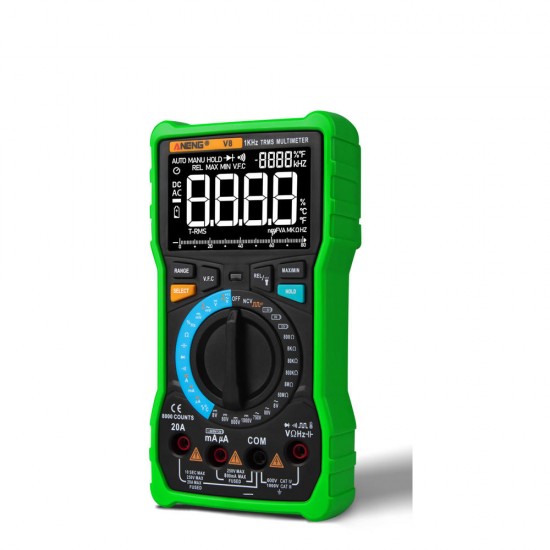

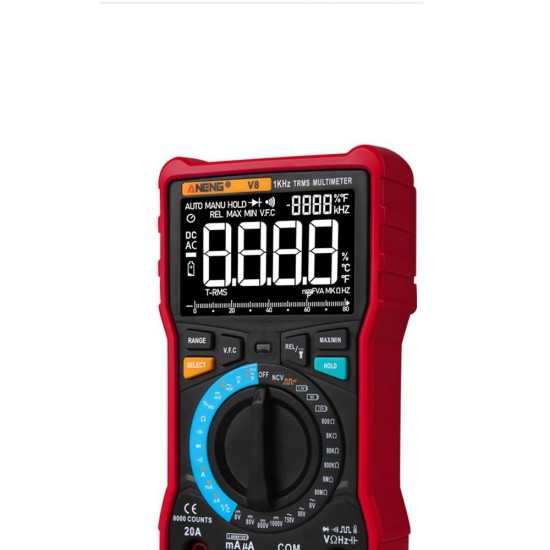

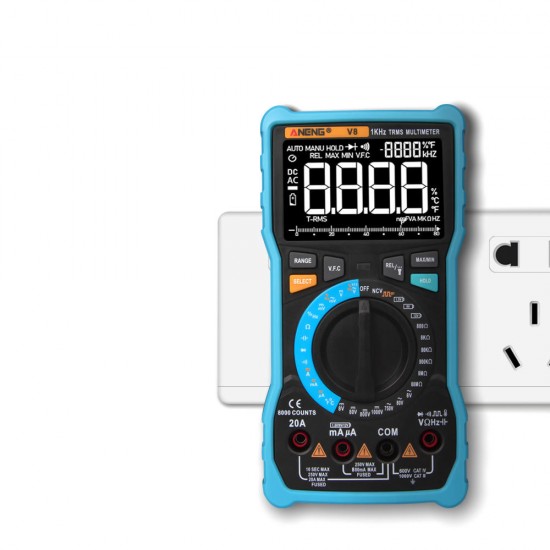

V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current

V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
V8 Dual Mode True RMS Digital Multimeter Auto Range 8000 Counts Display V.F.C Inverter Measurement Analog Bar Graph AC/DC Voltage Ammeter Current
$38.99
Ex Tax: $38.99
  • Stock: In Stock
  • Model: EB004199
  • SKU: EB004199

Available Options


Features:

This is an Auto-ranging digital multimeter using double-integral style A/D transform as the core.
It can be used to measures AC/DC Voltage, AC/DC Current,Resistance, Capacitance, Diode and Continuity testing, Temperature, Frequency,Square Wave test,battery voltage test,V.F.C test,Dangerous voltage alarm.
They are battery powered. They are characterized by stable function and high reliability, with the features of overload protection and Large LCD display for clear reading,Flashlight lighting,are an ideal tools for lav,factory,radio fans and family use.

ANENG V7 ANENG V8
Intelligent recognition/manual range Auto range/Manual range
Display: 6000 Counts Display: 8000 Counts
NCV Test NCV Test
not support V.F.C Suppoort V.F.C(Can measure the voltage output of the inverter)
Square wave output Square wave output
HD Backlight Screen HD Black EBTN screen
not support  3 three kinds of display Voltage/Temperature have 3 three kinds of display
Not support Analog bar graph Analog bar graph
TRUE RMS TRUE RMS
Diode test Diode test
Continuity test Continuity test
Data Hold Data Hold
Relative value measurement Relative value measurement
Display shows maximum/minimum readings Display shows maximum/minimum readings
Temperature test (Fahrenheit/Celsius) Temperature test (Fahrenheit/Celsius)
Duty cycle test Duty cycle test
Resistance/Power/ Frequency Test Resistance/Power/ Frequency Test
DC/AC voltage/current measurement DC/AC voltage/current measurement
Low battery prompt Low battery prompt
Live wire and Null wire test Live wire and Null wire test
Input resistance: 1MΩ Input resistance: 10MΩ

Specification:

Update Rate:3 times/second
Data Hold:YES
Backlight:YES
Flashlight lighting: YES
Auto Power Off:YES
Material:ABS/PVC
Operating temperature:0-40℃
Operating humidity:less then 75%
Storage temperature:-20~60℃
Operating humidity:less then 80%
Battery type :1.5V AA battery*3 (Not include)

V8 Measuring range:

DC Voltage (V)/(mV): 800.0mV/8.000V/80.00V/800.0V/1000V ±(0.5%+3)
AC Voltage (V)/(mV): 800.0mV/8.000V/80.00V/800.0V/750V ±(1.0%+3)
DC Current (A): 8.000A/20.00A  ±(1.2%+3)
DC Current (mA): 8.000mA/80.00mA/800.0mA ±(1.2%+3)
DC Current (μA): 800.0μA/8000μA ±(1.2%+3)
AC Current (A): 8.000A/20.00A ±(1.5%+3)
AC Current (mA): 8.000mA/80.00mA/800.0mA ±(1.5%+3)
AC Current (μA) 800.0μA/8000μA ±(1.5%+3)
Resistance: 800.0Ω/8.000kΩ/80.00kΩ/800.0kΩ/8.000MΩ ±(0.5%+3)
                    80.00Ω ±(1.5%+3)
Capacitance:  9.999nF ±(5.0%+5)
                       99.99nF/999.9nF/9.999μF/99.99μF/999.9μF ±(2.0%+5)
                       9.999mF/99.99mF ±(5.0%+5)
Frequency: 9.999Hz/99.99Hz/999.9Hz ±(0.1%+2)
Duty Cycle: 1%~99% ±(0.1%+2)
Temperature: (-20~1000)℃/(-4~1832)℉ ±(2.5%+5)
DiodeYES
ContinuityYES
Square Wave Output: 50Hz~5000Hz

Package included:

1 x Multimeter
1 x Test Leads
1 x Thermocouple
1 x Protect Bag

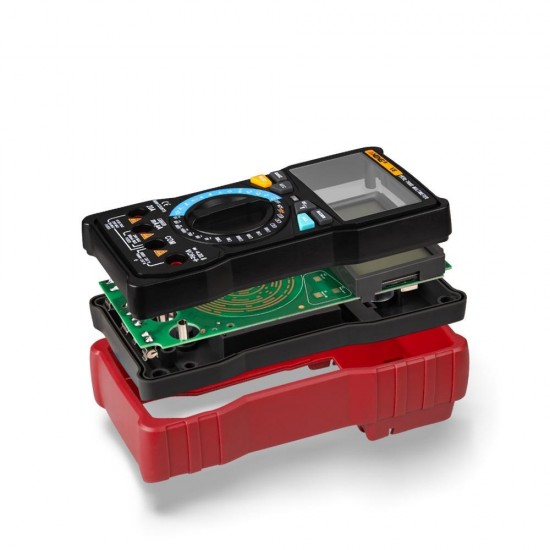

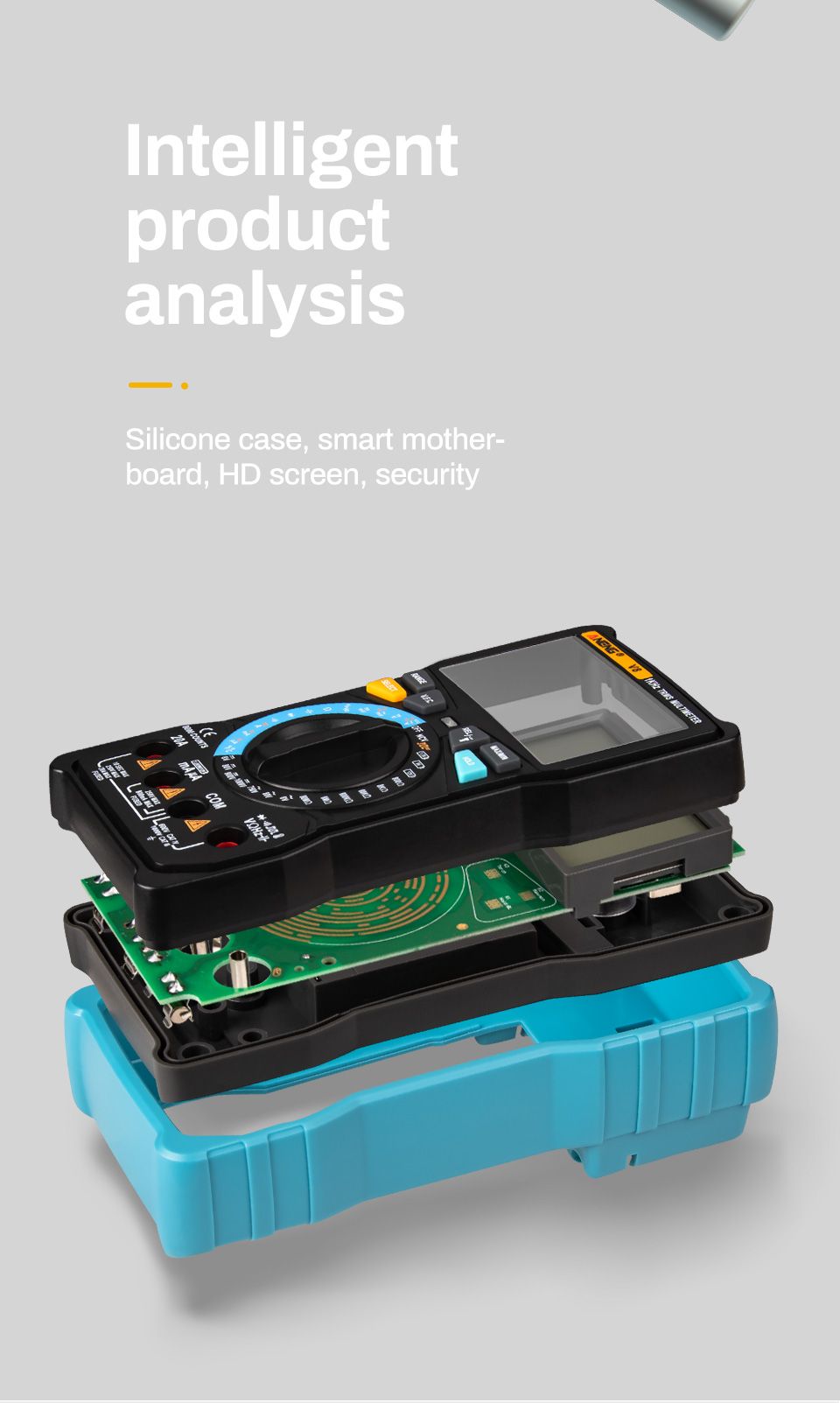

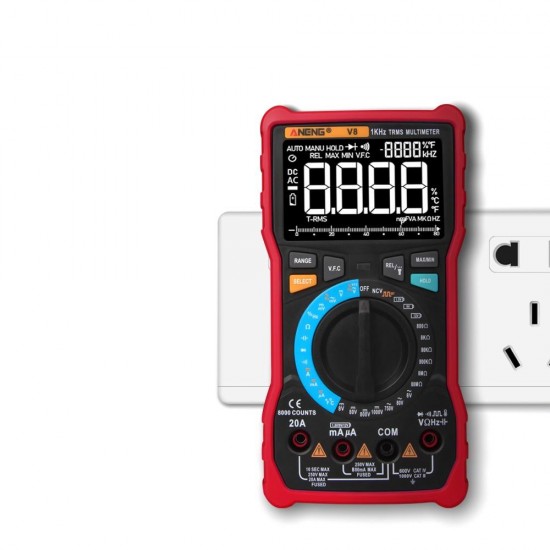

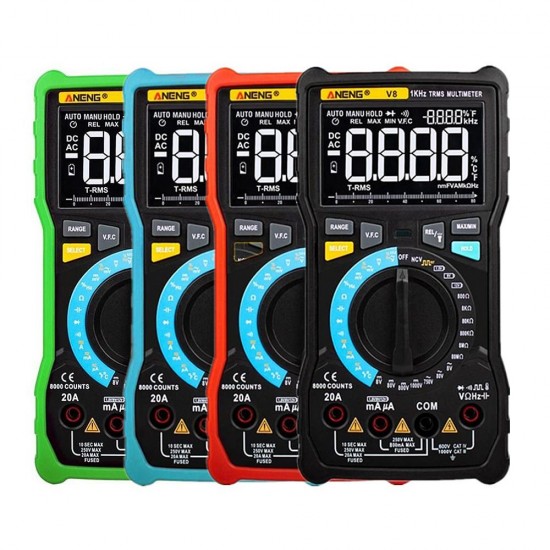

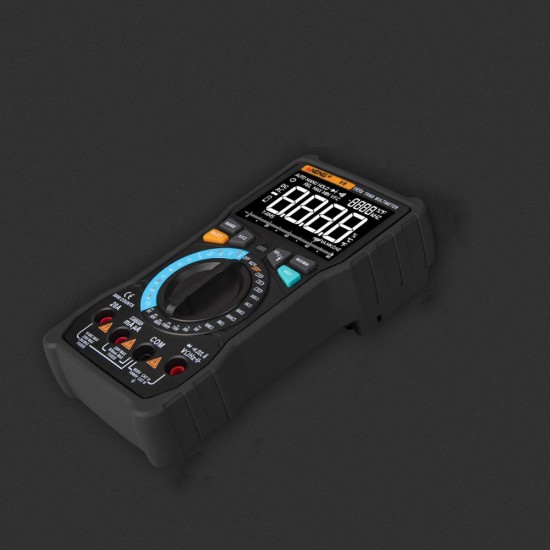

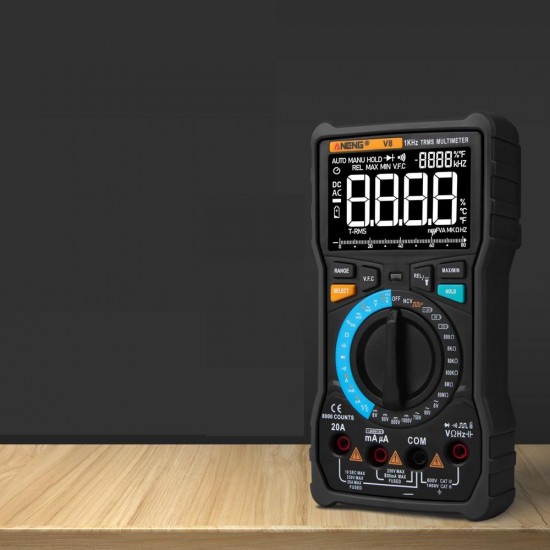

Details pictures:
