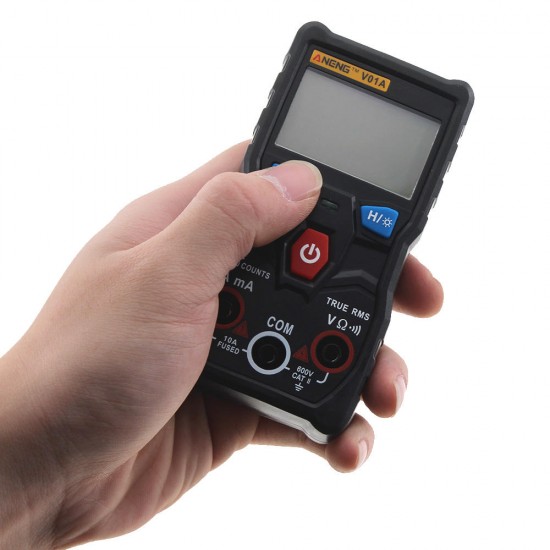

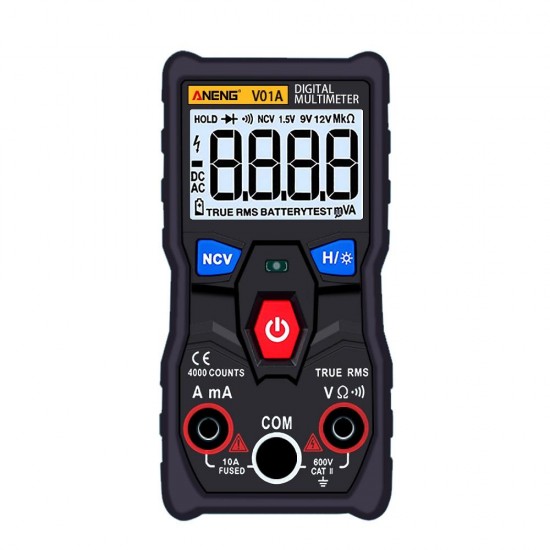

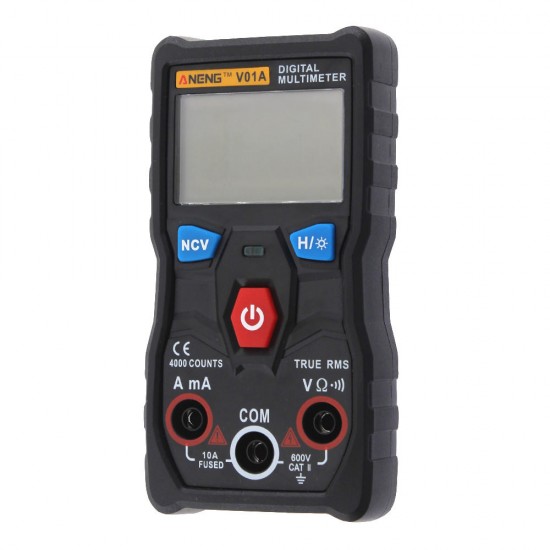

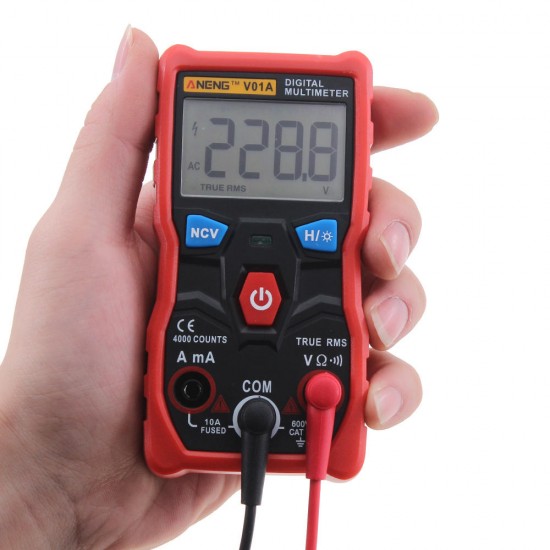

V01A Digital True RMS Multimeter Tester Autoranging Automotriz Multimeter With NCV Data Hold LCD Backlight+Flashlight
- Stock: In Stock
- Model: EB004289
- SKU: EB004289
ANENG V0XA Series
V01A: AC and DC voltage, AC and DC current, resistance, frequency, buzzer, NCV, etc.
V02A: AC and DC voltage, with battery measurement (can not measure current) measuring battery by current will have higher Accuracy, resistance, frequency, buzzer, NCV, etc.
V03A: AC and DC voltage, AC and DC current, resistance, frequency, buzzer, NCV, etc., diode measurement, capacitance measurement
V04A: AC and DC voltage, AC and DC current, resistance, frequency, buzzer, NCV, etc., diode measurement, capacitance measurement, temperature measurement
Specification:

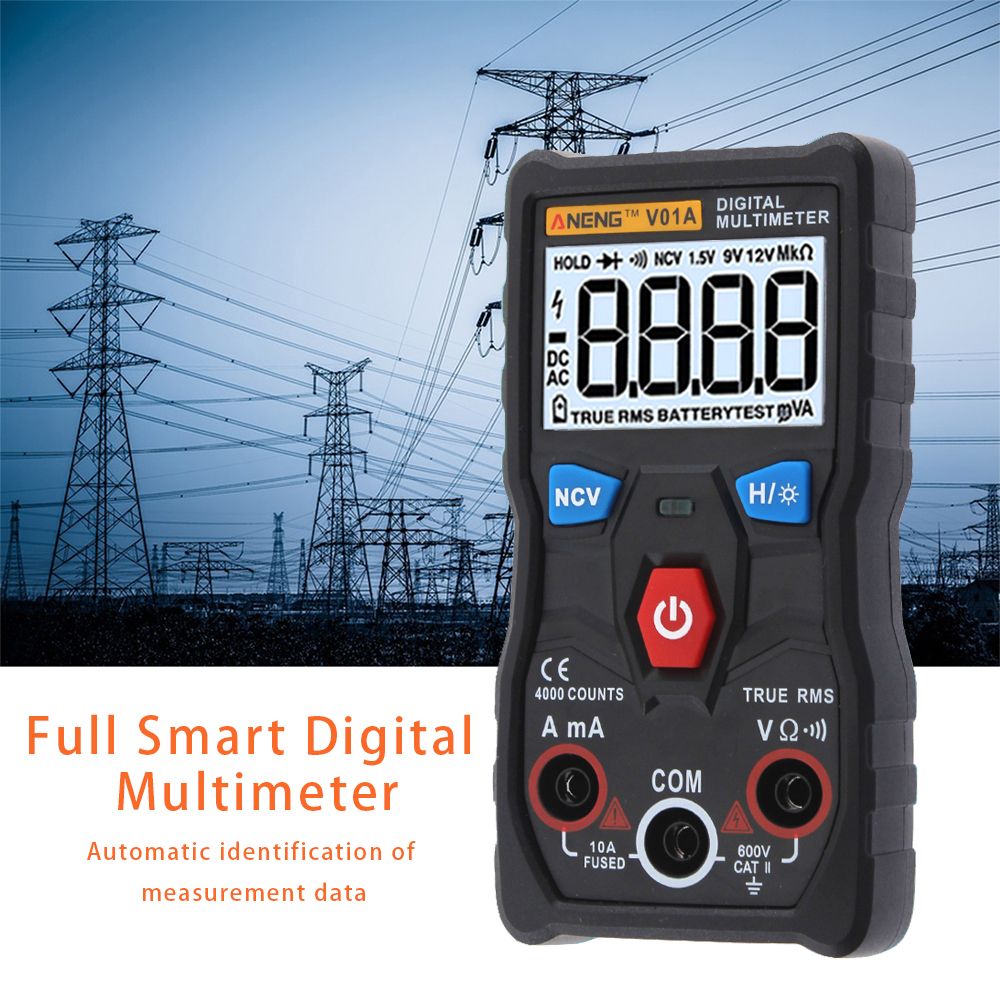

This product is a battery-powered, auto-ranging, true RMS digital multimeter with a 4000 counts LCD display.
| General Specifications | ||||
| Display | 4000 counts | Ture RMS | √ | |

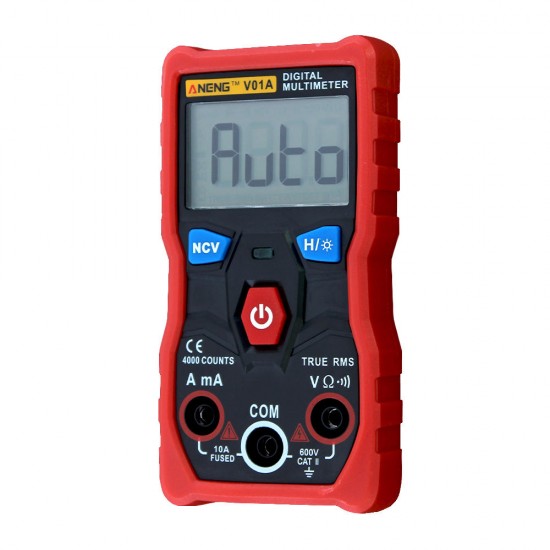

| Ranging | Auto | Data Hold | √ | |
| Material | ABS+PVC | Backlight | √ | |

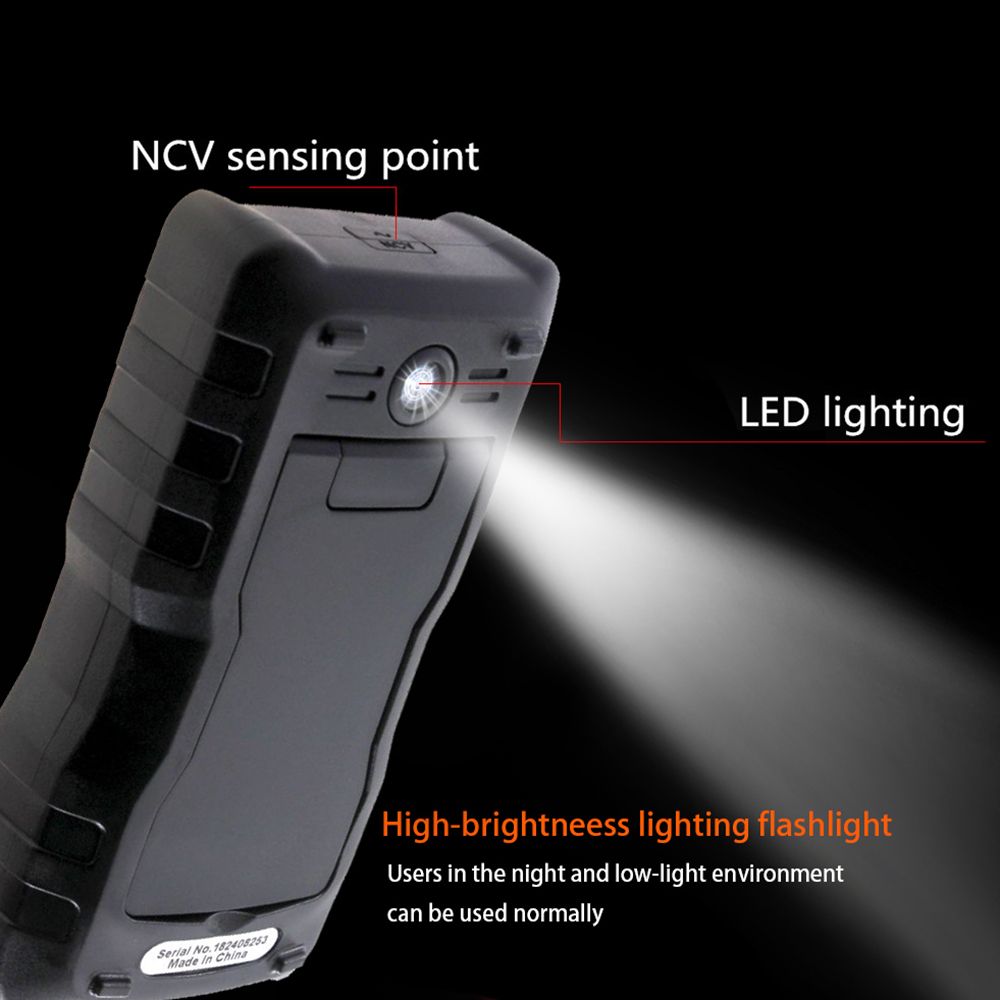

| Update Rate | 3 / s | Flashlight | √ | |
| Low Battery Indication | √ | Auto Power Off | √ | |
| Electrical Specifications | ||||
| Function | Range | Resolution | Accuracy | Max |
| DC VOLTAGE(V) | 4.000V/40.00V | 0.001V/0.01V | ±(0.5 +3) | 600V |
| 400.0V/600V | 0.1V | |||

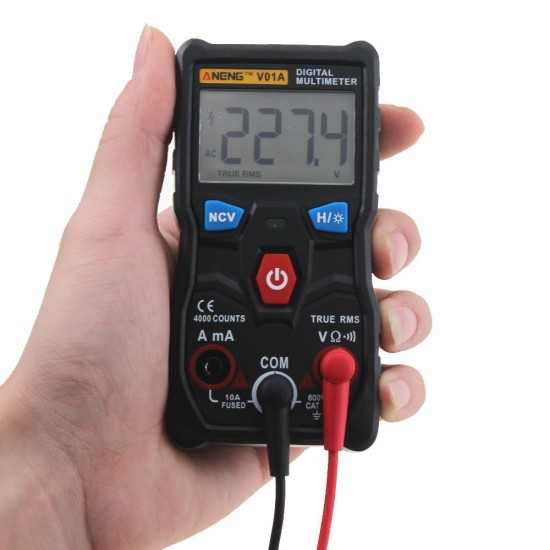

| AC VOLTAGE(V) | 4.000V/40.00V | 0.001V/0.01V | ±(1.0 +3 | 600V |
| 400.0V/600V | 0.1V/1V | |||
| AC mA | 999.9mA | 0.1mA | ±(1.0 +3) | 9.999A |
| AC A | 9.999A | 0.001A | ±(1.0 +3) | 9.999A |
| DC mA | 999.9mA | 0.1mA | ±(2.0 +4) | 9.999A |
| DC A | 9.999A | 0.001A | ±(2.0 +4) | 9.999A |

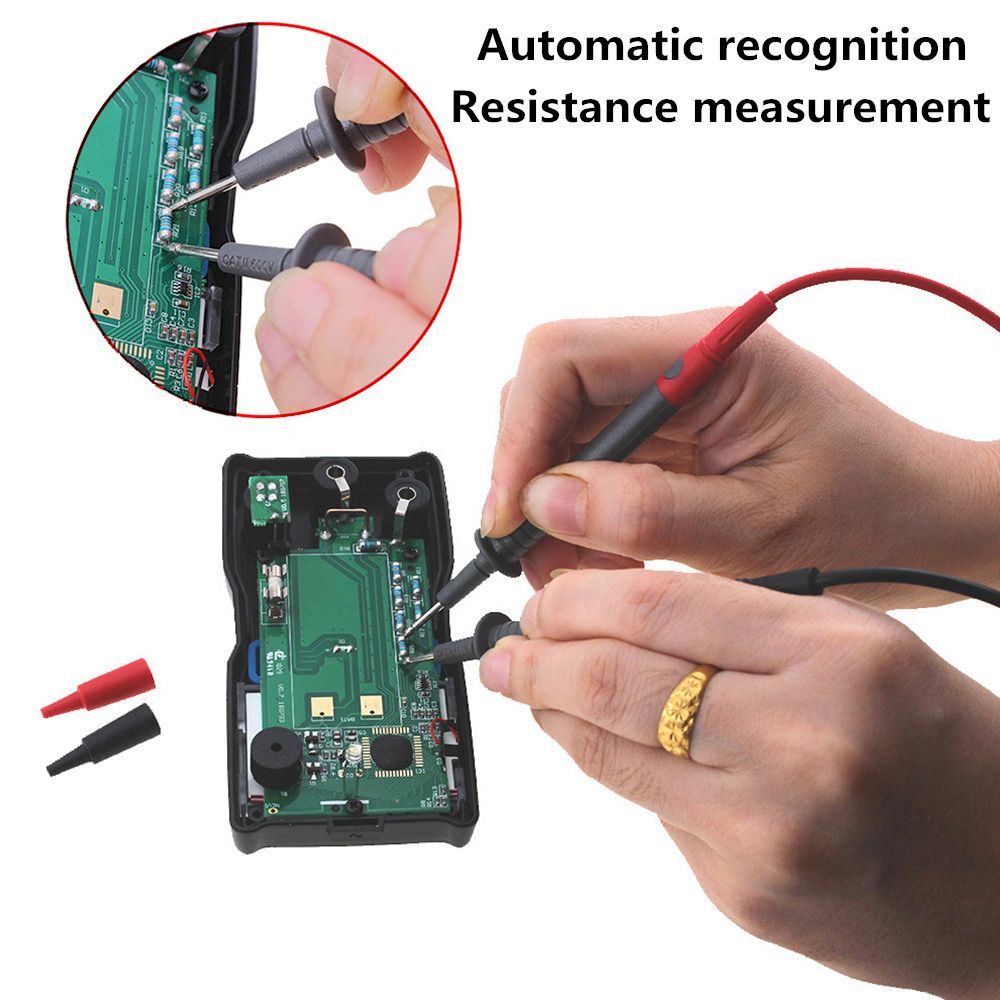

| Resistance | 4.000kΩ | 0.001kΩ | ±(1.5 +3) | 40MΩ |
| 40.00kΩ/400.0kΩ | 0.01kΩ/0.1kΩ | ±(0.5 +3) | ||
| 4.000MΩ | 0.001MΩ | |||
| 40.00MΩ | 0.01MΩ | ±(1.5 +3) | ||
| Continuity | √ | |||

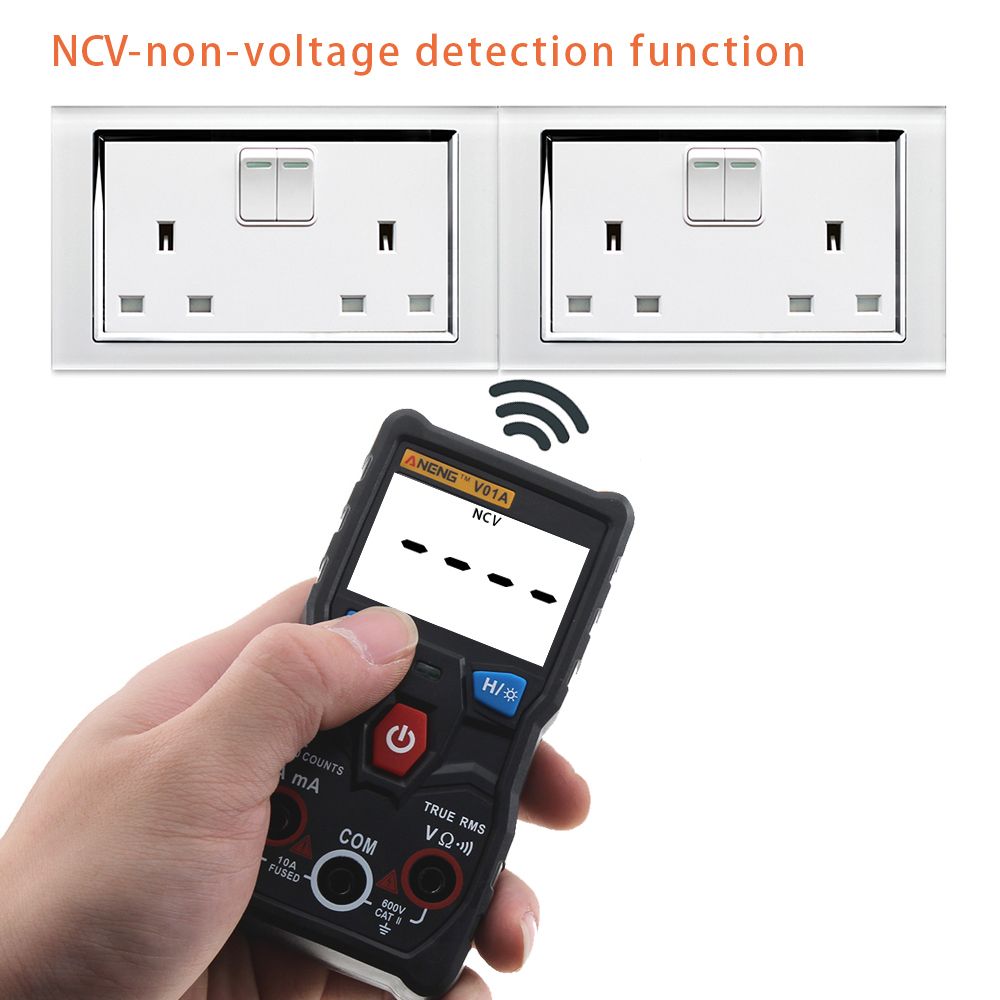

| NCV | √ | |||
| Frequency response at AC modes | 40Hz~1kHz | |||
| Battery | 2 x AAA (not included) | |||

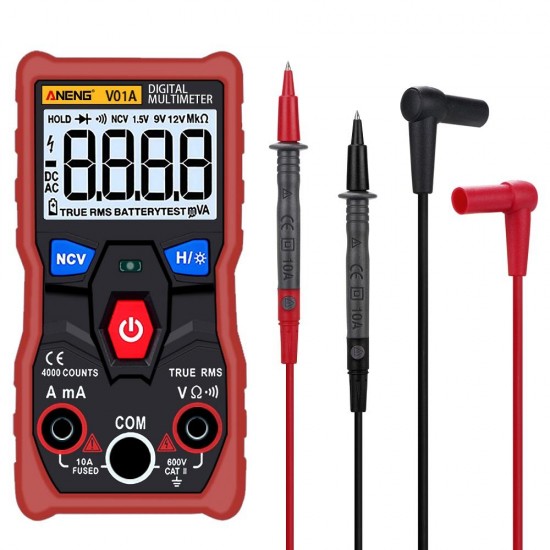

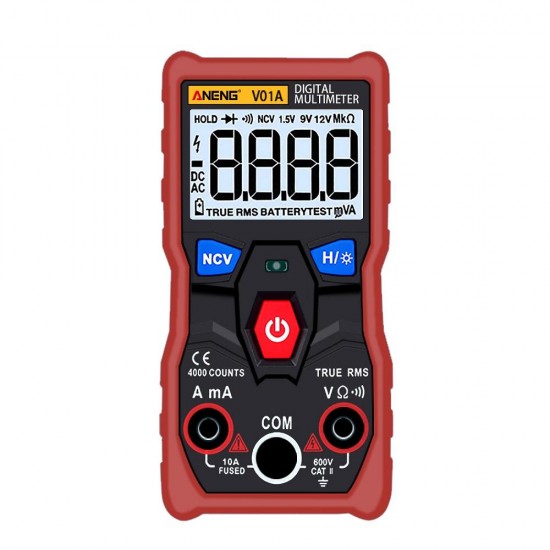

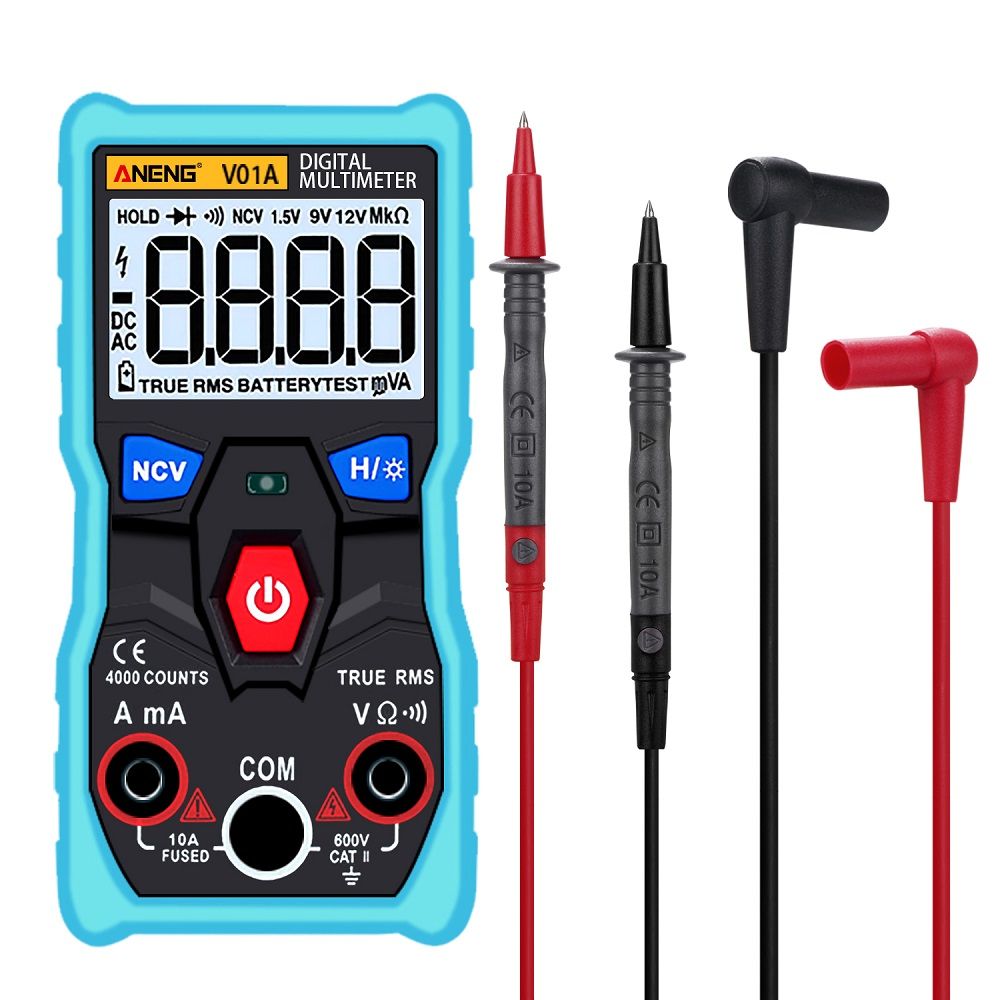

► Blue ANENG V01A Digital True RMS Multimeter
► Orange ANENG V01A Digital True RMS Multimeter
► Green ANENG V01A Digital True RMS Multimeter

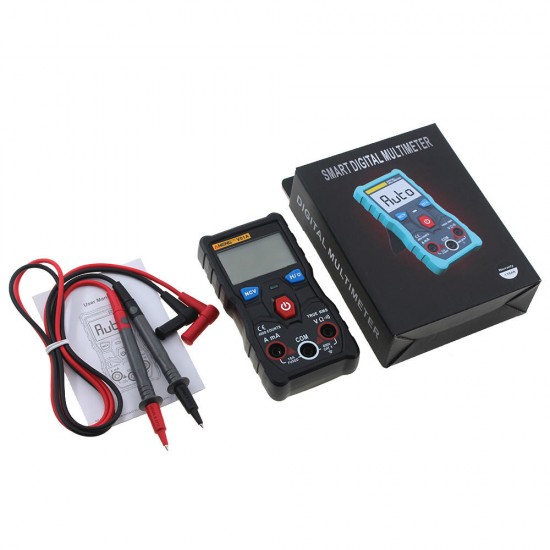

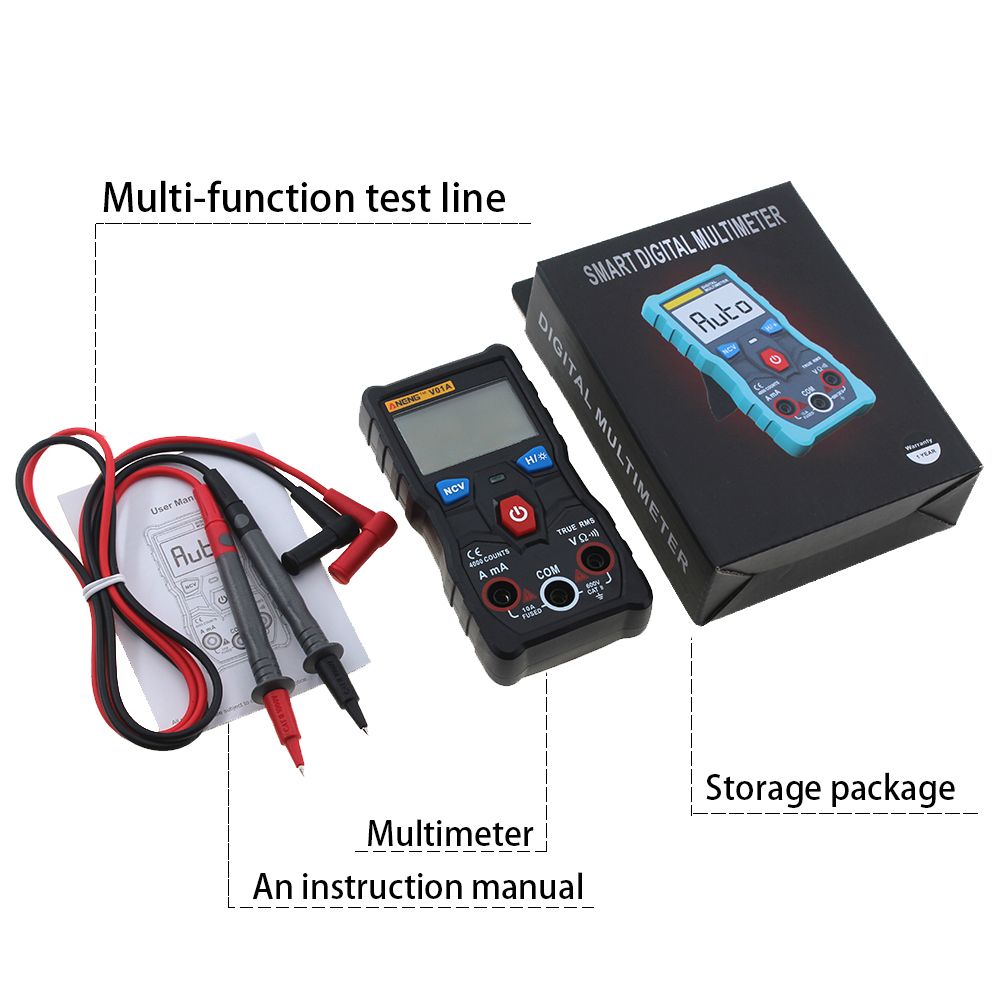

Package Includes:

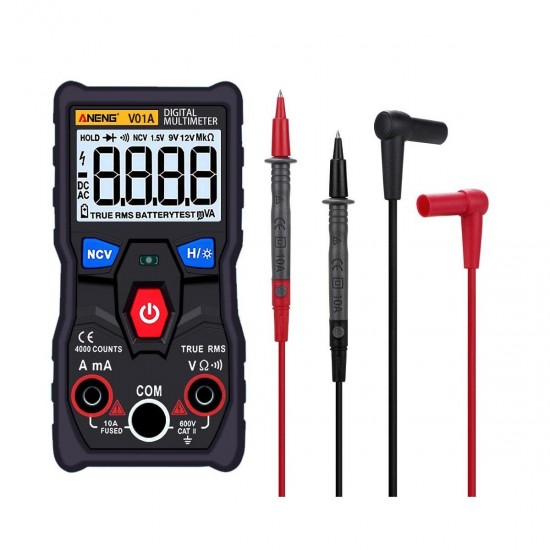

1 x Digital Multimeter

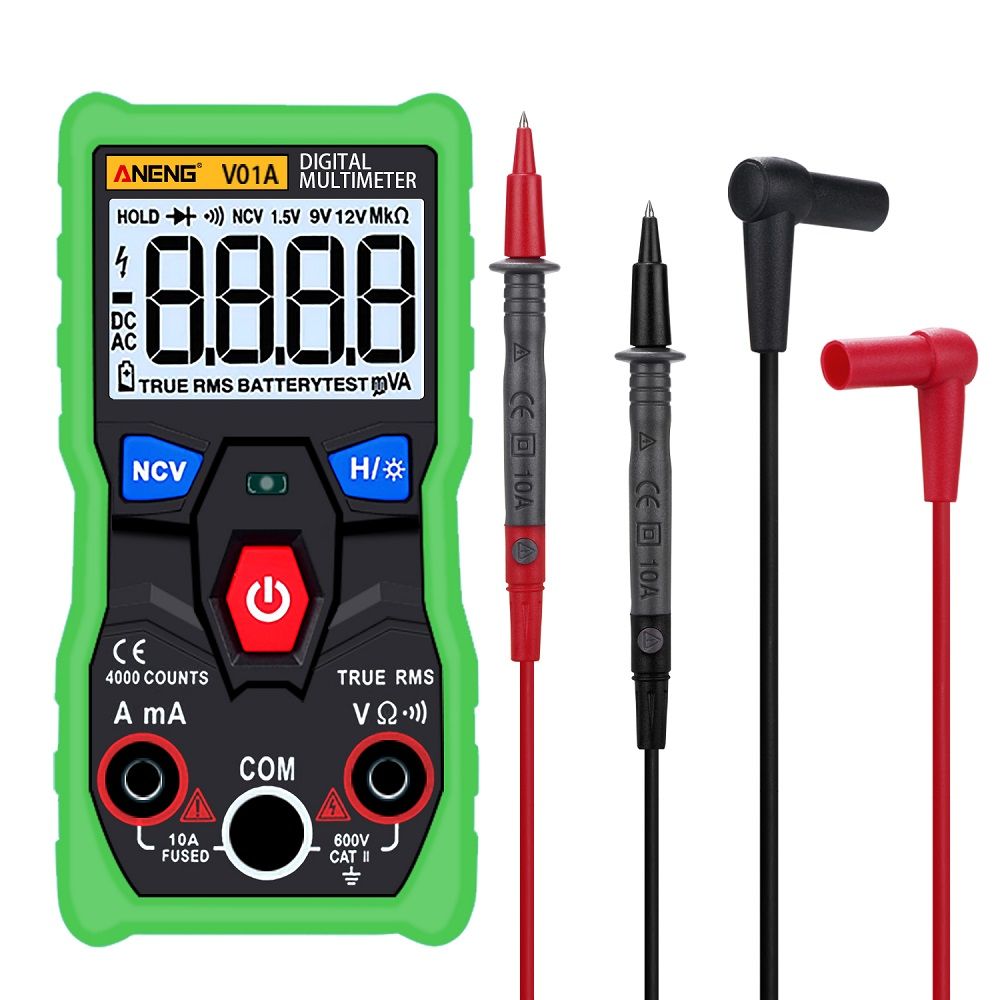

1 x Test leads
1 x English user Manual
1 x Color box

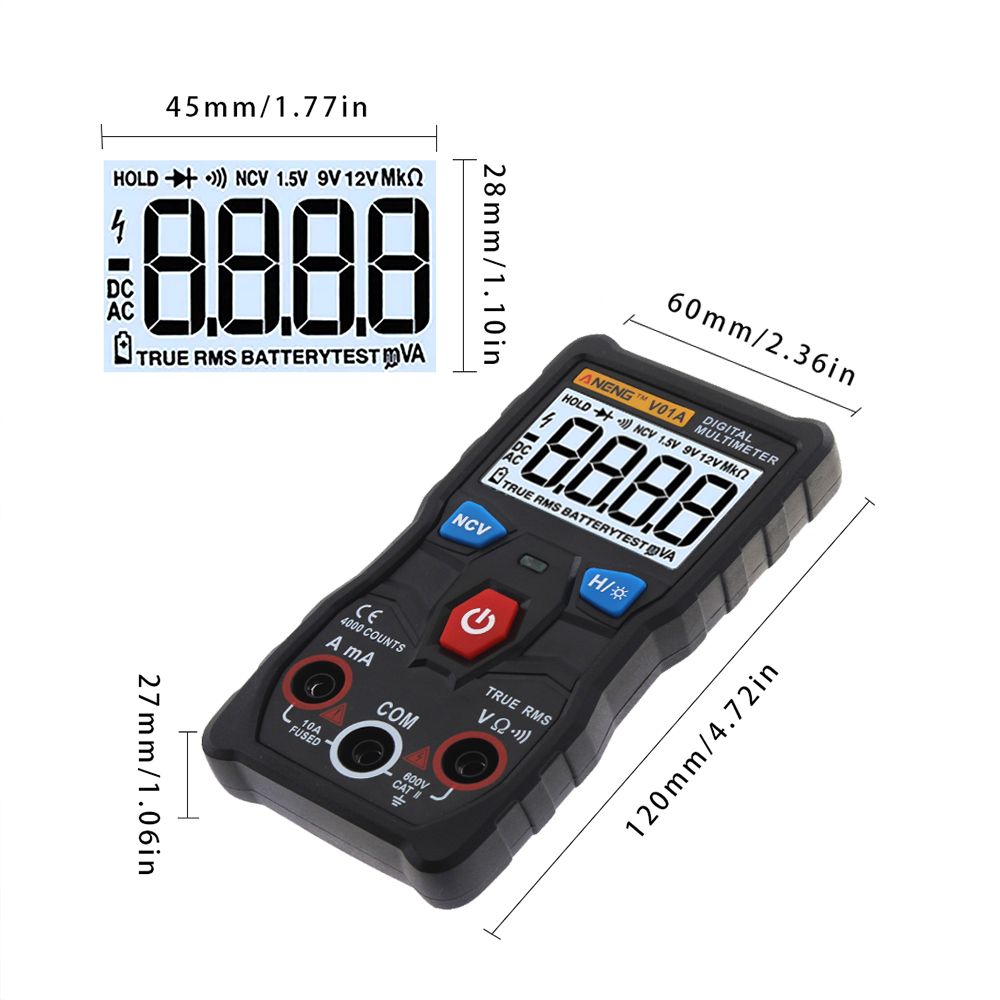

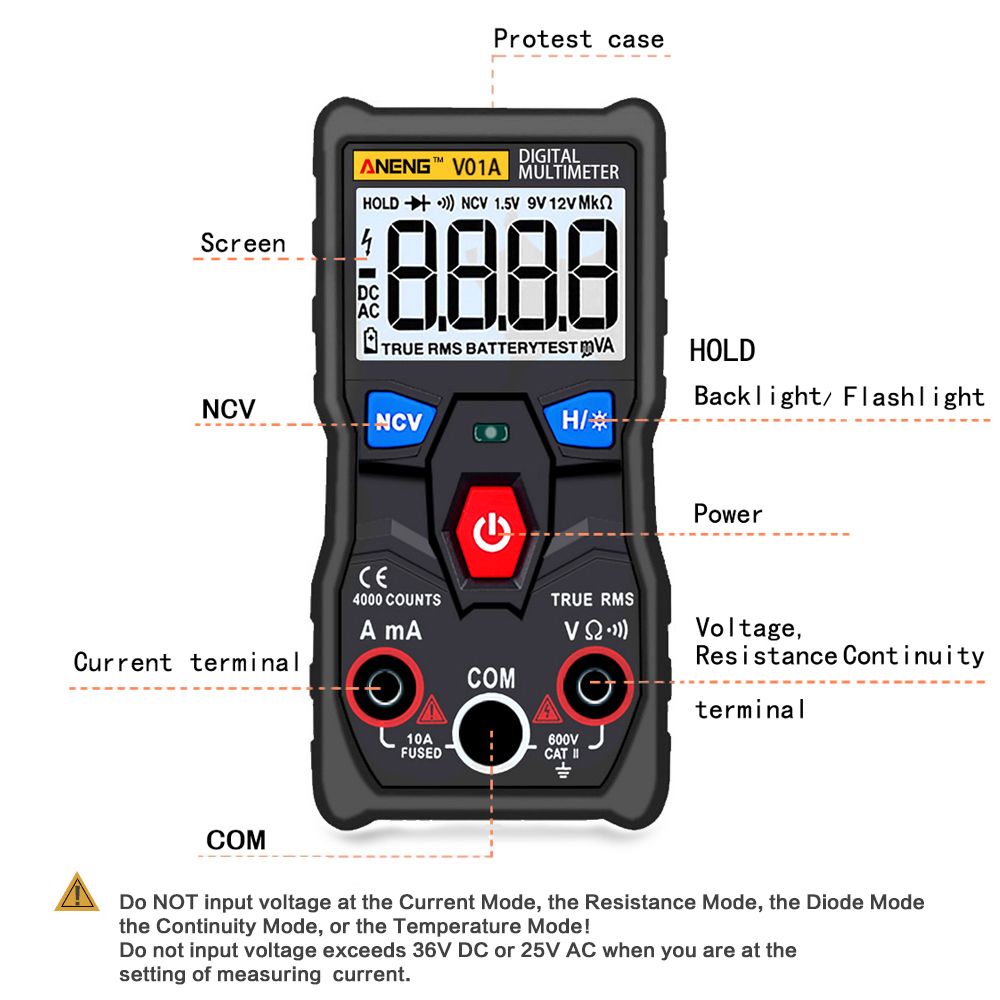

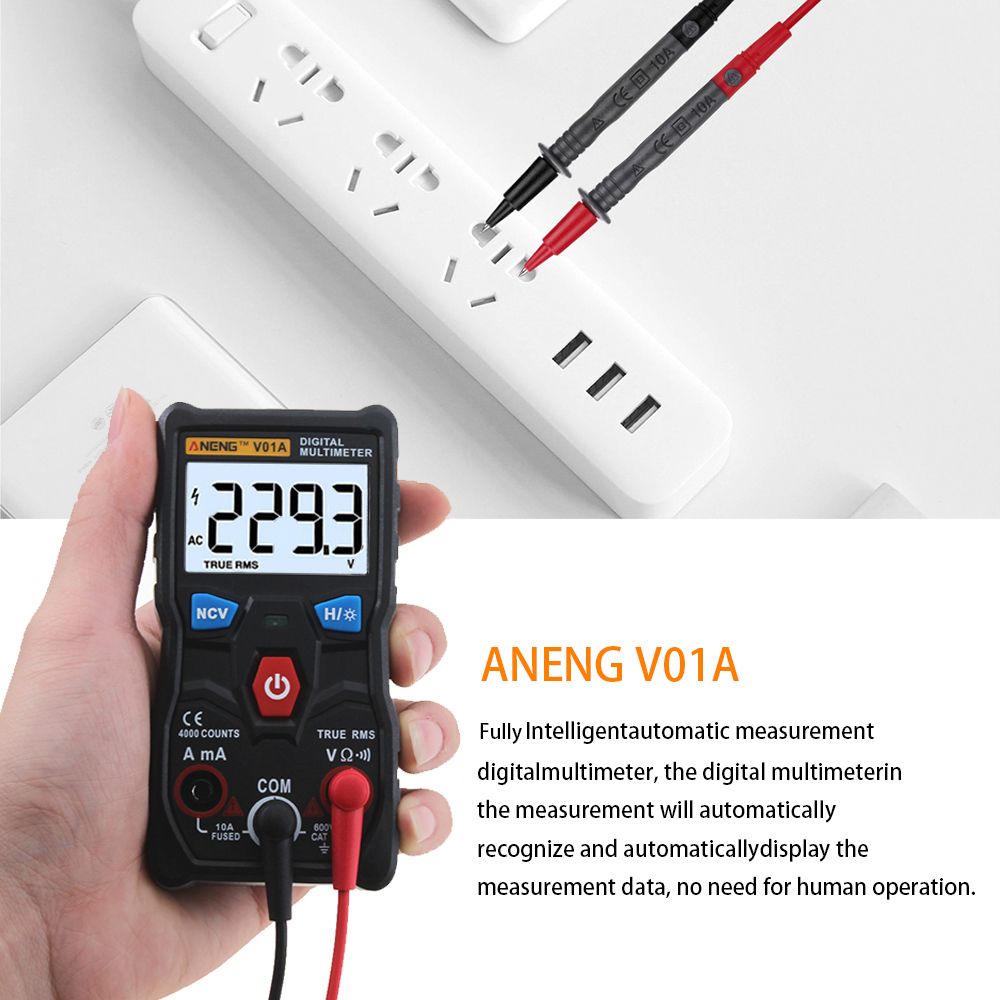

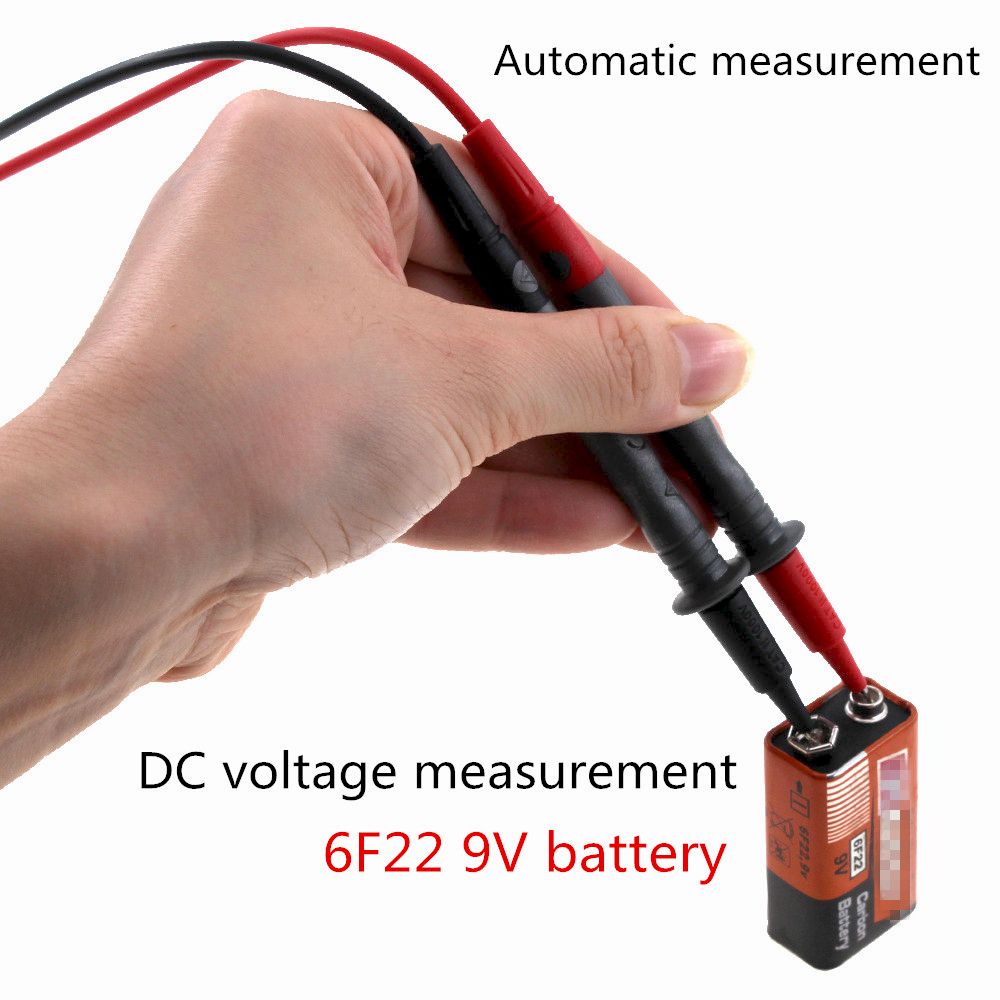

Detail Pictures:
