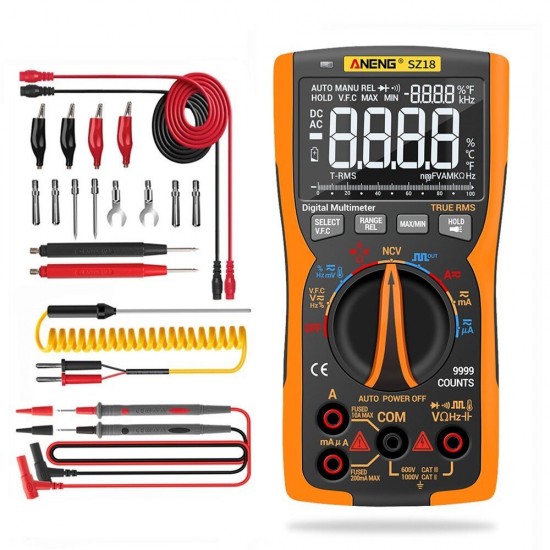

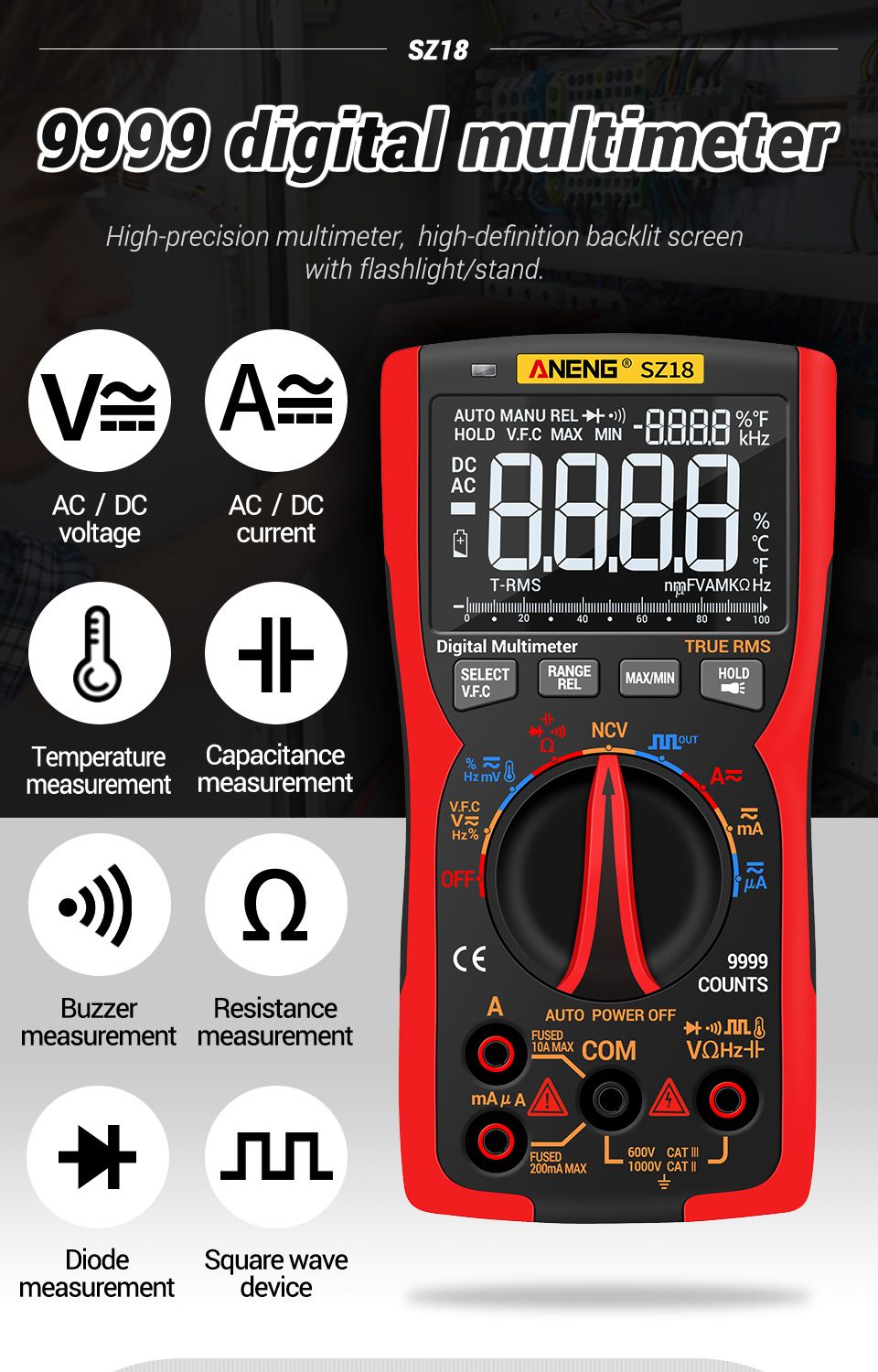

SZ18 9999 Counts Professional True RMS Digital Multimeter Analog Tester Multimetro DIY Square Wave Output Transistor Capacitor NCV Testers
- Stock: In Stock
- Model: EB004136
- SKU: EB004136

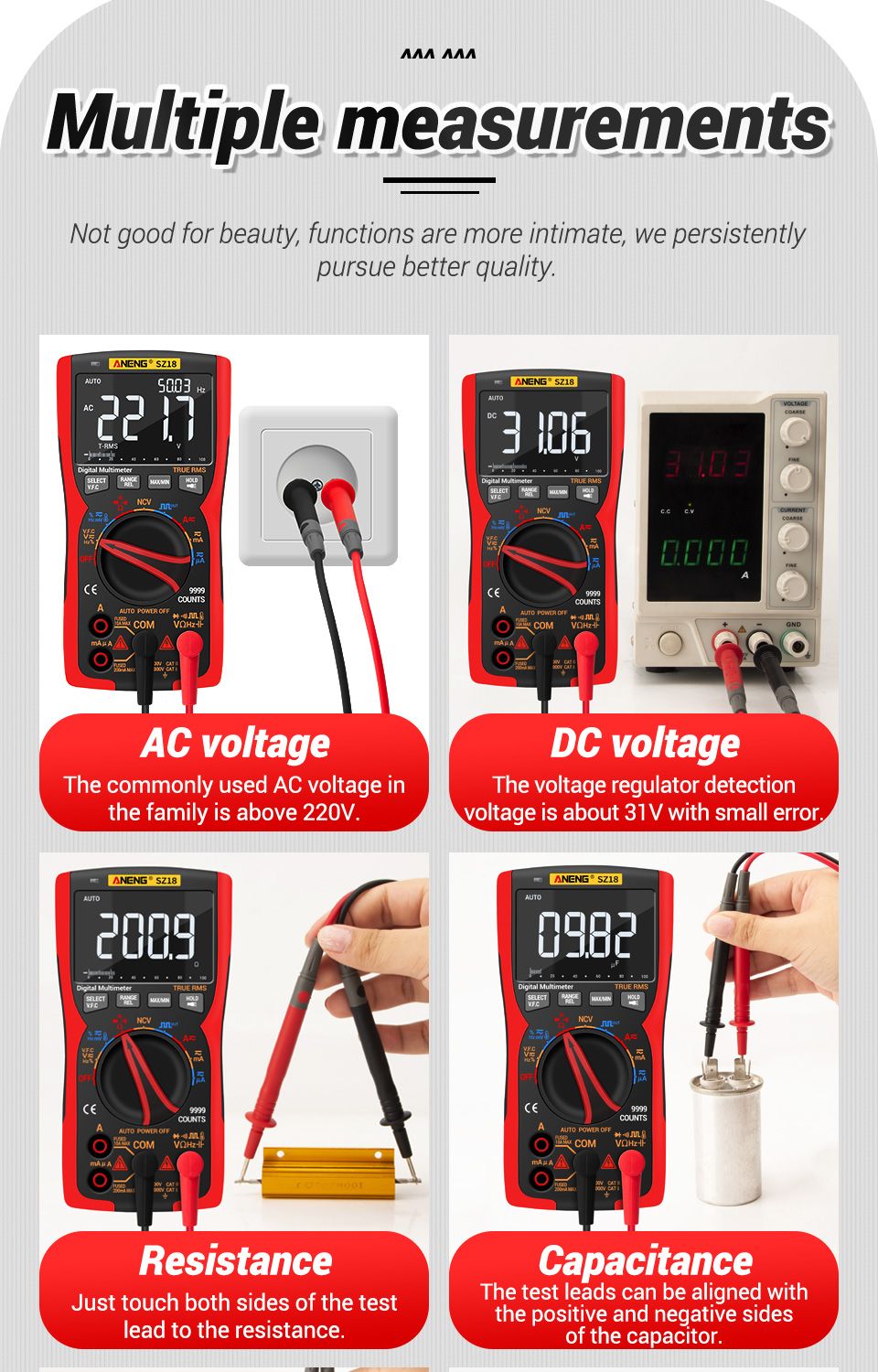

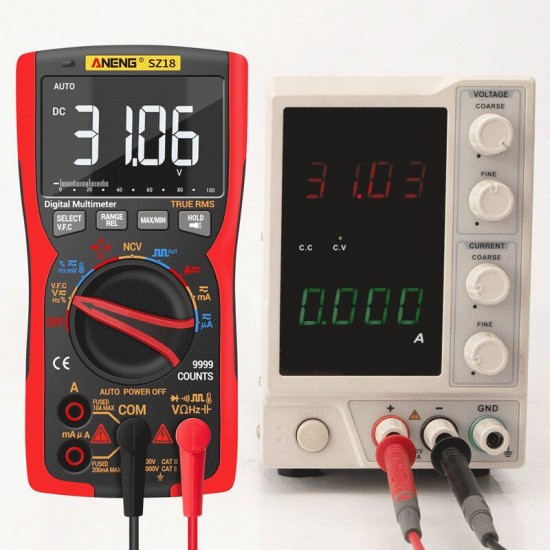

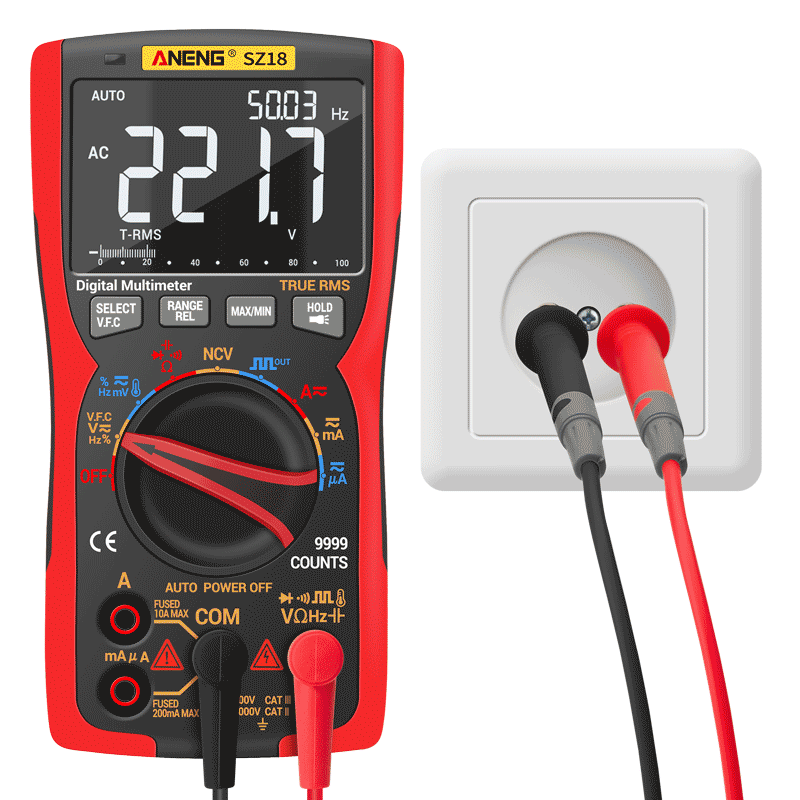

Measure AC voltage and DC voltage

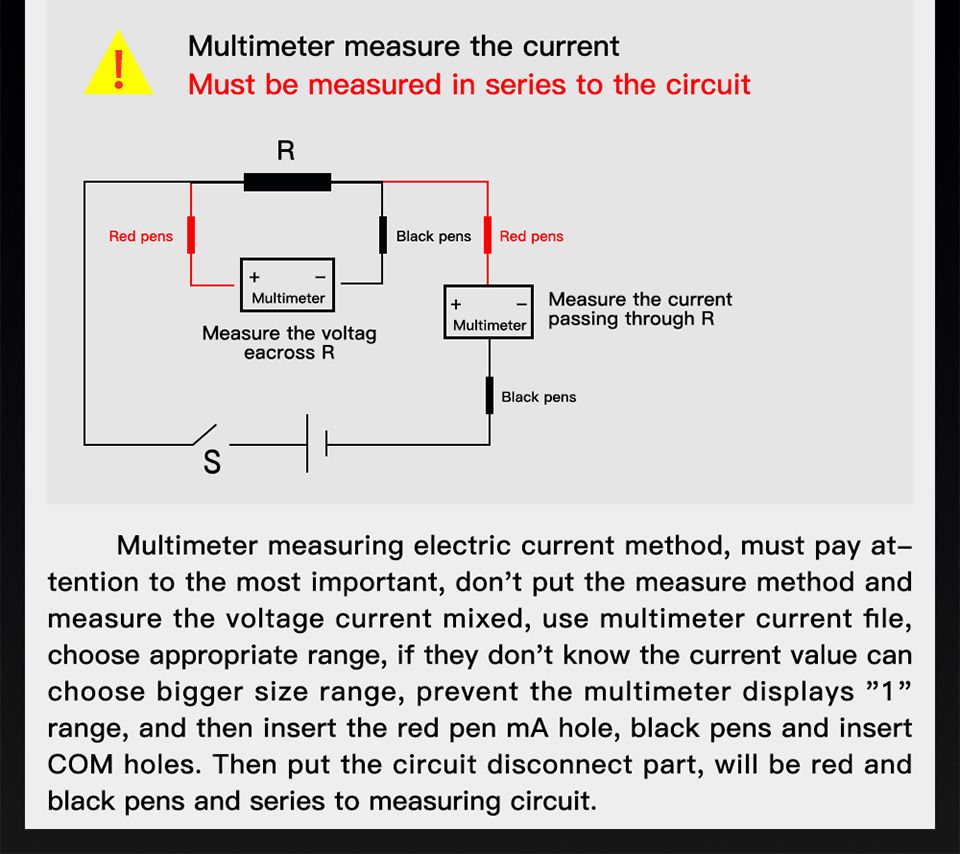

Measure AC and DC current
Measuring resistance/temperature

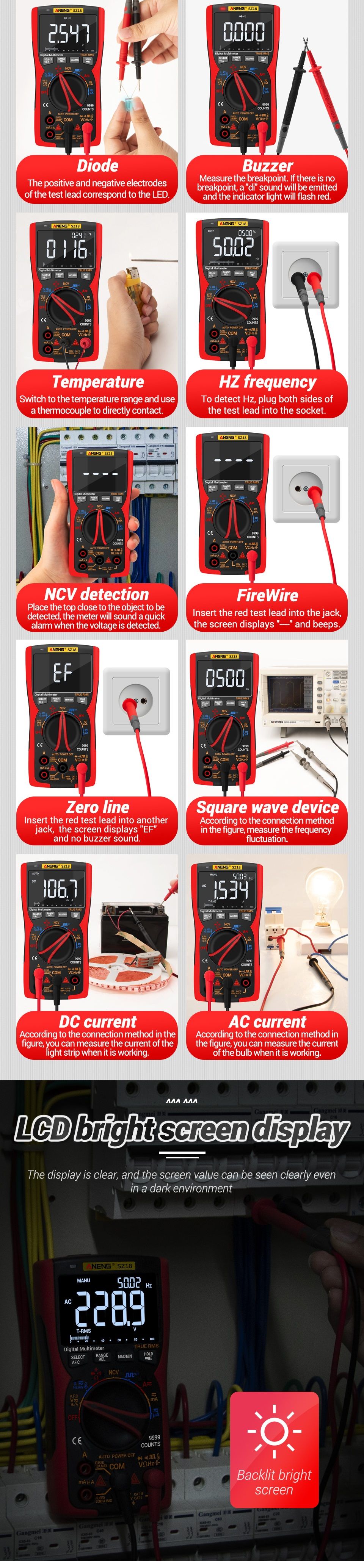

Test continuity and diode
Measuring capacitance/NCV
Measuring frequency and duty cycle
Anti-interference AC voltage detection
Specifications:
| Brand | Renhotec | Model | SZ18 |
Liquid crystal Display (LCD) | 9999 | Range | Automatic / manual |
Material | ABS + TPE | Sampling rate | 3 times / sec |
True RMS | Yes | Data retention | Yes |
Screen backlight | Yes | Low battery warning | Yes |
Automatic shut-down | Yes | Battery Type | 3 * 1.5v AA battery (not included) |
Characteristics | Range | Accuracy | AC frequency response |
DC Current | 9.999A/999.9mA | ±(1.0% + 3) | - |
DC Current | 99.99mA/9.999mA/99.99 μA/999.9μA | ±(0.8% + 3) | - |
AC Current | 9.999A/999.9mA | ±(1.2% + 3) | 40hz~1khz |
AC Current | 99.99mA/9.999mA/99.99 μA/999.9μA | ±(1.0% + 3) | 40hz~1khz |
DC Voltage | 999. 9mv/9.999v/99.99v/999.9v/9. 999mv/99. 99mv/999.9mv | ±(0.5% + 3) | - |
AC Voltage | 999. 9mv/9.999v/99.99v/750.0v/9. 999mv/99. 99mv/999.9mv | ±(1.0% + 3) | 40hz~1khz |
Resistance | 99.99Ω | ±(1.0% + 3) | - |
Resistance | 999.9Ω/9.999k Ω/99.99k Ω/999.9kΩ | ±(0.5% + 3) | - |
Resistance | 9.999MΩ | ±(1.5% + 3) | - |
| Resistance | 99.99MΩ | ±(3.0% + 5) | - |
Capacitance | 9.999nF | ±(5.0% + 20) | - |
Capacitance | 99. 99nf/999. 9nf/9.999μf/99.99μf/999.9 μf | ±(2.0% + 5) | - |
Capacitance | 9.999mF | ±(5.0% + 5) | - |
Frequency | 99.99hz/999.9hz/9.999khz/99.99khz/999.9khz/5.000mhz | ±(0.1% + 2) | - |
Temperature | (-20 ~ 1000)℃ / (-4 ~ 1832)℉ | ±(2.5% + 5) | - |
| Duty cycle | 1% ~ 99% | Diodo | Yes |
On /off | Yes | NCV | Yes |
| Working environment | Temperature | 0 ~ 40 ℃ |
|
| Humidity | <75% |
