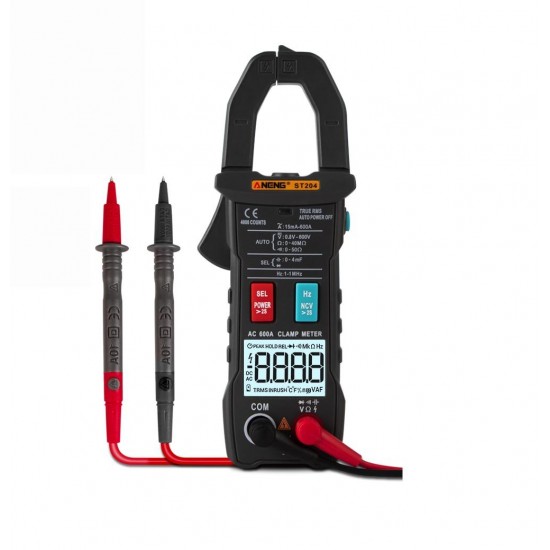

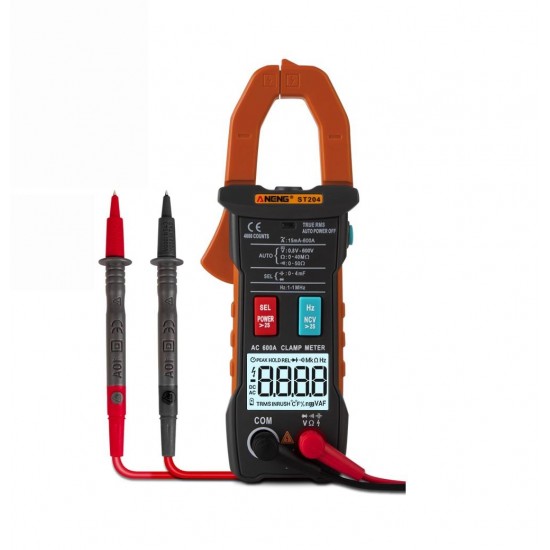

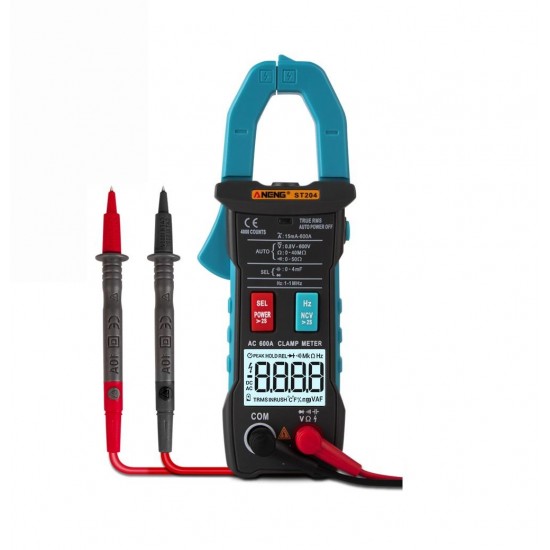

ST204 4000counts Full Intelligent Automatic Range Digital Current Multimeter(AUTO)

Based on 0 reviews. - Write a review

$20.42

Ex Tax: $20.42

Stock: In Stock
Model: EB004231
SKU: EB004231

Available Options

Color

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Characteristics:

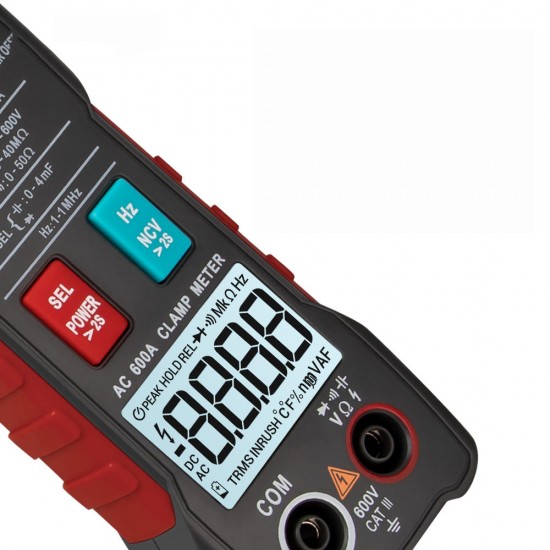

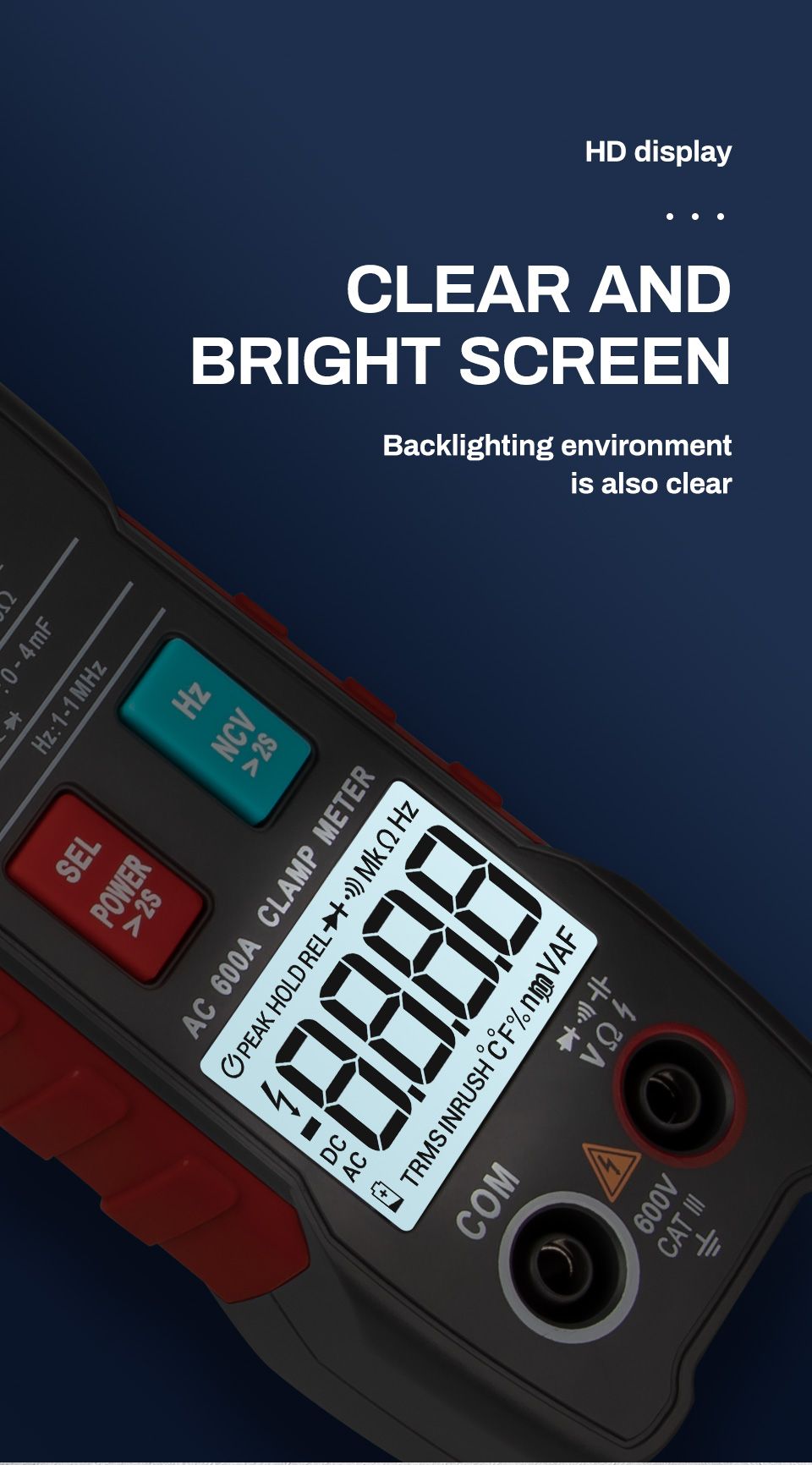

1. Display: liquid crystal display (LCD);

2. Maximum display: 4000 (3 3/4) bit automatic polarity display;

3. Measurement method: double integral A/D conversion;

4. Sampling rate: about 3 times per second;

5. Over range display: The highest position shows “OL”;

6. Low voltage display:symbol appears;

7. Working environment:(0~40)°,relative humidity<80%;

8. Power: AAA 1.5V battery (Batteries excluded)

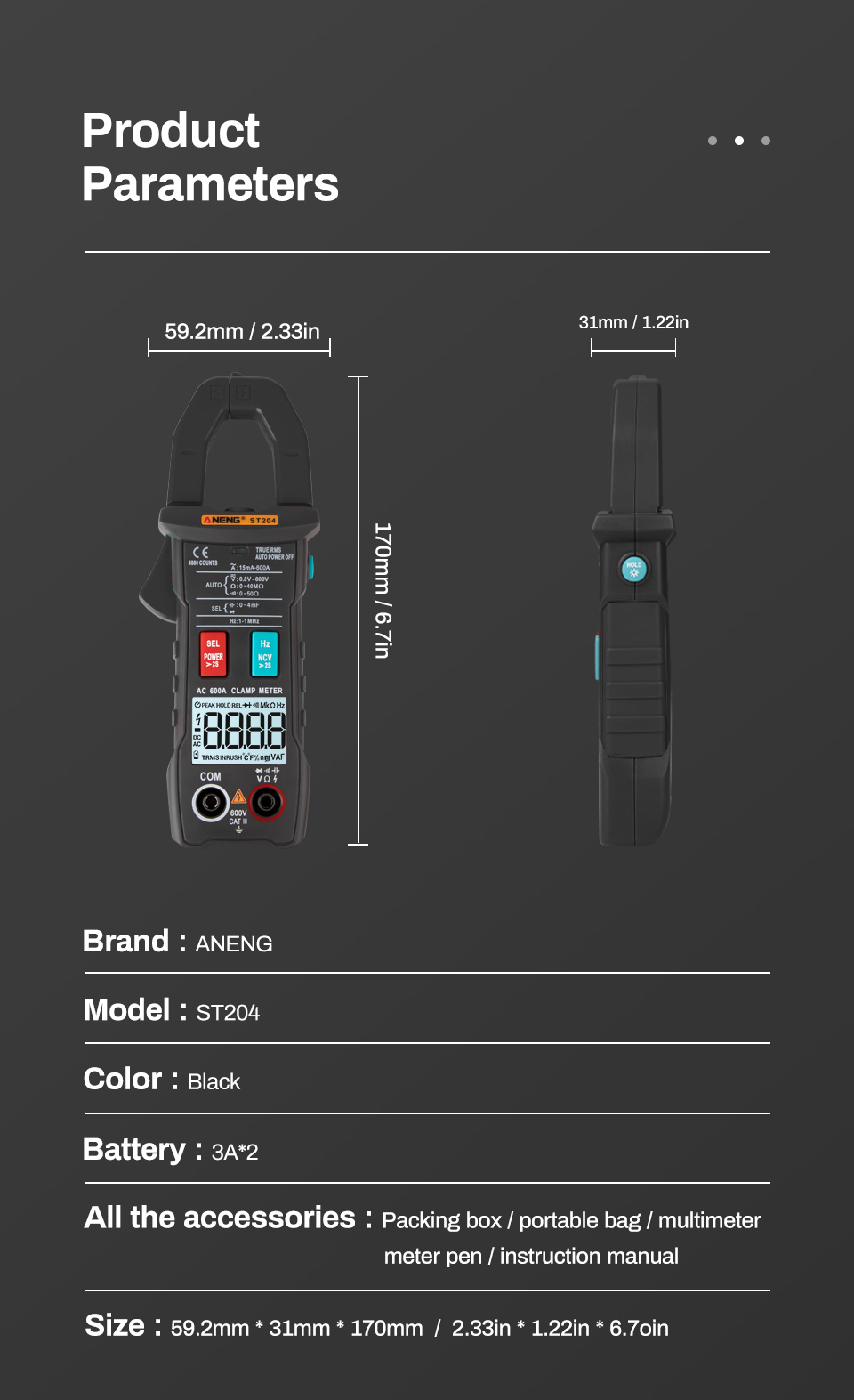

9. Volume (size): 170×65×30mm (L×W×H);

10. Weight:about160g(Batteries excluded 1.5V battery);

Functional Parameters:

DC voltage DCV :yes

AC voltage ACV :yes

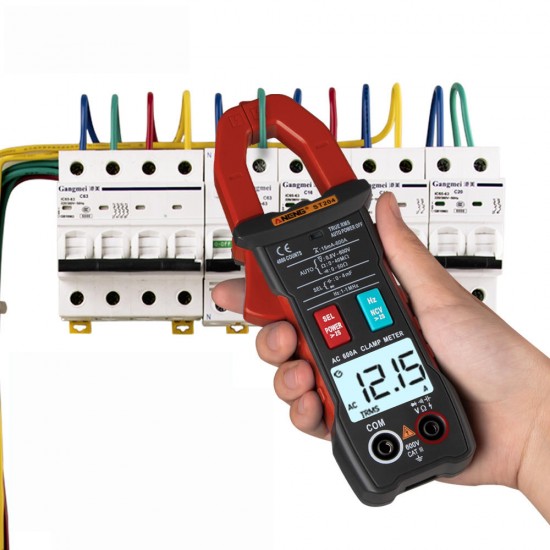

AC current ACA :yes

Capacitance measurement :yes

Resistor / On-Off Test :yes

Diode measurement:yes (Diode forward voltage drop. Forward DC current is about 1mA, open circuit voltage is about 3V)

Buzzer:yes (The buzzer sounds long and the resistance of the test is less than (50±20) Ω. auto recognition (AUTO)

Frequency F :yes

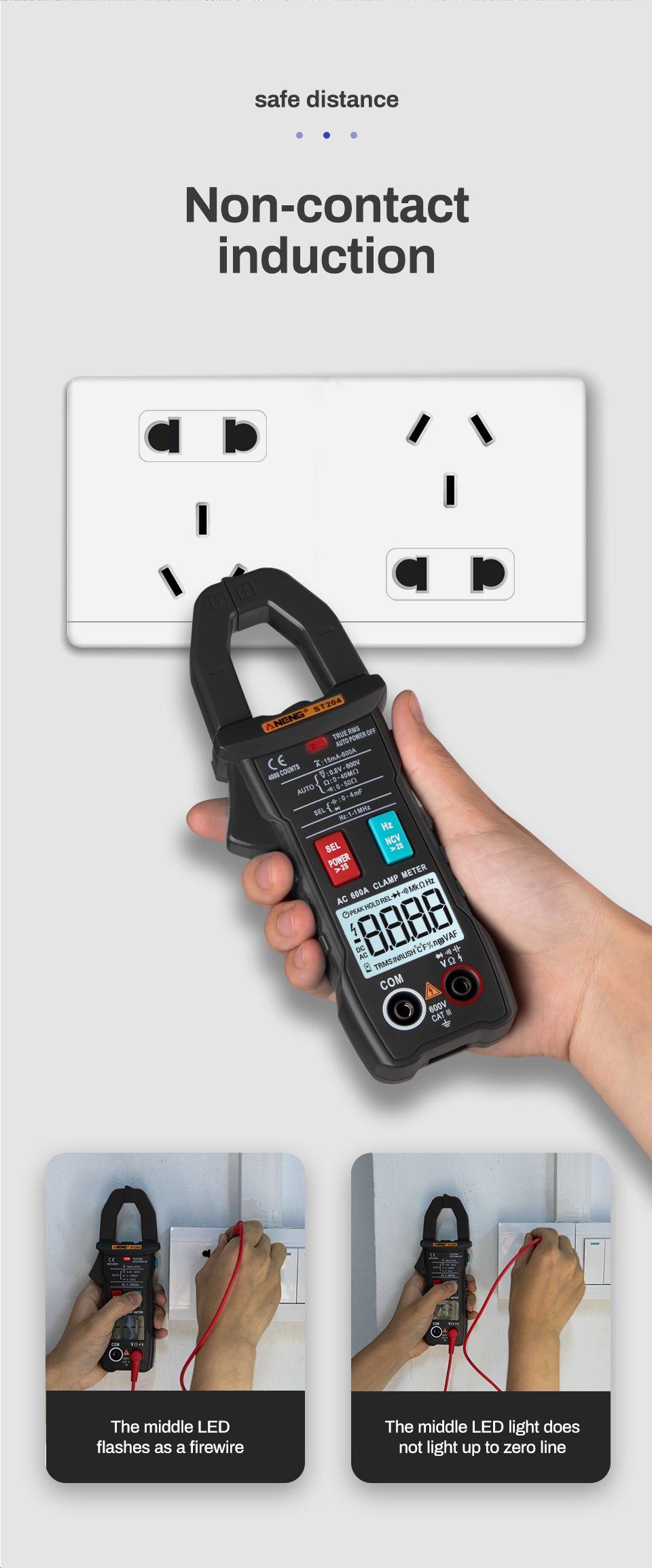

NCV :yes

Null line / Live line test :yes

Full unit symbol :yes

Backlight manual/Auto off :yes

True RMS measurement :yes

Flashlight lighting :yes

HOLD :yes

Technical Specifications:

DC voltage (DCV):4V-40V-400V-600V ±(0.5%+3)

AC voltage (ACV): 4V-40V-400V-600V ±(1%+3)

AC current(ACA):0.1A-4A-40A-400A-600A ±(2.5%+8)

Resistance: 4kΩ-40'kΩ-400kΩ-4MΩ-40MΩ ±(0.5%+3)

Frequency measurement: 4Hz-40Hz-400Hz-4kHz-40'kHz-400kHz-1MHz ±(0.1%+2)

Capacitance measurement:4nF-40nF-400nF-4μF-40μF-400μF-4mF ±(2%+5)

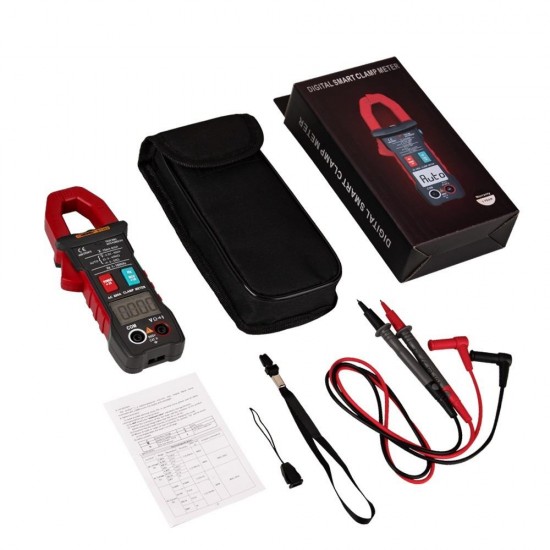

Package Includes:

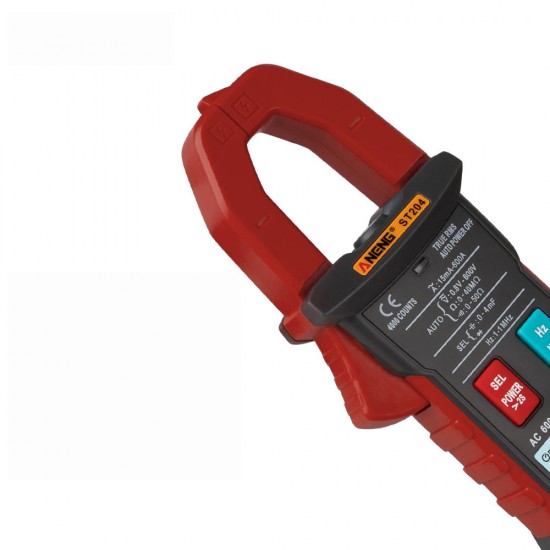

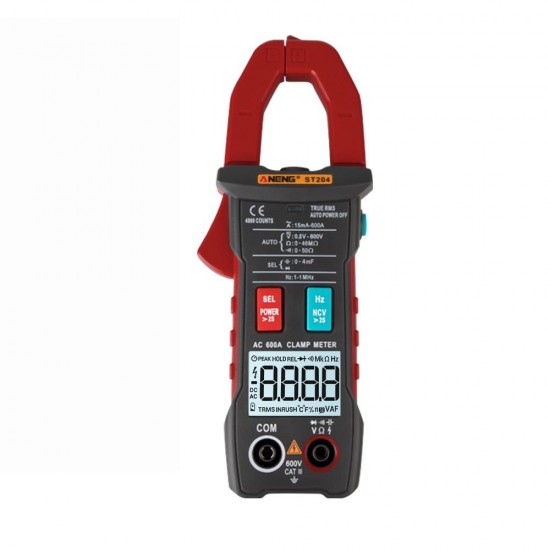

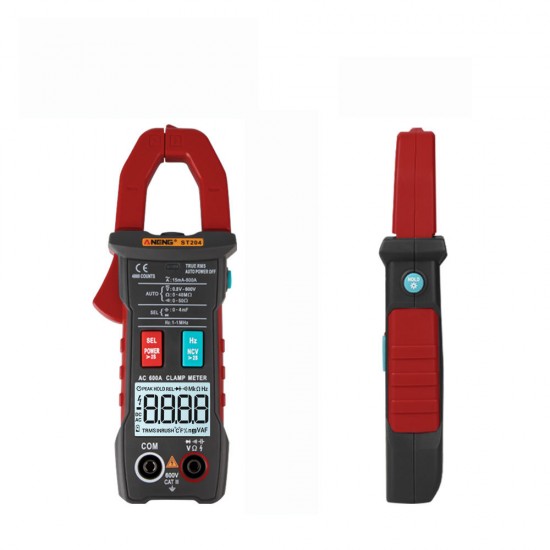

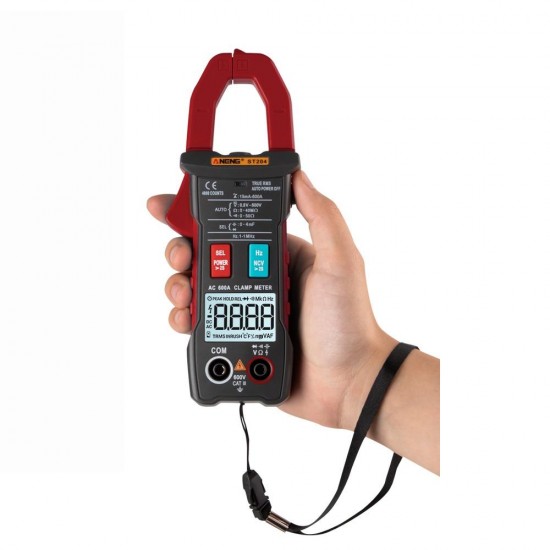

1 x ANENG ST204 Clamp Meter

1 x English User Manual

1 x Outer Packaging Box

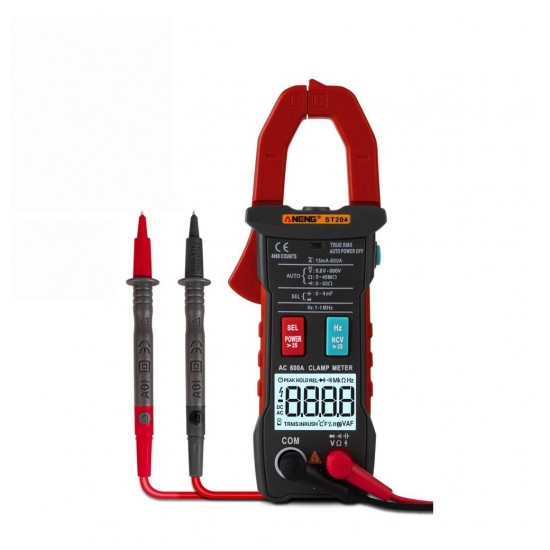

1 x Pair of Test Leads

1 x Portable Storage Bag

Details Pictures:

ANENG-ST204-4000counts-Full-Intelligent-Automatic-Range-Digital-Current-MultimeterAUTO-1503939
