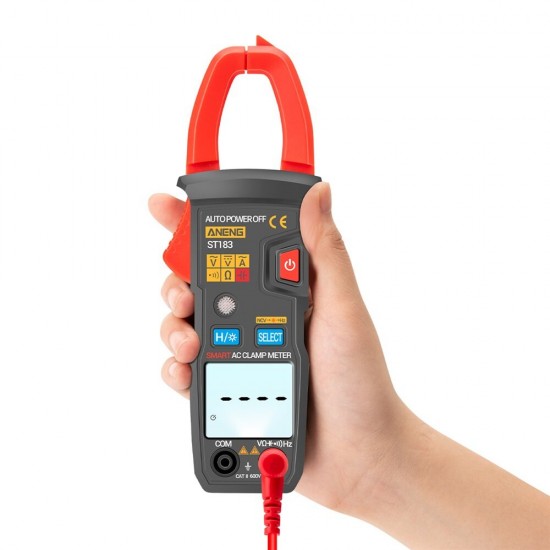

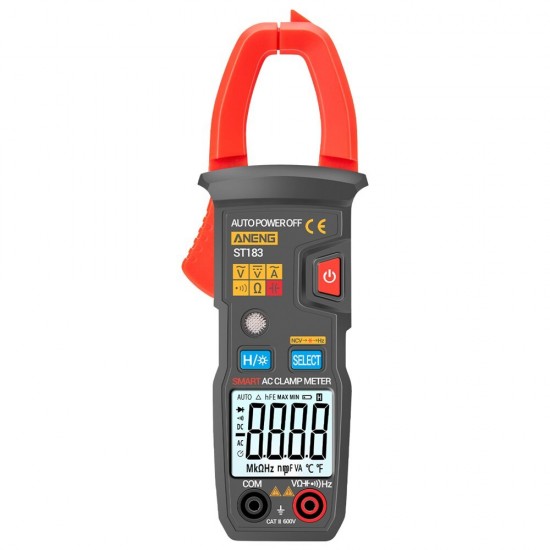

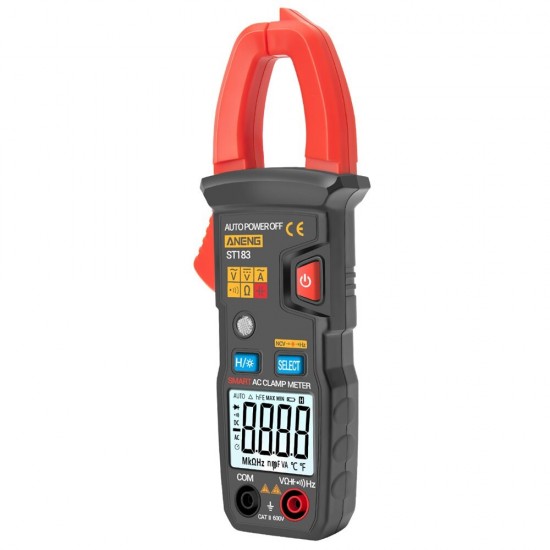

ST183 Digital Clamp Meter AC Current 6000 Counts True RMS Multimeter DC/AC Voltage Tester Hz Capacitance NCV Ohm Tests

ST183 Digital Clamp Meter AC Current 6000 Counts True RMS Multimeter DC/AC Voltage Tester Hz Capacitance NCV Ohm Tests
ST183 Digital Clamp Meter AC Current 6000 Counts True RMS Multimeter DC/AC Voltage Tester Hz Capacitance NCV Ohm Tests
ST183 Digital Clamp Meter AC Current 6000 Counts True RMS Multimeter DC/AC Voltage Tester Hz Capacitance NCV Ohm Tests
ST183 Digital Clamp Meter AC Current 6000 Counts True RMS Multimeter DC/AC Voltage Tester Hz Capacitance NCV Ohm Tests
ST183 Digital Clamp Meter AC Current 6000 Counts True RMS Multimeter DC/AC Voltage Tester Hz Capacitance NCV Ohm Tests
ST183 Digital Clamp Meter AC Current 6000 Counts True RMS Multimeter DC/AC Voltage Tester Hz Capacitance NCV Ohm Tests
ST183 Digital Clamp Meter AC Current 6000 Counts True RMS Multimeter DC/AC Voltage Tester Hz Capacitance NCV Ohm Tests
ST183 Digital Clamp Meter AC Current 6000 Counts True RMS Multimeter DC/AC Voltage Tester Hz Capacitance NCV Ohm Tests
ST183 Digital Clamp Meter AC Current 6000 Counts True RMS Multimeter DC/AC Voltage Tester Hz Capacitance NCV Ohm Tests
ST183 Digital Clamp Meter AC Current 6000 Counts True RMS Multimeter DC/AC Voltage Tester Hz Capacitance NCV Ohm Tests
ST183 Digital Clamp Meter AC Current 6000 Counts True RMS Multimeter DC/AC Voltage Tester Hz Capacitance NCV Ohm Tests
ST183 Digital Clamp Meter AC Current 6000 Counts True RMS Multimeter DC/AC Voltage Tester Hz Capacitance NCV Ohm Tests
ST183 Digital Clamp Meter AC Current 6000 Counts True RMS Multimeter DC/AC Voltage Tester Hz Capacitance NCV Ohm Tests
$14.99
Ex Tax: $14.99
  • Stock: In Stock
  • Model: EB004176
  • SKU: EB004176
Features:

This product is a battery-powered, true-rms, auto ranging digital clamp multimeter with a 6000 counts LCD display and a backlight.
Can measure AC/DC voltage, AC current, resistance,capacitance and frequency.
Data hold function, low battery indication, auto power off.
Suitable for electrical equipment testing and maintenance.

Specification:

Electrics Specification

Function

Range

Resolution

Accuracy

MAX.Value

Frequency Response

DC Voltage

W)

6V

0.001V

±(0.5%+5d)

600V



60V

0.01V

600V

0.1V

±(0.8%+5d)

>600V

IV

AC Voltage

(V)

6V

0.001V

±(1.0%+5d)

600V

40Hz~lkHz

60V

0.01V

600V

0.1V

±(1.2%+8d)

>600V

IV

AC Current

(A)

60A

0.01A

±(1.2%+8d)

600A

40Hz~lkHz

600A

0.1A

±(2.2%+8d)

Resistance

600.0Q

0.1Q

±(1.3%+5d)

60MQ




in

±(1.0%+5d)

60.00kQ

10Q


100Q

6.000MQ

1kQ

60.00MQ

10kQ

±(1.5%+5d)


Function

Range

Resolution

Accuracy

MAX.Value

Frequency Response

Capacitance

6.000nF

1pF

±(30%+5d)

60mF



60.00nF

10pF

600.0nF

100pF

6.000UF

1nF

60.00uF

10nF

600.0uF

100nF

±(3.5%+5d)

6.000mF

1uF

± ( 5.0%+6d)

60.00mF

10uF

± (8%+10d)

frequency

999.9Hz

0.1Hz

± (1.0%+5d)

20m Hz

10Hz~20mHz

9.999kHz

1Hz

99.99kHz

10Hz

999.9kHz

100Hz

± (2. 0%+5d)



9.999mHz

1kHz

土 (3. 0%+5d)



20.00mHz

10kHz

土 (4. 0%+10d)



Continuity

V

NCV

V

General Specification

Display (LCD)

6000 counts

Ranging

Auto

Material
