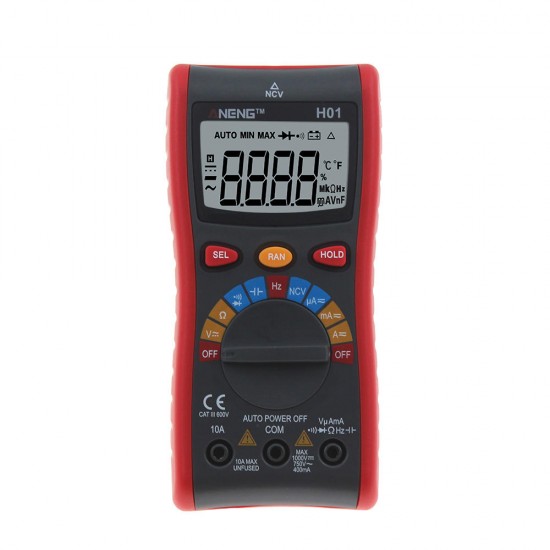

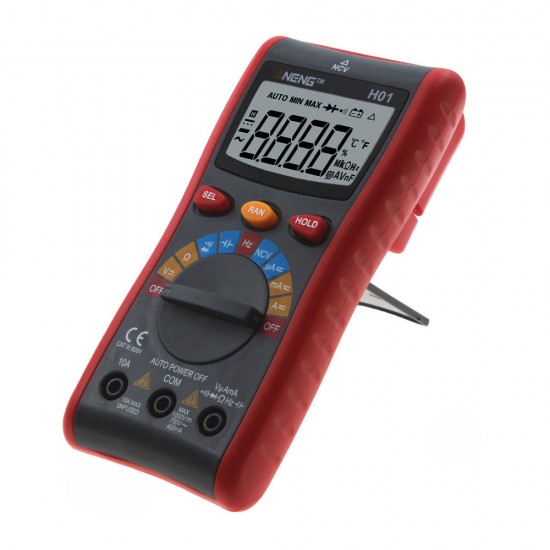

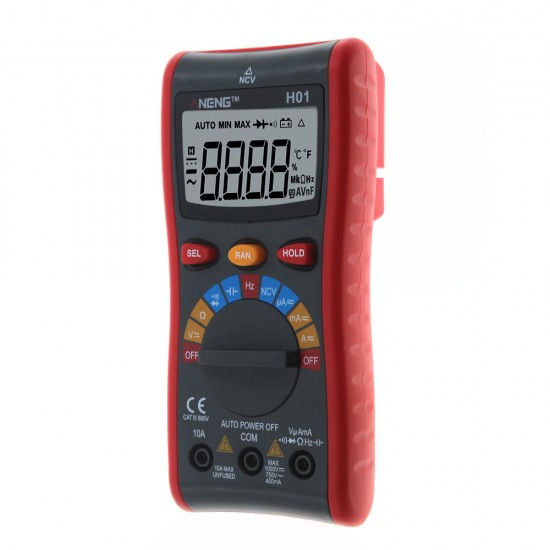

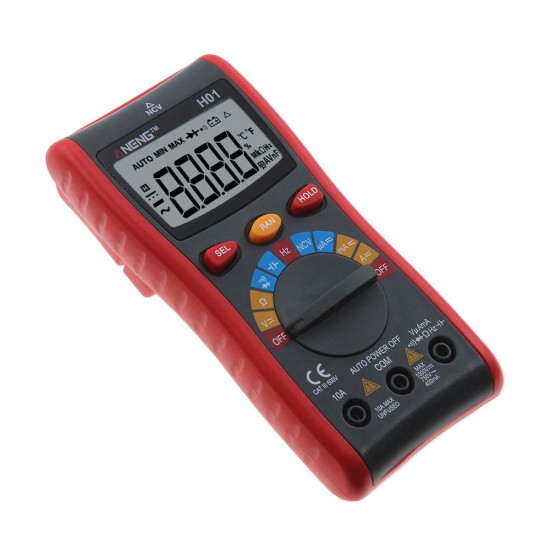

H01 4000Counts Auto Range Digital Multimeter AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode and Continuity Tester
- Stock: In Stock
- Model: EB004294
- SKU: EB004294
Features:
ANENG H01 is a battery-powered, auto-ranging digital multimeter with a 4000 counts, LCD display and backlight. It can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, diode, and continuity.
Operating Mode: Automatic range/manual range

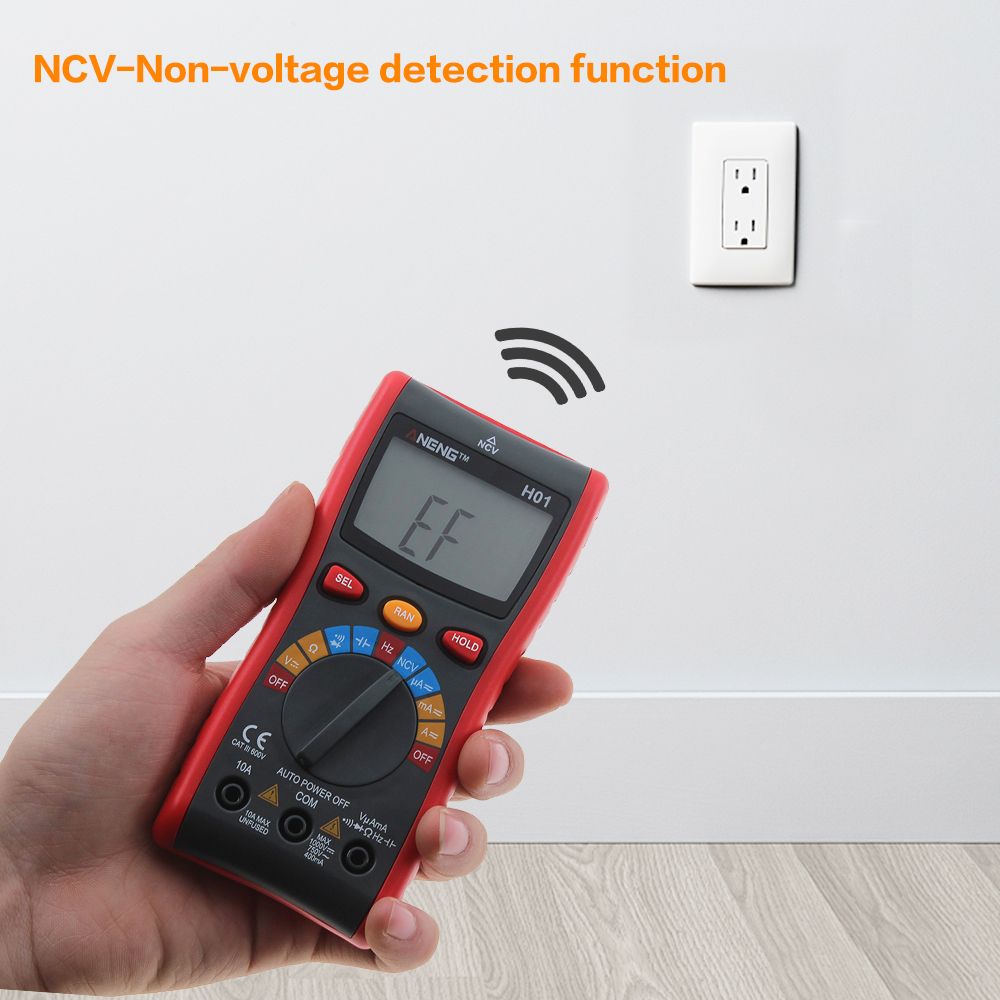

NCV: Yes (
Diode Test: Yes
Continuity: Yes
Data Hold: Yes
Backlight: Yes
Low Battery Alert: Yes
Auto Power Off: Yes
Display Type:4000

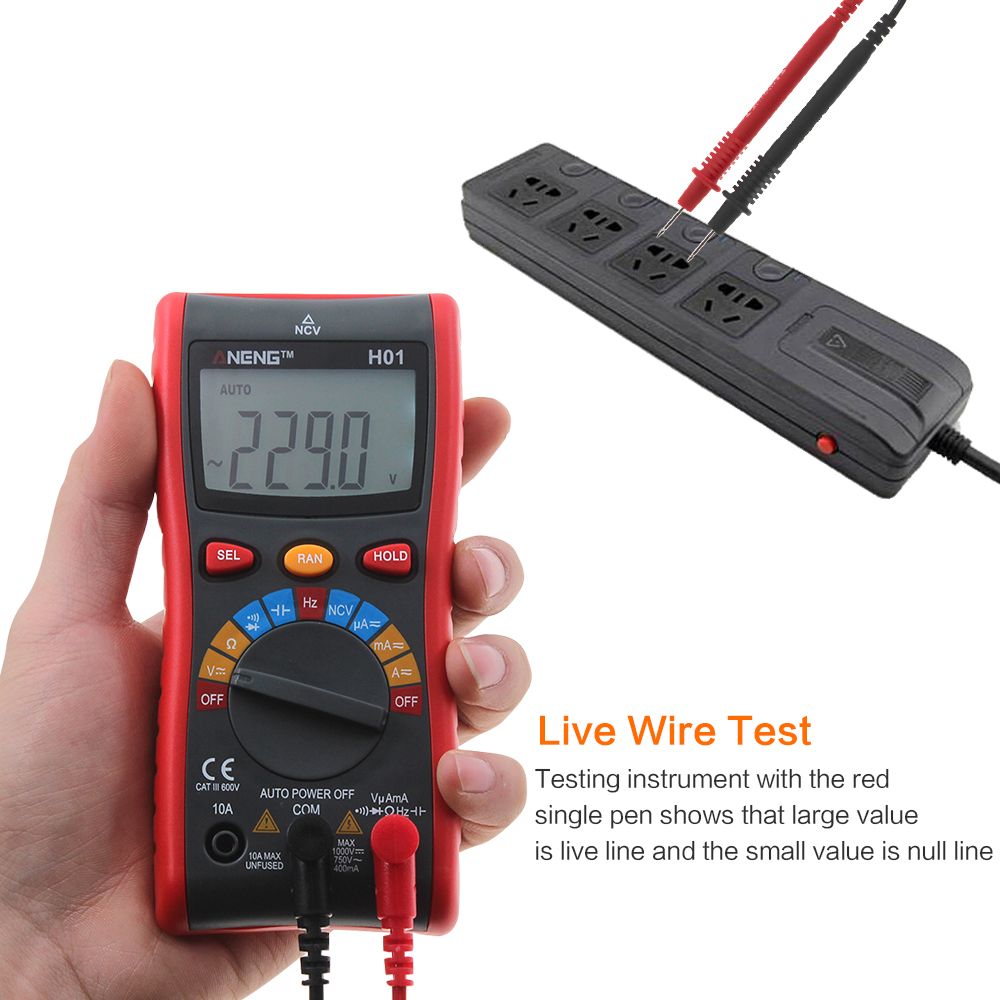

Live Wire Test: Yes
Main Measurement:AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Duty Cycle
Specification:
Brand Name: Renhotec
Model Number:H01
Measuring Inductance Range: NO

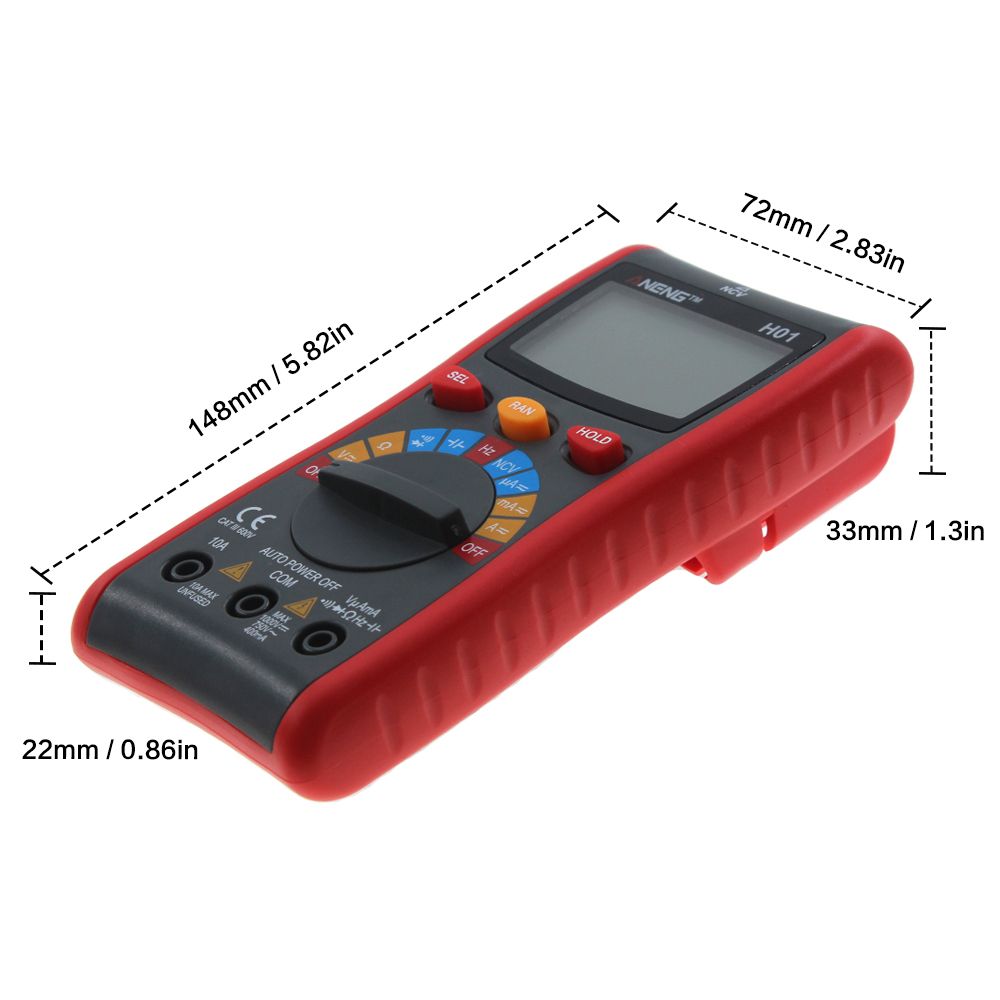

Dimensions: 148*72*33mm (
DIY Supplies: The electrician
AC Voltage: 400.0mV - 4.000V- 40.00V- 400.0V- 750V
DC Voltage: 400.0mV- 4.000V- 40.00V- 400.0V- 1000V
Measuring Resistance Range: 400.0Ω- 4.000kΩ - 40.00kΩ - 400.0kΩ - 4.000MΩ - 40.00MΩ
Measuring Capacitance Range: 4.000nF- 40.00nF- 400.0nF- 4.000uF- 40.00uF - 200.0uF- 400.0uF
DC Current: (A) 4.000A- 10.00A
DC Current: (mA) 40.00mA- 400.0mA
DC Current: (uA) 40.00uA- 400.0uA
AC Current: (A) 4.000A- 10.00A
AC Current: (mA) 40.00mA- 400.0mA
AC Current: (uA) 40.00uA- 400.0uA
Frequency Range: 99.99Hz-999.9Hz -9.999kHz -99.99kHz-999.9kHz-9.999MHz
Operating Temperature:0 - 40 ℃
Battery Type: 1.5V AAA Battery *2 (Excluding batteries)
Warning:
1. Do NOT exceed the “maximum value” indicated in the Specification;

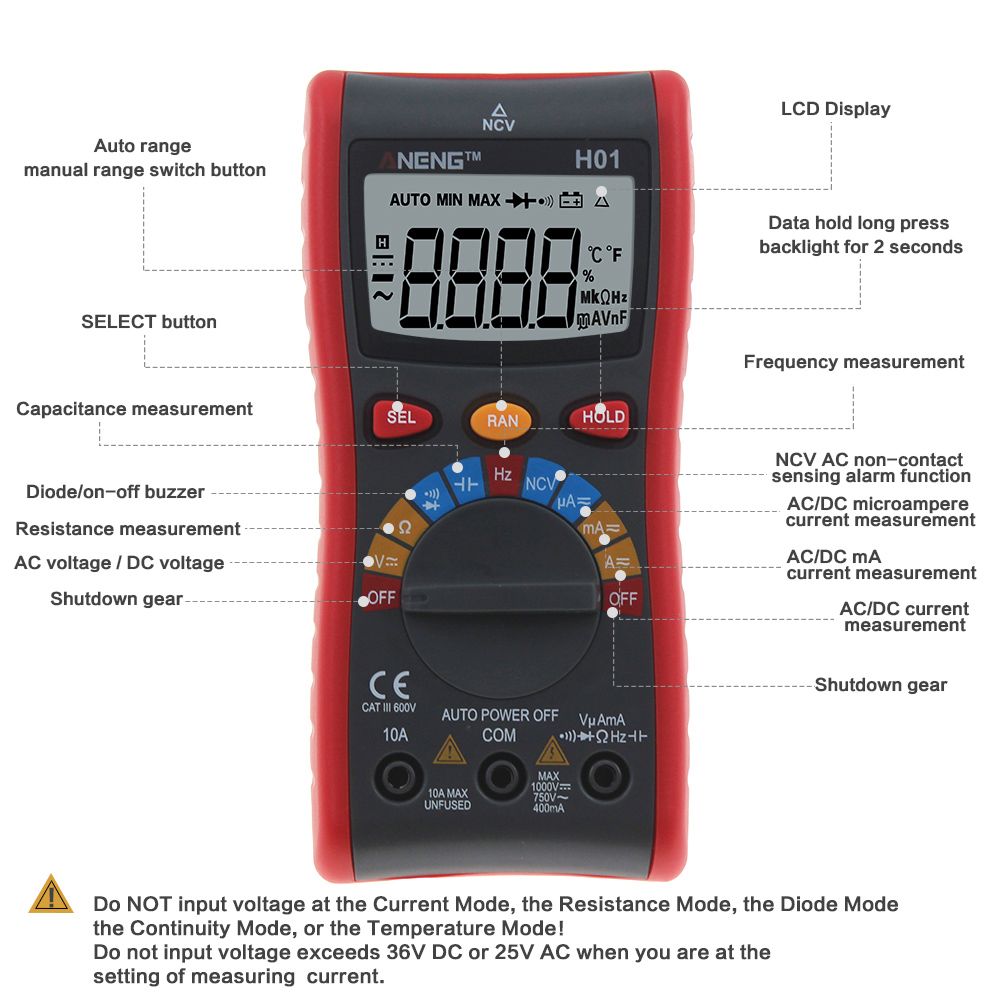

2. Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode Mode, or the Continuity Mode;
3. Do NOT use the product when the batteries or the battery cover is not placed properly;
4. Turn off the product and remove the test leads from the test points before changing batteries or fuses.
Do not input voltage exceeds 36V DC or 25V AC when you are at the setting of measuring current.
Safety Information: ) Examine the connection of the test leads and the insulation of the product before measuring voltage higher than 36V DC or 25V AC.

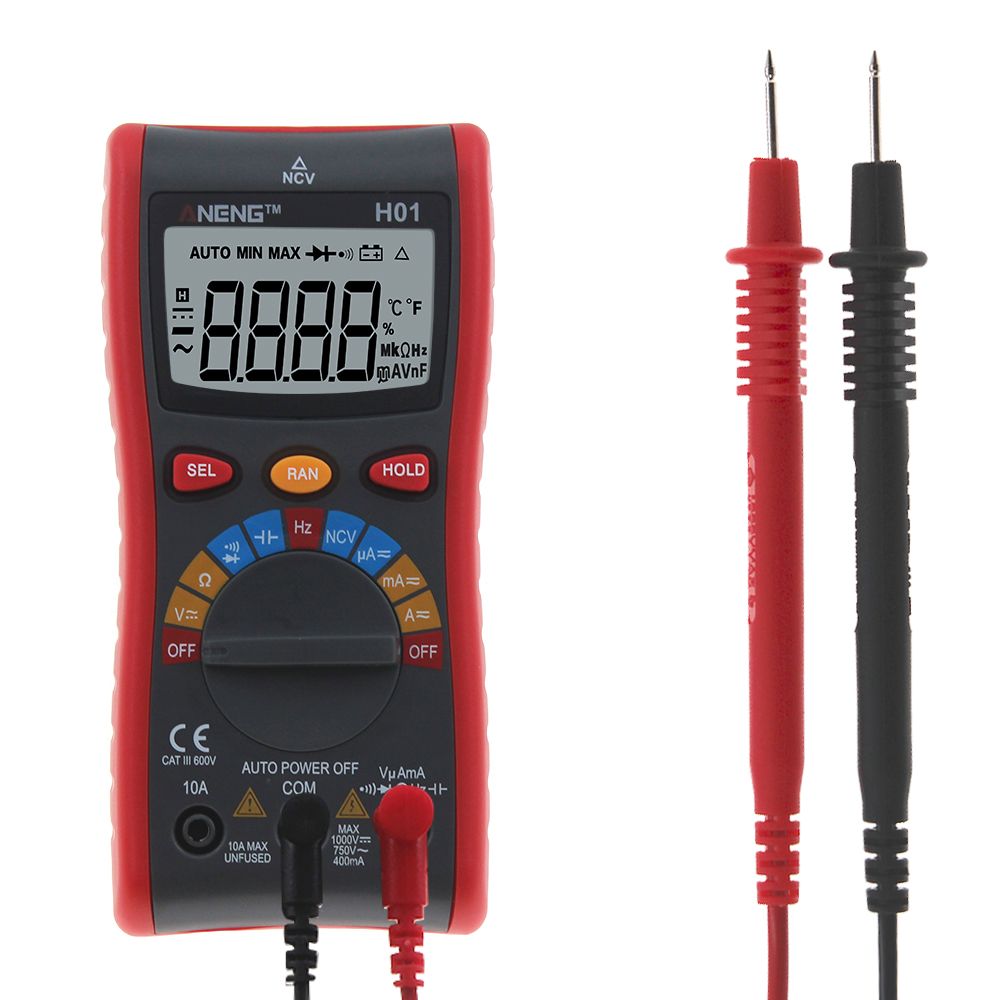

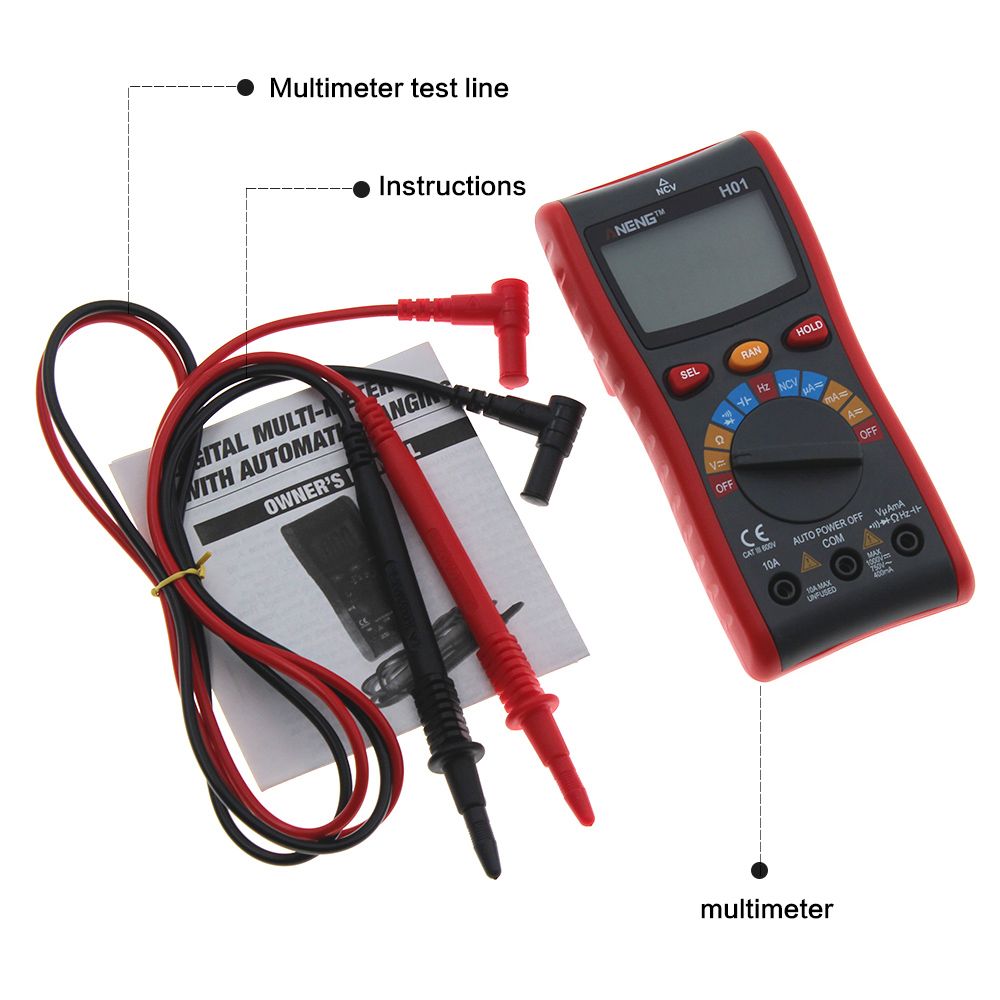

Package includes:
1 x Multimeter (Excluding batteries)
1 x Test lead (length:100mm)
1 x English User Manual

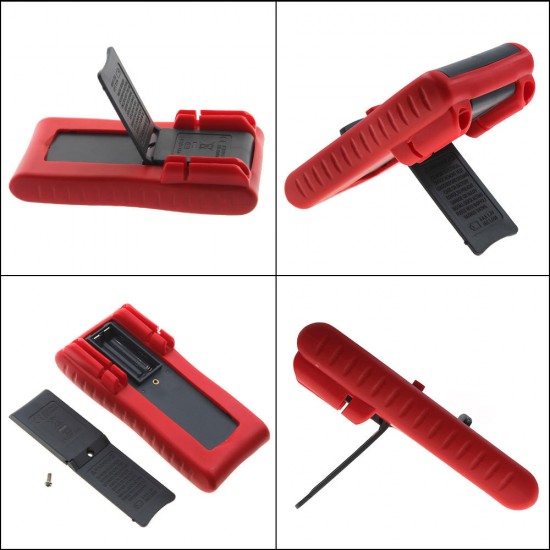

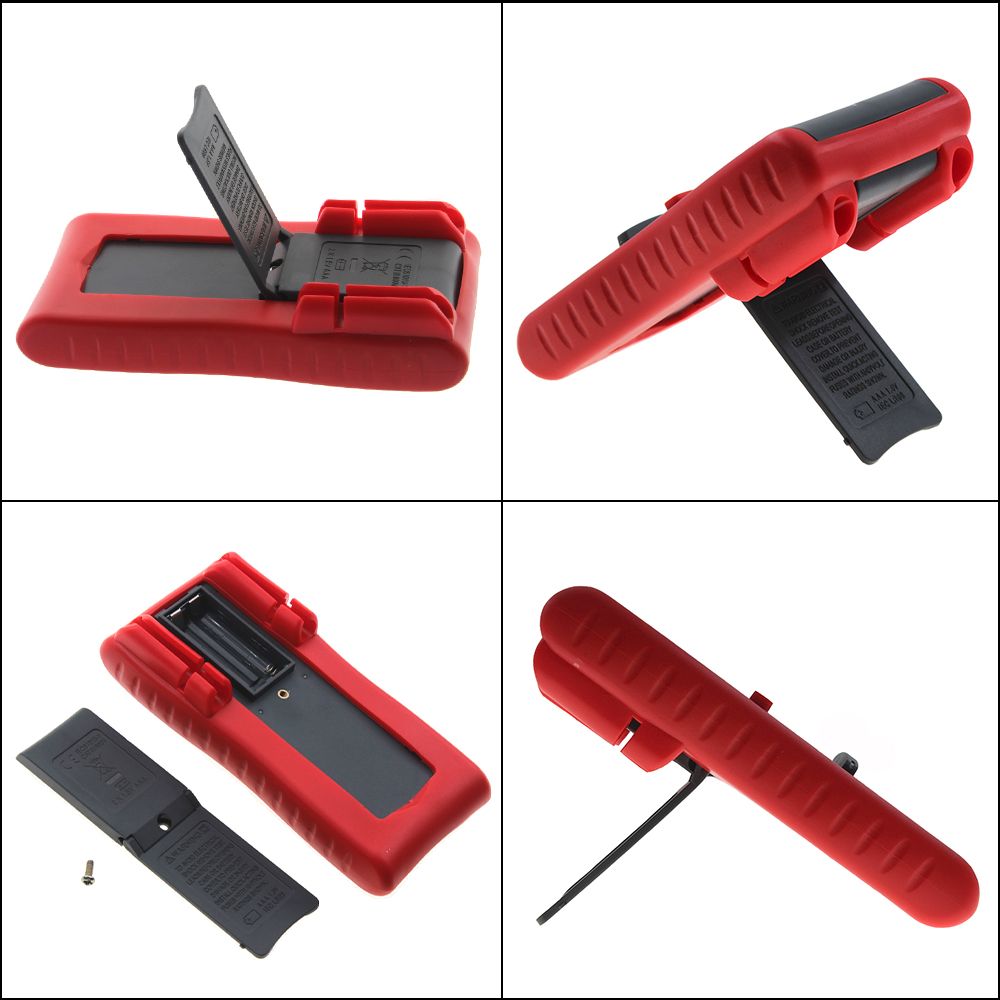

Details pictures:
