DM830L Digital Multimeter Meter Testers 1999 Count Electrical Transistor Capacitance DC / AC Multimeter With LCD Backlight
- Stock: In Stock
- Model: EB004298
- SKU: EB004298

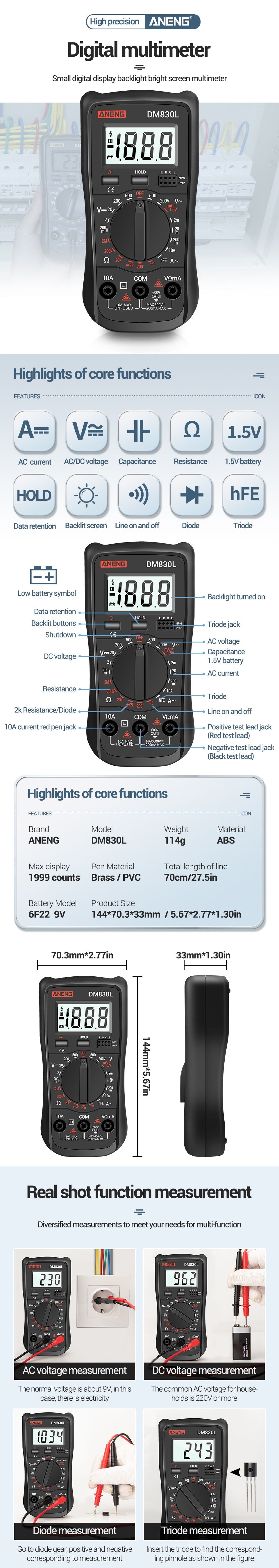

Features:
This Heavy-Duty General purpose Multimeter features a Clear,
Easy to Read LCD Display,

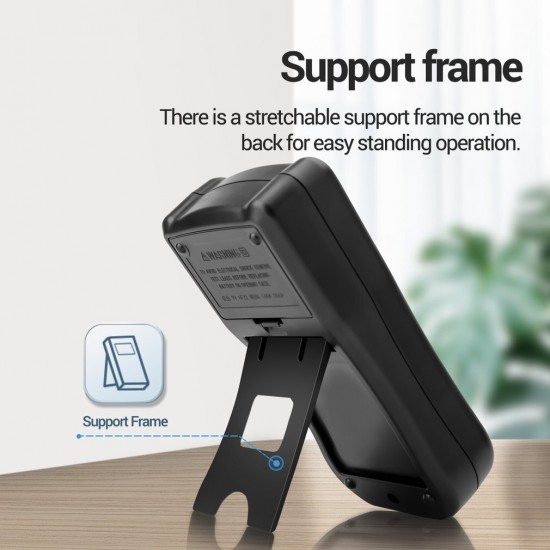

With blue Back Light Overload Protection on all ranges Housed in a rugged rubber boot with integral stand Low Battery Voltage
Indication Portable

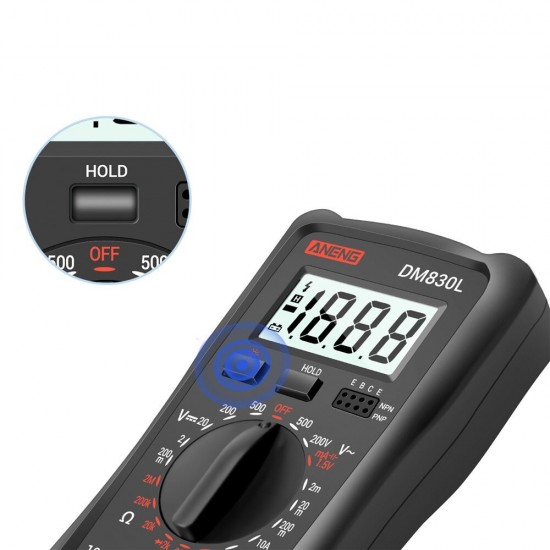

Compact Design Data Hold Function

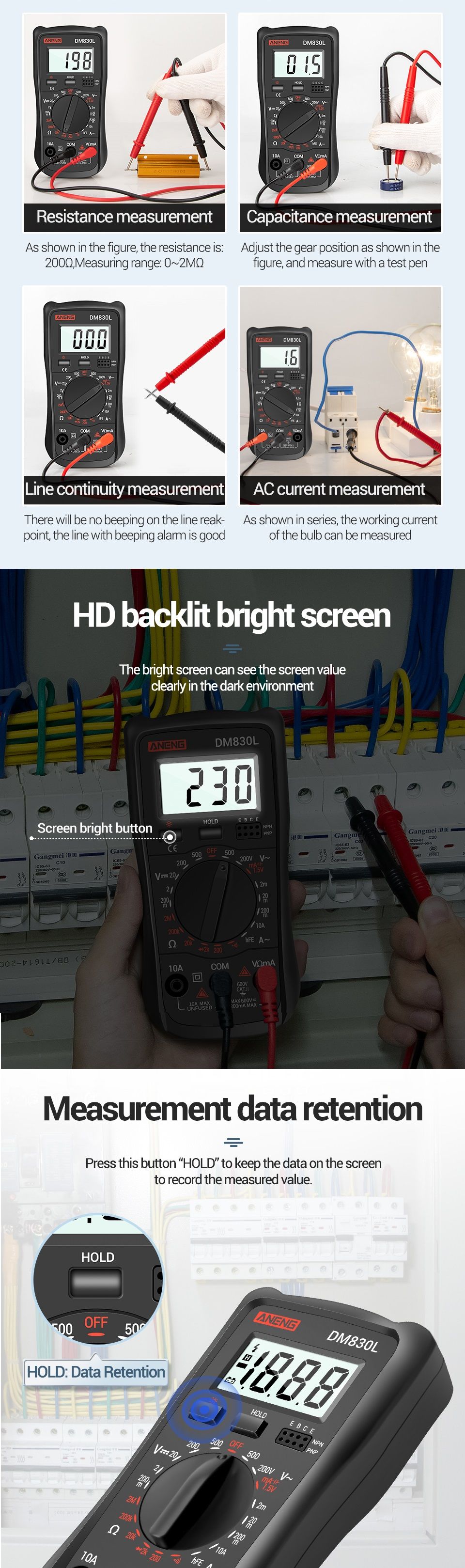

Diode Test Facility 20 Position Rotary Switch Measures AC & DC Voltage,
DC Current, Resistance, Audible Continuity, Diode/Transistor Verification Mode
Specification:
Brand:Renhotec
Model:DM830L
Range accuracy:
DC voltage:
200mV / 2V / 20V / 200V ± (0.5% + 2)
1000 volts ± (0.8% + 2)
AC voltage 200 mV ± (1.2% + 3)
2V / 20V / 200V ± (0.8% + 3)
700V ± (1.2% + 3)
AC current 2mA / 20mA ± (1.2% + 3)
200 mA ± (1.8% + 3)
20A ± (3.0% + 7)
Resistance 200Ω ± (1.0% + 2)
2kΩ/20kΩ/200kΩ/2MΩ ± (0.8% + 2)
20 megohms ± (1.2% + 2)
200 megohms ± (5.0% + 10)
Frequency 2kHz ± (2.0% + 5)
20kHz ± (1.5% + 5)
Temperature
-20℃ to 0℃ ± 5.0% of reading ± 4 digits
0℃ to 400℃ ± 1.0% of reading ± 3 digits
400℃ to 1000℃ ±2.0% of reading
Capacitance 2nF / 20nF / 200nF / 2uF / 200uF ± (4.0% + 5)
Battery: 6F22 9V (not included)

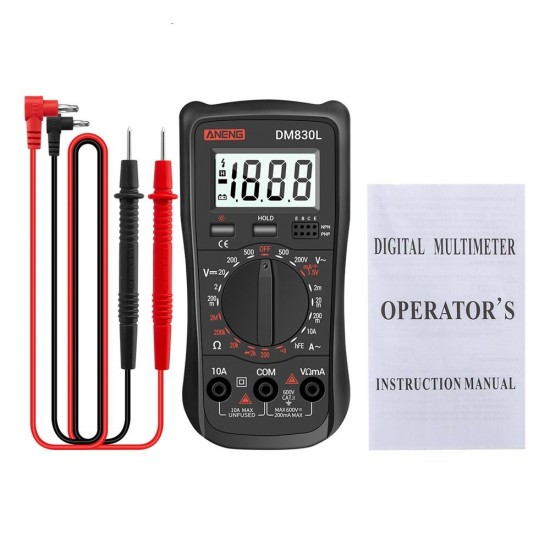

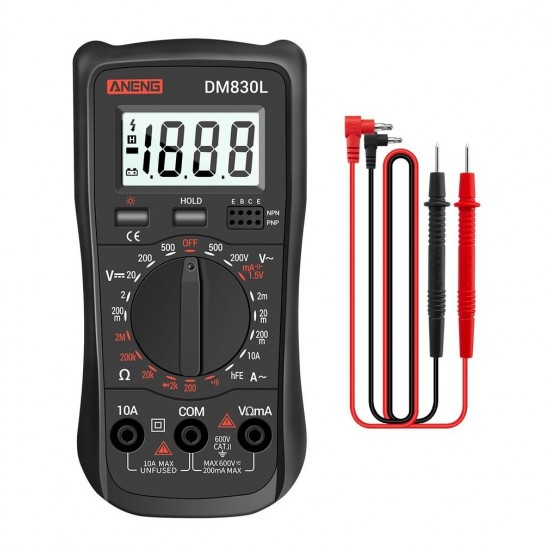

1 * ANENG DM830L Digital Multimeter
1 * Test Leads
1 * User Manual
