AN8801 Auto Range Digital True RMS Clamp Multimeter AC/DC Voltage Current Resistance Temperature Tester Portable Meter
- Stock: In Stock
- Model: EB004350
- Dimensions: 23.30cm x 7.00cm x 3.59cm
- SKU: EB004350
| Capacitance | 10nF(±5.0+20),100nF/1uF/10uF/100uF(±2.0%+5),1000uF/10000uF(±5.0%+5) |
| DC Volts | 600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3) |
| AC Volts | 600mV(±3.0%+3), 6V/60V/600V/750V(±1.0%+3) |
| DC Current | 600uA/6000uA(±0.8%+10) |
| AC Current | 600uA/6000uA(±0.8%+10), 60A/600A/1000A(±2%+30) |
| Resistance | 600Ω(±0.5%+3), 6K/60K/600K/6M(±0.5%+2), 60MΩ(±1.5%+3) |
| Frequency | 5/50/500/5k/50k/500k/5M/10M (±0.1+3) |
| Temperature Range | -20℃ to 1000℃ (-4℉ to 1832℉) |
| Temperature Accuracy | <400℃ ±(1.0%+5), ≥400℃ ±(1.5%+15), <752℉ ±(1.0%+5), ≥752℉ ±(1.5%+15) |
| Duty Cycle | 1% to 99%(±1%) |
| Measurement Mode | Double-integral style A/D transform |
| Over Range Indication | OL |
| Operating Environment | 0~40℃, relative humidity < 80% |
| Auto/Manual Ranges | Yes |
| True RMS | Yes |
| Sample Rate | 3 times per second |
| Backlight | Yes |
| Data Hold | Yes |
| Polarity Identification | Yes |
| Low Voltage Indication | Yes |
| Auto Power Off | Yes |
| Power Supply | 2pcs 1.5V AA batteries (Not included) |
| Size | 23.3 x 7 x 3.5cm / 9.17 x 2.75 x 1.37" |

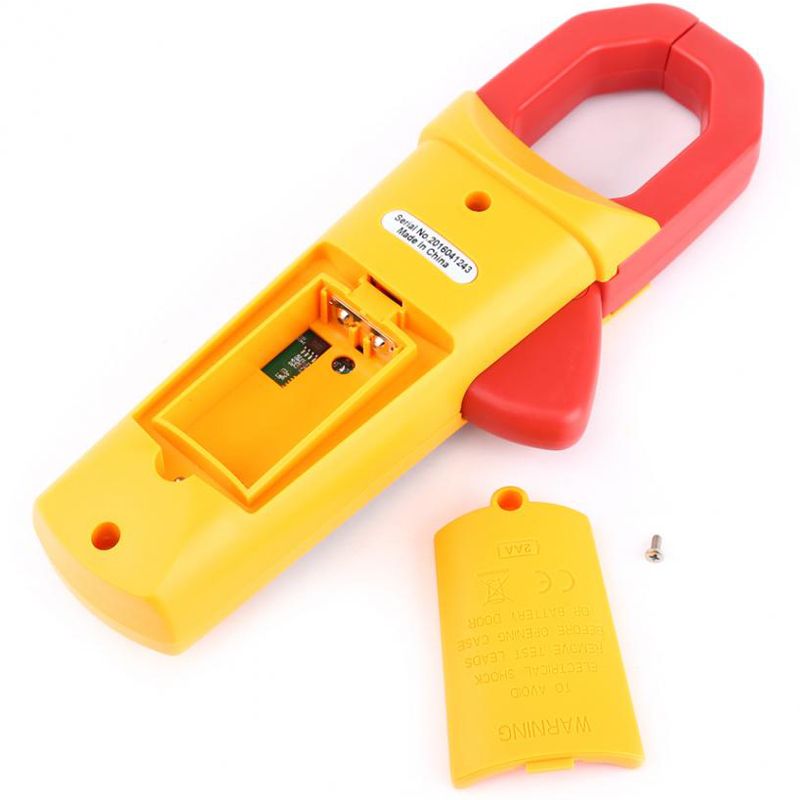

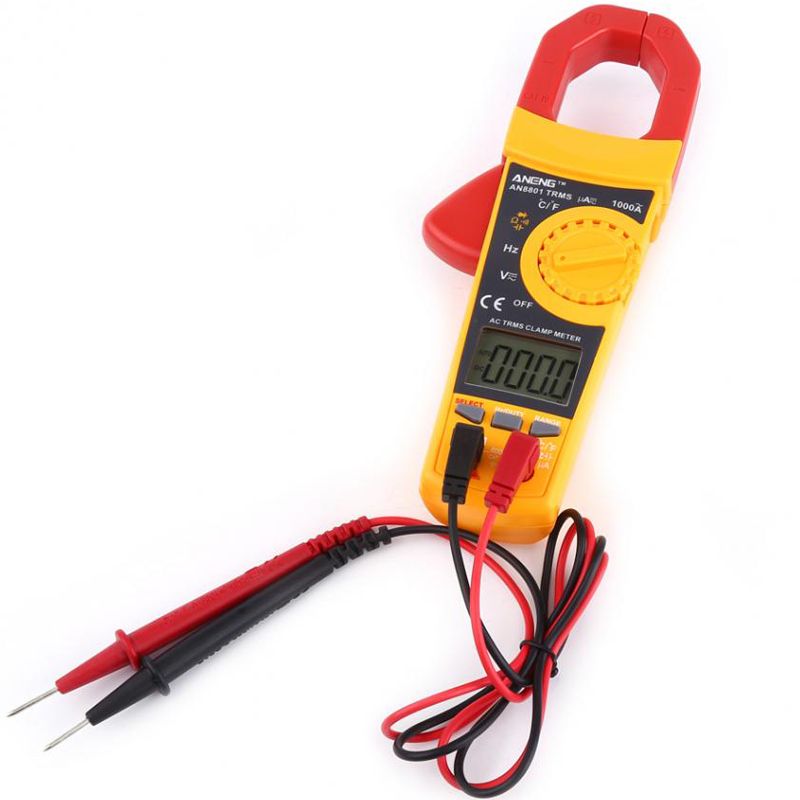

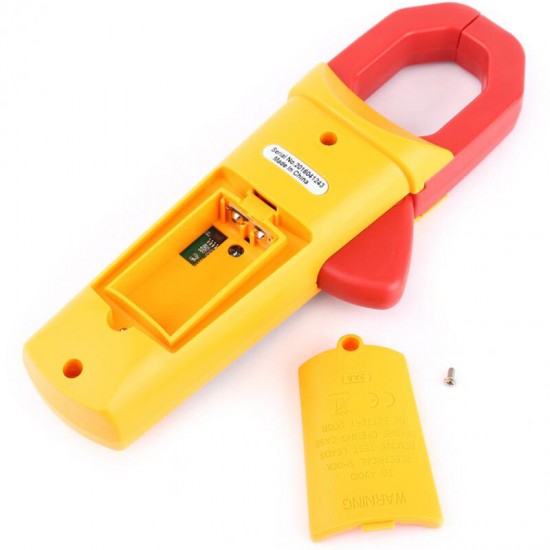

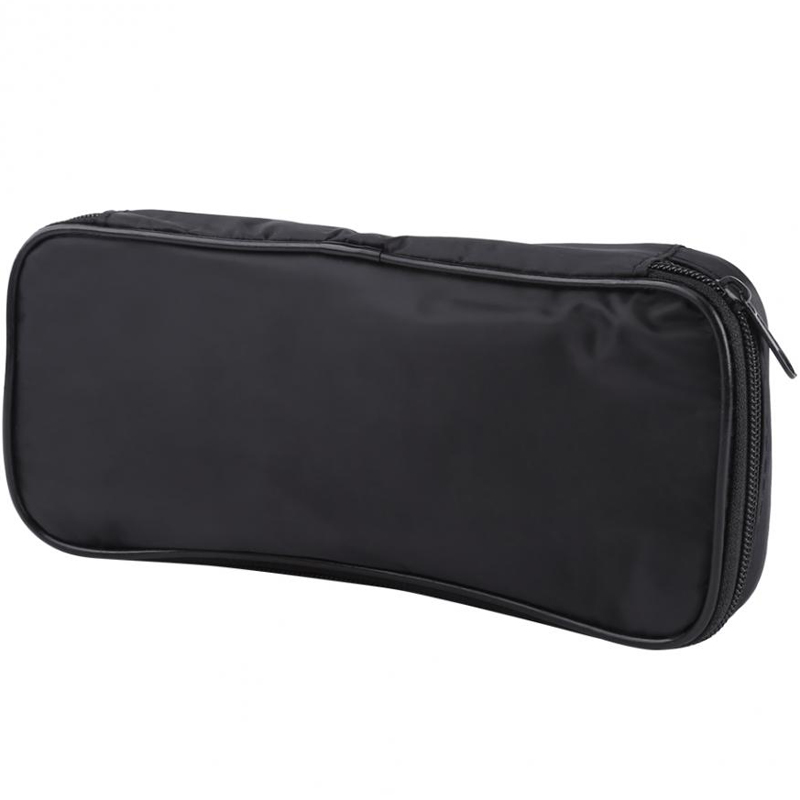

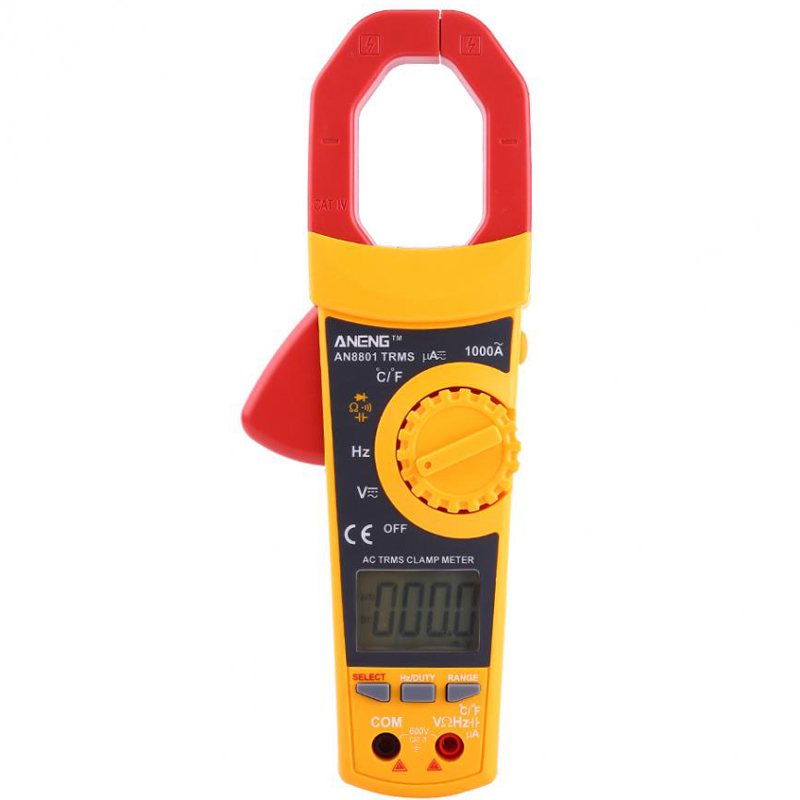

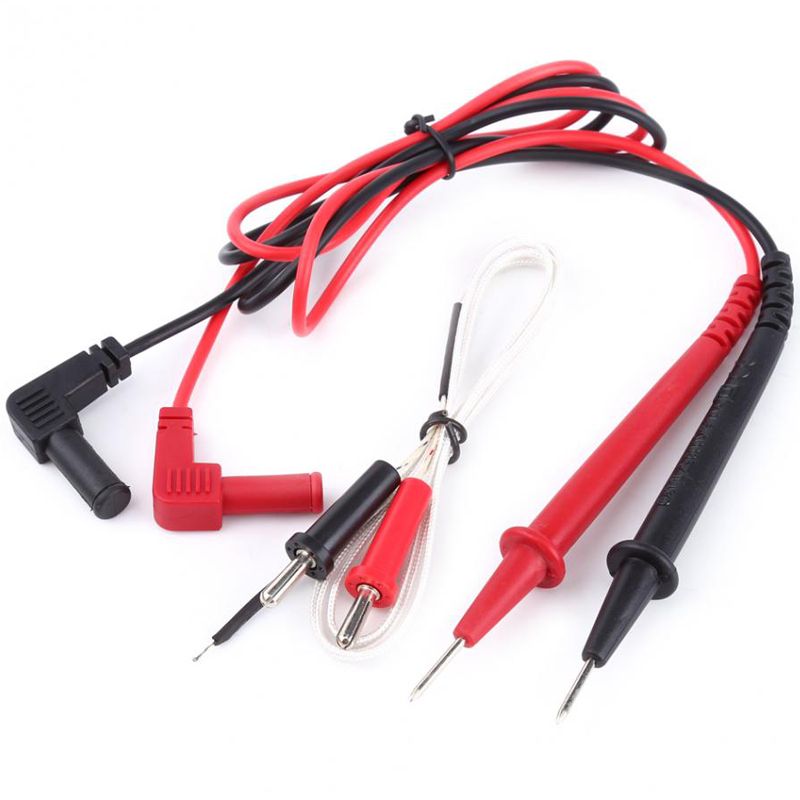

Detail Pictures:
