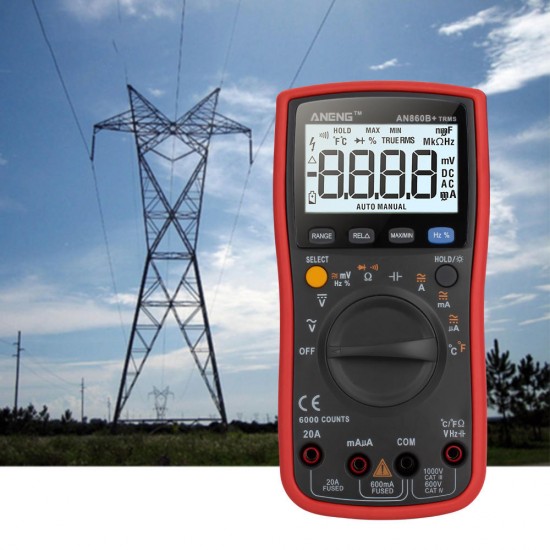

AN860B+ LCD 6000 Counts Digital Multimeter Backlight AC/DC Current Voltage Resistance Frequency Temperature Tester with Lead Set

Based on 0 reviews. - Write a review

$31.61

Ex Tax: $31.61

Stock: In Stock
Model: EB004396
SKU: EB004396

Available Options

Color

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

Auto/manual ranges.

True RMS measurement.

550V protection in resistance and capacitance ranges.

Large LCD display, MAX display 6000 counts.

Sample rate: 3 times per second.

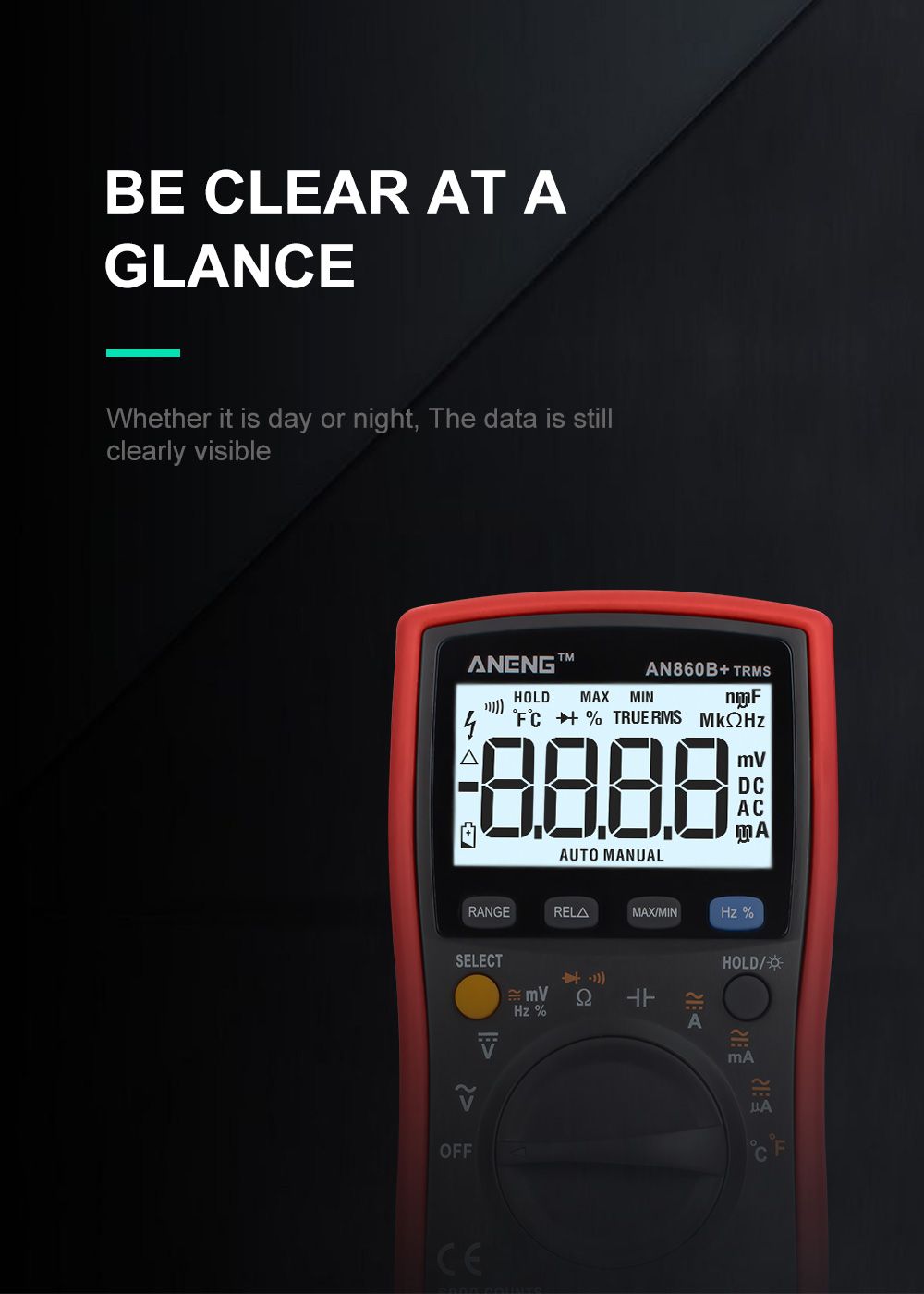

Backlight.

MAX/MIN data hold.

Polarity identification.

Low voltage indication.

20A high current measurement is available.

Auto power off: can be cancelled manually.

Main measurements: AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Diode and Continuity Testing,

Temperature, Frequency and cycle.

Specification:

Frequency: 1Hz to 20MHz

Temperature: -20℃ to 1000℃ (-4℉ to 1832℉)

Capacitance: 10pF to 6000uF

AC volts: 0.1mV to 750V

DC volts: 0.1mV to 1000V

AC current: 0.1uA to 20A

DC current: 0.1uA to 20A

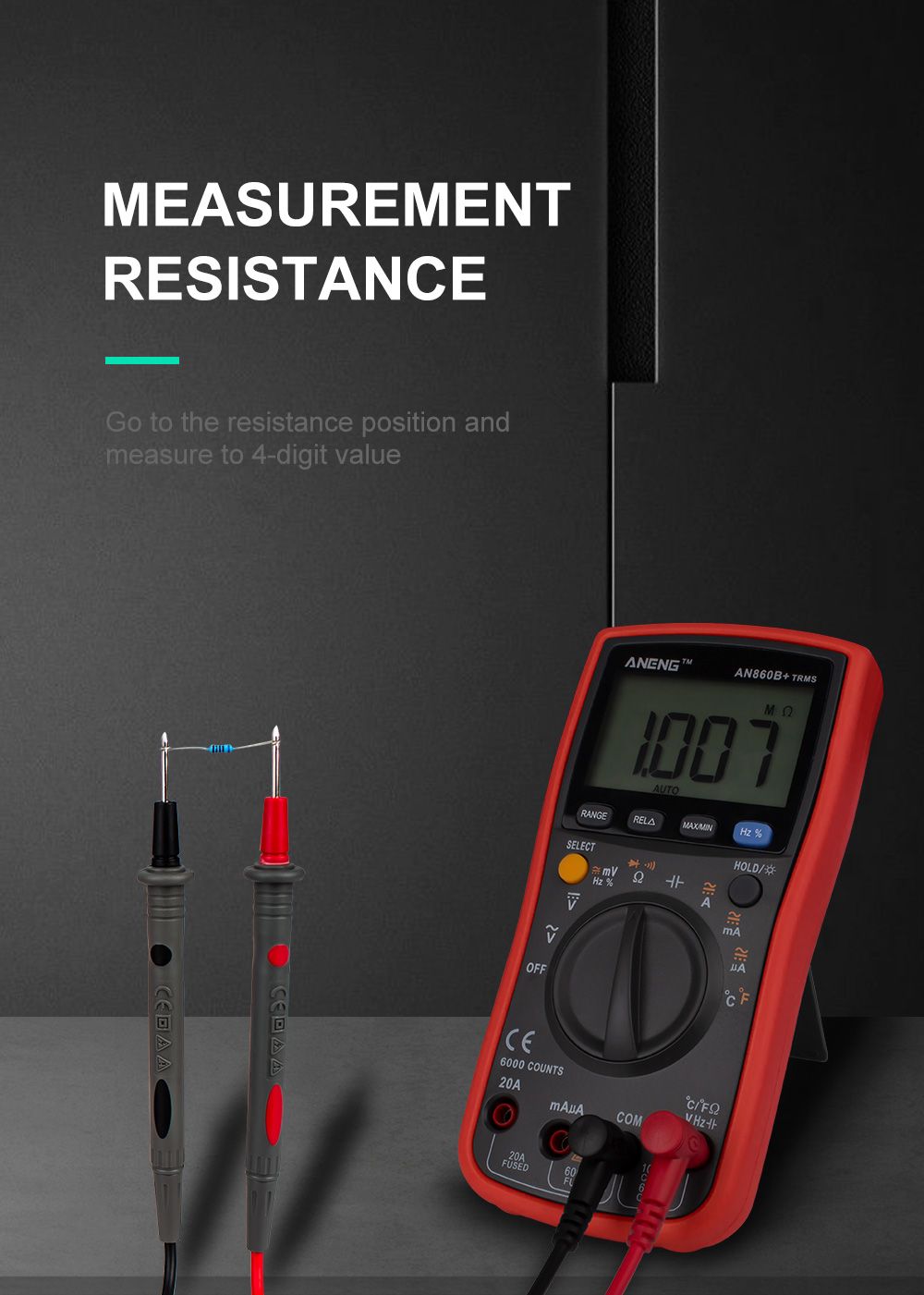

Resistance: 0.1Ω to 60MΩ

cycle: 1% to 99%

Frequency: 5/50/500/5k/50k/500k/5M/20M (±0.1+3)

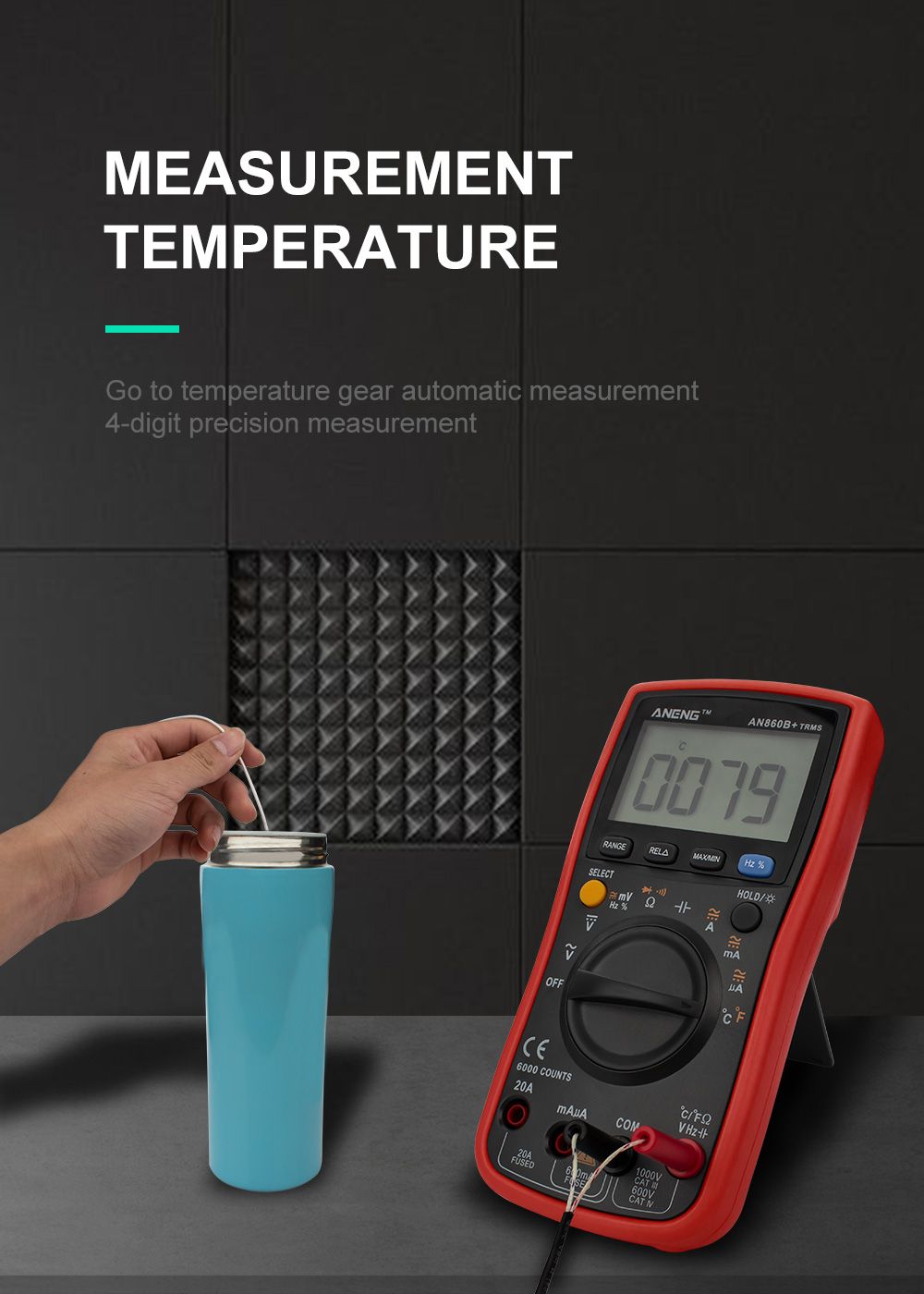

Temperature: <400℃ ± (1.0%+5), ≥400℃± (1.5%+15)

<752℉ ± (1.0%+5), ≥752℉± (1.5%+15)

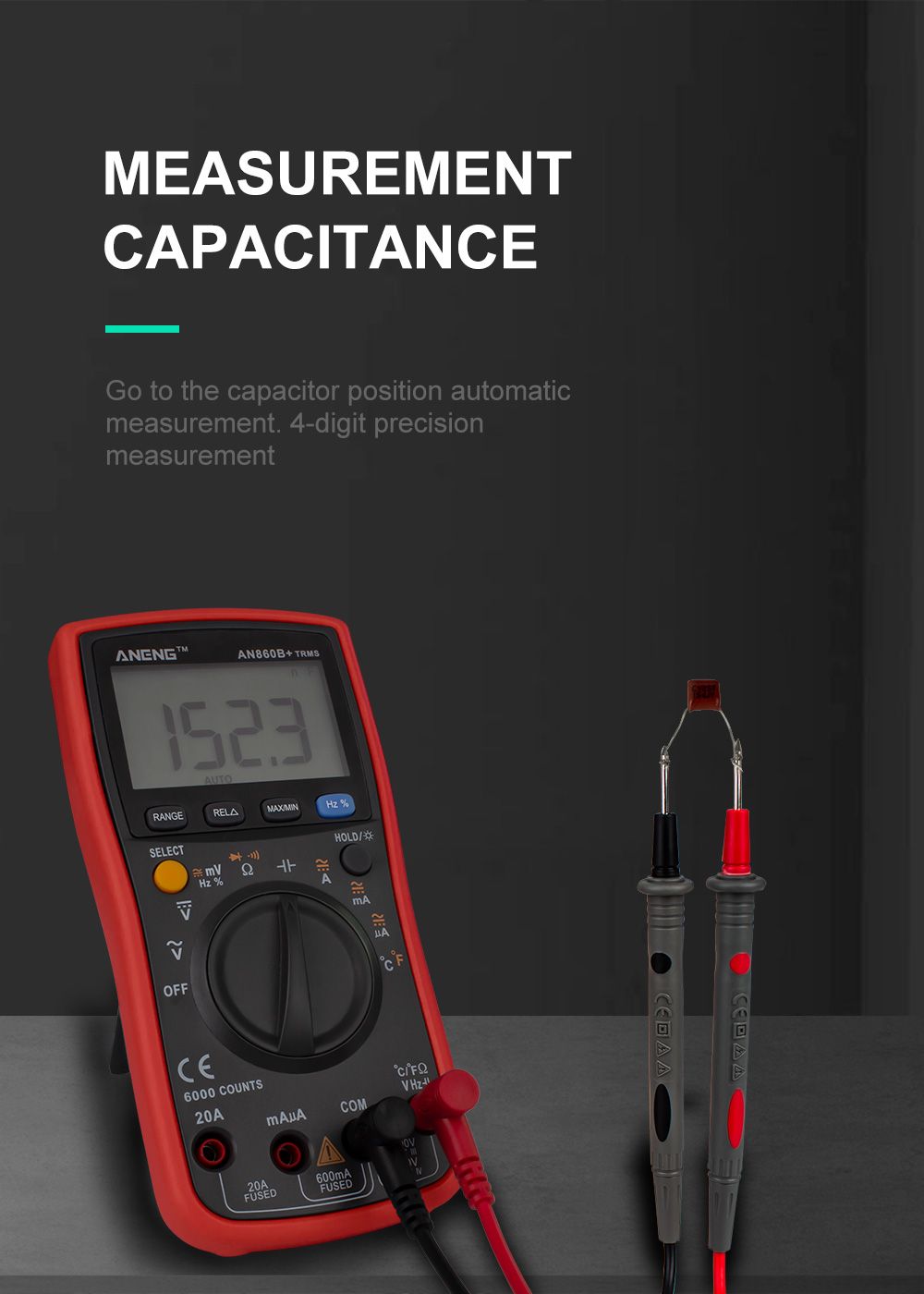

Capacitance: 10nF (±5.0+20),100nF/1uF/10uF/100uF (±2.0%+5), 1000uF/10000uF (±5.0%+5)

DC volt:600mV(±1.0%+10), 6V/60V/600V/1000V(±0.5%+3)

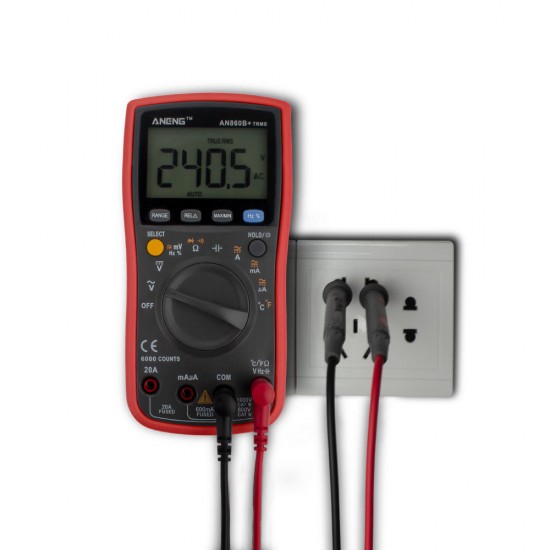

AC volt:600mV(±3.0%+3), 6V/60V/600V/750V(±1.0%+3)

ACA/DCA:600uA/6000uA(±1.5%+3), 60mA/600mA/20A(±1.5%+3)

Resistance: 600Ω(±0.5%+3),6K/60K/600K/6M(±0.5%+2),60MΩ(±1.5%+3)

Cycle:1% to 99%(±1%)

Measurement mode: Double-integral style A/D transform

Over range indication: OL

Working environment: 0~40℃, relative humidity < 80%

Supply power: 2 x AA batteries (Not included )

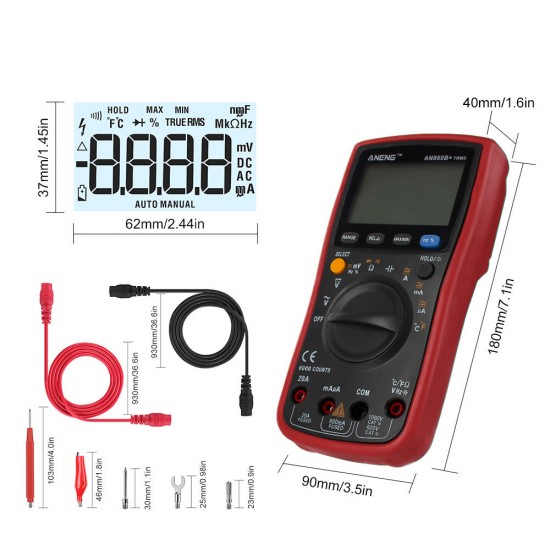

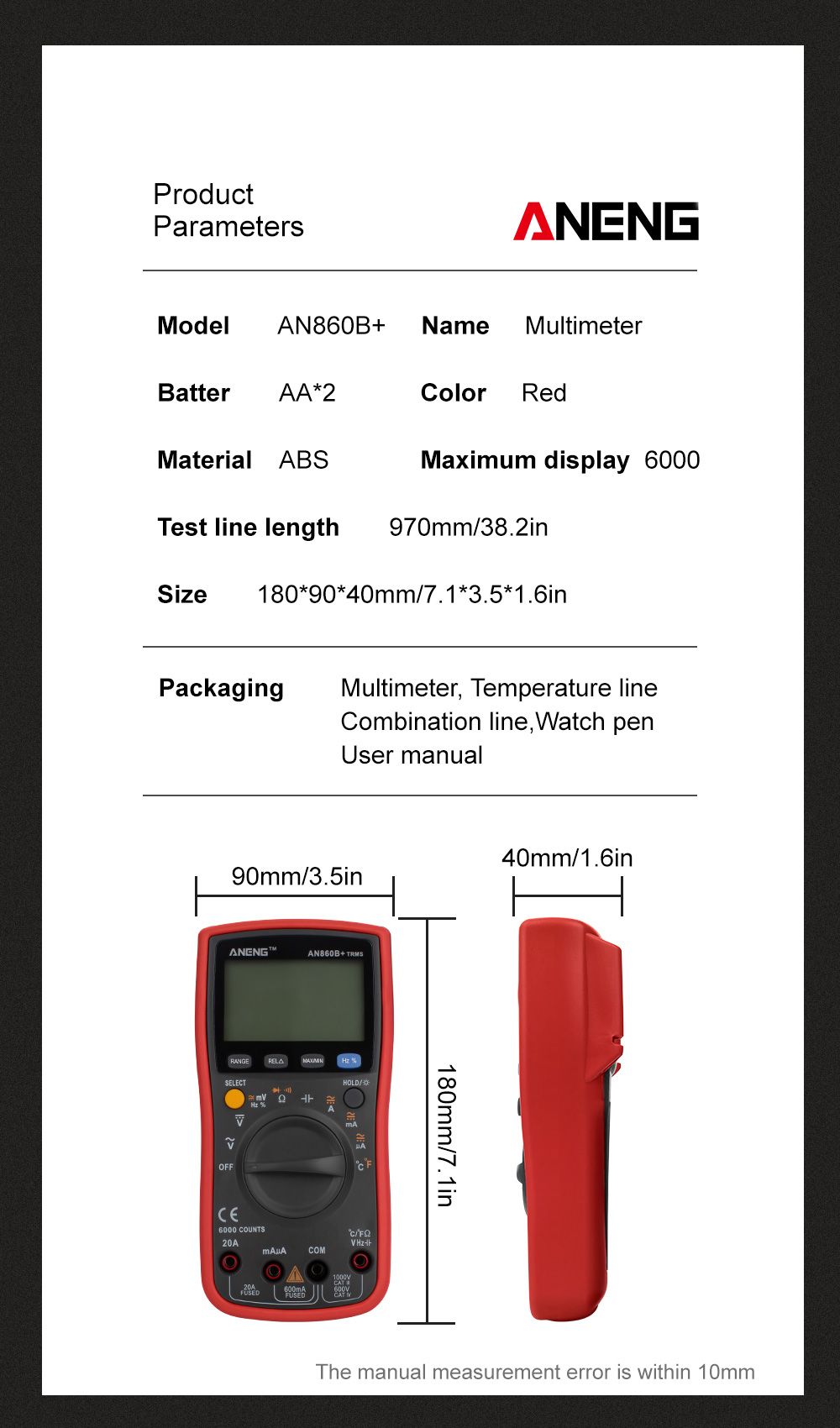

Dimension: 180 x 90.5 x 45mm

Weight: 420g

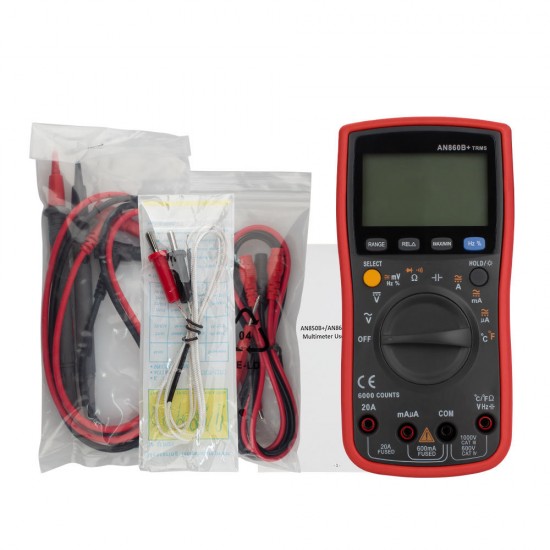

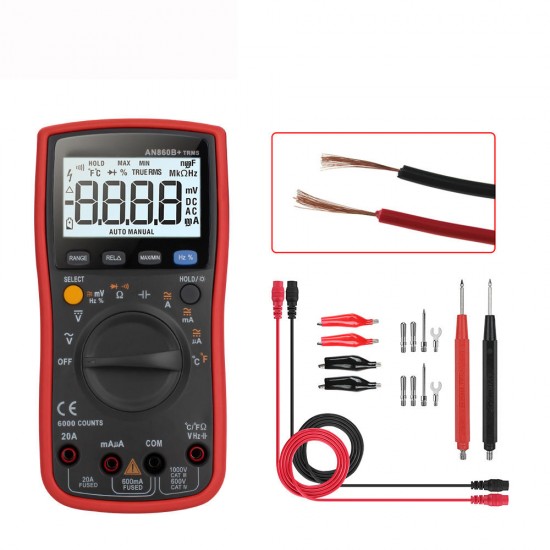

Package included:

1 x ANENG ANG860B+ Backlight Digital Multimeter

2 x Electronic Probe

1 x TP01K Thermocouple

1 x English Manual

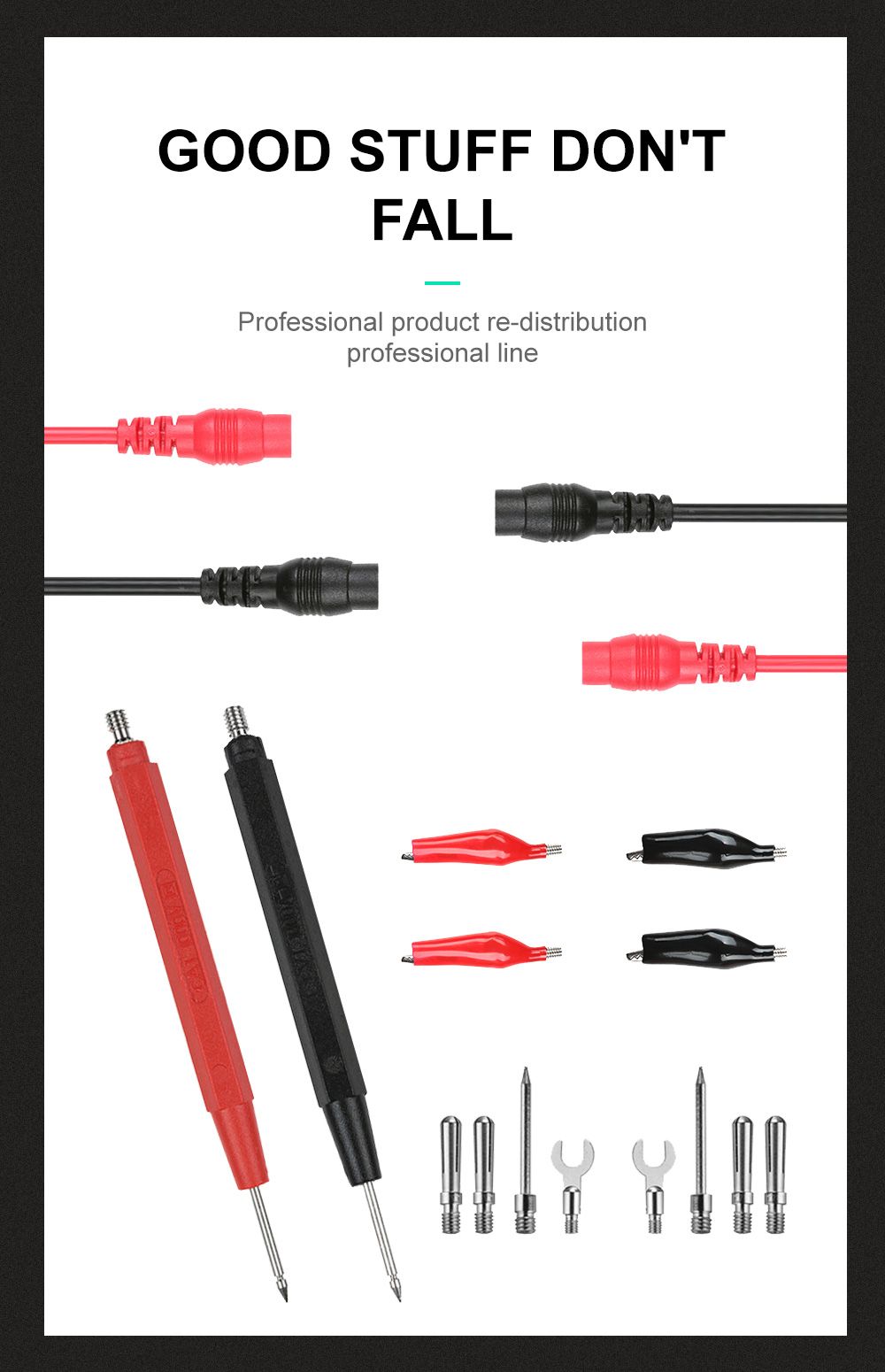

1 x Test Lead Set

Details pictures:

ANENG-AN860B-LCD-6000-Counts-Digital-Multimeter-Backlight-ACDC-Current-Voltage-Resistance-Frequency--1451307
