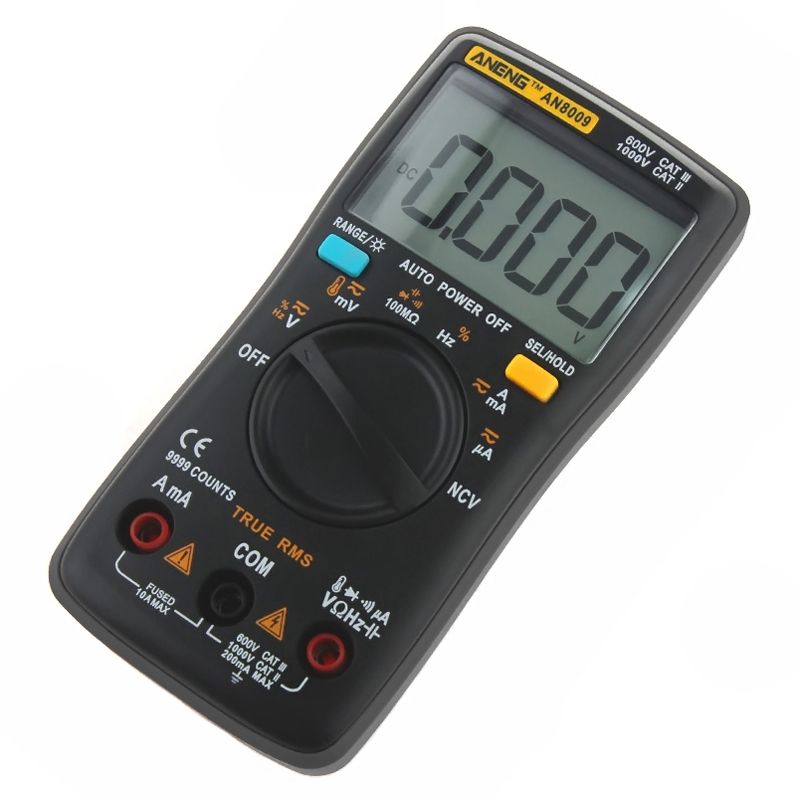

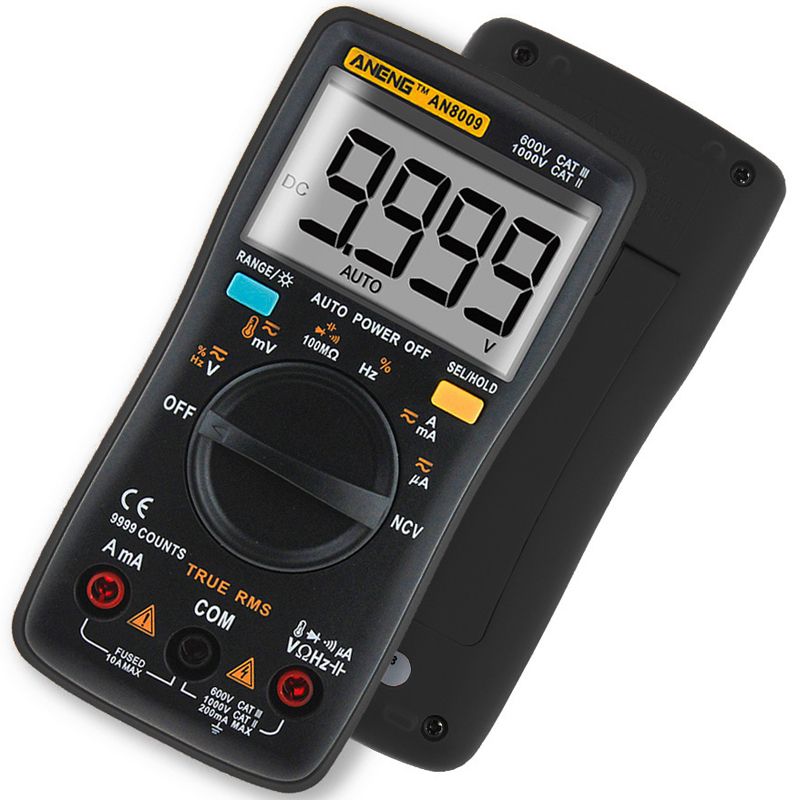

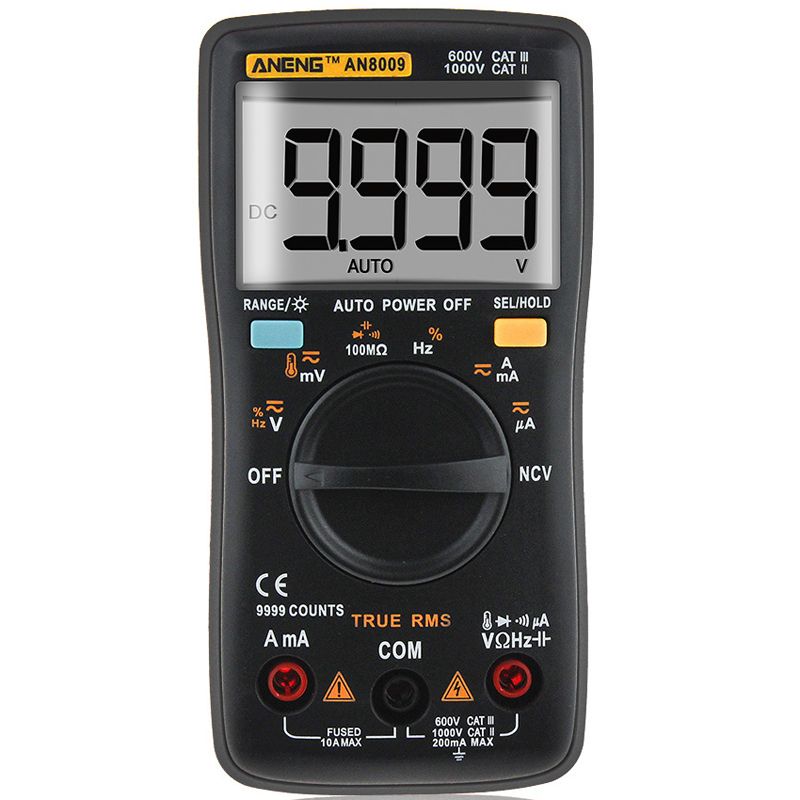

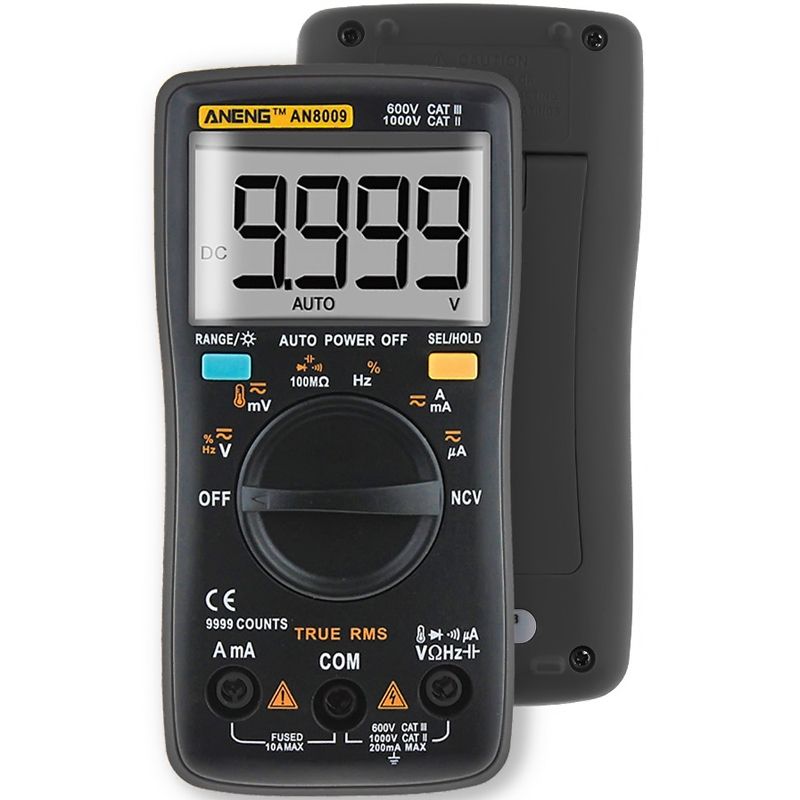

AN8009 True RMS NCV Digital Multimeter 9999 Counts Backlight AC DC Current Voltage Resistance Frequency Capacitance Temperature Tester °°Black
- Stock: In Stock
- Model: EB004174
- SKU: EB004174
| Function | Range | Resolution | Accuracy | MAX. Value | Other |
| DC Voltage (V) | 999.9mV | 0.1mV | ±(0.5%+3) | 999.9V | |
| 9.999V | 0.001V | ||||
| 99.99V | 0.01V | ||||
| 999.9V | 0.1V | ||||
| DC Voltage (mV) | 9.999mV | 0.001mV | 99.99mV | ||
| 99.99mV | 0.01mV | ||||
| AC Voltage (V) | 999.9mV | 0.1mV | ±(1.0%+3) | 750V | 40Hz-1kHz |
| 9.999V | 0.001V | ||||
| 99.99V | 0.01V | ||||
| 750.0V | 0.1V | ||||
| AC Voltage (mV) | 9.999mV | 0.001mV | 99.99mV | ||
| 99.99mV | 0.01mV | ||||
| DC Current (mA&A) | 999.9mA | 0.1mA | ±(1.0%+3) | 9.999A | |
| 9.999A | 0.001A | ||||
| DC Current (μA) | 99.99μA | 0.01μA | ±(0.8%+3) | 999.9μA | |
| 999.9μA | 0.1μA | ||||
| AC Current (mA&A) | 999.9mA | 0.1mA | ±(1.2%+3) | 9.999A | 40Hz-1kHz |
| 9.999A | 0.001A | ||||
| AC Current (μA) | 99.99μA | 0.01μA | ±(1.0%+3) | 999.9μA | |
| 999.9μA | 0.1μA | ||||
| Resistance | 99.99Ω | 0.01Ω | ±(1.0%+3) | 99.99MΩ | |
| 999.9Ω | 0.1Ω | ±(0.5%+3) | |||
| 9.999kΩ | 0.001kΩ | ||||
| 99.99kΩ | 0.01kΩ | ||||
| 999.9kΩ | 0.1kΩ | ||||
| 9.999MΩ | 0.001MΩ | ±(1.5%+3) | |||
| 99.99MΩ | 0.01MΩ |
| Function | Range | Resolution | Accuracy | MAX. Value | Other | |||||||
| Capacitance | 9.999nF | 0.001nF | ±(5.0%+20) | 9.999mF | ||||||||
| 99.99nF | 0.01nF | ±(2.0%+5) | ||||||||||
| 999.9nF | 0.1nF | |||||||||||
| 9.999μF | 0.001μF | |||||||||||
| 99.99μF | 0.01μF | |||||||||||
| 999.9μF | 0.1μF | |||||||||||
| 9.999mF | 0.001mF | ±(5.0%+5) | ||||||||||
| Frequency | 99.99Hz | 0.01Hz | ±(0.1%+2) | 9.999MHz | ||||||||
| 999.9Hz | 0.1Hz | |||||||||||
| 9.999kHz | 0.001kHz | |||||||||||
| 99.99kHz | 0.01kHz | |||||||||||
| 999.9kHz | 0.1kHz | |||||||||||
| 9.999MHz | 0.001MHz | |||||||||||
| Duty Cycle | 1%~99% | 0.1% | ±(0.1%+2) | |||||||||
| Diode | √ | |||||||||||
| Continuity | √ | |||||||||||
| NCV | √ | |||||||||||
| Temperature | -20~1000℃ | 1℃ | ±(2.5%+5) | 1000℃ | ||||||||
| -4~1832℉ | 1℉ | |||||||||||
| 1832℉ | ||||||||||||
| General Specifications | ||||||||||||
| LCD Display | 9999 Counts | |||||||||||
| Ranging | Auto/ Manual | |||||||||||
| Material | Renhotec | |||||||||||
| Update Rate | 3 Times/Second | |||||||||||
| Ture RMS | √ | |||||||||||
| Back Light | √ | |||||||||||
| Data Hold | √ | |||||||||||
| Low Battery Alert | √ | |||||||||||
| Auto Power Off | √ | |||||||||||
| Mechanical Specifications | ||||||||||||
| Dimension | 130 x 65 x 32mm | |||||||||||
| Weight | 114g | |||||||||||
| Battery Type | 2 x 1.5V AAA Batteries (NOT included) | |||||||||||
| Warranty | One year | |||||||||||
| Environmental Specifications | ||||||||||||
| Operating | Temperature | 0~40℃ | ||||||||||
| Humidity | <75% | |||||||||||
| Storage | Temperature | -20~60℃ | ||||||||||
| Humidity | <80% | |||||||||||

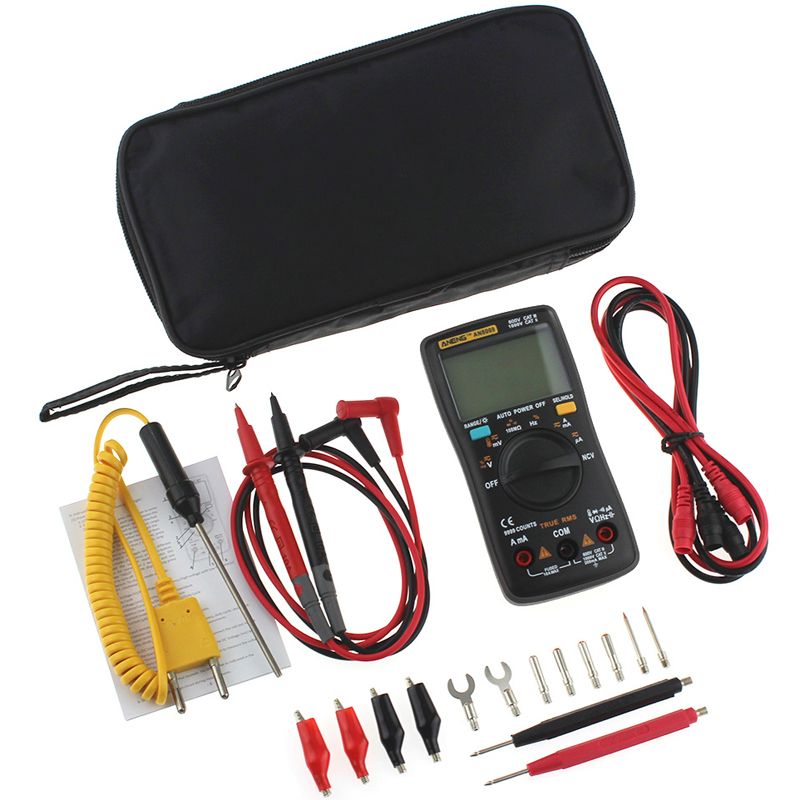

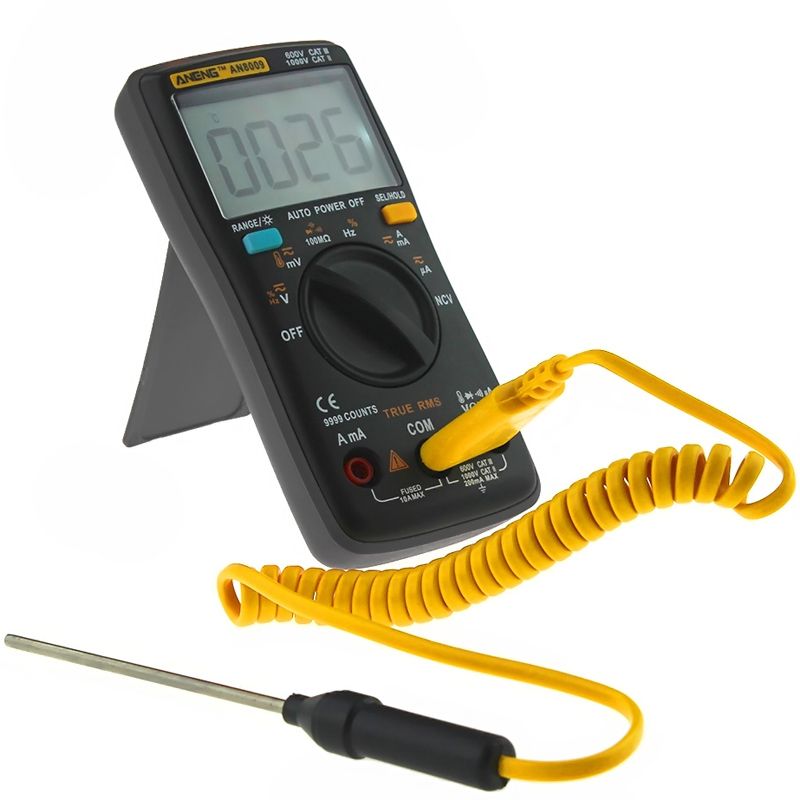

1 x Temperature Test Probe
1 x English User Manual
1 x Portable Bag
