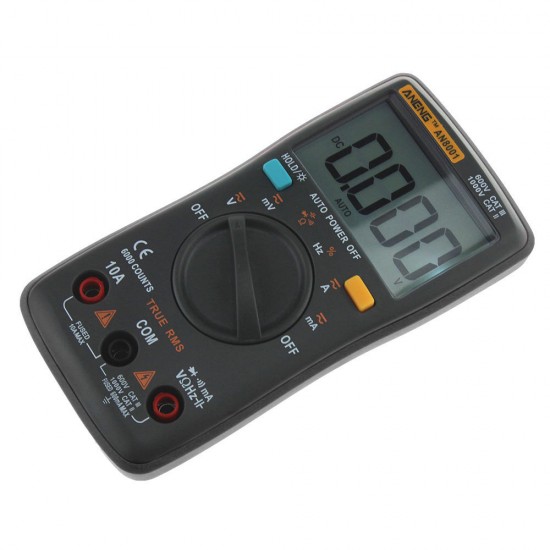

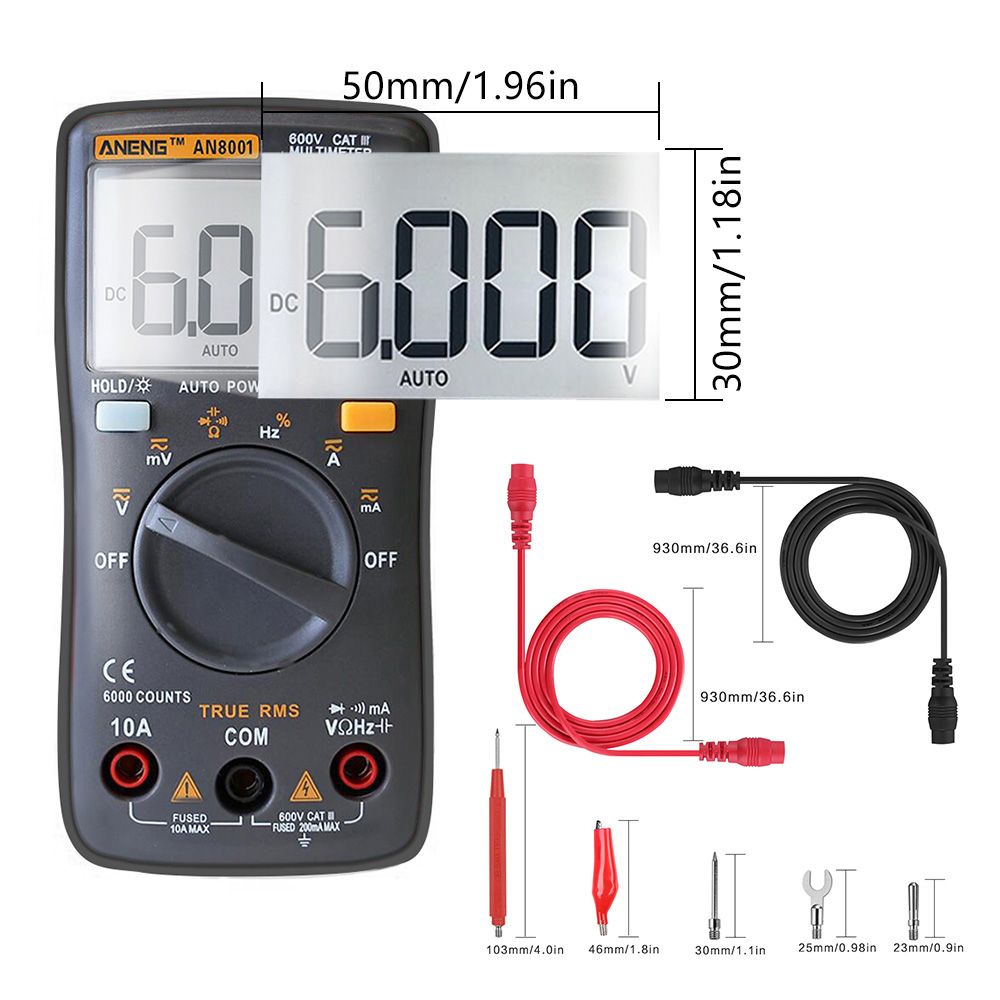

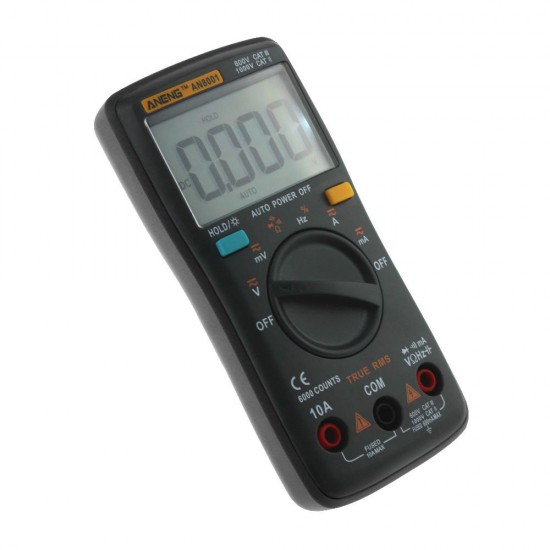

AN8001 RMS Digital Multimeter 6000 Counts Backlight AC/DC Ammeter Voltmeter Resistance Capacitance Frequency Tester

Based on 0 reviews. - Write a review

$19.65

Ex Tax: $19.65

Stock: In Stock
Model: EB004409
SKU: EB004409

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Features:

It is a Auto-ranging digital multimeter using double-integral style A/D transform as the core.

Can be used to measures AC/DC voltage, AC/DC current, resistance, capacitance, diode and continuity testing,frequency and etc.

The products are battery powered.

They are characterized by stable function and high reliability, with the features of overload protection and LCD display for clear reading, are an ideal tools for lav,factory,radio fans and family use.

Specifications:

Function	Range	Resolution	Accuracy	MAX.Value	Other
DC Voltage	6.000V	0.001V	±(0.5%+3)	1000V	Input Resistance:10MΩ
	60.00V	0.01V
	600.0V	0.1V
	1000V	1V
	60.00mV	0.01mV		600mV
	600.0mV	0.1mV		600mV
AC Voltage	6.000V	0.001V	±(1.0%+3)	750V	Input Resistance:10MΩ(600mV range, >60MΩ) Frequency Response: 40Hz-1kHz
	60.00V	0.01V
	600.0V	0.1V
	750V	1V
	60.00mV	0.01mV		600mV
	600.0mV	0.1mV		600mV
DC Current	6.000A	0.001A	±(1.2%+3)	10A	MAX.Current: 10A(no more than 15 seconds) No Voltage input at this mode Frequency Response(AC): 40Hz-1kHz
	10.00A	0.01A		10A
	60.00mA	0.01mA		600mA
	600.0mA	0.1mA		600mA
AC Current	6.000A	0.001A	±(1.5%+3)	10A
	10.00A	0.01A		10A
	60.00mA	0.01mA		600mA
	600.0mA	0.1mA		600mA

Resistance	600.0Ω	0.1Ω	±(0.5%+3)	60MΩ	No Voltage input at this mode
	6.000kΩ	0.001kΩ
	60.00kΩ	0.01kΩ
	600.0kΩ	0.1kΩ
	6.000MΩ	0.001MΩ
	60.00MΩ	0.01MΩ	±(1.5%+3)
Capacitance	9.999nF	0.001nF	±(5.0%+20)	9.999mF	No Voltage input at this mode
	99.99nF	0.01nF	±(2.0%+5)
	999.9nF	0.1nF
	9.999μF	0.001μF
	99.99μF	0.01μF
	999.9μF	0.1μF
	9.999mF	0.001mF	±(5.0%+5)
Frequency	99.99Hz	0.01Hz	±(0.1%+2)	9.999MHz
	999.9Hz	0.1Hz
	9.999kHz	0.001kHz
	99.99kHz	0.01kHz
	999.9kHz	0.1kHz
	9.999MHz	0.001MHz
Duty Cycle	1%~99%	0.1%	±(0.1%+2)
Diode	√(DC forward current is 5mA, voltage is 3V)				No Voltage input at this mode
Continuity	√(no more than 50Ω)				No Voltage input at this mode

Measurement methods: double integral A/D converter

Share ratio: 1% to 99% (+ 1%)

Ultra range display: OL

Working environment: 0~40 C, relative humidity < 80%

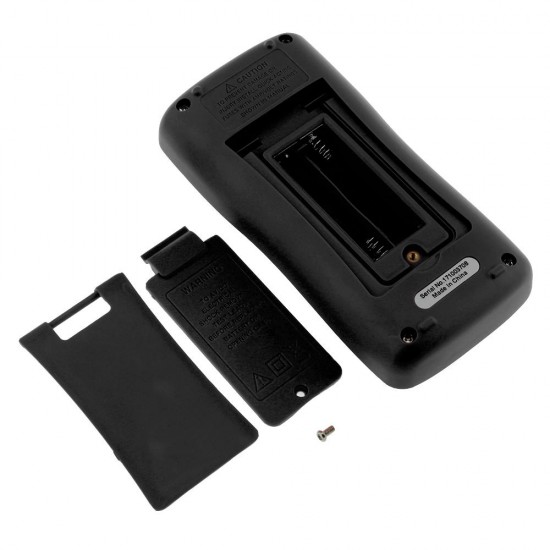

Power supply voltage: 3V (AAA x2 Pcs 1.5V)

Color: Black

Weight: 200g

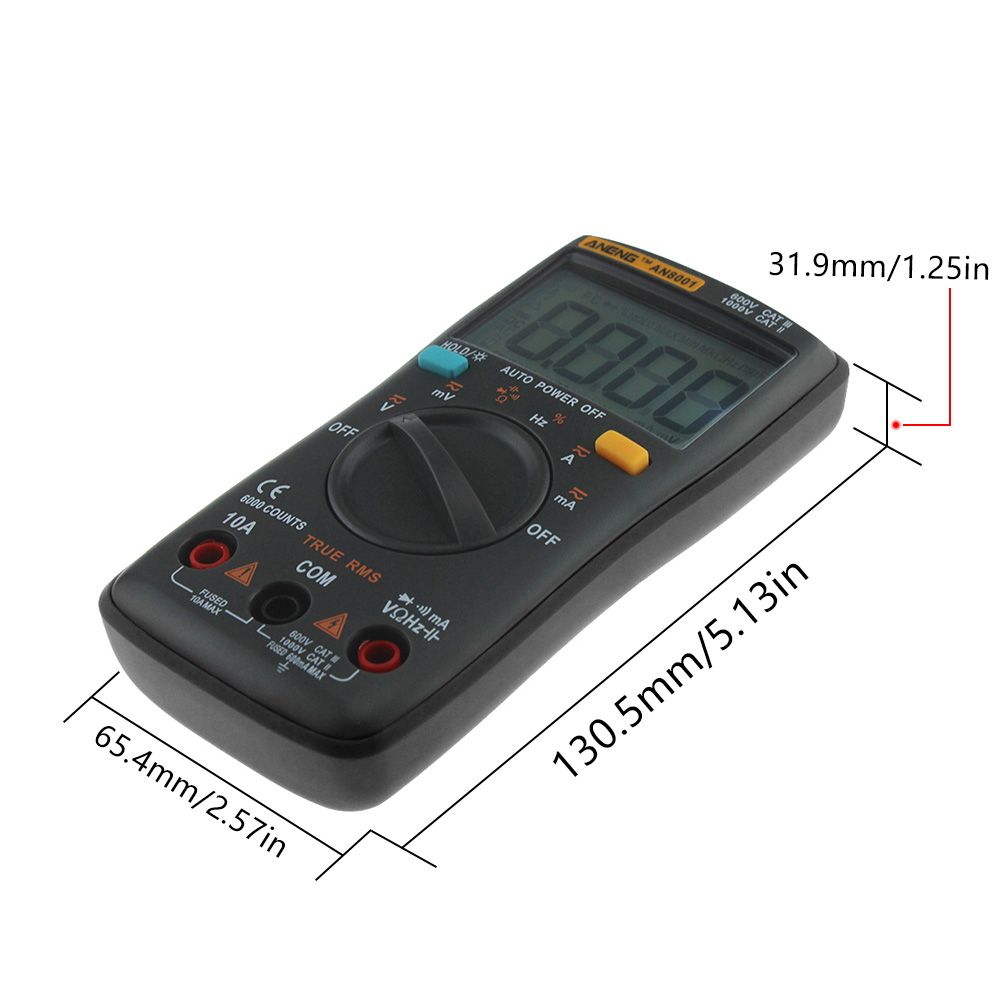

Size: 130 x 65 x 30mm

Package size:140 x 80 x 40mm

Special note: (when the digital multimeter is in the millivolt position, the value jumps.)

Millivolts value jump is a normal phenomenon.

The display of the multimeter MV gear is not 0, mainly the following.

1: If the ambient temperature and humidity in the air change too much.

2: There is a strong electric field or magnetic field interference around.

3: The multimeter itself has failed.

When the MV gear of multimeter appears to be non-zer'o, it can be judged as follows:

Dial the multimeter to the mV position.The corresponding input hole is inserted into the red and black pen line.Directly connect the red and black test leads.At this time, the multimeter displays "0000" to judge that the non-return phenomenon of the multimeter is due to environmental factors. The non-return to zer'o in this state does not affect the use of the multimeter, but it is recommended to eliminate environmental interference factors so as not to affect the measurement accuracy and produce erroneous measurements result.

ANENG-AN8001-Black-Professional-True-RMS-Digital-Multimeter-6000-Counts-Backlight-ACDC-Ammeter-Voltm-1451182

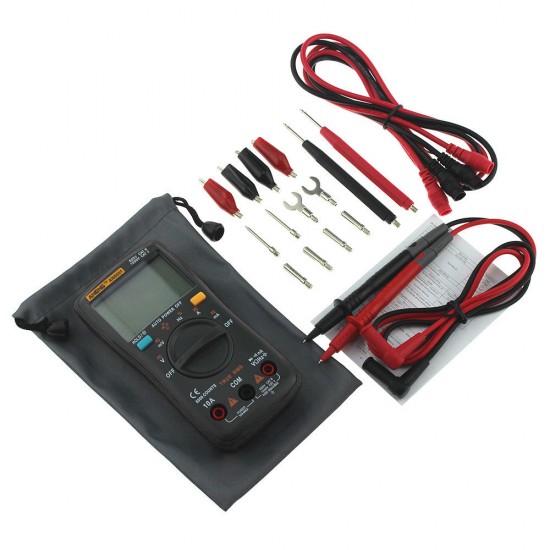

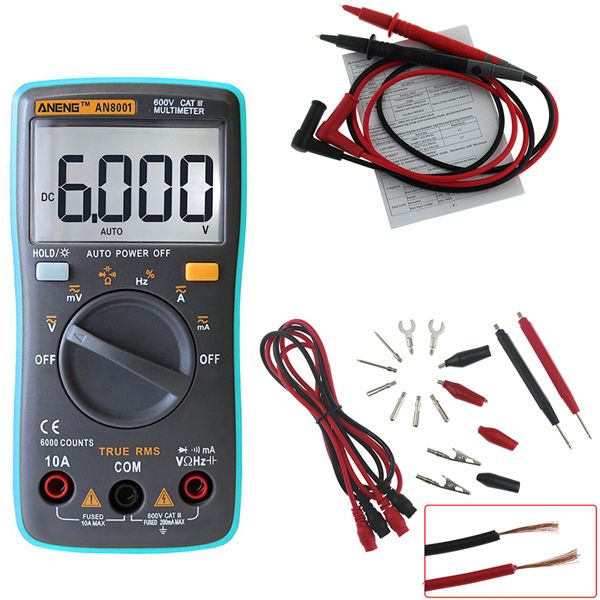

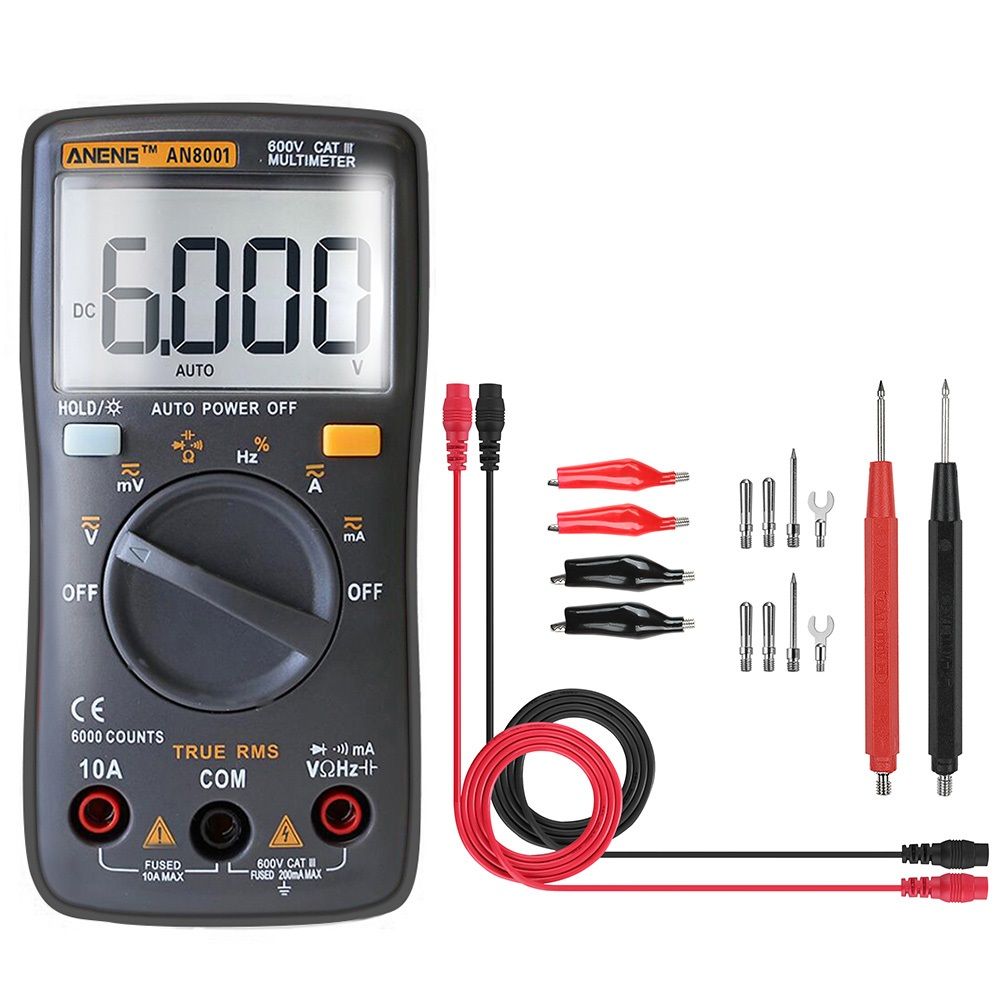

Package included:

1 x ANENG AN8001 Digital Multimeter

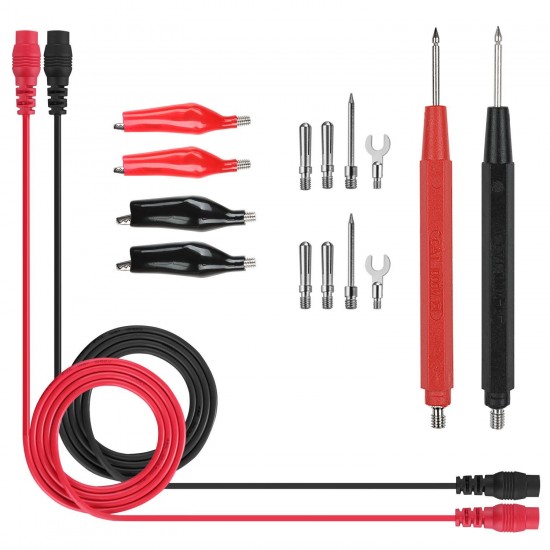

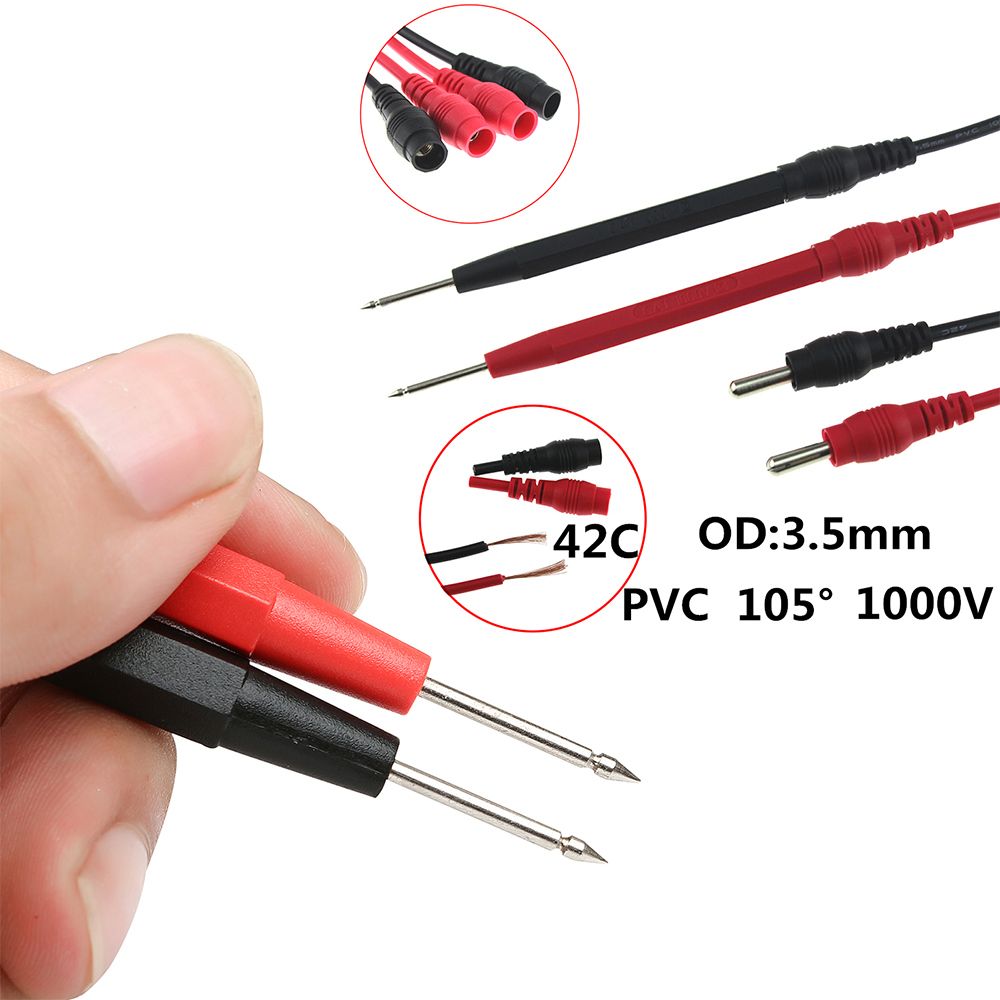

1 x 1pair Electronic Probe

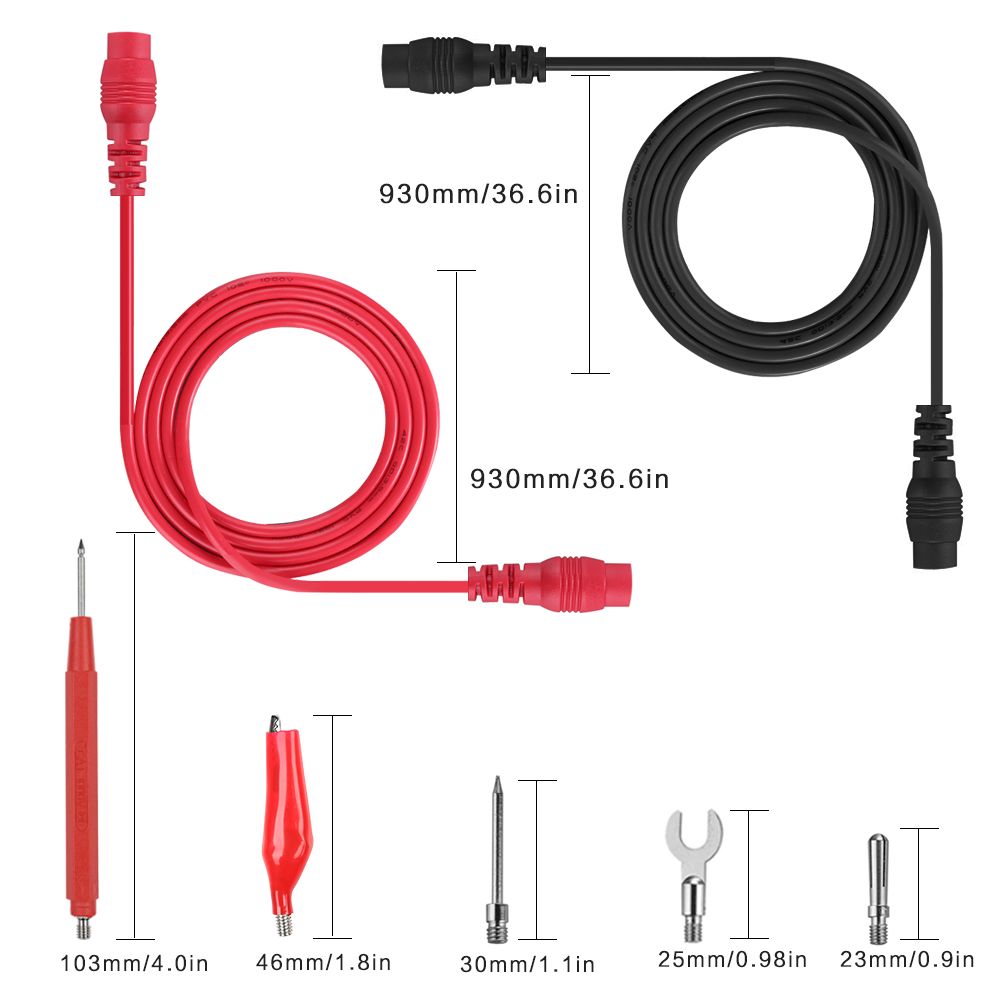

1 x Test Lead Set

1 x English User Manual

1 x Portable Bag

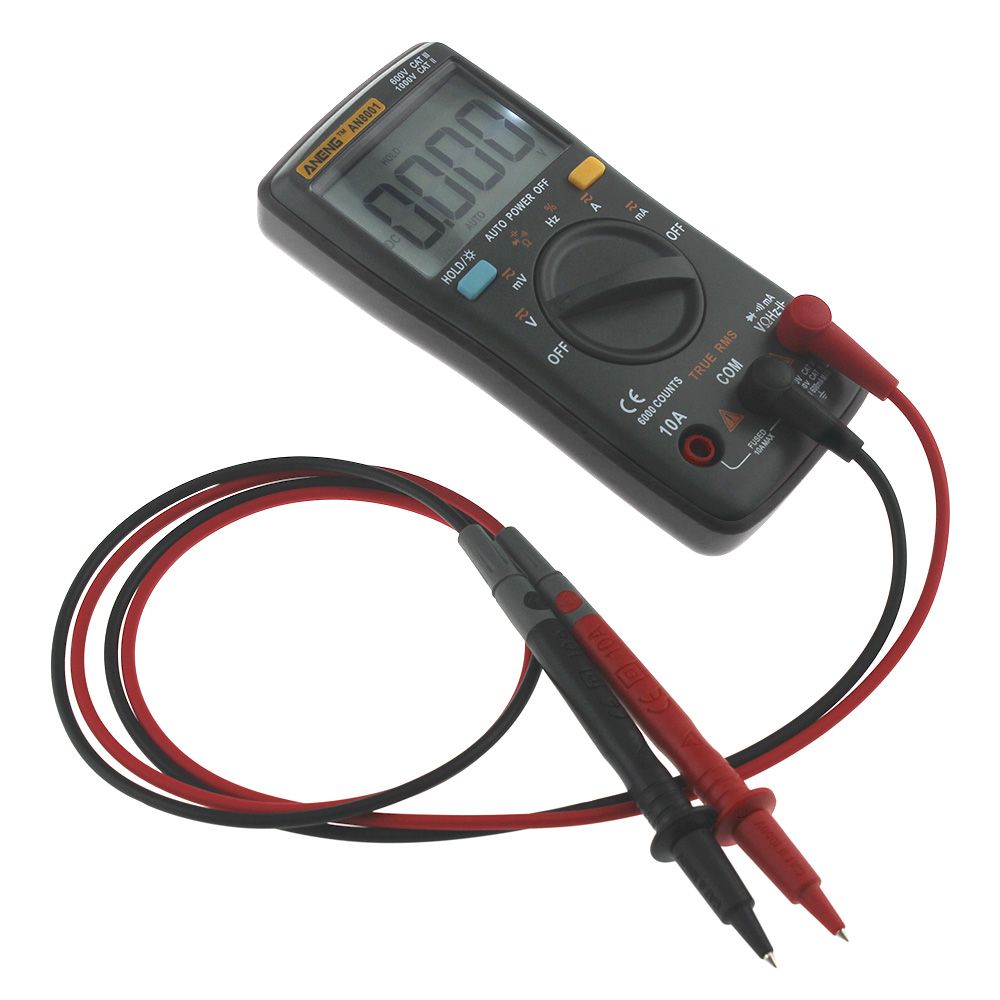

Detail Pictures:
